Professional Helical Reducers 2 Speed Drive Right Angle Box 1 Hp 4 Way Bevel Lower Stand Gearbox for Wholesales
Discover the Raydafon Professional Helical Reducers 2 Speed Drive Right Angle Box – a powerhouse of efficiency and durability designed for wholesale applications. This 1 Hp 4 Way Bevel Lower Stand Gearbox is engineered to deliver superior performance in a compact, right-angle design, making it an ideal solution for space-constrained environments.
Crafted with precision, the gearbox features high-quality materials and state-of-the-art helical gear technology, ensuring smooth operation, reduced noise, and extended service life. Its versatile 2-speed drive offers flexibility for various applications, from industrial machinery to agricultural equipment, providing users with reliable power transmission and torque efficiency.
The Raydafon gearbox is perfect for professionals seeking a robust, high-performance solution that stands up to rigorous demands. Whether it's for enhancing production lines, powering conveyor systems, or integrating into complex machinery, this gearbox is designed to meet and exceed expectations.
Experience the difference with Raydafon's commitment to excellence. Our gearbox not only solves the challenge of finding a durable and efficient power transmission solution but also elevates your operations with its standout performance. Its unique combination of compact design, dual-speed functionality, and superior build quality sets it apart from the competition, offering unmatched value for wholesalers and end-users alike.
Choose Raydafon for a gearbox that brings reliability, efficiency, and innovation to your projects. It's not just a purchase; it's an investment in quality that pays dividends in performance and satisfaction.

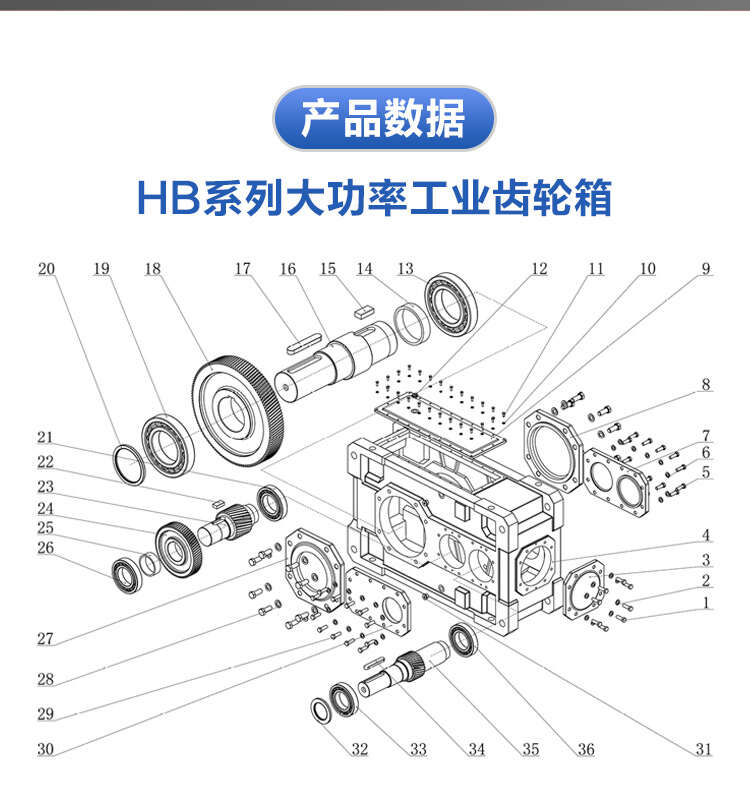

HB standard industrial gearbox
1. Adopting the structure of the sound absorption box, the large surface area of the box body and the large fan, cylindrical gear and spiral gear adopt advanced gear grinding technology, so that the temperature rise, noise reduction, and operation reliability of the whole machine are improved. The power increases.
2. The H and B series industrial gearboxes adopt a general design scheme to realize a universal box for parallel shafts and right-angle shafts. The types of parts are reduced and the specifications and models are increased.
3. H and B standard industrial gearboxes have 3~26 specifications. There are 1-4 stages of deceleration transmission, and the speed ratio is 1.25-450.

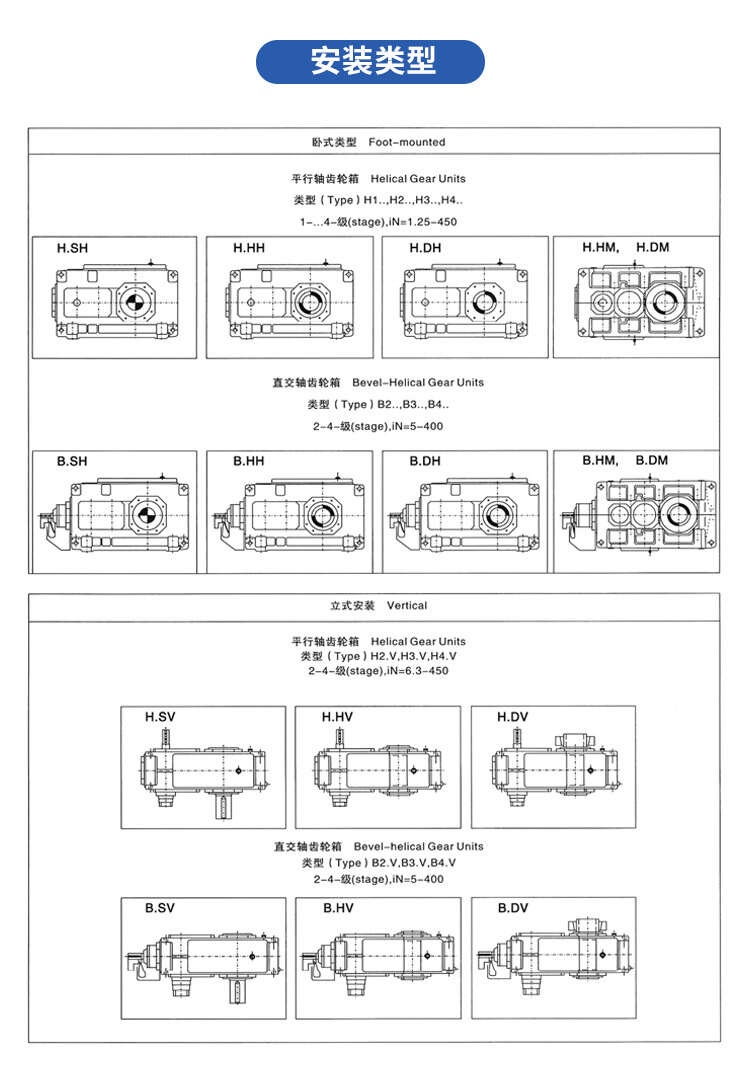

4. Installation method: base installation, hollow shaft installation, swing base installation, torque arm installation.
5. Input mode: motor connection flange, shaft input.
6. Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft connected by expansion plate, hollow shaft connected by spline, solid shaft connected by spline and solid shaft connected by flange.
7. Backstop can be equipped according to customer requirements. Combine with R and K series to get larger speed ratio.
Technical Parameters:
Speed ratio range: H series 1.25-450, B series 5-400
Torque range: H series 2-900 kNm. B series 5.8-900 kNm
Power range: H series 4-5000 kW, B series 2.8-3000kW
Overview of H and B series industrial gearboxes
1) H and B gearboxes adopt general design schemes, which can be transformed into industry-specific gearboxes according to customer needs.
2) Achieve parallel shaft, right-angle shaft, vertical, Chen Bu-type general box, reduce the types of parts and increase the specifications and models.
3) Adopting the structure of the sound-absorbing box, the large surface area of the box and the large fan, the cylindrical gear and the spiral cone-i wheel all adopt advanced gear grinding technology, so that the temperature rise of the whole machine, the reduction of noise, and the reliability of operation are improved. , The transmission power increases.
4) Input mode: motor connection flange, shaft input.
5) Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft connected by expansion plate, hollow shaft connected by spline, solid shaft connected by spline and solid shaft connected by flange.

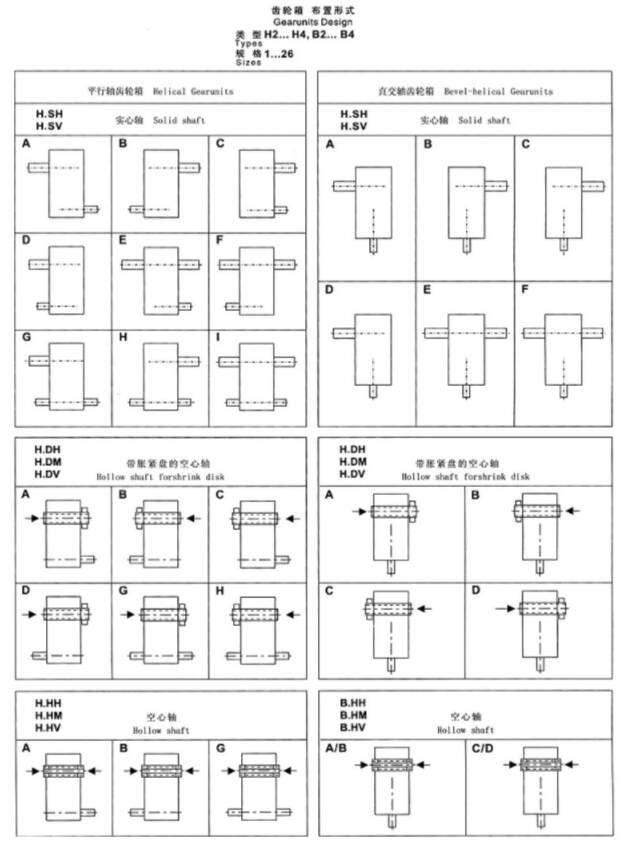

6) Installation method: horizontal, vertical, swing base, torsion arm type.
7) 11, B series production. nIII has 1^-26 type specifications, reduction transmission stages are 1-4, speed ratio 1.25 -450, and CR, K, 5 series combination to get a larger speed ratio
Ratio | 25-4000 |
Output speed | 1.7-1200r/mkin |
Output Torque | Up to 470000Nm |
Motor power | 2.52-5366KW |
Mounted Form | HORIZONTAL MOUNTING, VERTICAL MOUNTING,AXIS MOUTING, SHRINK DISK MOUTING |
For more models or customization, please click here!

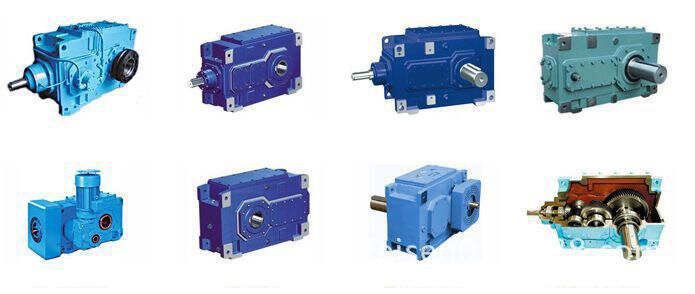

Click on the picture below for details
Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )
Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
