Premium HRC Couplings for Industrial Applications
HRC couplings represent the pinnacle of power transmission technology, offering unmatched performance for demanding industrial environments. Engineered with precision and durability in mind, these robust couplings ensure optimal torque transmission while accommodating various shaft misalignments.
Key Technical Specifications
- Material: High-grade alloy steel with surface hardening treatment
- Torque Capacity: 50 Nm to 25,000 Nm
- Bore Diameter Range: 10mm to 300mm
- Max Speed: 10,000 RPM (varies by size)
- Operating Temperature: -30°C to +120°C
- Protection Class: IP55 standard (higher available)
HRC Coupling Performance Comparison
| Model | Max Torque (Nm) | Max RPM | Weight (kg) | Axial Displacement |
|---|---|---|---|---|
| HRC-100 | 1,200 | 5,800 | 4.2 | ±1.5mm |
| HRC-200 | 3,500 | 4,200 | 9.8 | ±2.0mm |
| HRC-300 | 8,000 | 3,000 | 18.5 | ±2.5mm |
HRC Coupling Installation Guide
Proper installation ensures maximum lifespan and performance. Follow these steps:
- Clean shaft ends thoroughly before assembly
- Align shafts within specified tolerances
- Mount coupling halves without forcing components
- Torque fasteners to recommended specifications
- Verify smooth rotation before final operation
HRC Coupling FAQ Section
Q: What maintenance does HRC Coupling require?

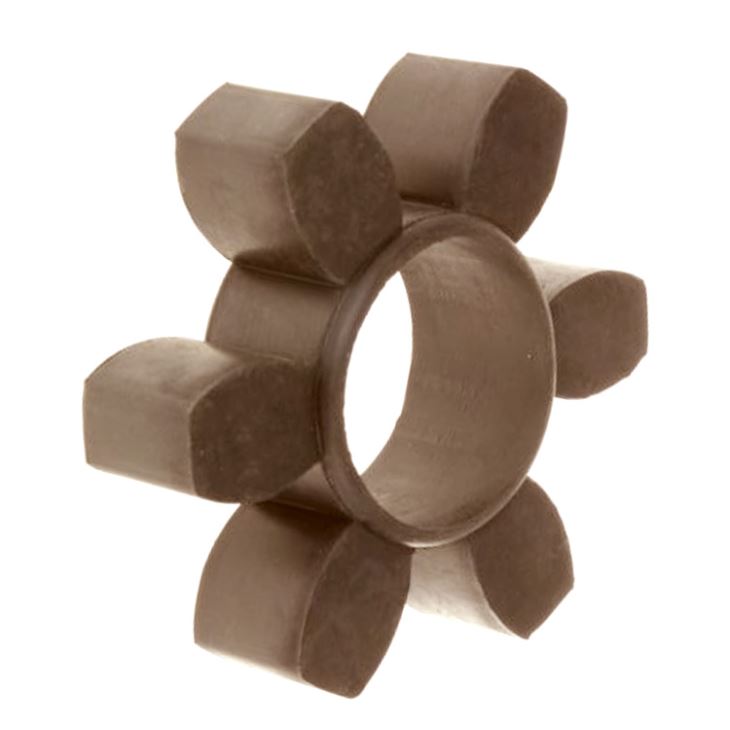

A: HRC Couplings are designed for minimal maintenance. We recommend visual inspections every 3 months and lubrication of moving parts annually. In harsh environments, increase inspection frequency. The elastomer elements typically last 3-5 years depending on operating conditions.
Q: Can HRC Couplings compensate for parallel misalignment?
A: Yes, HRC Couplings excel at handling parallel misalignment up to 0.3mm per 100mm of coupling diameter. The unique design combines radial flexibility with torsional stiffness, making them ideal for applications where perfect alignment isn't feasible.
Advanced Features
- Torsionally stiff design minimizes backlash
- Vibration damping reduces equipment fatigue
- Fail-safe construction prevents catastrophic failure
- Corrosion-resistant options for marine applications
Application Industries
| Industry | Common Uses | Preferred Model |
|---|---|---|
| Manufacturing | CNC machines, conveyors | HRC-100 Series |
| Energy | Turbines, generators | HRC-300 Series |
| Marine | Propulsion systems | HRC-200 Marine |
HRC Coupling FAQ Section
Q: How do I select the right HRC Coupling size?
A: Proper HRC Coupling selection requires considering four factors: torque requirements, shaft sizes, operational speed, and environmental conditions. Our engineering team provides free sizing assistance. Generally, choose a coupling with torque capacity 20% above your calculated requirements for safety margin.
Performance Advantages
The HRC Coupling system delivers superior performance through:
- 30% longer service life than standard couplings
- 50% faster installation with our patented clamp system
- Near-zero maintenance requirements
- Vibration reduction up to 60% compared to rigid couplings
Technical Support Services
Our support includes:
- Free application engineering consultation
- On-site installation training
- Emergency replacement program
- Predictive maintenance planning
HRC Coupling FAQ Section
Q: Are HRC Couplings suitable for high-temperature applications?
A: Standard HRC Couplings operate reliably up to 120°C. For extreme environments, we offer high-temperature versions using special alloys and lubricants that perform at 180°C continuously. These feature ceramic insulation and thermal expansion compensation for consistent performance across temperature ranges.
Why Choose HRC Couplings?
| Feature | HRC Advantage | Industry Standard |
|---|---|---|
| Service Life | 5-7 years | 2-3 years |
| Misalignment Capacity | ±3° angular | ±1.5° angular |
| Shock Load Absorption | Excellent | Good |
