Jaw Coupling
Jaw Couplings are essential components in power transmission systems, offering flexibility, durability, and vibration damping. They are widely used in industrial machinery, pumps, compressors, and conveyor systems. In this guide, we will explore the key features, benefits, and specifications of Jaw Couplings, along with a detailed FAQ section to address common queries.
Jaw Coupling Overview
A Jaw Coupling consists of three main parts: two hubs with curved jaws and an elastomeric spider insert. This design allows for smooth torque transmission while compensating for misalignment and reducing vibration. Below are the key advantages of Jaw Couplings:
- High torque capacity with minimal backlash
- Excellent vibration damping properties
- Easy installation and maintenance
- Resistant to harsh environmental conditions
- Available in various materials (aluminum, stainless steel, and engineering plastics)
Technical Specifications
Our Jaw Couplings come in multiple sizes and configurations to meet different industrial requirements. Below is a detailed table outlining the specifications:
| Model | Bore Size (mm) | Max Torque (Nm) | Max RPM | Material |
|---|---|---|---|---|
| JC-100 | 10-25 | 45 | 5000 | Aluminum |
| JC-200 | 15-35 | 85 | 4500 | Stainless Steel |
| JC-300 | 20-50 | 120 | 4000 | Nylon-Reinforced |
| JC-400 | 25-60 | 180 | 3500 | Cast Iron |
Applications of Jaw Coupling
Jaw Couplings are versatile and can be used in various industries:
- Pumps & Compressors: Ensures smooth operation with minimal vibration.
- Conveyor Systems: Handles misalignment while maintaining torque transmission.
- Industrial Fans: Reduces wear and tear caused by shaft misalignment.
- Packaging Machinery: Provides precise motion control with low backlash.
Jaw Coupling FAQ Section
FAQ #1: How do I select the right Jaw Coupling for my application?
To choose the correct Jaw Coupling, consider the following factors: torque requirements, shaft size, operating speed, and environmental conditions. Check the manufacturer's specifications to ensure compatibility with your machinery. If uncertain, consult an engineer or supplier for assistance.
FAQ #2: What maintenance is required for Jaw Couplings?
Jaw Couplings are low-maintenance, but periodic inspections are recommended. Look for wear on the elastomeric spider and ensure the hubs are securely fastened. Replace the spider insert if cracks or deformation are detected. Lubrication is generally not required.
FAQ #3: Can Jaw Couplings handle angular misalignment?
Yes, Jaw Couplings are designed to accommodate slight angular and parallel misalignments. However, excessive misalignment may lead to premature wear. For optimal performance, align the shafts as closely as possible within the manufacturer’s recommended tolerances.
Conclusion
Jaw Couplings are reliable and efficient solutions for power transmission challenges. With their ability to dampen vibrations and tolerate minor misalignments, they enhance the lifespan of industrial machinery. By selecting the appropriate model and performing routine checks, you can maximize performance and minimize downtime.
- View as
Jaw / Spider Couplings
Discover the unparalleled precision and durability of Raydafon's Jaw / Spider Couplings, engineered to deliver seamless torque transmission and vibration damping in a wide range of mechanical applications. Crafted with high-quality materials and innovative design, these couplings are the ideal solution for connecting two shafts while compensating for misalignment, ensuring smooth operation and extended equipment life. Whether for industrial machinery, automotive systems, or robotics, Raydafon's Jaw / Spider Couplings stand out for their exceptional performance, reliability, and ease of installation. Designed for engineers, manufacturers, and DIY enthusiasts alike, these couplings transform complex mechanical challenges into simple, efficient solutions. Experience the difference with Raydafon – where cutting-edge technology meets user-friendly design, solving your alignment and vibration issues with unmatched elegance and efficiency. Choose Raydafon for couplings that not only meet but exceed expectations, offering a unique blend of durability, flexibility, and precision that sets them apart from the competition.
Backlash Free Jaw Couplings
Introducing the Raydafon Backlash Free Jaw Couplings – the ultimate solution for precision motion control in your machinery. Designed for engineers and manufacturers who demand reliability and efficiency, these couplings stand out for their ability to transmit torque smoothly, without any backlash, ensuring your operations run seamlessly.
Crafted from high-quality materials, the Raydafon Backlash Free Jaw Couplings are built to last, offering superior durability and performance even in the most demanding conditions. Their innovative design not only minimizes maintenance requirements but also maximizes productivity, making them an indispensable component in automation, packaging, and CNC machinery.
What sets the Raydafon couplings apart is their unique ability to provide zero backlash, a critical feature for applications requiring high precision. Unlike standard couplings, they ensure accurate positioning and repeatability, reducing wear and tear on machinery components. This translates to longer equipment life and lower operational costs for our users.
Ideal for professionals in industries where precision is non-negotiable, such as robotics, aerospace, and medical equipment manufacturing, these couplings promise to enhance your machinery's performance. Experience the difference with Raydafon – where innovation meets reliability. Upgrade your equipment today and feel the peace of mind that comes with unmatched precision and durability.

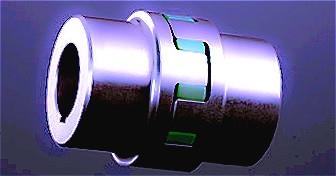

Stainless Steel Jaw Coupling
Discover the Raydafon Stainless Steel Jaw Coupling, a premium solution designed for precision and durability in mechanical power transmission. Perfect for engineers, maintenance professionals, and industrial applications, this coupling ensures a seamless connection between shafts, offering unmatched reliability and performance. Crafted from high-quality stainless steel, it boasts exceptional resistance to corrosion and wear, making it ideal for harsh environments. Its innovative jaw design minimizes vibration and misalignment, extending the lifespan of your machinery. Whether it's for manufacturing, automotive, or heavy-duty machinery, the Raydafon Stainless Steel Jaw Coupling delivers superior strength and flexibility. Experience the difference with a product that not only meets but exceeds expectations, providing peace of mind and operational efficiency. Its unique combination of durability, precision engineering, and ease of installation sets it apart from competitors, making it the go-to choice for professionals who refuse to compromise on quality. Choose Raydafon for a coupling solution that empowers your machinery to perform at its best, every day.
EP Jaw Coupling
Discover the EP Jaw Coupling by Raydafon, a premier solution for precision power transmission in various industrial applications. Designed to deliver unmatched performance, the EP Jaw Coupling is your go-to choice for connecting shafts in machinery, ensuring smooth and efficient operation. Crafted from high-quality materials, this coupling boasts durability and flexibility, making it resistant to wear and tear under demanding conditions. Its innovative design allows for easy installation and maintenance, saving you time and reducing downtime. Whether you're in manufacturing, automotive, or any sector requiring reliable power transmission, the EP Jaw Coupling is engineered to meet your needs. Experience the difference with Raydafon's commitment to excellence. Say goodbye to misalignment and vibration issues, and hello to seamless, efficient machinery operation. The EP Jaw Coupling stands out from the competition with its superior design, material quality, and performance reliability. Elevate your machinery's performance today with Raydafon's EP Jaw Coupling – where innovation meets reliability.

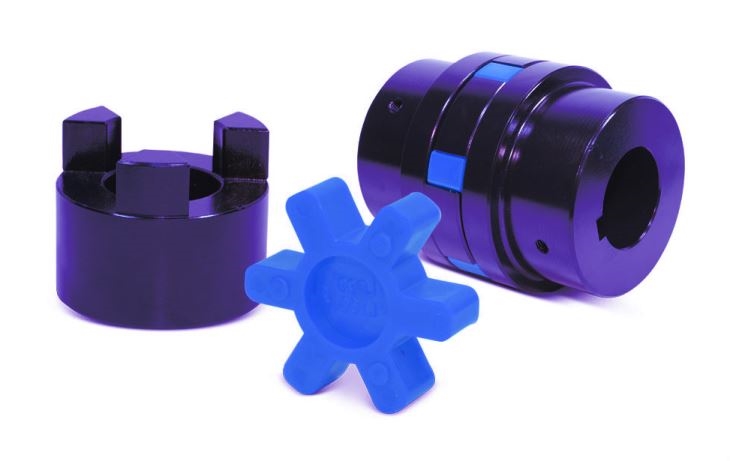

Elastomer Coupling / Jaw / For Shafts / Aluminum
Discover the Raydafon Elastomer Coupling / Jaw / For Shafts / Aluminum, a premier solution for professionals seeking reliability and precision in mechanical power transmission. Designed for those who demand the best, this coupling stands out for its superior aluminum construction and elastomer jaw design, ensuring a perfect balance between flexibility and strength. Whether it's for industrial machinery, automotive applications, or any scenario requiring efficient torque transmission, the Raydafon coupling is engineered to exceed expectations. Its core advantages include exceptional durability, minimal maintenance, and vibration damping capabilities, making it an indispensable component for engineers and technicians alike. Imagine the confidence of knowing your machinery operates smoothly, without the worry of misalignment or wear. That's the peace of mind Raydafon offers. What sets us apart? Our commitment to quality and innovation means you're not just buying a coupling; you're investing in a solution that enhances performance and longevity. Upgrade to Raydafon and experience the difference precision engineering can make.

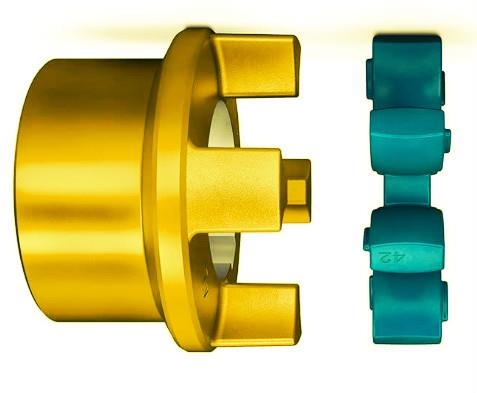

Elastic Coupling Torsionally Flexible Jaw Sleeve And Shear Pin
