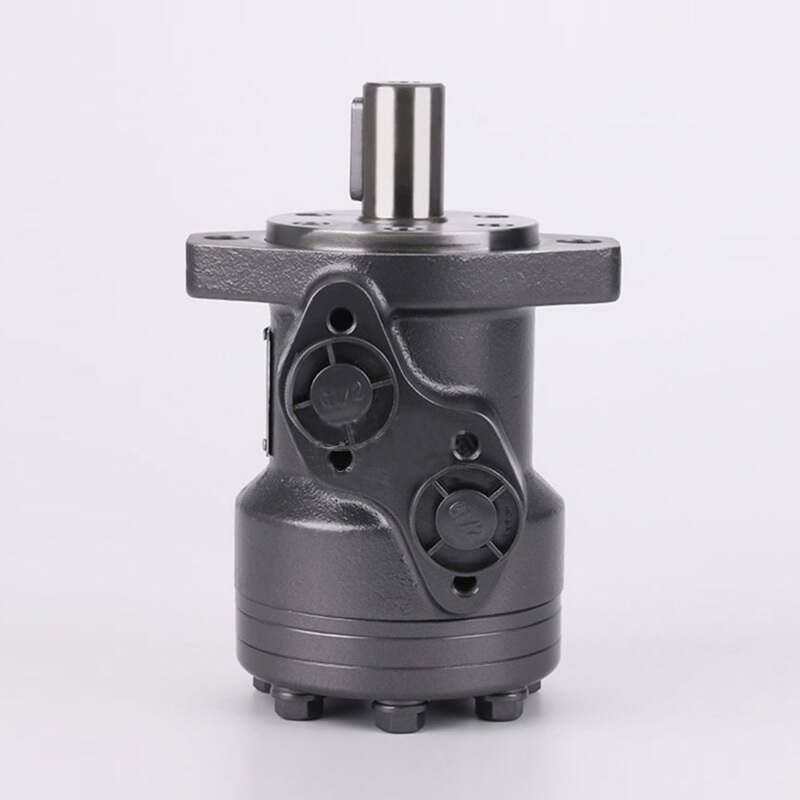

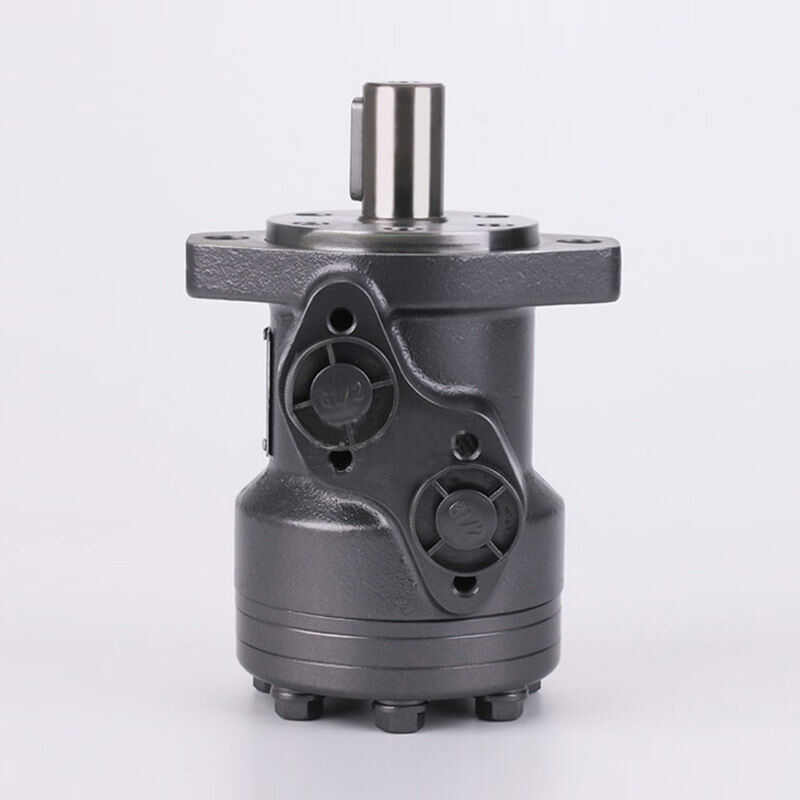

BM2 Series Orbital Hydraulic Motor

The BM2 Series Orbital Hydraulic Motor by Raydafon is a powerhouse of efficiency and reliability, designed to meet the demanding needs of modern hydraulic systems. Whether you're in construction, agriculture, or manufacturing, this motor stands as a testament to innovation, offering unparalleled performance where it matters most. Crafted with precision, the BM2 Series boasts a robust design that ensures durability and longevity, even in the toughest conditions. Its advanced hydraulic technology delivers smooth operation and high torque at low speeds, making it the ideal choice for a wide range of applications. What sets the BM2 Series apart is its exceptional energy efficiency and minimal maintenance requirements, saving you time and money in the long run. Designed for professionals who refuse to compromise on quality, this motor not only meets but exceeds expectations, providing a seamless and powerful operation that enhances productivity. The satisfaction of a job well done, the reliability in critical moments, and the peace of mind knowing you've chosen the best – that's the Raydafon promise. With the BM2 Series Orbital Hydraulic Motor, you're not just buying a product; you're investing in a solution that propels your operations forward. Discover the difference today and experience the pinnacle of hydraulic motor technology.

Send Inquiry

Product Description

BM2 series orbital hydraulic motor is a kind of shaft distribution hydraulic motor. The series motor uses a column-mounted rotating stator pair, which has a structure that works under high pressure and can automatically compensate, so that the whole machine has high efficiency, good retention and long working life. Its characteristics:
• The use of advanced stator parameters design, low starting pressure, high efficiency, and good retention, smooth operation.
• The use of high-pressure shaft seal, can carry high back pressure, allowing series, parallel use.
• Special design of linkage shaft structure, long service life of motor.
• Special flow distribution system parameter design to meet low noise requirements.
• The motor is compact and easy to install.

Type			BM2	BM2	BM2	BM2	BM2	BMR2	BM2	BM2
				BM2H	BM2H	BM2H	BM2H	BM2H	BM2H	BM2H	BM2H
				BMRWN	BMRWN	BMRWN	BMRWN	BMRWN	BMRWN	BMRWN	BMRWN
				25	40	50	63	80	100	125	160
Actual displacement (cm³/rev.)			25	39.4	49	62.7	78.7	97.3	122.7	158
Maximum speed	Rated	1300	985	790	615	670	542	430	330
(Rpm)	Continuous	1550	1100	990	780	743	598	476	375
	Intermittent	1780	1380	1210	947	940	763	605	470
Maximum torque	Rated	42	75	94	120	150	186	235	320
(N.M)	Continuous	42	75	94	120	190	238	300	380
	Intermittent	58	91	120	153	220	272	343	430
	Peak	71	112	145	186	233	289	365	460
Maximum output power	Continuous	5.5	8.5	9.5	15	12.5	13	12.5	12.5
(KW)	Intermittent	7	9.8	11.2	17	15	15	14.5	14
Maximum operating pressure difference	Rated	12.5	14	14	14	14	14	14	14
(MPa)	Continuous	12.5	14	14	14	17.5	17.5	17.5	17.5
	Intermittent	16.5	16.5	17.5	17.5	20	20	20	20
	Peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5
Maximum flow	Rated	35	40	40	40	55	55	55	55
(L/min)	Continuous	40	45	50	50	60	60	60	60
	Intermittent	45	55	60	60	75	75	75	75

* The rated speed and torque refer to the output value under the rated flow and pressure.
* Continuous value refers to the maximum value that the displacement motor can work continuously.
* The intermittent value refers to the maximum value of the displacement motor working for 6 seconds in 1 minute.
* The peak value refers to the maximum value of the displacement motor working for 0.6 seconds in 1 minute.

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
