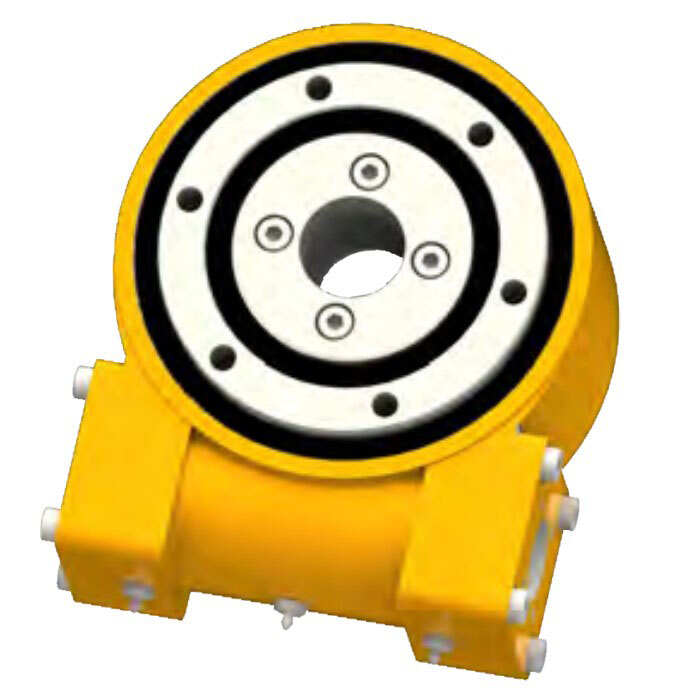

High Quality FGE5 Slewing Drive Speed Reducer Truck Mixers Low Price Guarantee Planetary Gearing Arrangement Machinery
Discover the Raydafon High Quality FGE5 Slewing Drive Speed Reducer, the ultimate solution for truck mixers seeking unparalleled performance and durability. Designed with precision and built to last, this planetary gearing arrangement machinery stands out for its exceptional quality, efficiency, and low price guarantee. Whether you're in construction, mining, or any heavy-duty industry requiring reliable mixing solutions, the FGE5 is engineered to meet your needs.
The core of the FGE5's superiority lies in its advanced planetary gearing arrangement, ensuring smooth operation, reduced wear, and extended service life. Its robust design and high-quality materials make it resistant to harsh working conditions, providing you with a dependable reducer that won't let you down. This slewing drive speed reducer is not just a piece of machinery; it's a game-changer for professionals who demand the best.
Imagine the confidence and peace of mind that comes with knowing your equipment can handle the toughest jobs without faltering. That's the difference the Raydafon FGE5 brings to your operations. Its unique combination of performance, durability, and affordability sets it apart from the competition, making it the smart choice for savvy professionals.
Choose Raydafon's FGE5 Slewing Drive Speed Reducer for your truck mixers and experience the perfect blend of innovation, reliability, and value. It's not just an investment in your machinery; it's an investment in your success.
Low Price Guaranteed Quality FGE Series FGE5 Slewing Drive Reducer For Truck Mixers
Slewing Drive Reducer
The Slewing Drive Reducer is a general-purpose gearbox that can handle both radial and axial loads. These machines produce high rotational torque. There are two types of Slewing Drive Reducers: open and closed. The open type is more flexible and convenient for the machine, and has a short maintenance lifecycle. On the other hand, the closed type has a long maintenance lifecycle, but is better for environments with little change and low pollution.
Slewing drives are a type of reduction transmission mechanism
Slewing drives are a type of drive mechanism that enables a machine to turn at a controlled rate. These mechanisms are designed for use in large equipment and come in several different configurations. They can be single, double, or hourglass shaped. They are used to add additional functionality to equipment, such as rotating forklifts or cable winders.
The principle of a slewing drive involves a horizontal screw meshing with a gear placed perpendicular to the screw's axis. The screw then turns, and the gear rotates with it, translating the screw's axial movement force to a radial gear, which magnifies the output torque.
They are a gearbox that can handle radial or axial loads
A slewing drive reducer is a gearbox that can handle radially and axially rotating loads. These gearboxes come in a wide range of sizes and performance ranges, and feature multiple configurations. They are ideal for applications requiring rotational torque and load holding. Some types are even available with dual axes of rotation.
Slewing drives come in a variety of styles and are used in various applications. They are commonly used in heavy-duty flat-panel trucks and containers, automobile cranes, and small wind power stations. These gearboxes are also available with enclosed designs, which keep out dirt and protect workers from injuries in the workplace.
Slewing Drive Reducers are ideally suited for applications requiring high torque at low speeds. They offer high precision in rotating and positioning the load, and their zero-backlash design provides smooth operation. Slewing drives are especially suited for applications where high rotational torque and precision is needed. They are usually constructed of phosphor bronze or steel, or a material with similar wear properties.
They produce high rotational torque
Slewing Drive Reducers are the ideal solutions for applications that need high rotational torque at low speeds. These drives feature a zero-backlash design, allowing them to function at a high level of precision. They are commonly used in earth-moving equipment.
Slewing Drive Reducers are available in many different configurations. These include dual-axis and single-axis designs. They also come in hourglass configurations. In hourglass configurations, there are eleven gear teeth that work together to generate rotational torque. This feature allows for increased efficiency and torque generation. They are ideal for high torque applications that require precision positioning, low backlash, and high rotational accuracy.
Slewing Drive Reducers are a powerful and durable gearbox used in various types of utility equipment. They are typically made of a metal ball bearing component, durable housing, and gearing.
They are a general-purpose reduction transmission mechanism
Slewing drive reducers are a general-purpose reduction mechanism that combines a driving power source and a transmission mechanism. It uses a rotary bearing as the drive working part and a worm or gear to convert axial force into radial force. Slewing drives can also be used to amplify torque.
Slewing drives are used in many applications and are widely used in wind energy systems. They are used to convert axial movement to amplified radial movement for conversion to energy. They are also used in solar tracking systems, where they help maintain the optimal positioning of solar panels. They can also be used in mechanical lifts and hydraulic systems. They are made from steel and phosphor bronze, which provides a consistent layer of corrosion protection and strength. In some cases, phosphor bronze can be replaced by nickel, which provides increased strength.
They can be used to generate higher solar power output
Slewing Drive Reducers are a type of gearbox used in solar energy systems to increase solar power output. The gears in these units have multiple teeth that enable them to achieve high transmission torque and radial and axial loads. This gearbox type has an impressive overturning moment and is commonly used in solar photovoltaic power generation tracking systems. There are nine different models and 60 variations of this gearbox, which are powered by 24 V DC motors.
Slewing Drive Reducers are ready-to-install gearboxes. They contain a slewing ring or roller that transfers axial, radial, and tilting moment loads. They are also renowned for their compact size and easy installation. They are widely used in solar power generation systems, wind power generation systems, and aerial platforms. Slewing Drive Reducers are available in 10 primary sizes and three output reinforced support configurations.
Output torque | Lifting moment torque | Holding torque | Axial load | Radial load | Ratio | Backlash | Weight |
600 N.M | 1800 N.M | 5200 N.M | 76 KN | 23 KN | 62:1 | ≤0.20° | 16kg |
443 LBF.FT | 1328 LBF.FT | 3837 LBF.FT | 17084 LBF | 5170 LBF |
Front View

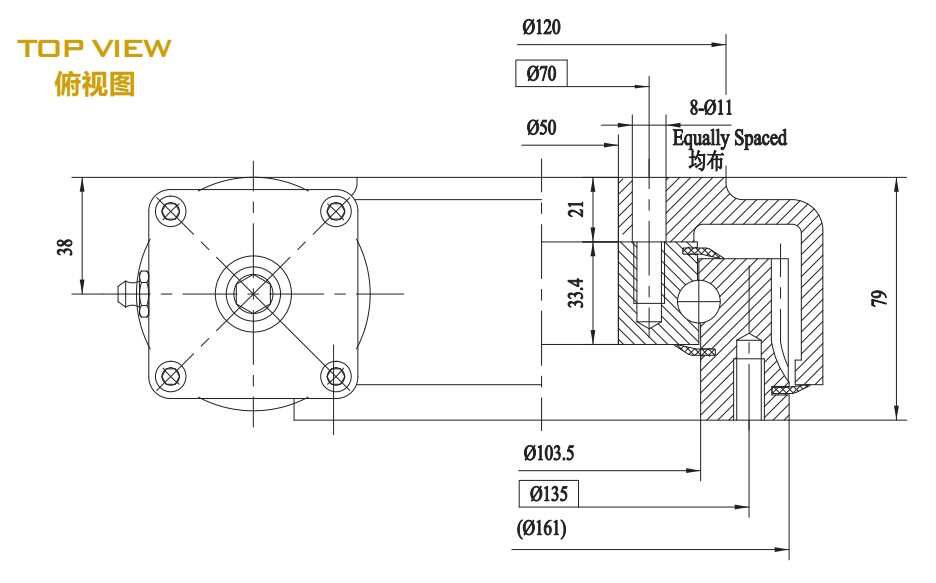

Top View
Note: customized design can be carried out according to customer requirements
Application
hzpt slewing drive is a gearbox designed to handle radial or axial loads using high rotational torque. In addition, the slewing ring bearing, at the heart of the drive, enables it to withstand high overhung or moment loads. A descendant of the "worm" screw, slewing drives are present in construction machinery, manufacturing, equipment and many other applications that require strength and precision.
The physics of the slew drive makes it a versatile solution for many applications. In operation, the slew drive's axial movement, or motion around its axis, interacts to create radial torque. The action occurs by meshing the grooves of the horizontal screw with the teeth of a perpendicular gear. While turning, the worm gear's axial movement transfers magnified torque force to the radial gear. The number of threads on the horizontal screw and the number of gears that interact will determine the speed ratio of the setup.
Slewing drives are available in many configurations depending on the task at hand. These may be single-axis or dual-axis turning in unison.
An hourglass configuration expands the capability from a single gear tooth to as many as 11 to create rotational torque by
contacting the worm screw. Multiple gear teeth interacting at once allows the equipment to be more efficient and generate more torque.
Slew drives work best for applications in which high torque can create precision positioning and rotational accuracy. This design results in a device which works smoothly and powerfully with minimal backlash.
Because of the power and dependability generated by slew drive technology, the functions of this engineering technology apply to many types of equipment. One particular use, for example, involves solar technology, tracking the sun's movements in perfect time to generate maximum energy output.
Any job requiring high load capacity and reliable positioning may require the implementation of slewing drive engineering.
Robust, smooth and consistent, slew drives have a distinct place in manufacturing, construction and many other venues. Based on a centuries-old engineering idea, slew drive-operated equipment can be simple or complex, depending upon the requirements.
Adding hydraulic, pneumatic or electric motors to single, double or hourglass design depends on the application. Other features such as brakes or self-locking features and open or closed chassis are among many options.
The list of active applications for slew drives is extensive. Several types of industries require some form of slew drive to make their operations more efficient. Equipment for mining, construction, metalworking and other applications that require unrelenting strength combined with faultless precision use slewing technology for safety and accuracy.
Powerful devices like aerial lifts, rotating forklifts, truck-mounted cranes, cable winders, fire trucks, hydraulic machinery and utility equipment depend on the safety and strength of slew drives.
Precision devices such as equipment, satellite dishes, solar trackers, printing presses and telescopic devices benefit from the absolute precision that slewing drives provide to be effective.
To judge what kind of slewing drive you need,you have to clear out the configuration of the slew drive and the purpose of the equipment, each unit will have differing specifications. When defining the type and capability of the slew drive, the following variables are calculated:
Gear ratios
Precision
Weight
Output
Tilting moment
Torque
Dynamic and static axial
Radial dynamic
The physics of the slew drive makes it a versatile solution for many applications. In operation, the slew drive's axial movement, or motion around its axis, interacts to create radial torque. The action occurs by meshing the grooves of the horizontal screw with the teeth of a perpendicular gear. While turning, the worm gear's axial movement transfers magnified torque force to the radial gear. The number of threads on the horizontal screw and the number of gears that interact will determine the speed ratio of the setup.
Slewing drives are available in many configurations depending on the task at hand. These may be single-axis or dual-axis turning in unison.
An hourglass configuration expands the capability from a single gear tooth to as many as 11 to create rotational torque by
contacting the worm screw. Multiple gear teeth interacting at once allows the equipment to be more efficient and generate more torque.
Slew drives work best for applications in which high torque can create precision positioning and rotational accuracy. This design results in a device which works smoothly and powerfully with minimal backlash.
Because of the power and dependability generated by slew drive technology, the functions of this engineering technology apply to many types of equipment. One particular use, for example, involves solar technology, tracking the sun's movements in perfect time to generate maximum energy output.
Any job requiring high load capacity and reliable positioning may require the implementation of slewing drive engineering.
Robust, smooth and consistent, slew drives have a distinct place in manufacturing, construction and many other venues. Based on a centuries-old engineering idea, slew drive-operated equipment can be simple or complex, depending upon the requirements.
Adding hydraulic, pneumatic or electric motors to single, double or hourglass design depends on the application. Other features such as brakes or self-locking features and open or closed chassis are among many options.
The list of active applications for slew drives is extensive. Several types of industries require some form of slew drive to make their operations more efficient. Equipment for mining, construction, metalworking and other applications that require unrelenting strength combined with faultless precision use slewing technology for safety and accuracy.
Powerful devices like aerial lifts, rotating forklifts, truck-mounted cranes, cable winders, fire trucks, hydraulic machinery and utility equipment depend on the safety and strength of slew drives.
Precision devices such as equipment, satellite dishes, solar trackers, printing presses and telescopic devices benefit from the absolute precision that slewing drives provide to be effective.
To judge what kind of slewing drive you need,you have to clear out the configuration of the slew drive and the purpose of the equipment, each unit will have differing specifications. When defining the type and capability of the slew drive, the following variables are calculated:
Gear ratios
Precision
Weight
Output
Tilting moment
Torque
Dynamic and static axial
Radial dynamic
For more details, please click here to contact us! | ||||||||
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
