Nylon Gear Coupling

Discover the unparalleled durability and flexibility of the Raydafon Nylon Gear Coupling, a premium solution designed for seamless power transmission in various mechanical applications. Crafted from high-grade nylon, this gear coupling stands out for its exceptional resistance to wear and tear, ensuring long-lasting performance even under the most demanding conditions. Its unique design allows for slight misalignments between connected shafts, reducing vibration and noise, thereby enhancing the overall efficiency of your machinery. Whether you're in the manufacturing, automotive, or any industry requiring reliable mechanical connections, the Raydafon Nylon Gear Coupling is your go-to choice. Experience the difference with a product that not only meets but exceeds expectations, providing a smooth, hassle-free operation that saves time and maintenance costs. Its lightweight yet robust construction offers an unbeatable combination of strength and versatility, setting it apart from traditional metal couplings. Choose Raydafon for a coupling solution that brings reliability, efficiency, and peace of mind to your operations.

Send Inquiry

Product Description

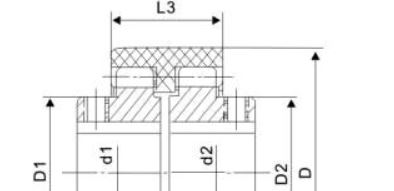

nylon gear coupling

Gear couplings are torsionally rigid and consist of hubs with multi crowned teeth at flank, tip and chamfering on teeth, gaskets, sleeve and O-rings. The hubs attach to the machinery shafts, and sleeves span the gap from one hub to the next. They are available in two designs – completely flexible and flexible/rigid.

The hub is the heart of any gear coupling. Hence manufacturers take great care to impart a superior design and mostly manufacture the hub on CNC machine for precision. Together with the tooth profile of the hub, these aspects enable the gear coupling to function well under all operating conditions with increased reliability and long life.

The tooth flanks and outer diameter of the external gear are crowned to allow for angular displacement between the two gears. The multi crowned teeth reduce the alignment adjustment and improve the load carrying capacity of the teeth. The backlash between the teeth is minimal due to multi-crown tooth design.

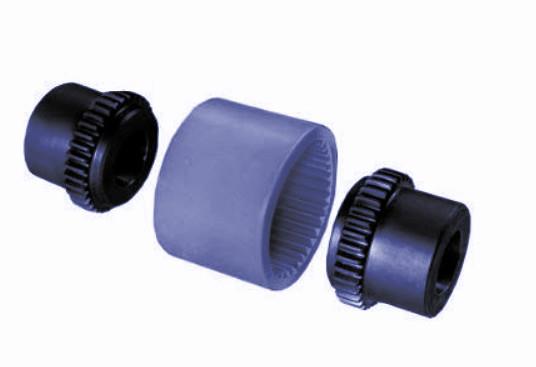

A completely flexible coupling comprises two hubs with an external gear and two outer sleeves with an internal gear. It’s a universal coupling for all sorts of applications and accommodates all possible misalignment (angular, radial and combined) as well as large axial moments.

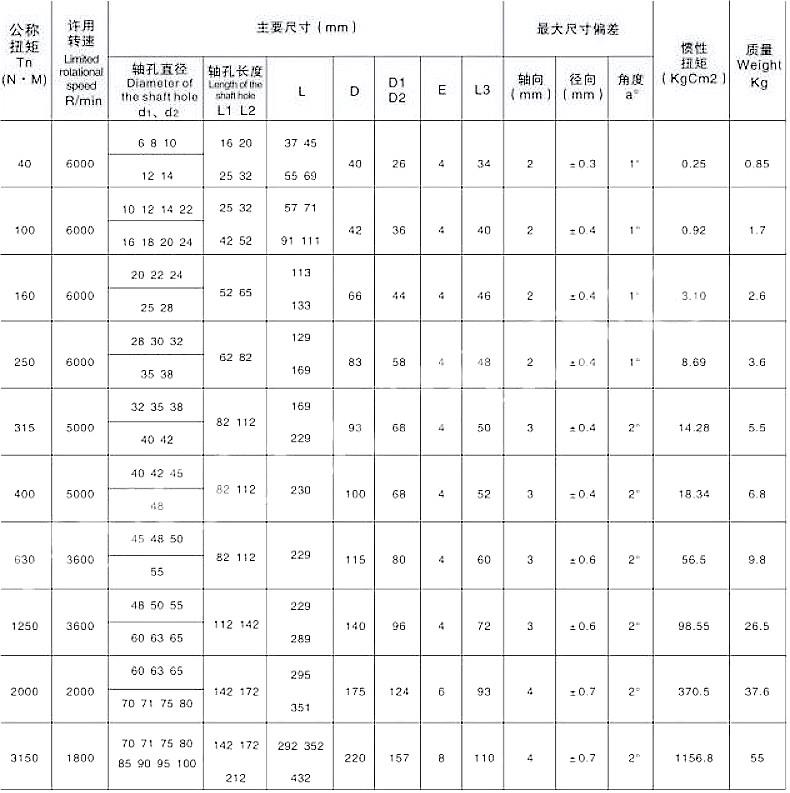

Nylon Gear Coupling
