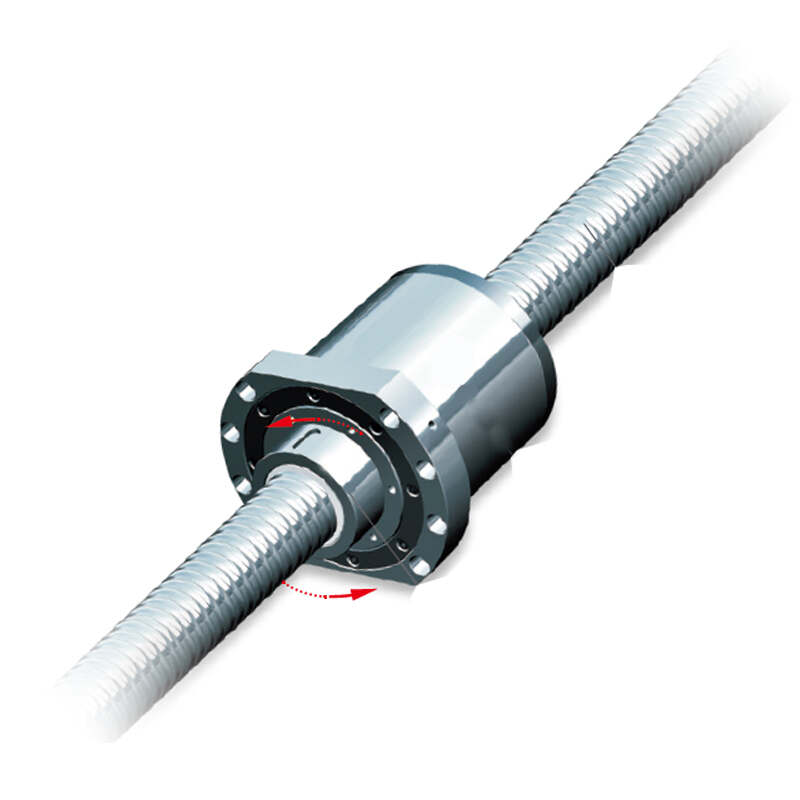

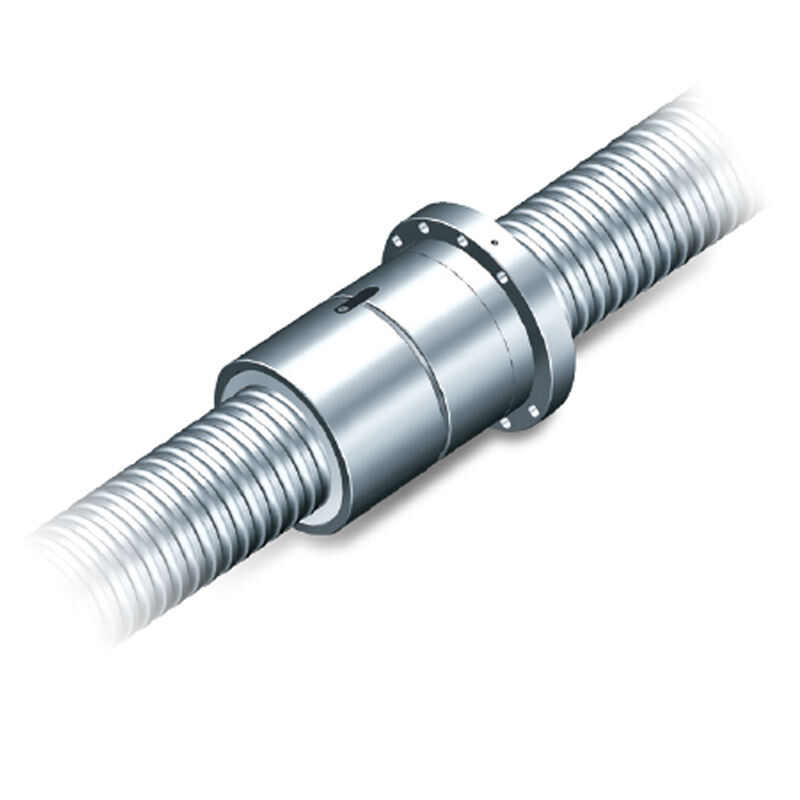

Precision Rotating Nut Combination Unit Ball Screw
Discover the Raydafon Precision Rotating Nut Combination Unit Ball Screw – a masterpiece of engineering designed for those who demand unparalleled precision and durability in their mechanical applications. This cutting-edge component is crafted for high-performance machinery, offering seamless motion control and exceptional load-bearing capacity. Its superior design ensures minimal friction, leading to increased efficiency and longevity of your equipment. Whether you're in the manufacturing, aerospace, or robotics industry, this ball screw is your go-to solution for achieving precise linear motion with ease. What sets the Raydafon apart is its innovative rotating nut combination, which significantly reduces wear and tear, ensuring a smoother operation over time. Made from high-grade materials, it promises reliability under the most demanding conditions. Users will experience not just an improvement in their machine's performance but also a reduction in maintenance costs and downtime. In a market flooded with generic options, the Raydafon Precision Rotating Nut Combination Unit Ball Screw stands out for its commitment to quality, precision, and innovation. Upgrade your machinery today and feel the difference that true precision engineering can make.
The main drive of the ball nut is a revolution in the form of ball screw auxiliary drive. In the fields of long stroke, heavy load, and high-speed transmission, the rotating nut combination unit will be your first Product selection | ||||||||
Characteristics of rotating nut combination unit:
Low inertia:
Compared to using screw rotation as the active drive, using nut rotation as the active drive greatly reduces the rotational inertia of the mechanical motion system, increases the maximum speed of the system, facilitates high-speed transmission, and reduces the selected motor power.
High stiffness:
Compared to the active driving method of screw rotation, the bearing size specifications arranged on the outer circle of the nut are larger; At the same time, because the screw does not rotate, there is no need to install bearings on its shaft neck, which can apply greater axial pre tension force to the screw, greatly improving the stiffness of the entire ball screw pair
Multi nut drive:
Multiple rotating nut combination units can be installed on a ball screw, and multiple workbenches can be driven simultaneously or separately, with their movements not interfering with each other.
Easy design and installation:
The rotating nut combination unit integrates multiple functional components, simplifying design and facilitating installation and debugging.
Other:
Due to the non rotation of the screw, there is no circumferential friction at the middle auxiliary support, and there is no local heating problem; When the positioning accuracy is high and the influence of temperature rise is considered and a hollow cooling structure with a screw is adopted, the cooling pipe joint is easier to arrange and install because the screw does not rotate.

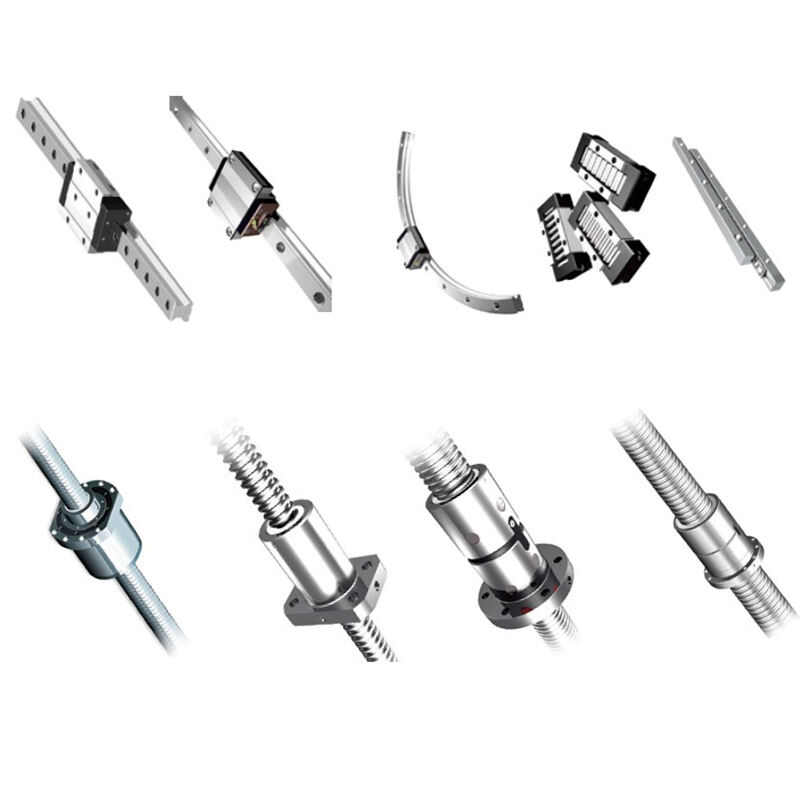

Precision linear guideway
GZB series-heavy load Roller caged linear guidewayGZB-AAAAL heavy load roller LMGGZB-BA/BAL heavy load roller LMG
GGB four direction equal load ball LM guide
GGB-AA/AAL four direction equal load ball LM guide
GGB-AB/ABL four direction equal load ball LM guide
GGB-BABAL four direction equal load ball LM guide
GGC type Miniature linear guideway
GGD heavy load radial linear guideway
GGD-AAAAL heavy load radial guideway
GGD-BA/BAL heavy load radial guideway

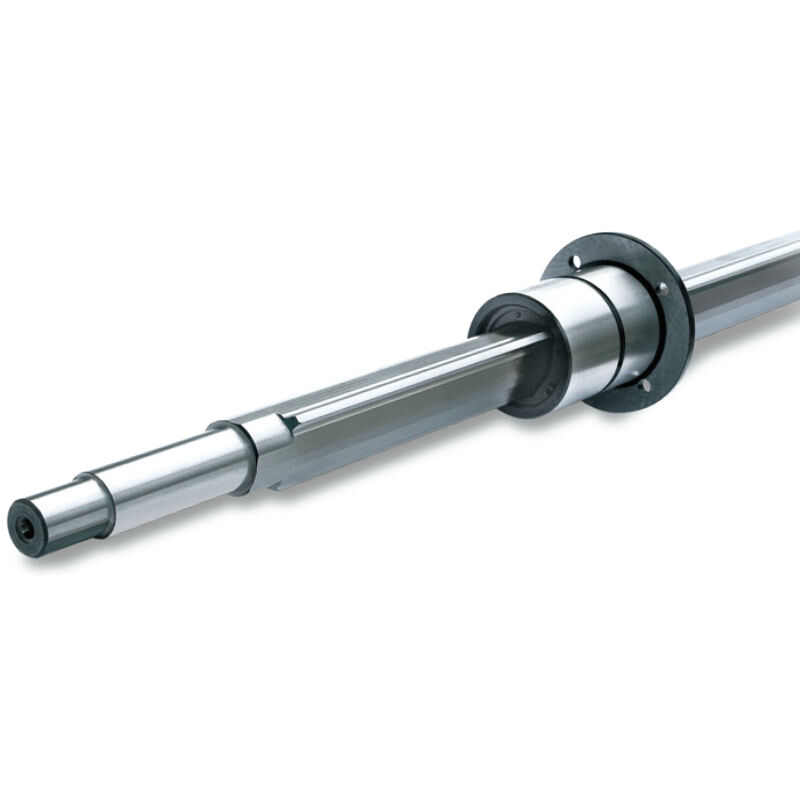

Precision linear motion spline series
Precision linear motion spline series
GJZ Convex type
GJZA Convex type
GJF Convex type
GJH Convex type
GJZG Convex type
GJFG Convex type
GJZD Convex type
CNC Precision Worktable
CNC Precision Worktable
DZHQ type
Precision roller guide block
GZD roller guide block
Precision roller cross guide
GZV precision roller cross guide

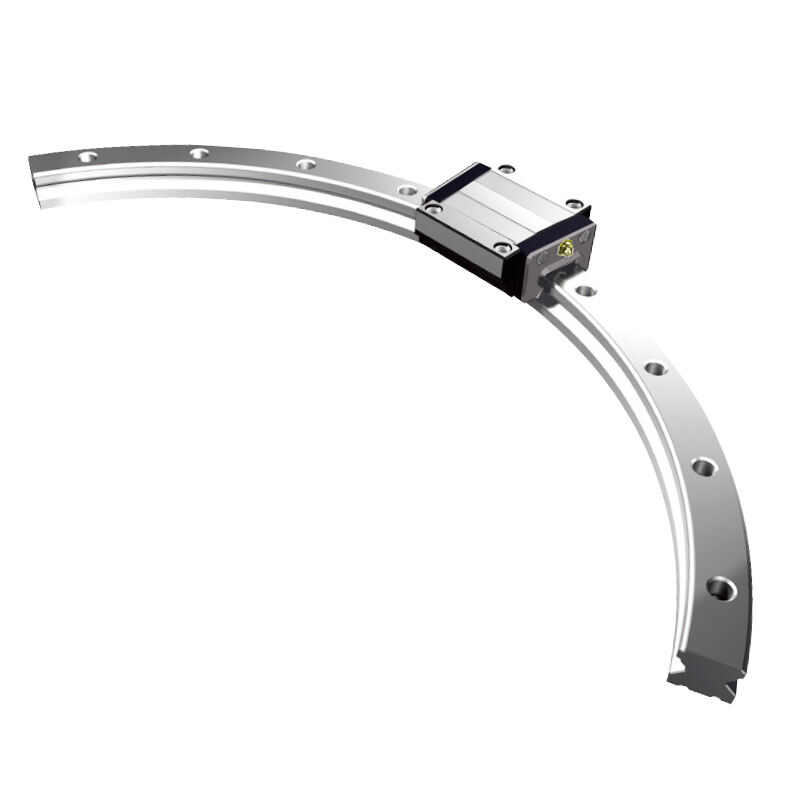

GGY arc LMG
Precision ball screw assembly
JF / JFZD large heavy load ball screw assembly
JF type large heavy load ball screw
JFZD heavy load ball screw
DKF high speed ball screw
DKFZD high speed precision ball screw
Ball screw with FF / FFZ type inner cycle , single nut
FFB type inner cycle , deflected lead preload flange nut
FFZD type inner cycle , combined spacer preload nut
Ball screw with FFZL type inner cycle , thread preload nut
Ball screw with JF mini-type
Ball screw with CMFZD outer cycle , tube enclosed spacer preload nut
Ball screw with CTF outer cycle tube
Ball screw with DGF inner cycle end housing
Ball screw with DGZ inner cycle end housing type
Precision linear motion bushing
Precision linear motion bushing
Dimension series of GTA , GTAT type
Dimension series of GTB , GTB-T , GTBT , GTBT-T type
Dimension series of GTC type bushing

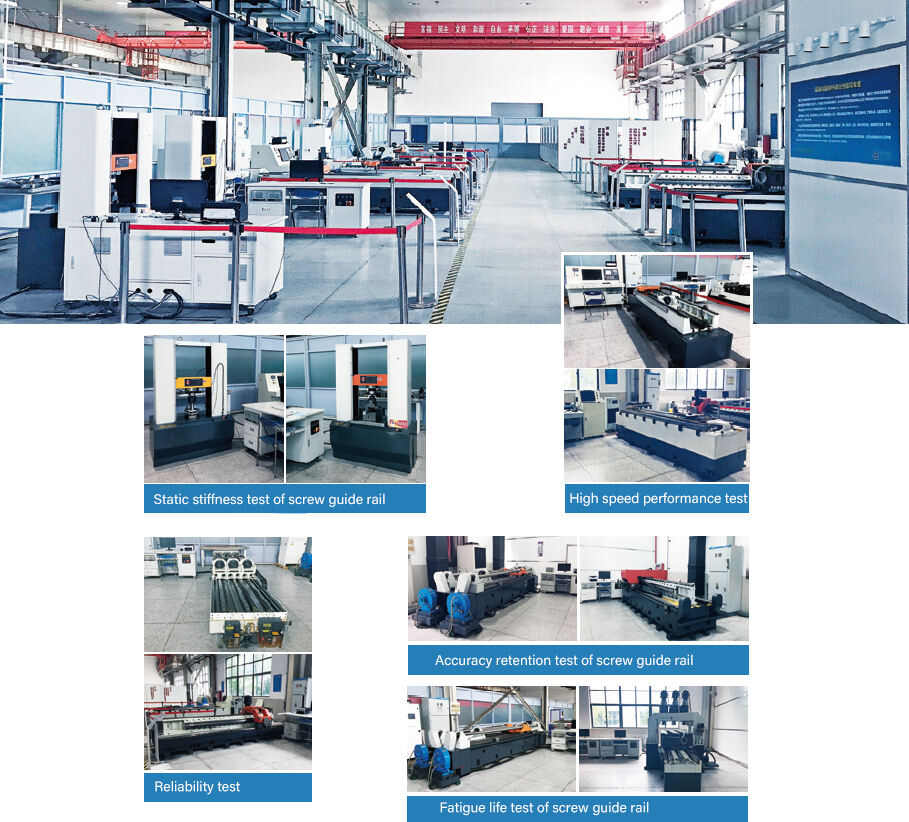

The company adheres to technological innovation, constantly pays attention to, tracks, and masters international advanced technologies. The company has a comprehensive performance testing laboratory for rolling functional components, with a noise level of 70dB when the high-speed ball screw pair runs at 60m/min and 68dB when the high-speed linear rolling guide pair runs at 60m/min. It provides batch matching ball screw pairs and rolling guide pairs for precision horizontal machining centers, achieving a fast movement speed of 48m/min for each axis, positioning accuracy of 0.002mm, and repeated positioning accuracy of 0.001mm. The company has established a complete equipment guarantee system and possesses a batch of internationally advanced and domestically leading excellent equipment. It has built production lines for high-precision ball screw pairs, large-scale ball screw pairs, and precision rolling guide rail pairs. The company's products are widely matched with well-known high-end CNC machine tools both domestically and internationally, promoting the upgrading and replacement of imported domestically produced rolling functional components.
In 2021, the company presided over the preparation of 4 national standards and 4 industry standards, and multiple products obtained national patents, China Machinery Industry Science and Technology Awards, and national key new product certificates.
