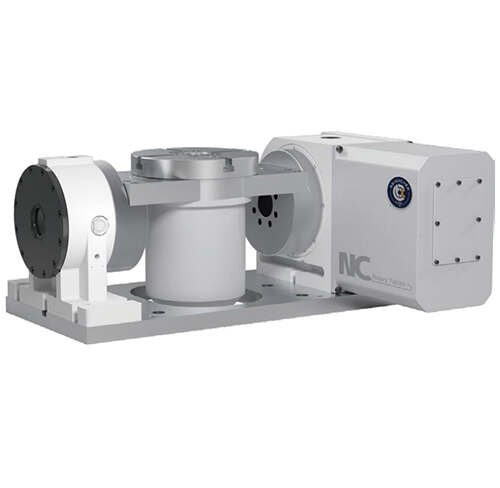

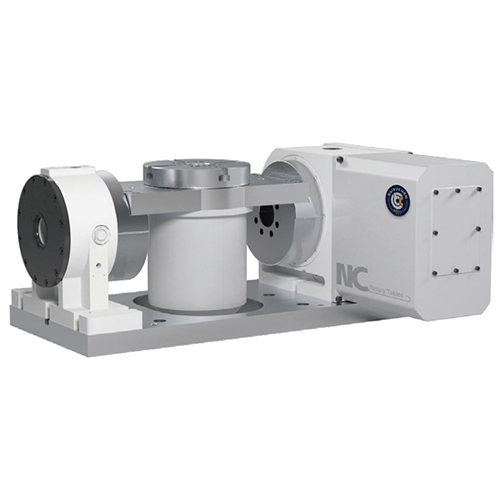

RTS-200 CNC Machining Center Parts New Turntable Rotary Table for CNC Machinery with Gear and Bearing Core Components
The RTS-200 CNC Machining Center Parts New Turntable Rotary Table by Raydafon is a game-changer for professionals seeking precision and durability in CNC machinery. Designed with high-quality gear and bearing core components, this rotary table ensures seamless operation and longevity, making it an indispensable tool for machining centers. Its robust construction and innovative design cater to demanding machining tasks, offering unparalleled accuracy and efficiency. Whether you're in aerospace, automotive, or manufacturing, the RTS-200 is tailored to meet your high-precision needs. Experience the difference with a product that not only solves complex machining challenges but also enhances productivity and performance. Stand out from the competition with Raydafon's cutting-edge technology and reliability.
High precision, high performance, high efficiency
Five axis machining, modular design
Optional fixture oil circuit, Optional hydraulic brake

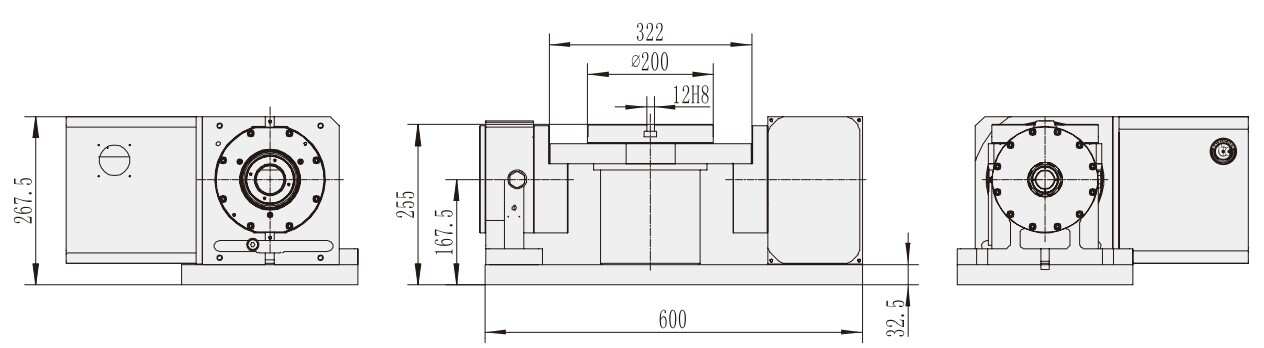

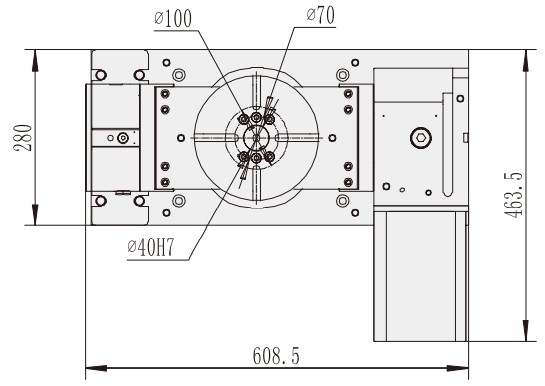

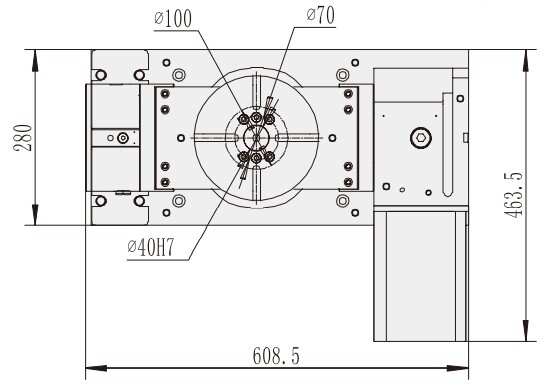

Product Model | RTS-200 | Servo motor (optional) | Rotation axis β2iFANUC ;Tilt axis β8iFANUC |
Panel Size | 200mm | Reduction Ratio | Rotation axis 1:121 ;Tilt axis 1:90 |
Disk Aperture | 40mm | Maximum Rotation Speed Of Worktable | 33.3 r.p.m |
T-groove Of Disk Surface | 12H8mm | Minimum Setting Angle | 0.001°deg |
Tilt Angle | ±110°deg | Segmentation Accuracy | Rotation axis 20″sec;Tilt axis 15″sec |
Rotation Angle | 360°deg | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
0 ° Time Disk Height | 255mm | Locking torque of rotating shaft | Rotation axis 412N.m;Tilt axis 450N.m |
90° Time Center Height | 135mm | Brake Pressure | Rotation axis pressure machine;Tilt axis oil pressure 15Kg/cm² |
Net Weight (about) | 180Kg | Allowable Cutting Force | Rotation axis 18Kgf-m;Tilt axis 30Kgf-m |
Horizontal placement | 80KG | Ninety ° Time | 50KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad.
Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US. |
