Using an RTO device to incinerate VOCS waste gas at high temperatures, achieving standard emissions. During the combustion of VOCS waste gas, a large amount of heat is released to maintain the reaction. When the concentration is high, waste heat recovery can also be carried out, achieving the goal of "environmental protection+energy conservation".
Products
VOCs Exhaust Gas Treatment RTO Regenerative Thermal Oxidizer for Petrochemical Industry
The Raydafon VOCs Exhaust Gas Treatment RTO Regenerative Thermal Oxidizer is a cutting-edge solution designed specifically for the petrochemical industry, aiming to efficiently eliminate volatile organic compounds (VOCs) and hazardous air pollutants (HAPs) from exhaust gases. This innovative system not only meets but exceeds environmental regulations, ensuring your operations are sustainable and compliant. With its advanced regenerative thermal oxidation technology, the Raydafon RTO offers unparalleled efficiency in destroying VOCs, achieving destruction rates of up to 99%. Its robust construction, featuring high-grade materials, ensures durability and long-term performance under the most demanding conditions. The system's intelligent design minimizes energy consumption by recovering heat from the process, significantly reducing operational costs. Ideal for petrochemical plants, refineries, and chemical manufacturing facilities, the Raydafon RTO is the go-to choice for businesses committed to environmental stewardship and operational excellence. Users will experience peace of mind knowing they are contributing to a cleaner planet while optimizing their production processes. What sets the Raydafon RTO apart is its combination of high efficiency, reliability, and cost-effectiveness, backed by our expert support and service. Choose Raydafon for a greener future and a competitive edge in the petrochemical industry.

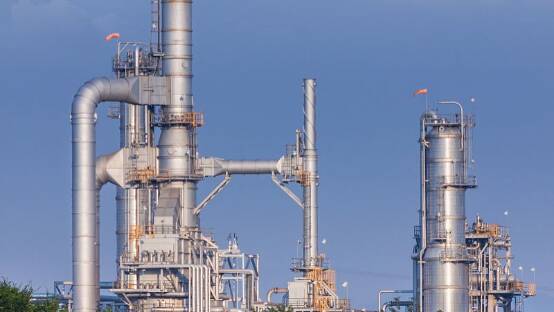

Petrochemical industry solution
Characteristics of waste gas: large fluctuations in waste concentration, high waste gas concentration, no production shutdown throughout the year, and high safety level requirementsSource of waste gas: production plant waste gas, tank farm waste gas, loading and unloading vehicle waste gas
Waste gas components: benzene homologues, asphalt smoke and benzo [a] pyrene, alkanes C1-C6, light oil, ethers, phenols, etc
Process scheme: low temperature diesel adsorption + desulfurization + mixed air dilution +RTO
Characteristics of waste gas: large air volume and low concentration
Waste gas components: toluene, xylene, butanol, aromatic naphtha, methyl isobutyl ketone, butyl acetate, ethylene glycol
butylether, ethylbenzene, acetone
Process scheme: filtration + zeolite rotor concentration + rotary RTO
Waste gas concentration: 200mg/m³~400mg/m³
Emission limit: NMHC≤50mg/m³

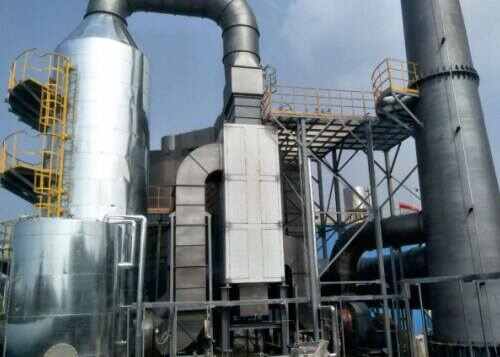

Production Plant

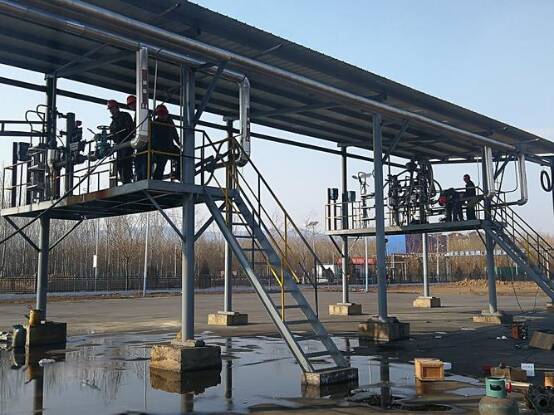

Loading and unloading vehicle

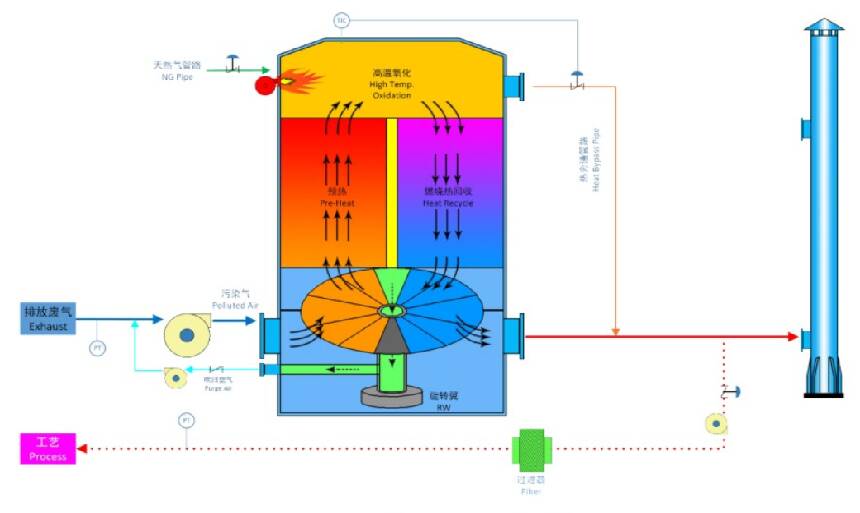

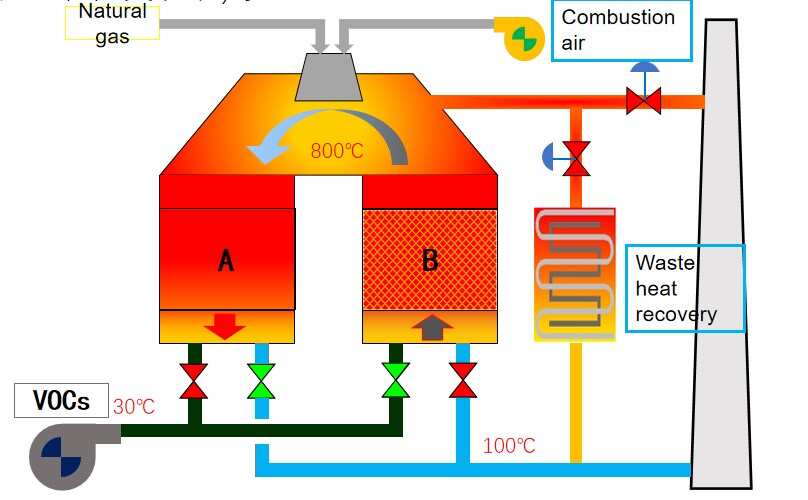

Principle of RTO (Thermal Storage Oxidation Incinerator)
The impact of VOCs on the atmosphere is one of the main causes of haze.
Selection of RTO Equipment

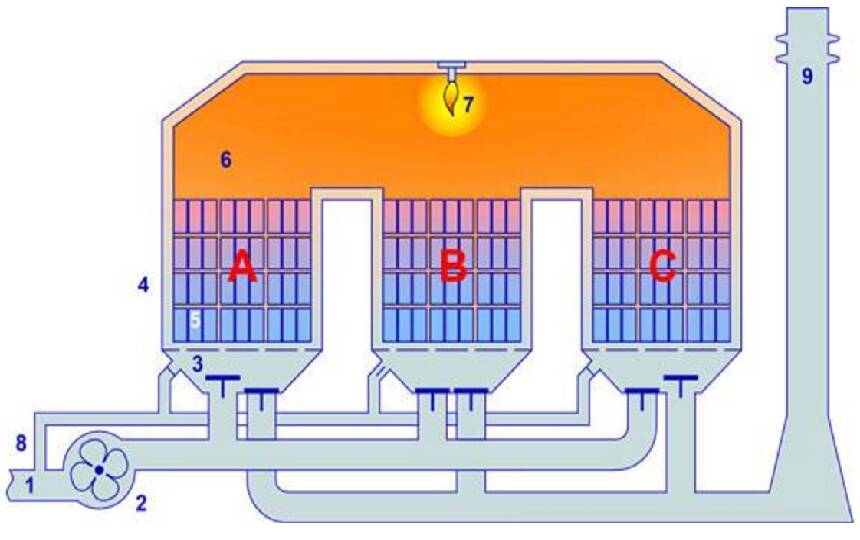

3 Room RTO (3 heat storage chambers)
The smoke exhaust temperature of the three room RTO is high, the energy consumption is high, and the operating cost is high. The switching valve works 520000 times a year and has a short lifespan.

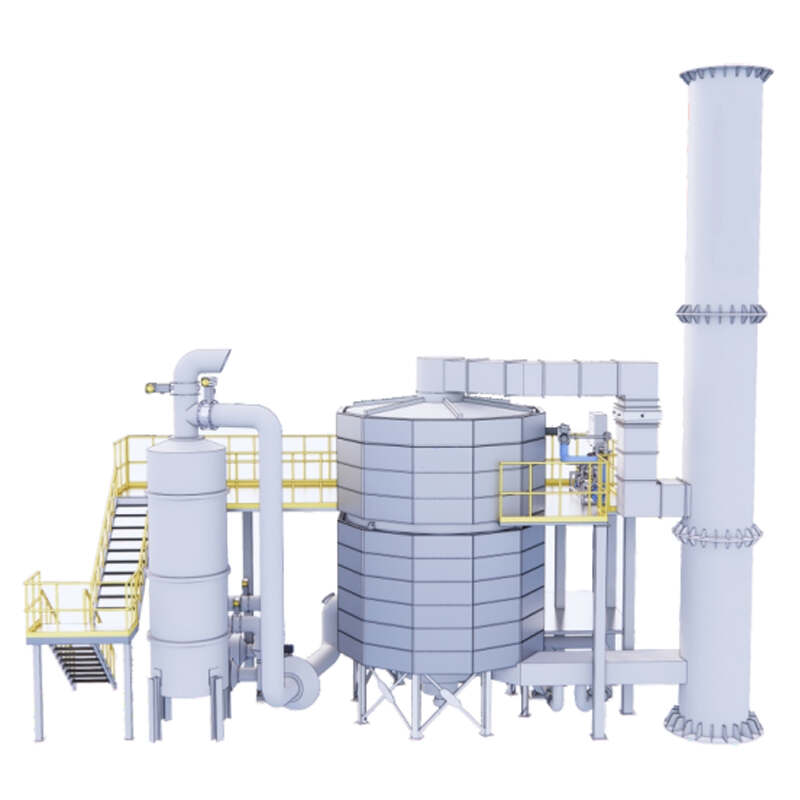

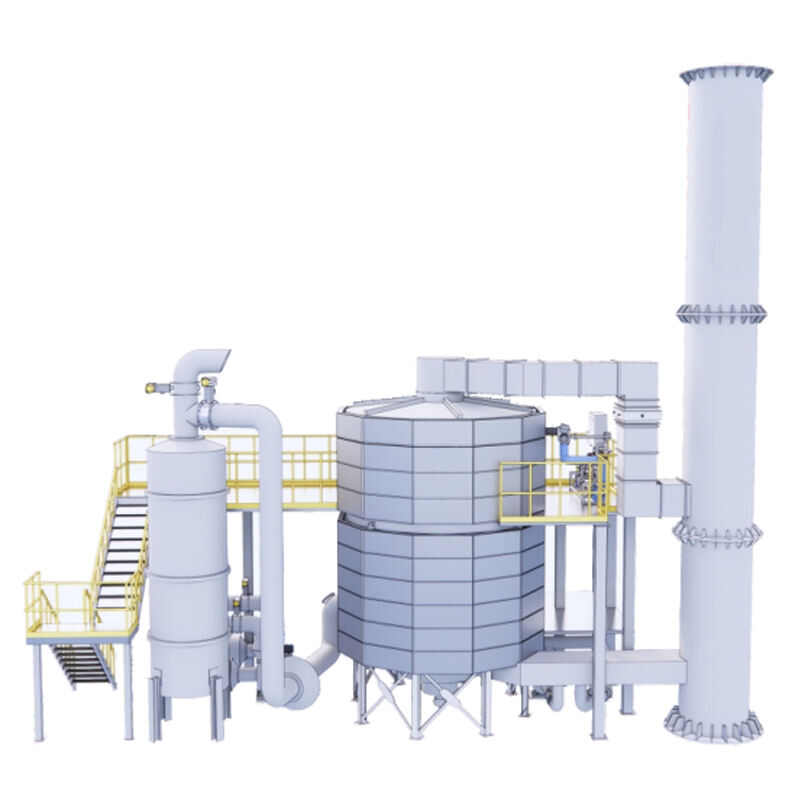

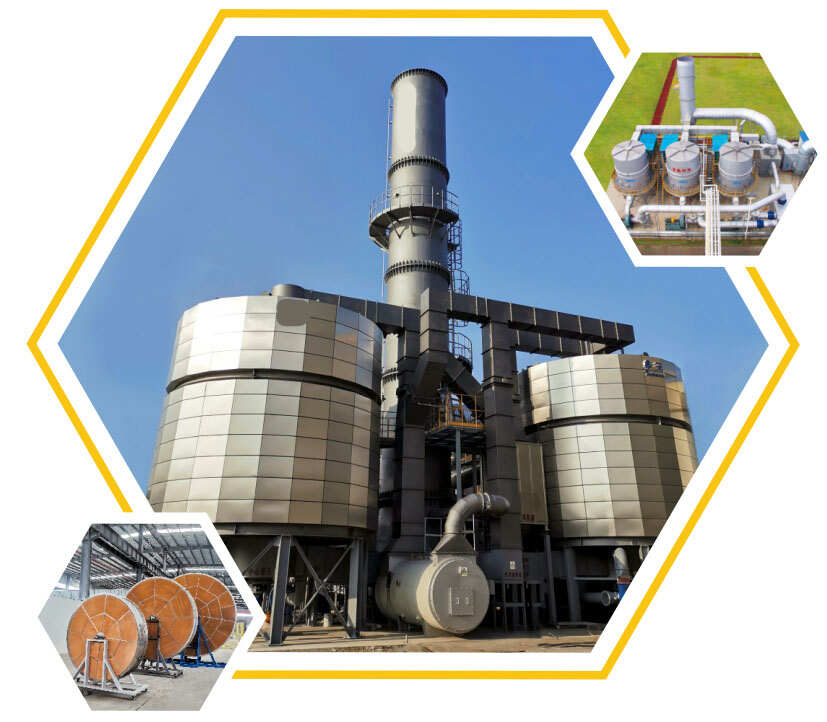

Rotating RTO (12 heat storage chambers)
The rotary RTO smoke exhaust temperature is less than 80 degrees, with low energy consumption and low operating costs. The rotary valve operates continuously without switching, and has a long service life.
RTO category | Three bed RTO | Rotating RTO |
Thermal storage utilization rate | 2/3 | 5/6 |
Volume | 130% | 65% |
Comprehensive thermal efficiency | 92% | 95% |
Smoke exhaust temperature | 100-150℃ | 50-80℃ |
Fluctuations in pipeline pressure | ±250Pa | ±50Pa |
Raydafon Environmental Technology Co., Ltd. is a high-end equipment manufacturing high-tech enterprise focusing on the comprehensive treatment of volatile organic compounds (VOCs) exhaust gas and carbon emission reduction and energy saving technology, with four core technologies of heat energy, combustion, sealing and automatic control; Have the ability of temperature field simulation and air flow field simulation modeling and calculation; It has the ability to test the performance of ceramic heat storage materials, the comparison and selection of zeolite molecular sieve adsorption materials, and the characteristics of VOCs organic matter incineration and oxidation at high temperature.
The company has built RTO technology research and development center and exhaust gas carbon emission reduction engineering technology center in the ancient city of Xi'an, and a 30000 production. It is a leading manufacturer of RTO equipment and zeolite molecular sieve runner equipment in the world. Yurcent's core technical team comes from the Aerospace Liquid Rocket Engine Research Institute (Aerospace sixth Institute); The company has more than 360 employees, including more than 60 R & D technical backbones, including 3 researcher level senior engineers, 6 senior engineers and 2 thermodynamic doctors. With Rotary Valve Regenerative Thermal Oxidizer(RTO) and zeolite molecular sieve adsorption and concentration runner as core products, combined with its own environmental protection and thermal energy system engineering expertise, the company can provide customers with comprehensive solutions for industrial waste gas treatment and thermal energy utilization and carbon emission reduction under various working conditions.
1.Thermal storage oxidation technology test bench
2.High temperature sealing technology and performance testing test bench for valves

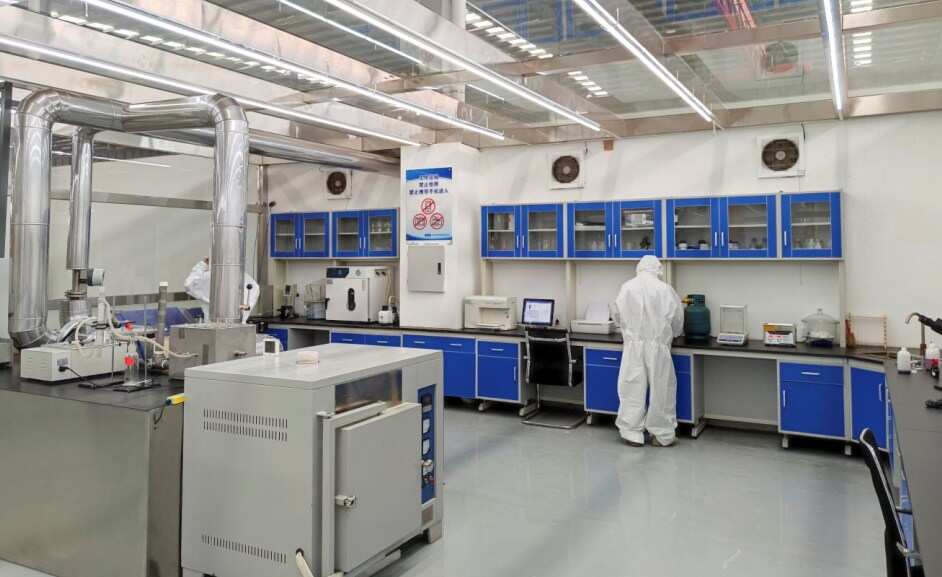

3.Laboratory of Zeolite Molecular Sieve Adsorption Efficiency
4.Combustion Control Technology and Ceramic Thermal Storage Material Energy Efficiency Test Bench
5.Zeolite Wheel and Catalyst Efficiency Test Bench
