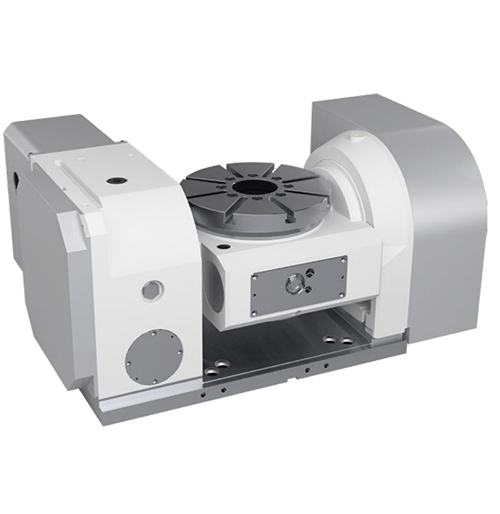

WT-S250 CNC Machining Center Parts New Rotary Turntable for CNC Machinery with Gear and Bearing Core Components
Elevate your CNC machining precision with the Raydafon WT-S250 CNC Machining Center Parts New Rotary Turntable. Designed for professionals seeking unparalleled accuracy and durability, this rotary turntable is a game-changer for CNC machinery. Its gear and bearing core components ensure smooth, reliable operations, making it an indispensable tool for high-precision tasks. Whether you're in aerospace, automotive, or custom fabrication, the WT-S250 is engineered to meet your demanding needs. Experience the difference with Raydafon's commitment to quality and innovation. Transform your CNC projects with the WT-S250 Rotary Turntable – where precision meets performance.
The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulicbrake mechanism
Product Model | WT-S250 | Servo motor (optional) | Rotation axis β8i HF-104;Tilt axis β12i HF-154 |
Panel Size | Φ250mm | Reduction Ratio | Rotation axis 1:120 ;Tilt axis 1:120 |
Disk Aperture | Φ80mm | Maximum Rotation Speed Of Worktable | Rotation axis 33.3r.p.m ;Tilt axis 33.3r.p.m |
Center Trough Hole | Φ50mm | Minimum Setting Angle | 0.001°deg |
Disk Height | 294mm | Segmentation Accuracy | Rotation axis15″sec;Tilt axis 50″sec |
Disk T-Slot | 12H8mm | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 8''sec |
Positioning Button | 18H7mm | Locking Method | Rotation axis oil pressure 35Kg/cm²;Tilt axis oil pressure 35Kg/cm² |
Tilt Axis Angle Range | -45 ~110° | Brake Torque | Rotation axis 70Kg/m ;Tilt axis 140Kg/m |
Net Weight (about) | 290Kg | Allowable Cutting Force | Rotation axis 55Kg.m ;Tilt axis 55Kg.m |
Horizontal placement | 100Kg | Placement | 75KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad.
Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
