---Effectively prevent cutting dust pollution
---Full stroke design, high alignment accuracy
---Gear transmission, good rigidity, high transmission precision
---The front chuck and the middle chuck are installed face to face to help achieve zero tailing
The four-jaw guide rail is driven by the guide rail mechanism, which makes the four-jaw straightness and stability higher, and truly achieves the effect of self-centering
Products

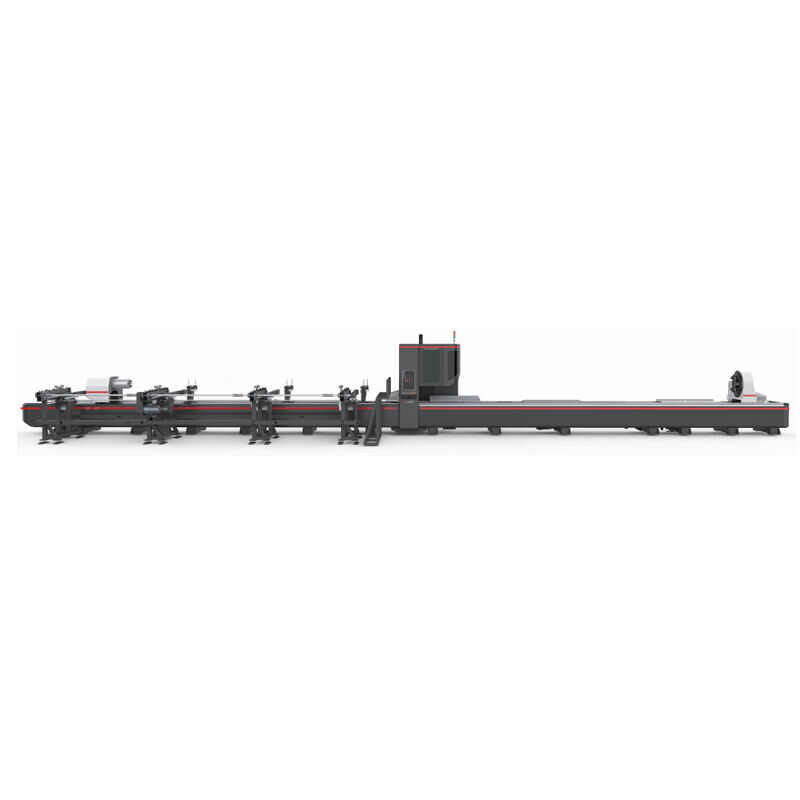

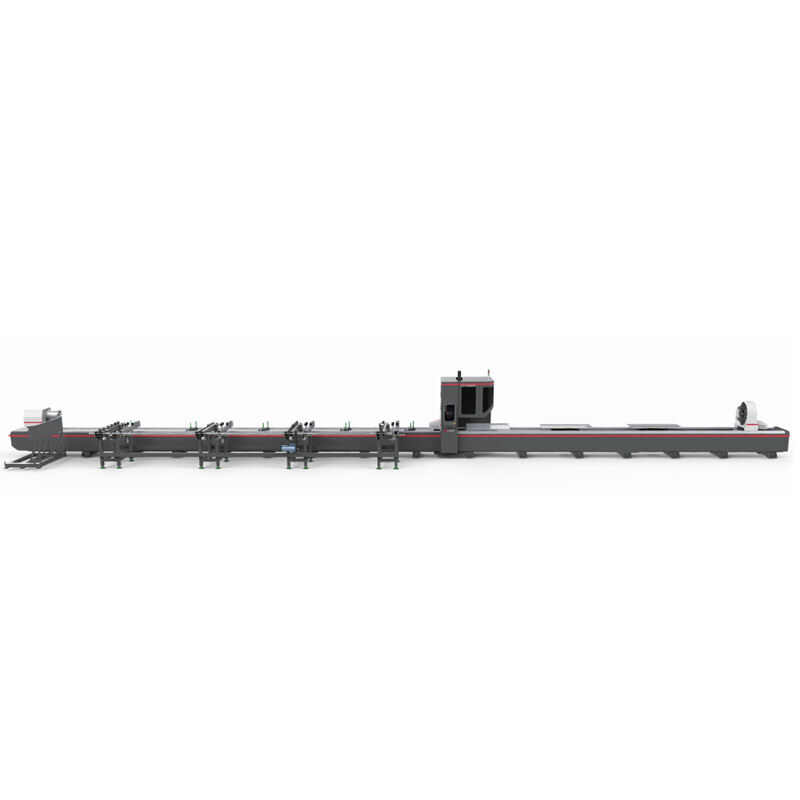

6000w 350mm Diameter Laser Pipe Cutting Machines Three Chuck zero Tailings 3d Laser Cutting Machine for Ss Steel Tube
Discover the future of precision cutting with the Raydafon 6000w 350mm Diameter Laser Pipe Cutting Machine. Designed for professionals seeking unparalleled accuracy and efficiency, this state-of-the-art three chuck zero tailings 3D laser cutting machine is your ultimate solution for cutting SS steel tubes and more. With its robust 6000W laser power and a generous 350mm cutting diameter, it effortlessly delivers clean, precise cuts every time, minimizing waste and maximizing productivity. The innovative three-chuck design ensures zero tailings, offering a seamless cutting experience that's both time-saving and cost-effective. Whether you're in the automotive, aerospace, or construction industry, this machine is engineered to meet your high demands, transforming complex cutting tasks into simple, streamlined operations. Experience the difference with Raydafon – where cutting-edge technology meets unmatched precision. Say goodbye to imperfections and hello to flawless, efficient cutting that elevates your work to the next level.
Product Name | Three-chuck laser pipe cutting machine |
Model | FLT-6035ET |
Maximum cut pipe length | cutting length 0~6000mm |
Cut pipe diameter | 15~350mm (circle of workpiece) |
Minimum tailings | ≥0mm |
X, Y axis positioning accuracy | ±0.05/1000mm |
X, Y axis repeat positioning accuracy | ±0.03/1000mm |
Acceleration | 0.8G m/s² |
Maximum operating speed | 60 m/min |
Maximum weight for each tube | 200Kg |
Chuck rated speed | 80rpm |
Mainframe shape | about 13500mm×6500mm×2450mm |
Laser power | 3000w-6000w |

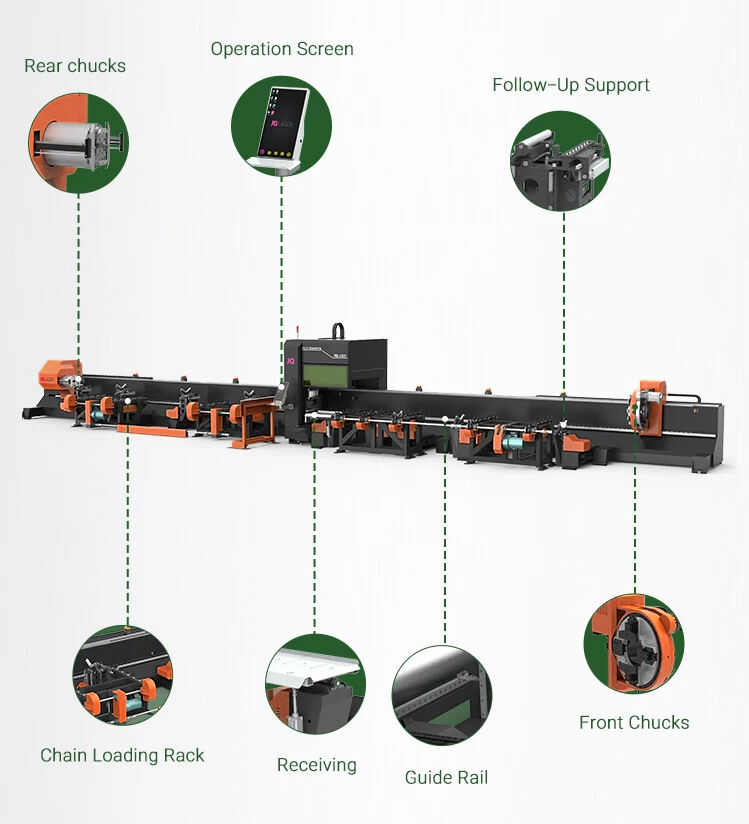

Fully Enclosed Pneumatic Chuck
Fully Automatic Loading System
Equipped with a fully automatic loading system to reduce dependence on labor and reduce the labor intensity of operators.
Follow-Up Front Splice
The Servo follow-up front receiving device can automatically screen material, divide material, and automatically flip, with high mechanization performance
Follow-on support device
It can reduce processing errors, ensure uniform force on the entire metal pipe, and improve cutting accuracy. Real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.
Three chucks clamping & zero tail materials
Three chucks clamping & zero tail materials Innovative three-chuck clamping technology, the chuck clamping force is adaptive to the pipe, realize accurately clamped; The casting integrated chuck base improves the overall stability of the chuck and achieves high-precision positioning cutting;Following the chuck via the middle chuck's internal cutting operation, the three chucks work together.

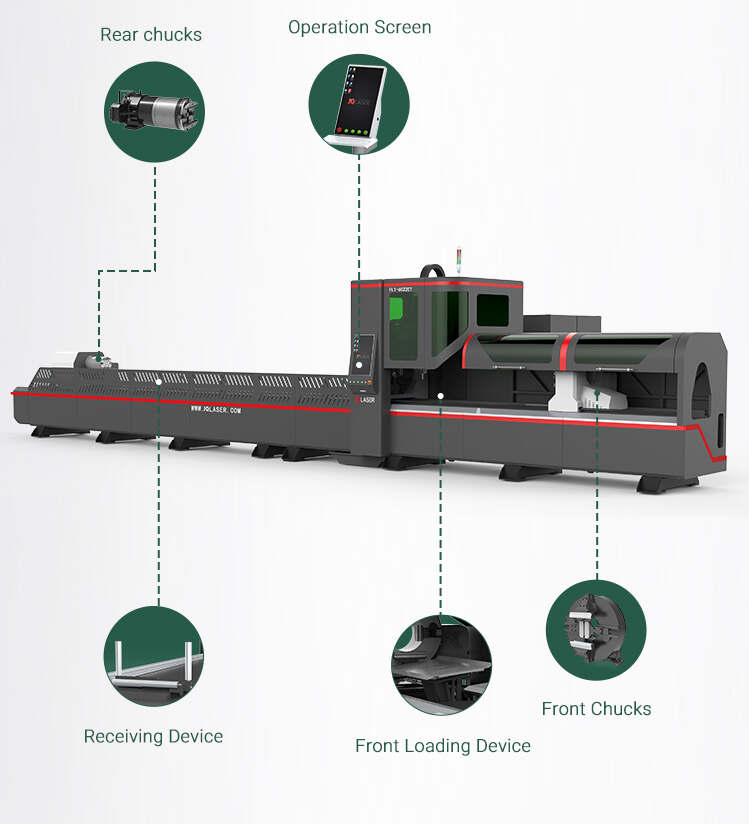

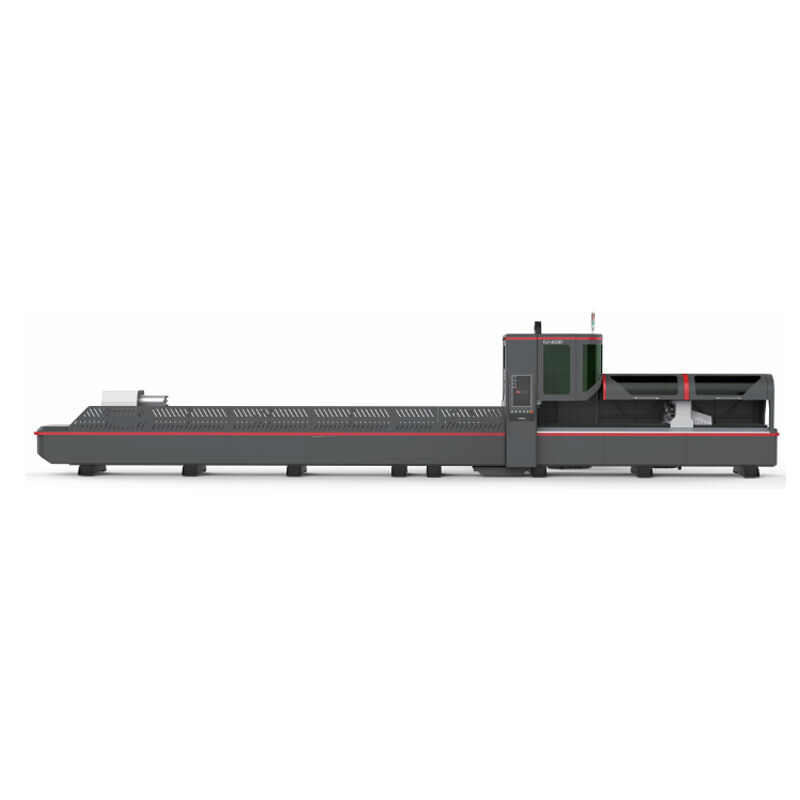

CHOOSE YOUR LASERTUBE
Make Your Choice

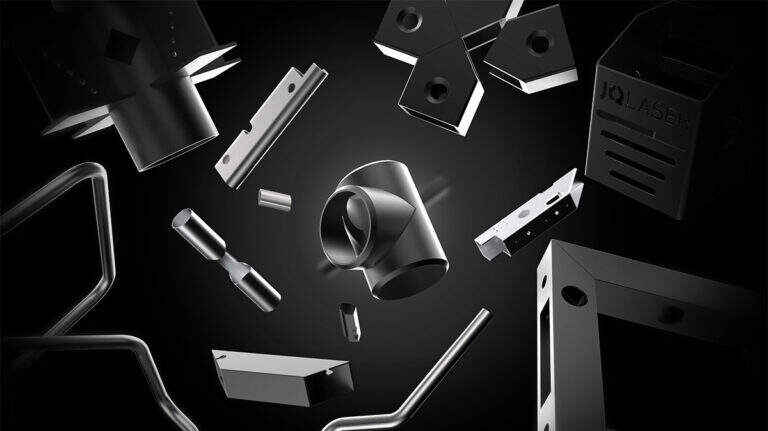

Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.
Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
