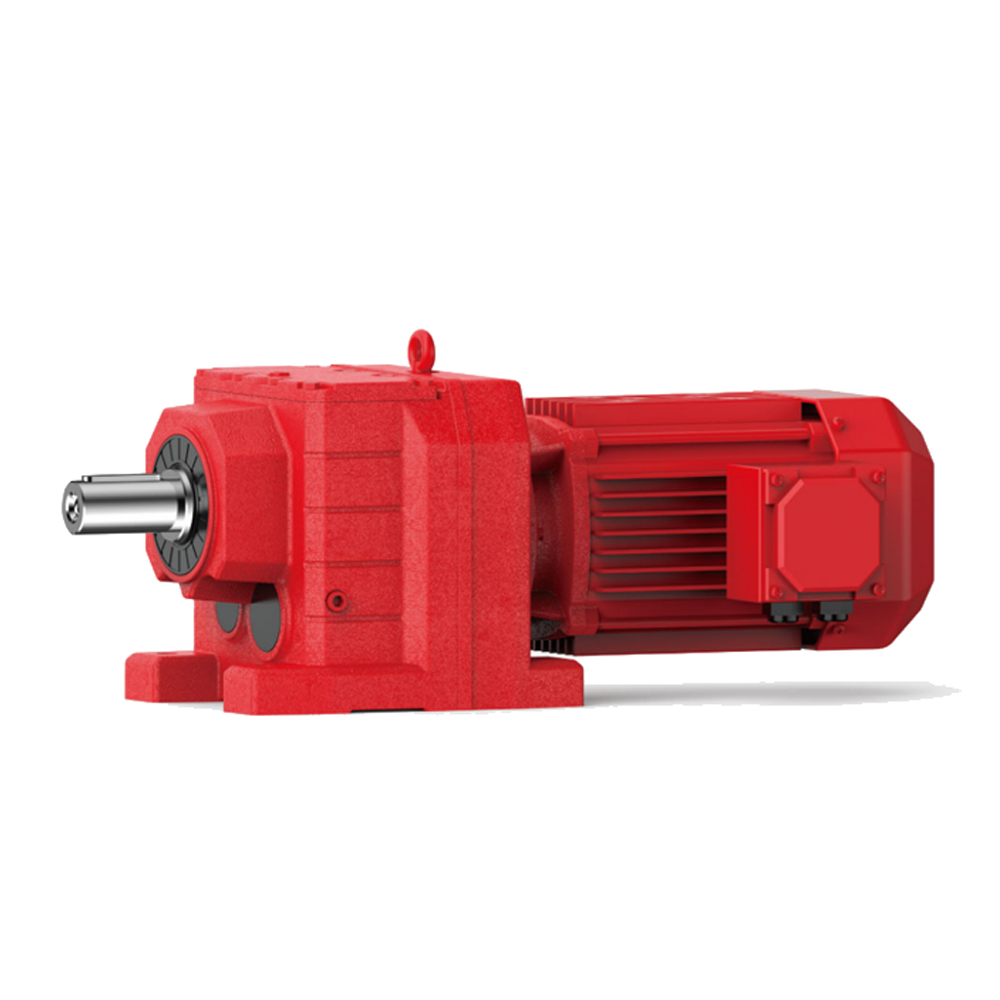

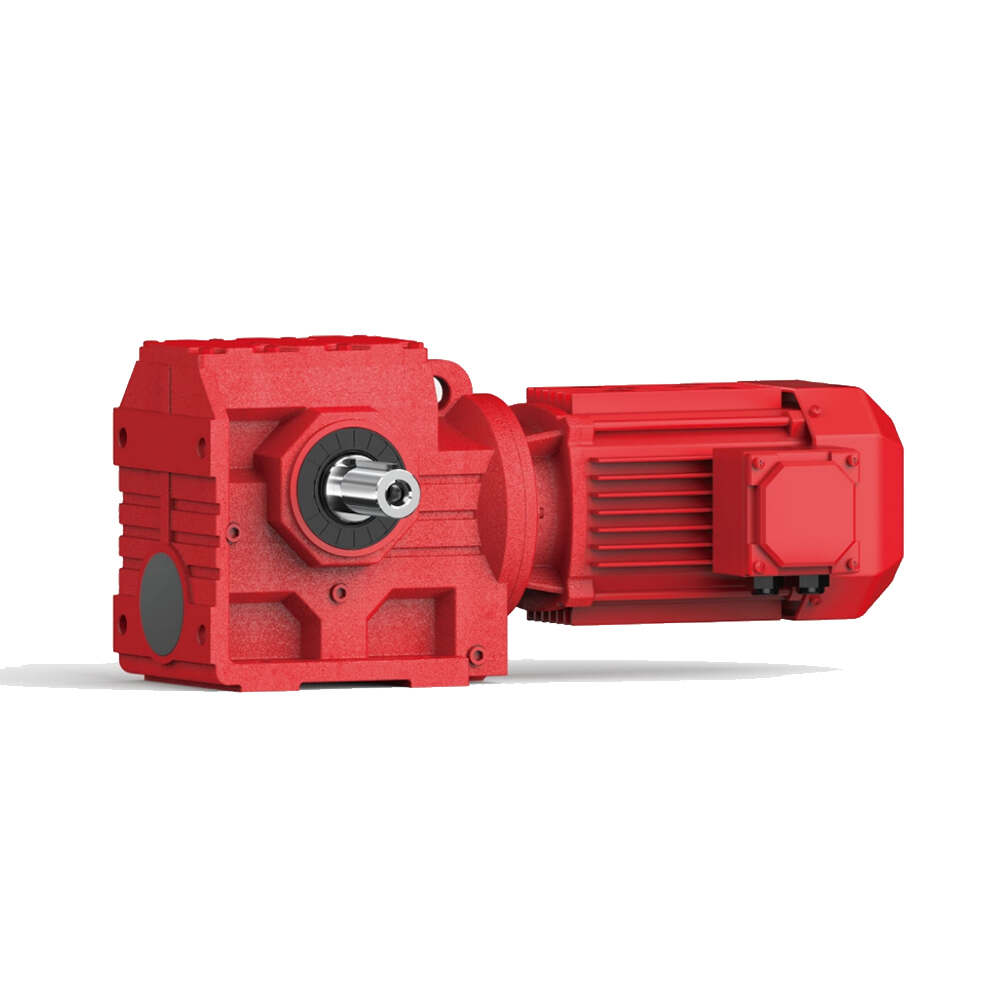

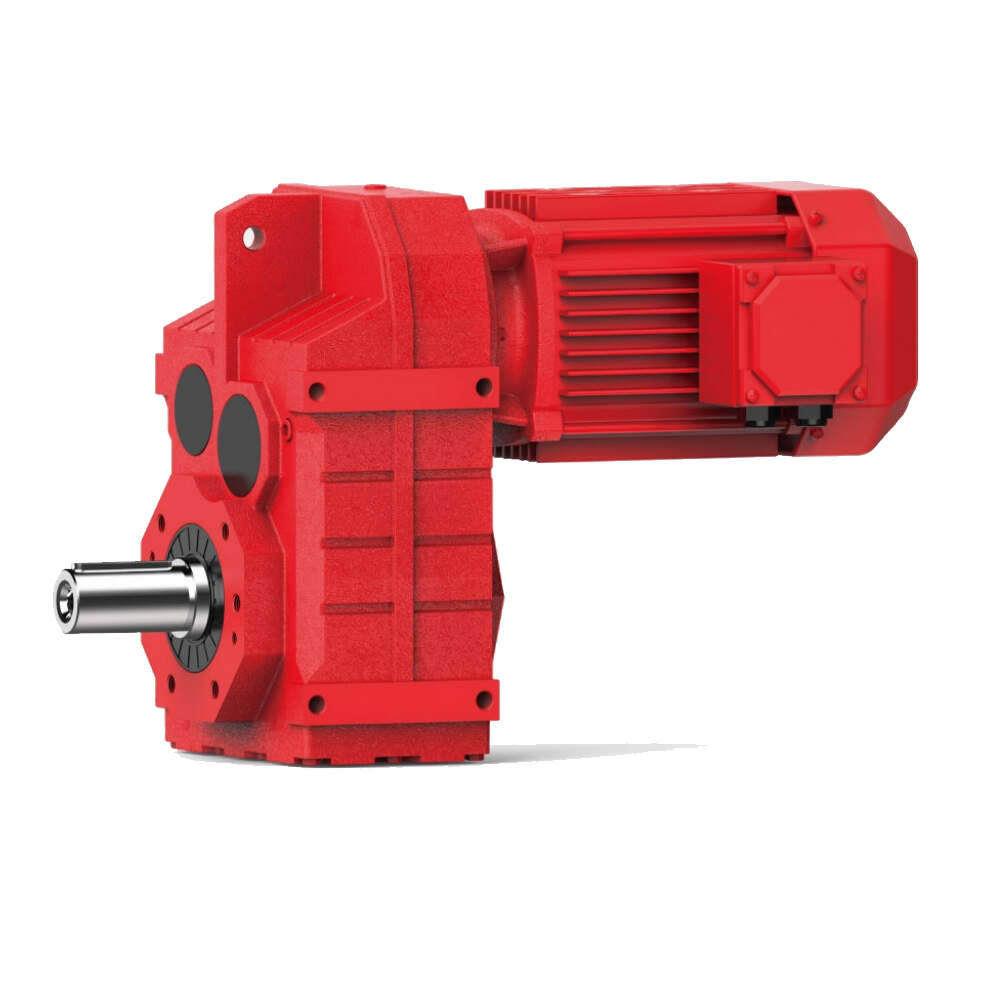

F K R S Series Geared Motor Gearbox Speed Reducer Helical Bevel Helical Worm Unit with Hollow Shaft
Unlock the Power of Precision with Raydafon's F K R S Series Geared Motor Gearbox Speed Reducer. Designed for engineers and manufacturers seeking reliability and efficiency, the F K R S Series stands out with its Helical Bevel and Helical Worm Unit paired with a Hollow Shaft, offering unparalleled performance in speed reduction and torque amplification. Crafted from high-quality materials, this gearbox is built to last, ensuring durability even in the most demanding industrial environments. Whether it's for automation, conveyor systems, or heavy machinery, the F K R S Series adapts seamlessly, providing smooth operation and minimal maintenance. Its unique design not only enhances mechanical efficiency but also reduces noise and vibration, creating a more pleasant working environment. What sets the F K R S Series apart is its precision engineering and versatility, making it the ideal choice for professionals who refuse to compromise on quality. Experience the difference with Raydafon – where innovation meets industrial excellence.
Performance characteristics
1. Serialized and modular design is adopted, with wide transmission ratio coverage and fine grading
2. High transmission efficiency, low energy consumption and superior performance
3. The gear is grinded by high-precision gear grinding machine, with stable transmission, low noise, large bearing capacity and long service life
4. Exquisite design: simple volume and installation, wide use
5. Various installation methods, suitable for omnidirectional universal installation
6. The combined combination of GS series and GRF series reducers can be realized, which is suitable for special low-speed applications
Main materials
1. Box: HT250 high-strength cast iron. Injection cavity effectively reduces part damage
2. Gear: 20CrMo high-quality alloy steel, carbonitriding treatment (keep the tooth surface hardness HRC60 after fine grinding)
3. Flat key: 45 steel, surface hardness HRC50
Reducer efficiency
1. Due to the use of high-precision gears, oil seals and bearings, the friction is effectively reduced, and the interstage efficiency of gear transmission
2. In some installation modes, the input stage gear is completely immersed in lubricating oil. For large engine seat number and high input speed, oil mixing loss must be considered
Conditions of Use
1. When the ambient temperature is - 40~50 ℃ (below 0 ℃), the lubricating oil shall be heated to above 0 ℃ or antifreeze lubricating oil shall be used
2. Input speed is not more than 2800 rpm
3. It can be used for forward and reverse rotation
4. No industry restrictions
Basic Versions

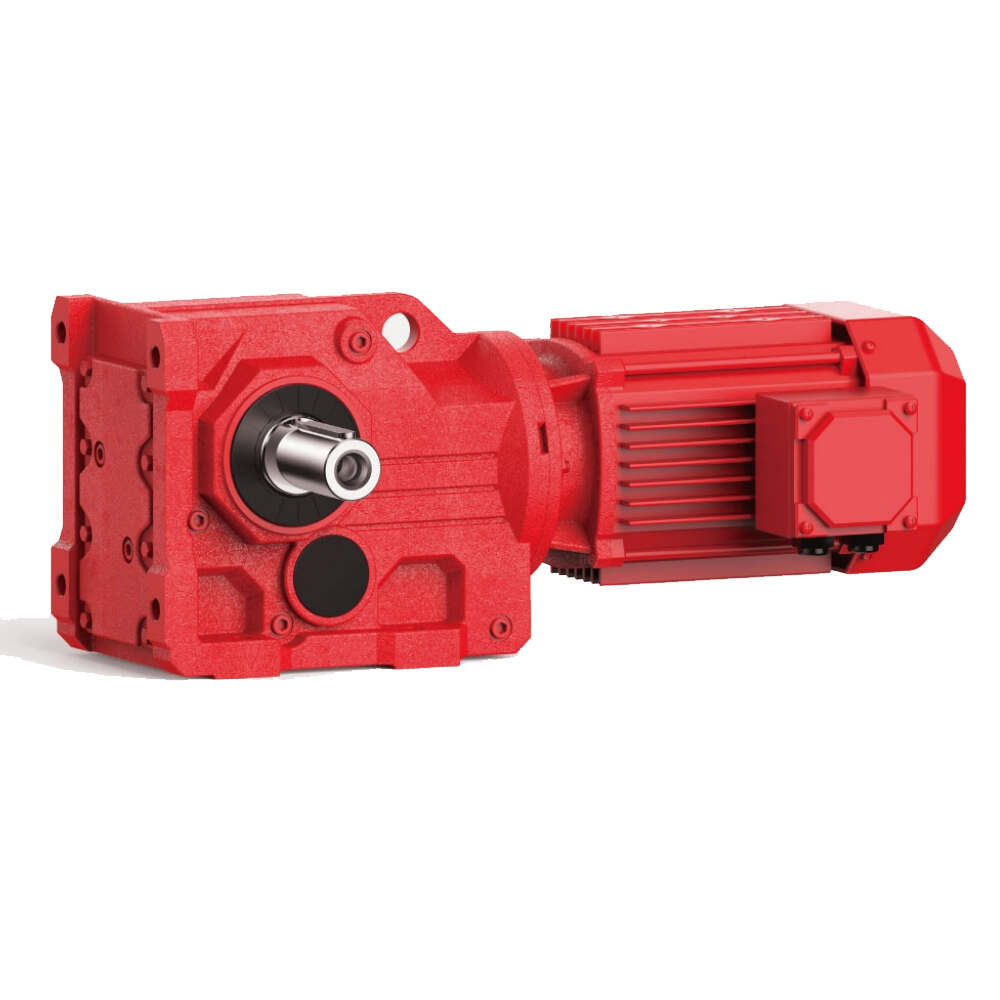

Take k series products as an example
K
Foot-mounted helical-bevel gear unit .
KA-B
Foot-mounted helical-bevel gear unit with hollow shaft
KV-B
Foot-mounted helical-bevel gear unit with hollow shaft and splinedhollow shaft to DIN 5480
KH-B
Foot-mounted helical-bevel gear unit with hollow shaft and shrink disc
KF
Helical-bevel gear unit in B5 flange-mounted version
KAF
Helical-bevel gear unit in B5 flange-mounted version with hollow shaft
KVF
Helical-bevel gear unit in B5 flange-mounted version with hollowshaft and splined hollow shaft to DIN 5480
KHF
Helical-bevel gear unit in B5 flange-mounted version with hollow shaft and shrink disc
KA
Helical-bevel gear unit with hollow shaft
KV
Helical-bevel gear unit with hollow shaft and splined hollow shaft to DIN 5480
KH
Helical-bevel gear unit with hollow shaft and shrink disc
KT
Helical-bevel gear unit with hollow shaft and torque arm .
KAZ
Helical-bevel gear unit in B14 flange-mounted version with hollow shaft
KVZ
Helical-bevel gear unit in Bl4 flange-mounted version with hollowshaft and splined hollow shaft to DIN 5480 .
KHZ
Helical-bevel gear unit in Bl4 flange-mounted version with hollow shaft and shrink disc
