The TN-350 CNC high-speed hobbing machine is an advanced equipment designed for efficient and precise production of gears. With its high-speed cutting capability and CNC control system, it delivers superior gear quality and surface finish. It finds application in automotive, aerospace, power transmission, and machinery manufacturing industries.
Applicable scope
Automotive, aerospace, power transmission, machinery manufacturing, and other industries requiring high-precision gears.
Products
FANUC 0i-MF Plus System TN-350 35 KVA CNC High Speed Hobbing Machine for Sale
Discover the unparalleled precision and efficiency of the Raydafon FANUC 0i-MF Plus System TN-350 35 KVA CNC High Speed Hobbing Machine. Designed for the manufacturing industry's elite, this state-of-the-art machine combines cutting-edge technology with robust performance to revolutionize your production line. Its core strength lies in the FANUC 0i-MF Plus System, ensuring high-speed operations with impeccable accuracy, making it the perfect solution for complex gear manufacturing tasks. Crafted for professionals who demand excellence, the TN-350 is ideal for automotive, aerospace, and heavy machinery sectors, where precision and durability are non-negotiable. Experience the difference with Raydafon's commitment to quality and innovation, offering a competitive edge in the fast-paced industrial world. The TN-350 not only solves your high-precision gear hobbing needs but also elevates your production standards, ensuring you stay ahead in the industry. Its unique selling point? A seamless blend of FANUC's reliability with Raydafon's engineering prowess, offering unmatched performance and longevity. Step into the future of manufacturing with the TN-350 and transform your production capabilities today.

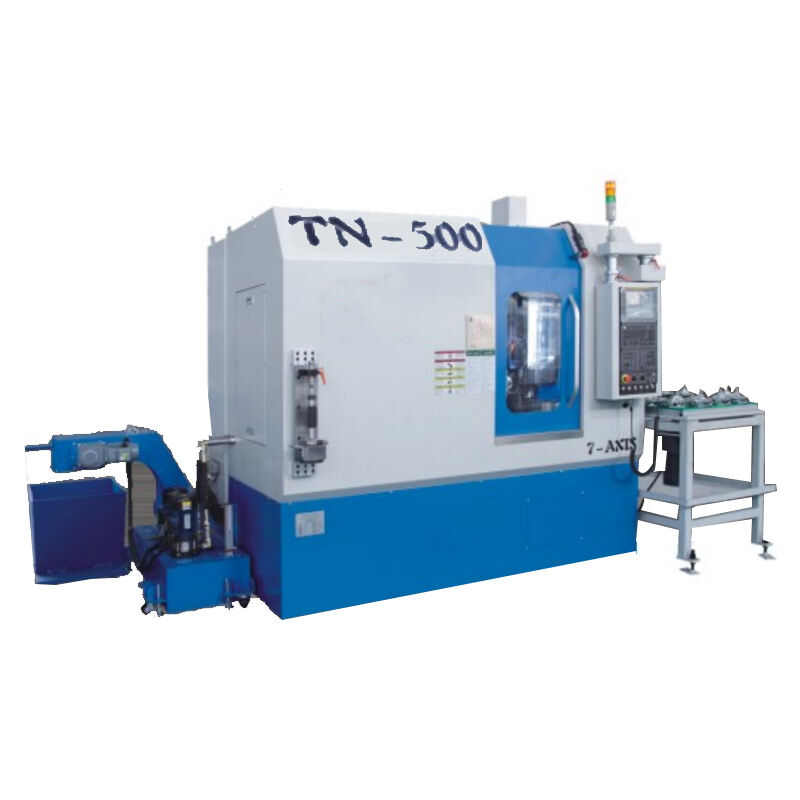

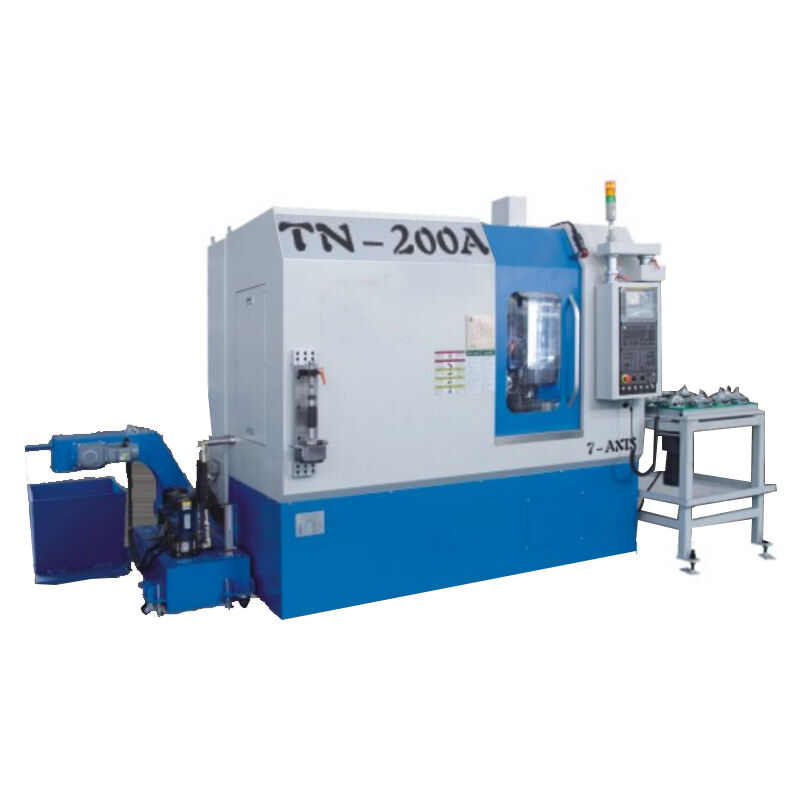

Workpiece | TN-200 | TN-350 | TN-500 | |||||||||
Max. workpiece (OD.x Mod.) | Φ200mm xM6 | Φ350mmxM8*4 | Φ500mmxM14 | |||||||||
Max.helix angel | ±45° | ±45° | ±35°/-45° | |||||||||
Table diameter | Φ200mm | Φ260/Φ300mm*5 | Φ450mm | |||||||||
Hob | ||||||||||||
Taper of spindle nose | BT#40 | BT#40 | BT#50 | |||||||||
Max.Hob Size (OD.X L) | Φ150mmx220mm | Φ150mmx220mm | Φ200mmx240mm | |||||||||
Max. hob shift travel | 180mm | 180mm | 240mm | |||||||||
Motion parameters | ||||||||||||
Hob spindle ( B axis) | Max.1000rpm | S1=358Nm S3=95.5Nm | Max.1000rpm | S1=35.8Nm S3-95.5Nm | Max.500rpm | S1=52.5Nm S3=118Nm | ||||||
Table rotation ( C axis ) | Max200rpm/300rpm6 | Direct drive 900Nm/1000Nm6 | Max.200rpm/300rpm | Direct drive 900Nm/1000Nm6 | Max.100rpm | Direct drive 2000Nm | ||||||
Radial Feed ( Xaxis ) | Max.12000mm/min | 250mm(35-285mm) | Max.12000mm/min | 250mm(35-285mm) | Max.5000mm/min | 310mm(90-400mm) | ||||||
Tangential Feed ( Y axis ) | Max2500mm/min | 180mm(0-180mm) | Max.2500mm/min | 180mm(0-180mm) | Max.1500mm/min | 240mm(0-240mm) | ||||||
Axial Feed(Zaxis) | Max.10000mm/min | 240mm(150-390mm) | Max10000mm/min | 250mm(150-400mm) | Max.3800mm/min | 365mm(400-765mm) | ||||||
Helix angel ( A axis ) | Max.720deg/min | ±45° | Max.720deg/min | ±45° | Max.200deg/min | +35°/-45 | ||||||
Hyd. tailstock ( U axis) | Max.6000mm/min | 300mm(340-640mm) | Max.6000mm/min | 350mm(340-690mm) | Max.5000mm/min | 380mm(250-630mm) | ||||||
Machine specifications | ||||||||||||
Main Power | 35KVA | 35KVA | 40KVA | |||||||||
Control system | FANUC Oi-MF PIus | FANUC Oi-MF PIus | FANUC Oi-MF PIus | |||||||||
(L x W x H) Floor space | 3950x3450x2750mm(including peripheral layout) | 3950x3450x2750mm(including peripheral layout) | 4500x3700x3050mm(including peripheral layout) | |||||||||
Weight ( Approx.) | 9.5ton | 10.0ton | 14.0ton | |||||||||
*4. Non automated processing can process up to 350mm in size, while automated processing can process up to 260mm in size;
*5. When placing an order, it is necessary to place it according to the demand;
*6. Standard 900Nm Max.200rpm, optional for high-speed and high torque
The TN-350 CNC high-speed hobbing machine offers several advantages in gear manufacturing:
1. High-Speed Cutting: The machine is equipped with high-speed spindles and advanced tooling systems, enabling rapid cutting. This results in shorter cycle times, increased productivity, and reduced lead times.
2. Superior Accuracy: With its CNC control system, the TN-350 ensures precise control over cutting parameters, such as feed rate and depth of cut. This leads to exceptional gear accuracy, ensuring proper meshing and smooth operation.
3. Versatility: The machine can produce a wide range of gears, including spur gears, helical gears, worm gears, and splines. It is capable of hobbing complex gear geometries and performing additional machining operations in a single setup.
4. Excellent Surface Finish: The TN-350 delivers gears with a superior surface finish, meeting the requirements for smooth and quiet gear operation. This reduces friction, enhances efficiency, and extends the lifespan of the gears.
5. Efficiency and Cost-Effectiveness: The high-speed cutting capability of the machine reduces cycle times, increasing overall production efficiency. Additionally, the CNC control system optimizes material utilization, minimizing waste and lowering production costs.
6. Reliable Performance: The TN-350 is built with robust construction and incorporates high-quality components, ensuring long-term reliability and minimal downtime. This promotes continuous and uninterrupted gear production.
7. Industry Applications: The machine finds wide applicability in industries such as automotive, aerospace, power transmission, and machinery manufacturing. It caters to various gear requirements in these sectors, ranging from small precision gears to large gears for heavy-duty applications.
In summary, the TN-350 CNC high-speed hobbing machine offers high-speed cutting, superior accuracy, versatility, excellent surface finish, efficiency, and reliable performance. These advantages make it a preferred choice for manufacturers seeking high-precision gears with enhanced productivity and cost-effectiveness.

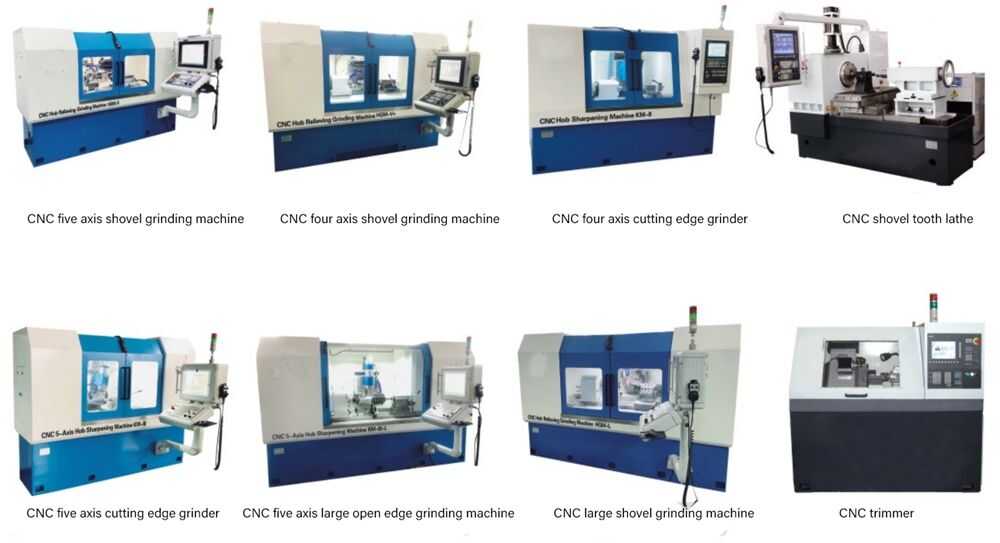

CNC machines
*CNC worm grinding machine
*CNC forming gear grinding machine
*CNC rolling cutter shovel grinding machine
*CNC cutting edge grinder
*CNC grinding wheel repair machine
*CNC shovel tooth lathe
*Fully CNC high-speed gear hobbing machine
Processing tools
*Measuring instruments
*Production equipment
*Gear hob
*Insert gear hob
*Gear hob
*Worm gear hob
*Involute spline hob
*Triangular spline hob rectangular spline hob
*Sprocket roller cutter
*Circular arc gear hob
*Synchronous belt roller cutter
Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.
Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.
Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.
1.Thousand machine tools, available for rent in stock
2.Ultra low rent, rent as needed
3.Take action lightly and reduce risks
4.Small investment, large returns
5.Worry free service, lifetime warranty
6.Renting instead of purchasing, flexible model
Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.
We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
