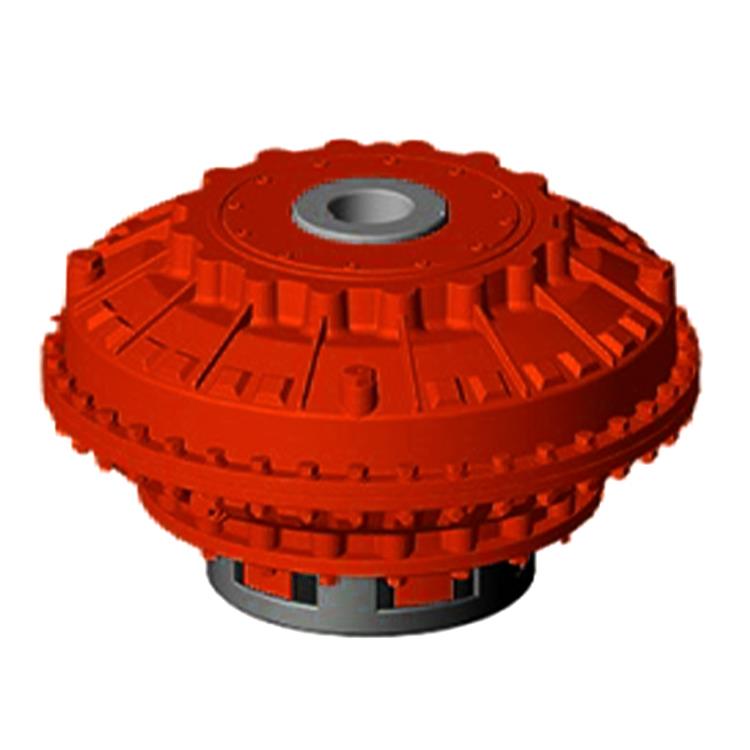

Fluid Drive Coupling

Discover the unparalleled efficiency and durability of the Raydafon Fluid Drive Coupling, a revolutionary product designed to meet the demanding needs of modern machinery. Engineered with precision, this coupling ensures smooth power transmission, minimizing wear and tear while maximizing performance. Its advanced fluid technology allows for seamless operation under varying loads, making it an indispensable component for industrial applications. The Raydafon Fluid Drive Coupling stands out with its robust construction, utilizing high-quality materials that guarantee longevity and resistance to harsh conditions. Whether it's for heavy-duty machinery, automotive applications, or precision equipment, this coupling delivers unmatched reliability. Its innovative design not only enhances operational efficiency but also significantly reduces maintenance costs, offering a cost-effective solution for businesses looking to optimize their operations. Ideal for engineers, manufacturers, and automotive enthusiasts, the Raydafon Fluid Drive Coupling is the perfect choice for anyone seeking to improve machinery performance and durability. Its versatility makes it suitable for a wide range of applications, from industrial manufacturing to vehicle modifications. Experience the difference with a product that combines cutting-edge technology with practical functionality. What sets the Raydafon Fluid Drive Coupling apart is its ability to provide a smooth and vibration-free operation, a feature that greatly enhances user comfort and equipment lifespan. Unlike traditional couplings, it eliminates the need for frequent adjustments, offering a hassle-free solution that saves time and resources. Its unique design ensures optimal performance even in the most challenging conditions, making it a standout choice in the market. Embrace the future of power transmission with the Raydafon Fluid Drive Coupling. A product that not only meets but exceeds expectations, delivering excellence and innovation where it matters most. Upgrade your machinery today and feel the difference in performance and reliability.

Send Inquiry

Product Description

fluid drive coupling

Select table of YOXz YOXzⅡ YOXzⅢ fluid couplings size and specification Fluid Drive Coupling

Select table of YOXz YOXzⅡ YOXzⅢ fluid couplings size and specification

Item	D	Dz/Lz	C	d1	L1	d2	L2	L	LⅡ	LⅢ	M
YOX-280	328	200/85	10	35	80	45	90	300	245	230	20
YOX-320	380	200/85	10	40	110	50	110	310	245	280	30×1.5
YOX-360	422	250/105	10	55	110	55	110	360	260	300	30×1.5
YOX-400	465	315/135	10	60	140	65	140	450	260	350	36×2
YOX-450	522	315/135	10	70	140	70	140	505	280	390	42×2
YOX-500	572	400/170	10	85	170	90	170	575	302	410	42×2
YOX-560	642	400/170	10	100	170	110	170	600	366	440	42×2
YOX-600	695	500/210	15	100	170	130	180	670	380	470	48×2
YOX-650	745	500/210	15	120	210	130	250	725	390	440	48×2
YOX-710	815	630/265	15	120	210	130	250	760	460	560	48×2
YOX-750	850	630/265	20	140	250	150	250	800	520	580	56×2

select table of YOXp type fluid couplings size and specification

Item	D	L	d1（max）	L1	Dp（min）	M
YOXp-190	235	102	25	60	78	16
YOXp-200	240	112	25	70	80	16
YOXp-220	260	175	30	80	80	16
YOXp-250	300	155	38	80	110	16
YOXp-280	328	160	38	100	120	20
YOXp-320	380	170	48	110	130	30×1.5
YOXp-360	422	190	55	120	150	30×1.5
YOXp-400	465	225	65	130	150	36×2
YOXp-450	522	240	70	140	200	42×2
YOXp-500	572	250	85	170	200	42×2
YOXp-560	642	285	100	180	250	42×2
YOXp-600	695	330	100	180	250	48×2
YOXp-650	745	345	120	210	300	48×2

Attention:

the smallest size Dp belt tray can do.the largeat size the dl axle hole can doYOXp type is a connection style of belt tray with hydraulic coincidence machine. The electromotive machine (or decelerating machine) axle directly inserts in the axle hole of the coincidence machine which is suitable in equipment transported by belt.Customer must supply the connection size of electromotive machine axle (d1 L1) and the detailed specification and size of belt tray.

1, performance is to reduce the impact of torsional vibration and isolation; can make the motor start with a delay time, slow speed, reduce the impact caused by the sudden start and the interaction between parts.

2, with the starting performance of the motor with light load due to coupling of the pump wheel torque and speed is proportional to the square, so when the moment of starting the pump wheel due to low speed and torque effect, similar to the pump wheel motor with no-load starting, so short starting time, small starting current, stable starting, especially suitable for heavy load starting with large inertia.

3, with overload protection performance: because no mechanical coupling is directly connected, when the external load exceeds a certain limit, the pump wheel torque will no longer increase, the motor rotation as usual, output slow down until the stop, power from the power draw into heat warms up until the fusible plug coupler, liquid injection, and the input and output is cut off the protection, motor, machine can not be damaged, thereby reducing the machine failure rate, maintenance costs and downtime, prolong the service life of motor bearing working machine.

4, with power-saving performance: because the coupler can effectively solve the motor starting and the "big horse car" phenomenon, compared with the rigid transmission can reduce at least a motor frame size, and can reduce the starting current and duration, reduce the impact on the grid energy saving rate of 10 - 20%, especially in the high starting heavy load inertia is more significant. The characteristics of the torque limited hydraulic coupler: in addition to bearing and oil seal, without any mechanical Sassafras, long service life, low failure rate, no special maintenance. If you are satisfied with our fluid drive coupling, welcome to wholesale the best quality, safe and durable equipment with our factory. We also welcome customized orders. Check the price list and the quotation with our manufacturers and suppliers now.
