Product Description

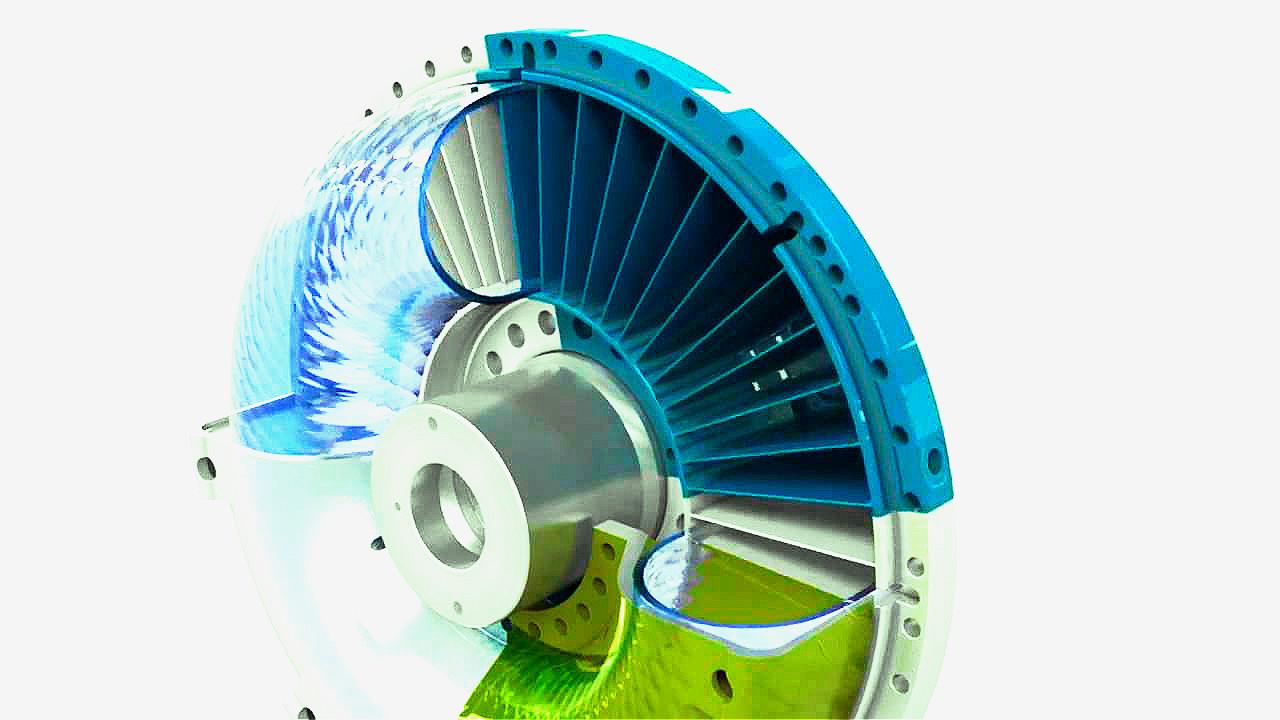

The hydraulic coupling is also called the hydraulic coupling, which is a widely used general hydraulic transmission element The main functions of hydraulic coupling are: rotating shell, input shaft, output shaft, pump wheel, turbine and spoon tube. Normally, the pump wheel and rotating shell are...

Stainless Steel Coupling Aluminum Fluid Coupling

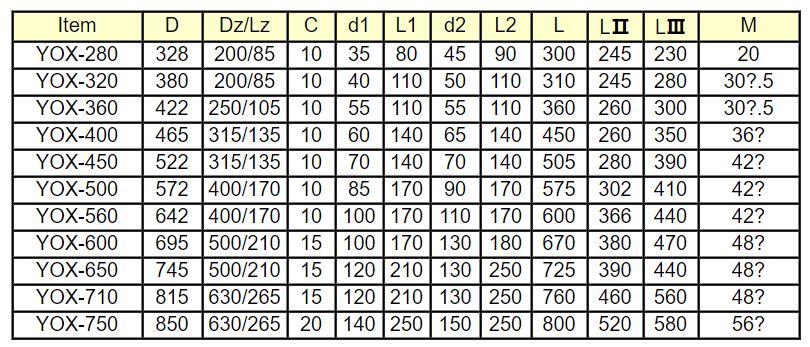

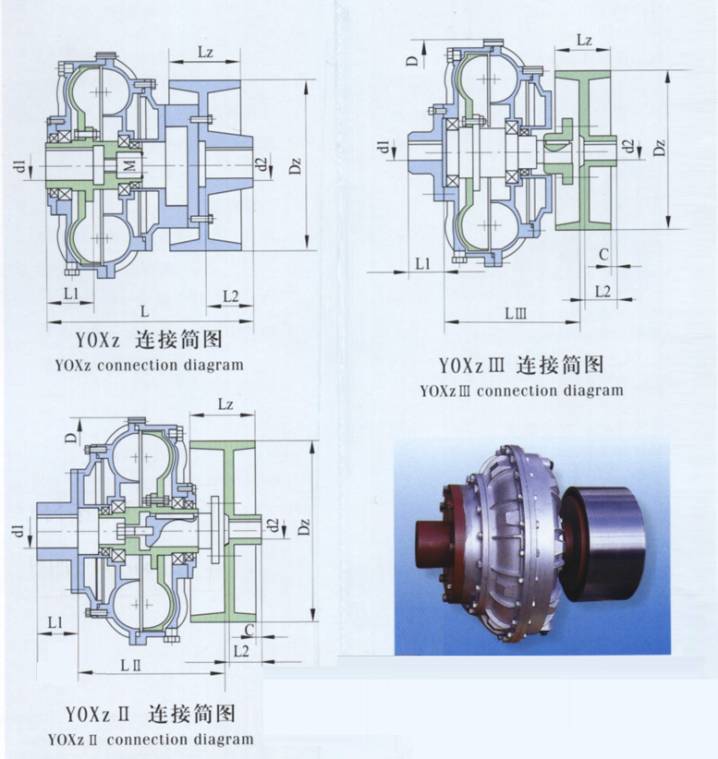

Select table of YOXz YOXzⅡ YOXzⅢ fluid couplings size and specification

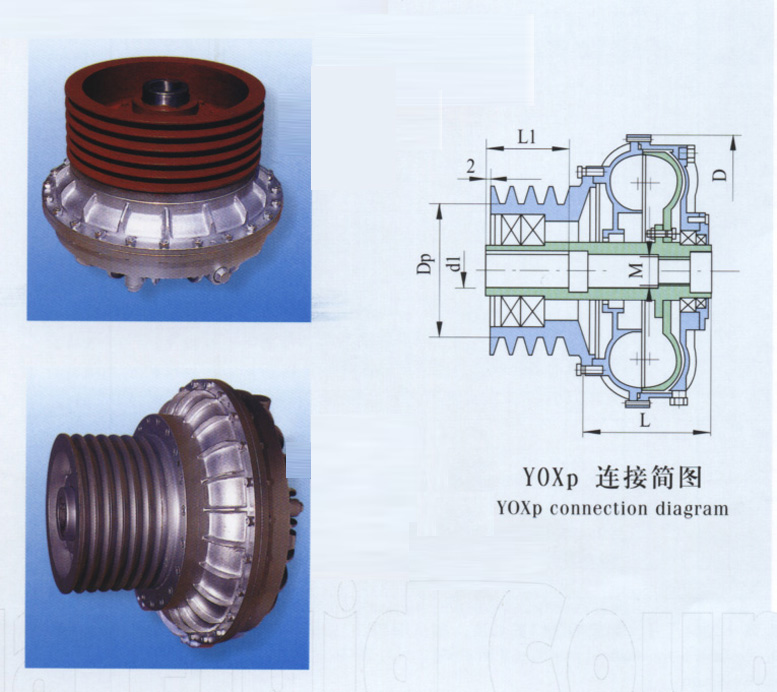

Stainless Steel Coupling Aluminum Fluid Coupling select table of YOXp type fluid couplings size and specification

规格	D	L	d1（max）	L1	Dp（min）	M
YOXp-190	235	102	25	60	78	16
YOXp-200	240	112	25	70	80	16
YOXp-220	260	175	30	80	80	16
YOXp-250	300	155	38	80	110	16
YOXp-280	328	160	38	100	120	20
YOXp-320	380	170	48	110	130	30?/font>1.5
YOXp-360	422	190	55	120	150	30?/font>1.5
YOXp-400	465	225	65	130	150	36?
YOXp-450	522	240	70	140	200	42?
YOXp-500	572	250	85	170	200	42?
YOXp-560	642	285	100	180	250	42?
YOXp-600	695	330	100	180	250	48?
YOXp-650	745	345	120	210	300	48?
