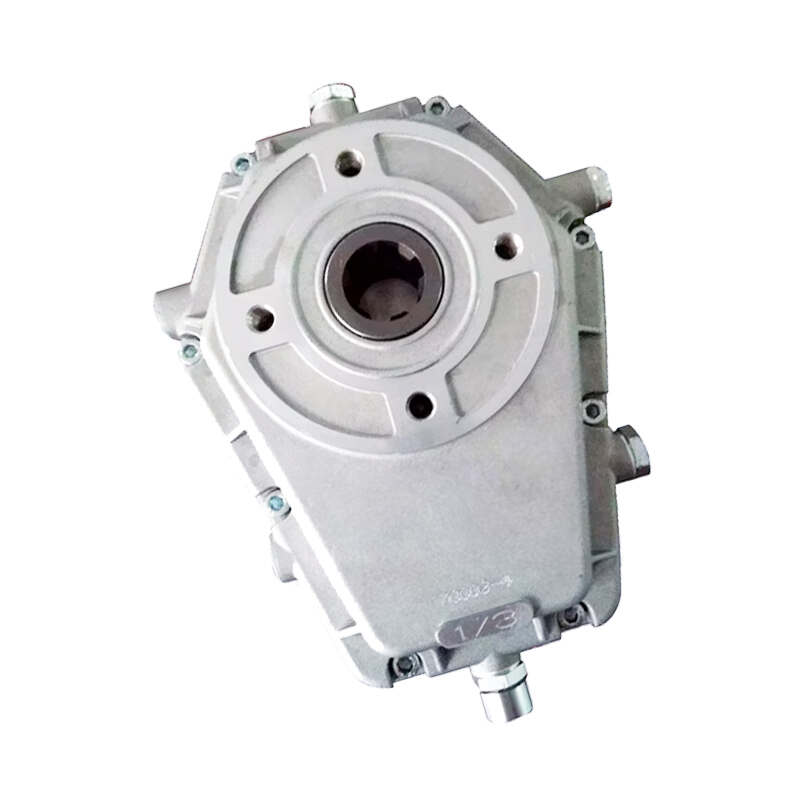

KM7003 Series Tractor Hydraulic Pump PTO Speed Increaser Aluminium Multipliter Gearbox
The Raydafon KM7003 Series Tractor Hydraulic Pump PTO Speed Increaser Aluminium Multiplier Gearbox is a high-performance solution designed to enhance the efficiency and productivity of your agricultural machinery. Crafted from premium aluminium, this gearbox is not only lightweight but also highly durable, ensuring long-term reliability in the toughest farming conditions. Its primary function is to increase the PTO speed, enabling your tractor to operate a wider range of hydraulic pumps and attachments with ease. The KM7003 Series stands out for its precision engineering, offering smooth operation and reduced maintenance needs. It's the perfect choice for farmers and agricultural professionals looking to maximize their equipment's versatility and performance. Whether you're tending to crops, managing livestock, or performing landscape maintenance, this gearbox transforms your tractor into a more powerful and efficient tool. Experience the difference with Raydafon's commitment to quality and innovation, and take your farming operations to the next level.
Aluminium Muitiplier KM7003
The Gearboxes are designed for connecting gear pumps to farm tractor power take offs (PTO).Output speed of power take offs is 540rpm which can be compared with the proper running speeds of hydraulic pumps.Different input running speeds can also be suitable, provided that the PTO gearbox output speed does not exceed 3000 rpm.

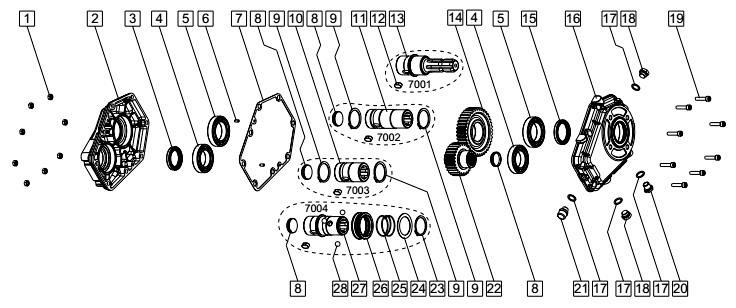

Spare Parts
No. | Description | Quantity | No. | Description | Quantity |
1 | Nut M8 | 8 | 15 | Sealing ring 50x65x8 | 1 |
2 | Cover | 1 | 16 | Housing | 1 |
3 | Sealing ring 45x65x8 | 1 | 17 | Gasket | 4 |
4 | Bearing type 6009 | 2 | 18 | Oil drain plug 3/8" | 2 |
5 | Bearing type 6010 | 2 | 19 | Socket cap screw M8x 35 | 8 |
6 | Peg6x12 | 2 | 20 | Oil level plug 3/8" | 1 |
7 | Gasket | 1 | 21 | Oil filling cap 3/8" | 1 |
8 | Cap DIN 470 37 | 1 | 22 | Pinion gear | 1 |
9 | Snap ring dia.50 | 2 | 23 | Snap ring UNl 7435-50 | 1 |
10 | Female 1 3/8" DlN 9611 short | 1 | 24 | Ring | 1 |
11 | Female 1 3/8" DiN 9611 long | 1 | 25 | Spring | 1 |
12 | Key 12x25 | 1 | 26 | Spring ring | 1 |
13 | Male 1 3/8" DIN 9611 | 1 | 27 | Female 1 3/8" DlN 9611 + tightening | 1 |
14 | Ring gear | 1 | 28 | Ball | 3 |
Input torque Nm | Output toque Nm | Input speed r/min | Ratio | Output speed r/min | Power Kw | Weight Kg |
380 | 260 | 540 | 1.5 | 810 | 20 | 8.3 |
430 | 210 | 540 | 2 | 1080 | 20 | 8.3 |
460 | 180 | 540 | 2.5 | 1350 | 20 | 8.3 |
490 | 160 | 540 | 3 | 1680 | 20 | 8.3 |
460 | 130 | 540 | 3.5 | 1836 | 20 | 8.3 |
437 | 115 | 540 | 3.8 | 2052 | 20 | 8.3 |

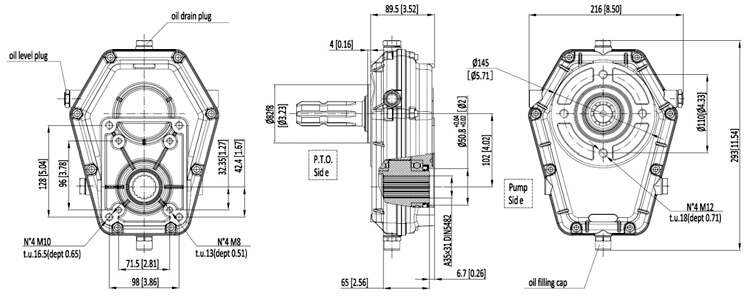

Three Views
