New Design Lathe Hob Hobs Hot Sale Automatic Htm Cnc Hob Relieving Lathe for Rough Tooth Cutting of Gear Hobs with Low Price

Discover the precision and efficiency of the Raydafon New Design Lathe Hob Hobs, the ultimate solution for rough tooth cutting of gear hobs. This Hot Sale Automatic Htm Cnc Hob Relieving Lathe combines cutting-edge technology with affordability, making it a must-have for professionals seeking top-tier performance without breaking the bank. Perfect for industrial manufacturers and hobbyists alike, our CNC lathe is designed to streamline your workflow, ensuring flawless results every time. Experience the difference with Raydafon - where innovation meets reliability. Say goodbye to tedious manual processes and hello to effortless precision with our state-of-the-art lathe. Ideal for workshops and production lines, it's not just a tool; it's your partner in crafting perfection. Choose Raydafon for a seamless, efficient, and cost-effective gear hob cutting experience that stands out from the competition.

Send Inquiry

Product Description

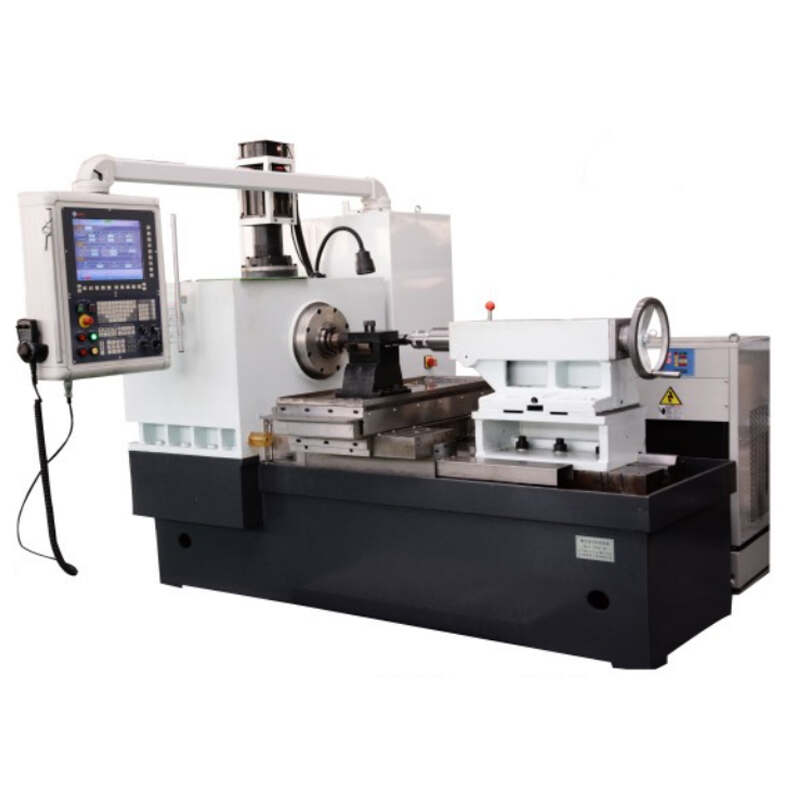

The CNC shovel tooth lathe adopts LYNUC U3E system three-axis and three linkage control; The headboard of the bed adopts a self-made high torque and high rigidity design, and the shovel back adopts a large A linear motor with thrust and equipped with a straight grating, fully closed-loop design, with high speed Featuring high precision, the fastest speed can reach 8 times per second. This machine tool is not only equipped with dry The cutting air cooling system is also equipped with an internal circulation cooling device.
Applicable scope Suitable for rough tooth cutting of gear hobs (precision rolling, pre shaving, pre grinding), worm gear hobs, involute/triangular/rectangular spline hobs, sprocket hobs, synchronous pulleys/die hobs, insert hobs, multi segment arc gear hobs, formed special hobs, and milling cutters.

	HTM-II	HTM-L (large specification)
Centre Height	220mm	210mm
Centre Distance	520mm	620mm
Hob Diameter	Φ220mm	Φ400mm
Max. Effective Length	350mm	400mm
Max Module	M1~M12 (≥ M8 requires a separate shovel)	M1~M20 (≥ M12 requires a separate shovel)
Heads	Any	Any
Max.Cam	16mm	25mm
Table Transverse Stroke	Z=500mm	Z=560mm
Wheel Longitudinal Stroke	X=100mm	X=175mm
Spindle(C) Power	7.5kw	11kw
Spindle (C)Interface	Max.50rpm,BT50#	Max.35rpm,BT50#
CNC System	LYNUC U3E	LYNUC U3E
Power	3AC 380V 20KVA	3AC 380V 30KVA
Main Machine Size	2600x1300x1950mm	3600x1600x1950mm
Main Machine Weight	5000kg	9000kg

CNC machines

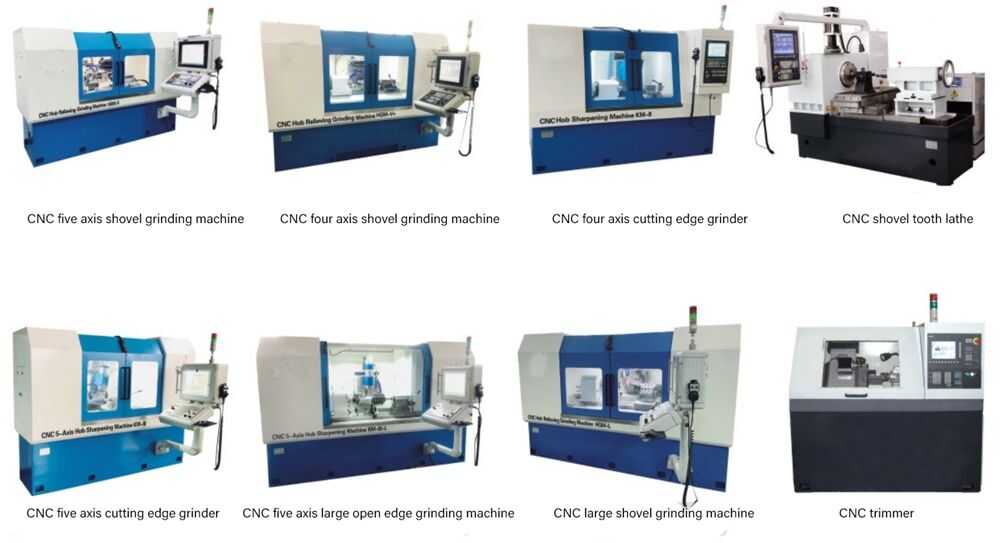

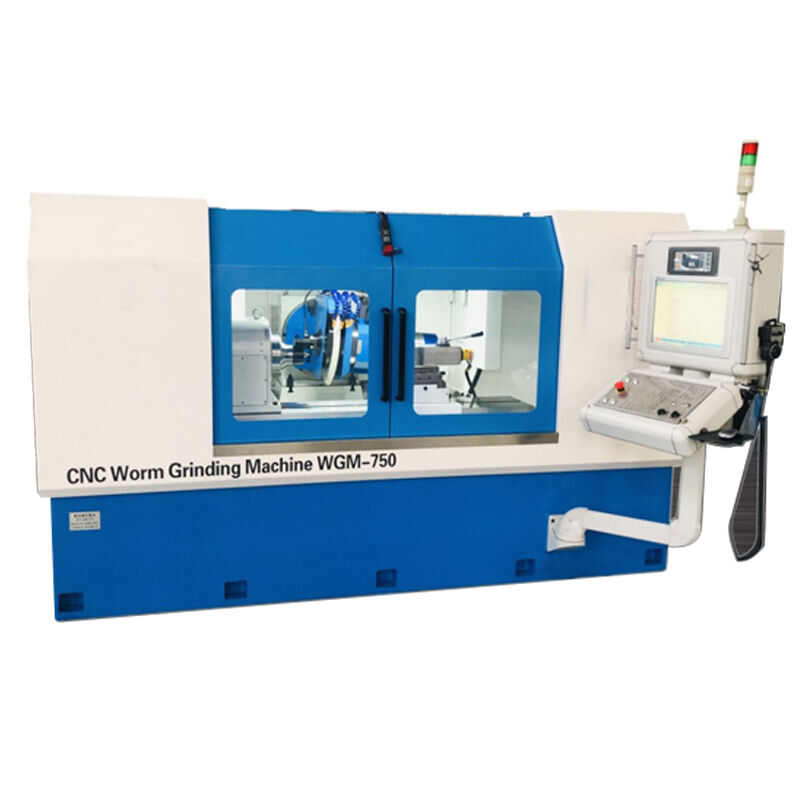

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

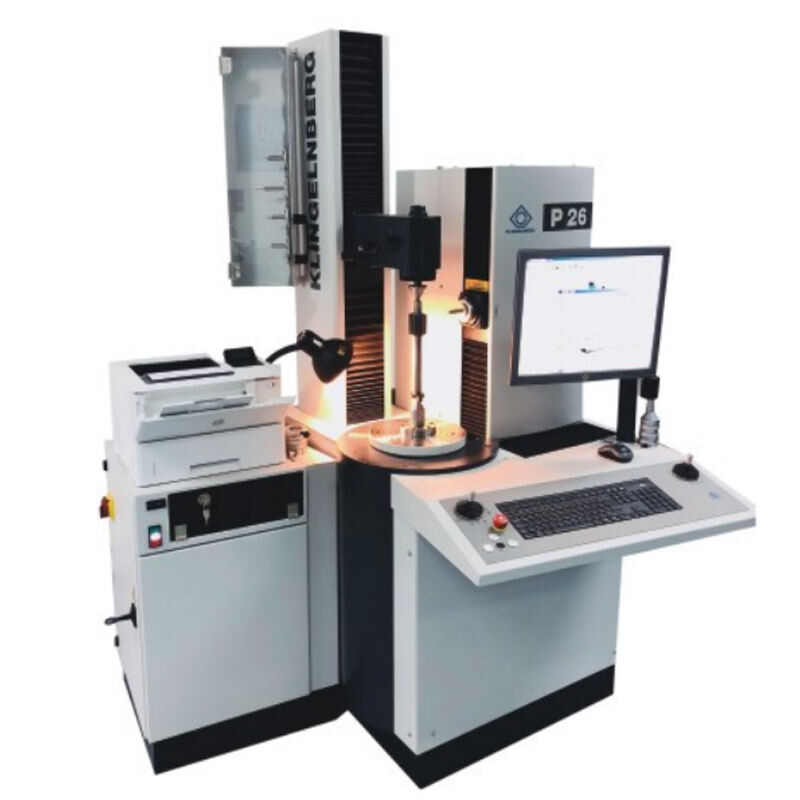

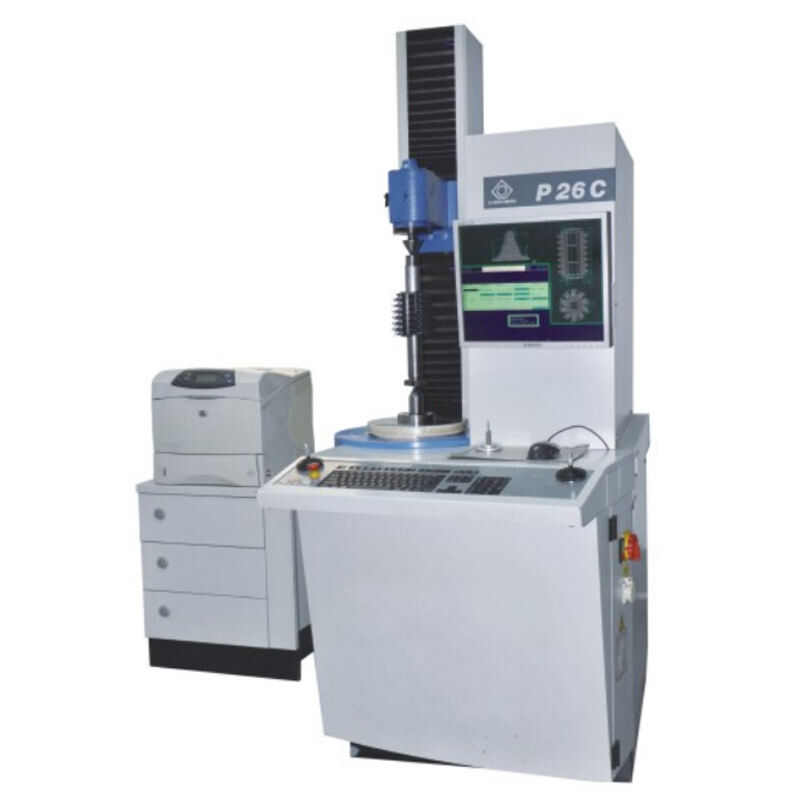

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter
