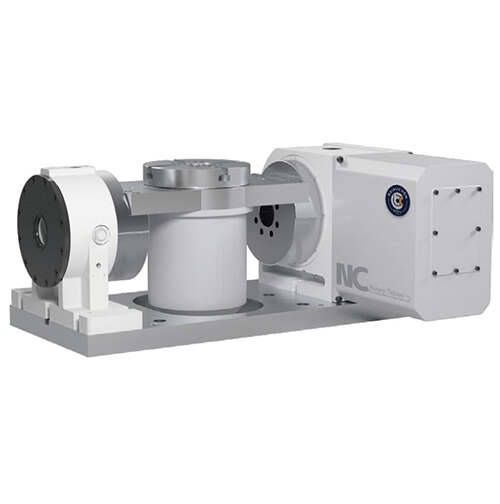

RTS-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery

The Raydafon RTS-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table is a state-of-the-art component designed to elevate the precision and efficiency of CNC machinery. Crafted for professionals in the manufacturing and machining industries, this rotary table stands out for its robust construction, unparalleled accuracy, and seamless integration with CNC systems. Made from high-quality materials, it ensures durability and longevity, even in the most demanding environments. Its advanced design allows for precise rotational movements, making it ideal for complex machining tasks that require high levels of detail and accuracy. Whether you're involved in aerospace, automotive, or custom fabrication projects, the RTS-170 enhances productivity by enabling multi-sided machining without the need for manual repositioning. This not only saves valuable time but also significantly reduces the margin for error. Users will appreciate the ease of operation and the transformative impact it has on their workflow, offering a solution to the challenges of intricate part production. What sets the RTS-170 apart is its innovative technology and user-centric design, tailored to meet the exacting standards of modern CNC machining. Unlike conventional rotary tables, it delivers superior performance and reliability, making it a must-have for professionals seeking to push the boundaries of precision engineering. With the Raydafon RTS-170, achieve seamless, high-precision machining results that set your work apart from the competition.
RTS-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
High precision, high performance, high efficiency
Five axis machining, modular design
Optional fixture oil circuit, Optional hydraulic brake
Product Model
RTS-170
Servo motor (optional)
Rotation axis β2iFANUC;Tilt axis β8iFANUC
Panel Size
170mm
Reduction Ratio
Rotation axis 1:121 ;Tilt axis 1:90
Disk Aperture
40mm
Maximum Rotation Speed Of Worktable
33.3 r.p.m
T-groove Of Disk Surface
12H8mm
Minimum Setting Angle
0.001°deg
Tilt Angle
±110°deg
Segmentation Accuracy
Rotation axis 20″sec;Tilt axis 15″sec
Rotation Angle
360°deg
Repeat Positioning Accuracy
Rotation axis 4″sec;Tilt axis 4''sec
0 ° Time Disk Height
255mm
Locking torque of rotating shaft
Rotation axis 412N.m;Tilt axis 450N.m
90° Time Center Height
135mm
Brake Pressure
Rotation axis pressure machine;Tilt axis oil pressure 15Kg/cm²
Net Weight (about)
180Kg
Allowable Cutting Force
Rotation axis 18Kgf-m;Tilt axis 30Kgf-m
Horizontal placement
80KG
Ninety ° Time
50KG
RTS-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
RTS-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
RTS-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad. Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
RTS-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
RTS-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US.
