Small Size Linear Guideway CNC Lathe SVB500 Machine Tool Metal Cutting Vertical Machining Center

Discover the precision and efficiency of the Raydafon Small Size Linear Guideway CNC Lathe SVB500 Machine Tool, a cutting-edge solution for metal cutting and vertical machining needs. Designed for professionals and hobbyists alike, this compact yet powerful machine combines advanced technology with user-friendly features to deliver unparalleled performance. Its linear guideway ensures smooth and accurate movements, making it ideal for intricate metal cutting tasks. Whether you're in the automotive, aerospace, or manufacturing industry, the SVB500 is your go-to for high-quality, precise machining. Experience the difference with Raydafon's commitment to innovation and quality. Transform your metalworking projects with speed, precision, and reliability. The SVB500 isn't just a tool; it's your partner in creating perfection.

Send Inquiry

Product Description

Products Description

SVB500 small size high rigidity 3 axis cnc milling machine

The SVB500 vertical machining center adopts a vertical frame layout, with columns fixed on the bed. The spindle box moves up and down along the columns (Z-direction), the slide seat moves longitudinally along the bed (Y-direction), and the workbench moves laterally along the slide seat (X-direction). All three axes use linear guides, replacing sliding friction with rolling friction, which makes the movement speed faster and meets the requirements of high speed and precision. The three-axis adopts rolling track and large span design, ensuring long-lasting accuracy. X. The Y and Z-axis servo motors are directly connected to high-precision ball screws through gapless elastic couplings, reducing intermediate links and achieving gapless transmission. Each axis is equipped with imported precision angular contact screw special bearings for paired installation, and the ball screws are precisely pre stretched, with flexible feeding, accurate positioning, and high transmission accuracy.

Item	Unit	SVB500	SVB650	VMC1100L	VMC1200L
Worktable
Worktable size	mm	*700400**	850*400	650*1300	700*1400
T-slot (N×W×D)	mm	5x18x100	5x18x100	5x18x100	518115
Travel
Axis travel (X/Y/Z)	mm	500/400/500	650/400/500	100/650/700	1200/700/700
Machining range
Distance from spindle center to column front	mm	451	451	775	775
Distance from spindle end to work table	mm	100-600	100-600	150-850	103-803
Machine dimension
L×W×H	mm	*210023002750*	210023002750	453028803250	4830*2880-3250
Machine weight
Max. load bearing of worktable	kg	300	350	1000	1000
Machine weight	kg	3900	4100	9000	10000
Spindle
Spindle hole taper		BT40	BT40	BT40	BT50
Spindle power	Kw	5.5/7.5	7.5/11	11/15	11/15
Max. spindle speed	rpm	8000/10000	8000/10000	8000	6000
Feed(direct drive)
Max. feed speed	mm/min	10000	10000	10000	8000
Rapid feed speed (X/Y/Z)	m/min	48/48/32	48/48/32	24/24/15	24/24/15
Ball screw (diameter + lead)
Axis ball screw (X/Y/Z)	mm	3216/3216/3216	3216/3216/3216	4012/4012/4012	4012/4012/4012
Tool Magazine
Tool magazine capacity	T	16	16	24	24
Tool change time(T-T)	s	2	2	2.5	3
Positioning accuracy (National standard)
Positioning accuracy (X/Y/Z)	mm	0.008	0.008	0.010	0.010
Re-positioning accuracy(X/Y/Z)	mm	0.005	0.005	0.005	0.005

Machine structure :

---The contact ratio between spindle case and column increased to ensure spindle rigidity.
---1100mm wide machine body span and optimum supporting design can meet with fast feed of X and Y axis.
---Big size of "pyramid" column and with closed inner cavity to ensure low center but high rigidity support of Z axis.

Preloaded and double anchored ball screw :

---Servo motor directly coupled ball screw.
---All the ball screws, linear guideway, bearings are well lubricated in time and ration.
---Y/Z axis adopt 45mm linear guideway while X axis adopts 35mm which make the rapid feed speed reach 48/48/32m/min.
---In order to eliminate thermal growth and increase accuracy, all axes are driven by high precision double anchored ballscrews. Also 5 rank high precision angular contacted bearing installed aside the ball screw and make pre-tension.

Shoulder carrying tool magazine :

Shoulder carrying tool magazine can ensure Z axis geometric accuracy and perfect stability, rigidity and the minimum deformation when column loaded with tool magazine weight.

Large flow coolant fluid :

---Labyrinth style cover design to protect machine from scraps and cutting fluid.
----Standard equipped with inner side flushing system to remove scraps efficiently.

Application

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

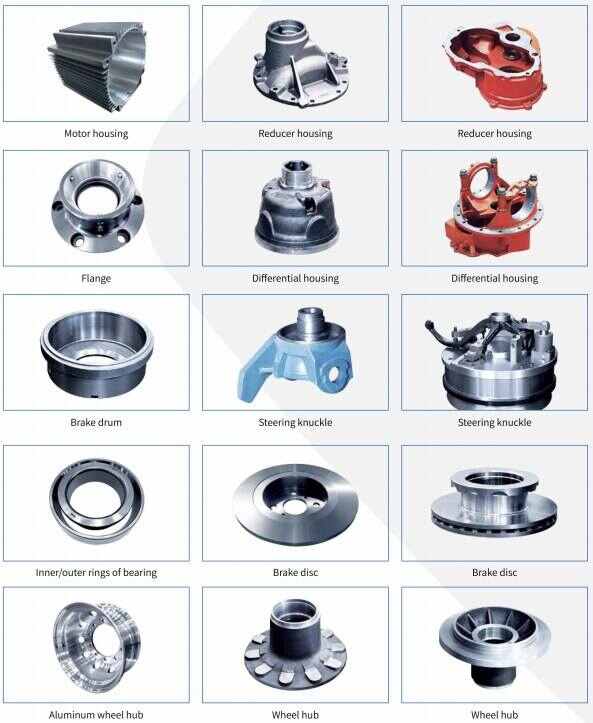

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Company Information

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It has established two CNC machine tool production with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Why Choose Us

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

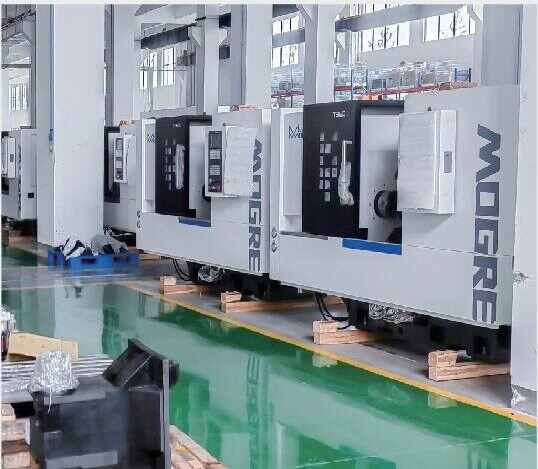

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
