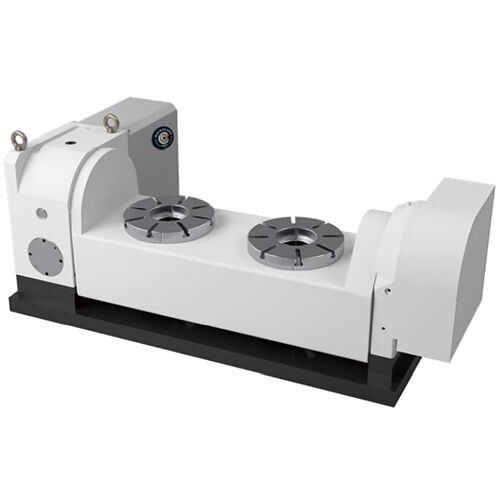

WT-S255-T2 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
Elevate your CNC machining projects with the Raydafon WT-S255-T2 Machine CNC Machining Center Parts CNC Turntable Rotary Table. Designed for precision and durability, this rotary table is a must-have for professionals seeking to enhance their CNC machinery's capabilities. Whether you're in manufacturing, engineering, or any field that demands high-precision CNC machining, the WT-S255-T2 offers unparalleled accuracy and reliability. Its robust construction ensures long-term durability, while its advanced technology guarantees seamless integration with your existing CNC setup. Experience the difference with a product that not only meets but exceeds expectations, providing a solution that enhances efficiency, precision, and ultimately, your project's success. The Raydafon WT-S255-T2 stands out from the competition with its superior design, cutting-edge technology, and commitment to quality, making it the perfect choice for those who refuse to compromise on performance. Transform your CNC machining process and achieve flawless results every time with the WT-S255-T2.

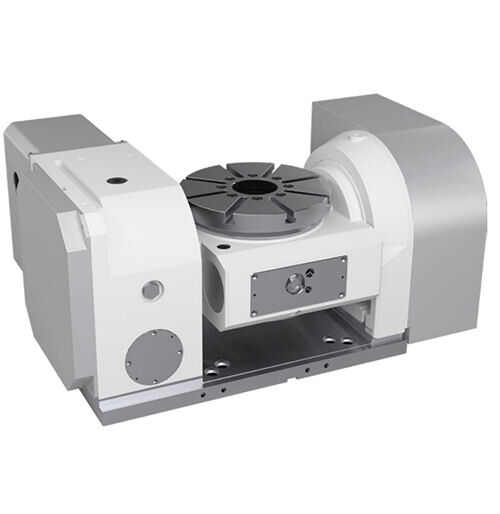

Cradle type and extended type
The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulic brake mechanism
Product Model | WT-S255-T2 | Servo motor (optional) | Rotation axis β12i HF-154;Tilt axis β22i HF-204 |
Panel Size | Φ255mm | Reduction Ratio | Rotation axis 1:120 ;Tilt axis 1:180 |
Disk Aperture | Φ110mm | Maximum Rotation Speed Of Worktable | Rotation axis 25r.p.m ;Tilt axis 16.6r.p.m |
Center Trough Hole | Φ80mm | Minimum Setting Angle | 0.001°deg |
Disk Height | 325mm | Segmentation Accuracy | Rotation axis15″sec;Tilt axis 30″sec |
Disk T-Slot | 12H8mm | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
Positioning Button | 18H7mm | Locking Method | Rotation axis oil pressure 35Kg/cm²;Tilt axis oil pressure 35Kg/cm² |
Tilt Axis Angle Range | -45 ~110° | Brake Torque | Rotation axis 31Kg/m ;Tilt axis 31Kg/m |
Net Weight (about) | 600Kg | Allowable Cutting Force | Rotation axis 80Kg.m ;Tilt axis 80Kg.m |
Horizontal placement | 150KG | Placement | 100KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad.
Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
