WT-SL320 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
Elevate your CNC machining precision with the Raydafon WT-SL320 CNC Turntable Rotary Table, a game-changer for your machinery setup. Designed for professionals seeking unparalleled accuracy and durability, this CNC machining center part is your go-to solution for complex, multi-axis operations. Crafted from high-grade materials, the WT-SL320 stands out for its robustness, ensuring long-term reliability even in the most demanding conditions. Whether you're in aerospace, automotive, or custom fabrication, this rotary table adapts seamlessly to your needs, offering a seamless integration with your existing CNC machinery. Experience the difference with smoother operations, enhanced precision, and reduced setup times. The WT-SL320 isn't just a tool; it's your partner in achieving machining excellence. Its unique design and superior performance set it apart from conventional rotary tables, making it a must-have for professionals who refuse to compromise on quality. Transform your machining projects with the Raydafon WT-SL320 and step into a world of precision and efficiency.

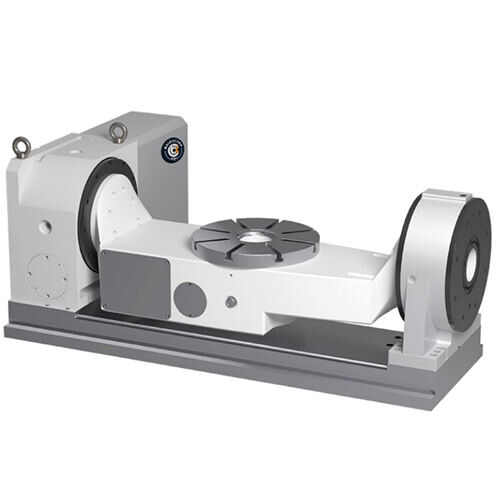

Cradle type and extended type
The tilting axis, the rotating axis and the support seat all adopt the embracing hydraulic brake mechanism
Product Model | WT-SL320 | Servo motor (optional) | Rotation axis β12i HF-154;Tilt axis β22i HF-204 |
Panel Size | Φ320mm | Reduction Ratio | Rotation axis 1:120 ;Tilt axis 1:180 |
Disk Aperture | Φ110mm | Maximum Rotation Speed Of Worktable | Rotation axis 25r.p.m ;Tilt axis 16.6r.p.m |
Center Trough Hole | Φ80mm | Minimum Setting Angle | 0.001°deg |
Disk Height | 300mm | Segmentation Accuracy | Rotation axis 15″sec;Tilt axis30″sec |
Disk T-Slot | 12H8mm | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
Positioning Button | 18H7mm | Locking Method | Rotation axis oil pressure 35Kg/cm²;Tilt axis oil pressure 35Kg/cm² |
Tilt Axis Angle Range | -45 ~110° | Brake Torque | Rotation axis 31Kg/m ;Tilt axis 31Kg/m |
Net Weight (about) | 600Kg | Allowable Cutting Force | Rotation axis 80Kg.m ;Tilt axis 80Kg.m |
Horizontal placement | 150KG | Placement | 100KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad.
Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US. |
