0.425 445 R/min 0.25 to 55kw Heavy Duty Series N4 4 Stage Planetary Gearbox Speed Reducer
Discover the power and precision of the Raydafon 0.425 445 R/min 0.25 to 55kw Heavy Duty Series N4 4 Stage Planetary Gearbox Speed Reducer, a pinnacle of engineering designed for those who demand reliability and efficiency in their operations. This robust speed reducer is crafted for heavy-duty applications, ensuring smooth and consistent performance under the most demanding conditions. Whether it's for industrial machinery, construction equipment, or any application requiring precise speed reduction, this gearbox stands as a testament to durability and performance. With its 4-stage planetary design, it offers unparalleled torque density and efficiency, making it a superior choice for professionals seeking long-term reliability. The Raydafon gearbox is not just a tool; it's a solution that brings peace of mind, knowing that your machinery is powered by the best in the market. Its unique combination of high-quality materials, advanced technology, and meticulous design sets it apart from the competition, offering a perfect blend of power, precision, and durability. Choose Raydafon for a gearbox that not only meets but exceeds your expectations, delivering exceptional performance day in and day out.

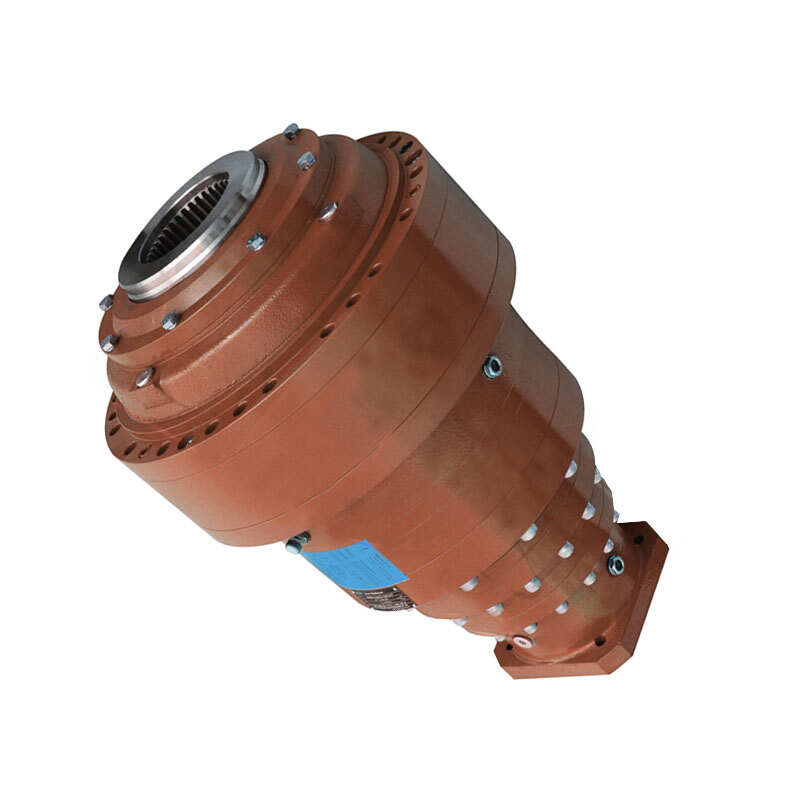

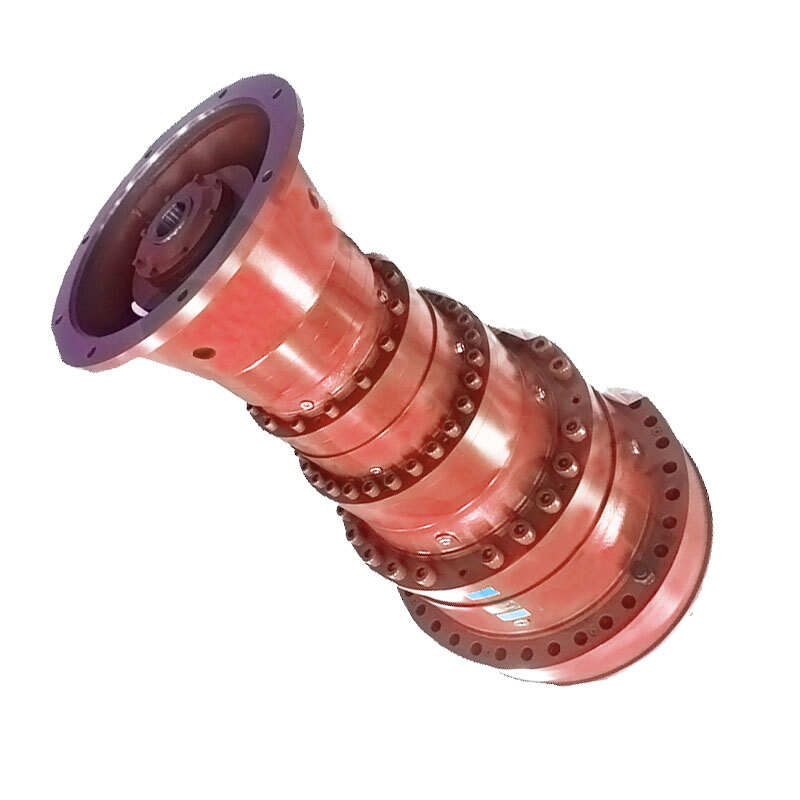

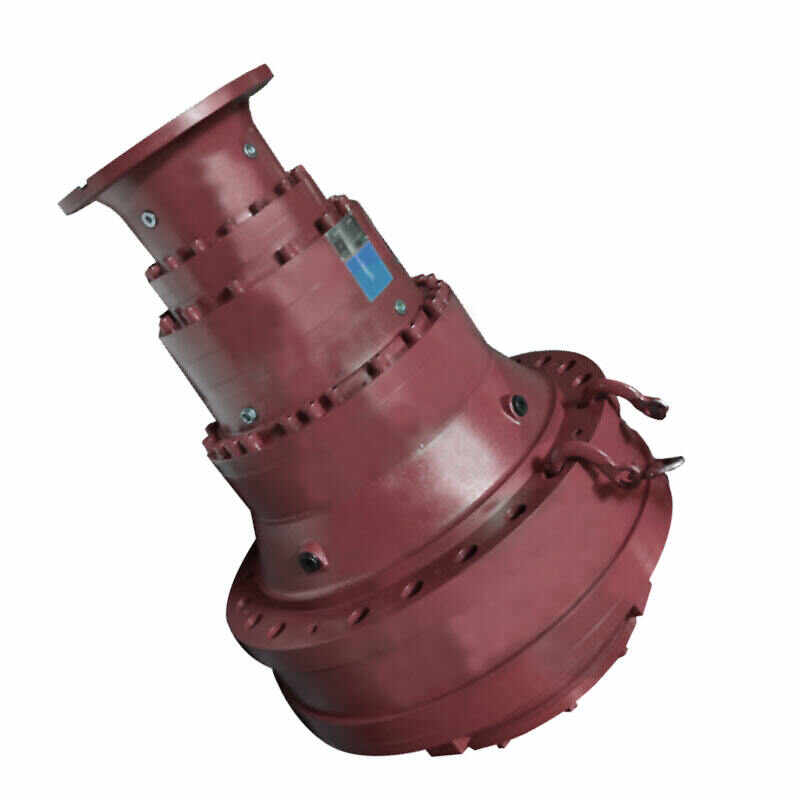

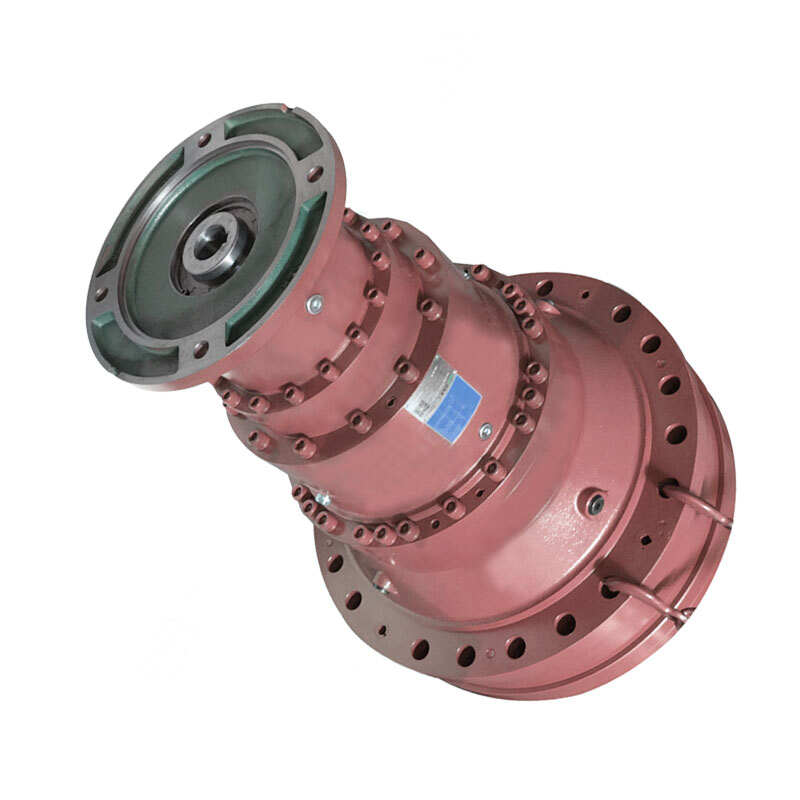

Series N4: 4 Stage Planetary Gearbox
Raydafon 4 stage planetary gearbox (series N4) features a heavy duty bearing on low-shaft. We have designed it to bear enormous radial load. Thanks to our R&D team who have made it easier for us to develop a 4 stage planetary gearbox with proportionate distribution of torque.
Every Raydafon 4 stage planetary gearbox is case hardened to guarantee transmission efficiency. Moreover, they come with rigid and nodular cast iron casing, making them durable and reliable even in the adverse working environment.
As a planetary drive manufacturer, apart from the high and reliable performance, load capacity and low speed shaft bearing; all our 4 stage planetary gearboxes produce virtually no noise.
Also, with vast experience on how planetary gearbox works, we are able to attain a wide range of output speeds and torques. You can use a planetary gear ratio formula to determine the best 4 stage planetary gearbox, suitable for your unique applications.
At Raydafon, you can find customized designs alongside our standard 4 stage planetary gearboxes.
Torque range | 1000 … 540000 Nm | Input | IEC Flange |
Mechanical rating (n1 = 1500 min-1) | up to 200kW | Electric motor | |
Gear ratios | 140.36-3144.53 | Solid input shaft with or without fan cooling – inch or metric dims. | |
Gear unit versions | Applicable AC motors | Integral motors and brake motors | |
Right angle (with bevel gear set) | IEC-normalized motors and brake motors | ||
Mounting type | Foot | Single and dual speed motors | |
Flange mounted | Main brake features | DC and AC supply | |
Torque-arm | Faster brake reaction through electronically controlled rectifier | ||
Output shaft options | Solid shaft | Main motor options | Thermistors and thermostat sensors |
Splined shaft | Independent forced cooling | ||
Female splined shaft | Line driver and push-pull incremental encoder | ||
Hollow shaft with shrink disc |
Click here for more model types!
Raydafon GROUP is a Symbol of quality craftsmanship in China . Founded in 1988, specialize in the manufacturing of slewing drives , wheel drivck drives winch drives of gearboxes are used in a variety of applications including construction machine petroleum , coal , geological exploration , shipping , metallurgy , solar power , wind power , agriculture , andprotection .After years of developmental success , our products are intemational recognized for their quality . We export gearboxes to many places in the world , including Southeast Asia , the Middle East Germany , USA Canada Spain Australia , Turkey , and India . We are a consistently growing enterprise that seeks to satisfy our customatter their location
Hot Tags: 4 Stage Planetary Gearbox, Heavy Duty Speed Reducer, N4 Series Gearbox
