Exquisite Structure Manufacturing FGE Series Slewing Drive FGE14 for Machinery/Vacuum Trucks Industrial Use
The Exquisite Structure Manufacturing FGE Series Slewing Drive FGE14 by Raydafon is a pinnacle of engineering designed for the demanding environments of machinery and vacuum trucks in the industrial sector. This robust slewing drive is a testament to durability and precision, crafted for those who refuse to compromise on quality and performance. Its core lies in the seamless integration of high-grade materials and cutting-edge technology, ensuring unparalleled efficiency and longevity in even the most rigorous applications. Whether it's for heavy-duty machinery or specialized vacuum trucks, the FGE14 stands as a beacon of reliability, offering smooth operation and minimal maintenance requirements. Its design caters to engineers and industries seeking a solution that not only meets but exceeds expectations, transforming operational challenges into opportunities for growth. The FGE14 is not just a product; it's a partner in progress, empowering users to achieve more with less effort. What sets it apart is its exquisite structure manufacturing process, which ensures each unit delivers consistent performance, making it a preferred choice among professionals. With Raydafon's FGE14, step into a world where industrial operations are redefined by excellence and innovation.
Exquisite Structure Manufacturing FGE Series FGE14 Slewing Drive Reducer For Vacuum Truck
Slewing Drive Reducer For Vacuum Truck
Slewing drive reducers are commonly used on vacuum trucks, vac-con trucks, and combo trucks. They are used to transfer vacuum to other equipment, such as a turret or boom. Here is more information about these drives and how they work.
Slewing drive reducer
The Slewing drive reducer is a mechanical device that transfers torque from one engine to another. Depending on the application, the slewing drive can be either a bevel gear, spur gear or worm gear. These drives can be single or double rows. Double-row gears are better for handling larger loads. This product is essential in aerial work trucks, where safety is of the utmost importance.
Variable transmission slewing drives have the advantage of being compatible with many applications. For example, the worm gear slewing drive has a larger reduction ratio than tooth-type slewing drives. This design has several advantages over the latter, including better carrying capacity and transmission rigidity.
Slewing drive mechanism
Slewing drives are used to move large machines. They are expensive to maintain and can create a loud screeching noise. They can also cause vibration and jerking motion. Therefore, it is important to choose a slewing drive that is reliable. These slewing drive mechanisms are available in various sizes, shapes, and configurations.
There are two main types of slewing drives: horizontal and vertical. The former has a single-row ball slewing ring while the latter has a double-row ball slewing ring. The two drive mechanisms have their own advantages and disadvantages.
Slewing drive applications
Slewing drive applications in vacuum trucks have several distinct advantages. They are compact, rotary systems that allow for structural movement and are perfect for critical environments. These units are ideal for a variety of applications, including aerial platforms, public transportation, and forestry equipment sectors. The slewing drive provides the strength and precision necessary to handle heavy loads and rotate at a high rate.
Slewing drive technology is also ideal for construction machinery auxiliary equipment. They are made to be more user-friendly and have a larger reduction ratio than their counterparts. These drives also allow for better positioning accuracy for construction machinery aids.
Slewing drive components
When a vacuum truck needs to move items quickly and smoothly, slewing drive components are an essential part of the vacuum truck. A slewing drive works by allowing an external ring to rotate and output torque through a flange. An internal band is then fixed to the housing.
Slewing drive devices can be either hydraulic or electrical. The former has a lower pour point and requires more oil to operate, but the latter can withstand high back pressures. Hydraulic slew drives are also very versatile and easy to maintain. They can be used in aerial vehicles, wind and photovoltaic power generators, and even engineering machinery grapples.
Slewing drive applications in industrial robots
Slewing drives are used for a variety of applications, from industrial robots to wind turbines and equipment. They provide reliable, maintenance-free performance in a variety of environments. They also allow the equipment to rotate with high accuracy and precision. They also have low backlash, which makes them an excellent choice for high-torque applications.
Slewing drives are commonly used in applications that require high torque at low speeds. They are also excellent for high-torque applications and low profile performance, making them ideal for industrial robots and heavy equipment. They also feature pneumatic or hydraulic motors, and are available with double or single-slew designs.
Slewing drive applications in manufacturing
The Slewing drive reducer is a versatile solution for a variety of applications. It works by meshing the grooves of the horizontal screw with the teeth of the perpendicular gear. The worm gear then magnifies the torque and turns the radial gear. There are many types of slew drives, including single and dual-axis designs.
The slewing drive reducer's standard orientation is horizontal, which allows for maximum axial load capacity with minimal radial load. However, it can also be used in vertical orientations, and slewing drive reducers can be custom-built to meet specific requirements.

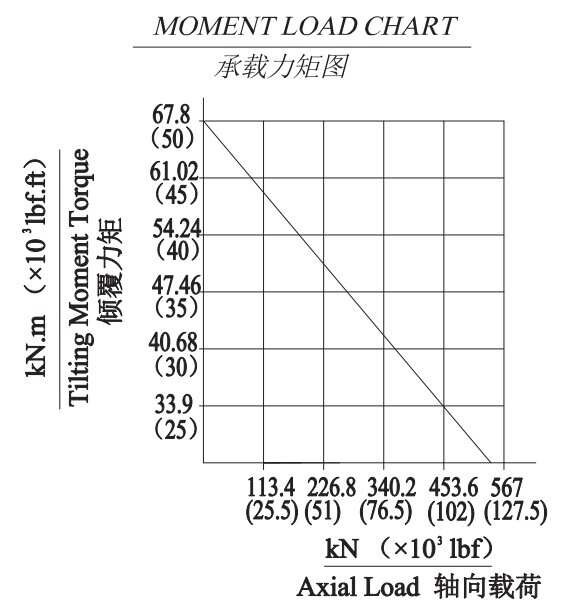

Output torque | Lifting moment torque | Holding torque | Axial load | Radial load | Ratio | Backlash | Weight |
8 KN.M | 67.8 KN.M | 49 KN.M | 555KN | 222 KN | 85:1 | ≤0.17° | 65kg |
5900 LBF.FT | 50*10³ LBF.FT | 36*10³ LBF.FT | 125*10³ LBF | 50*10³ LBF |

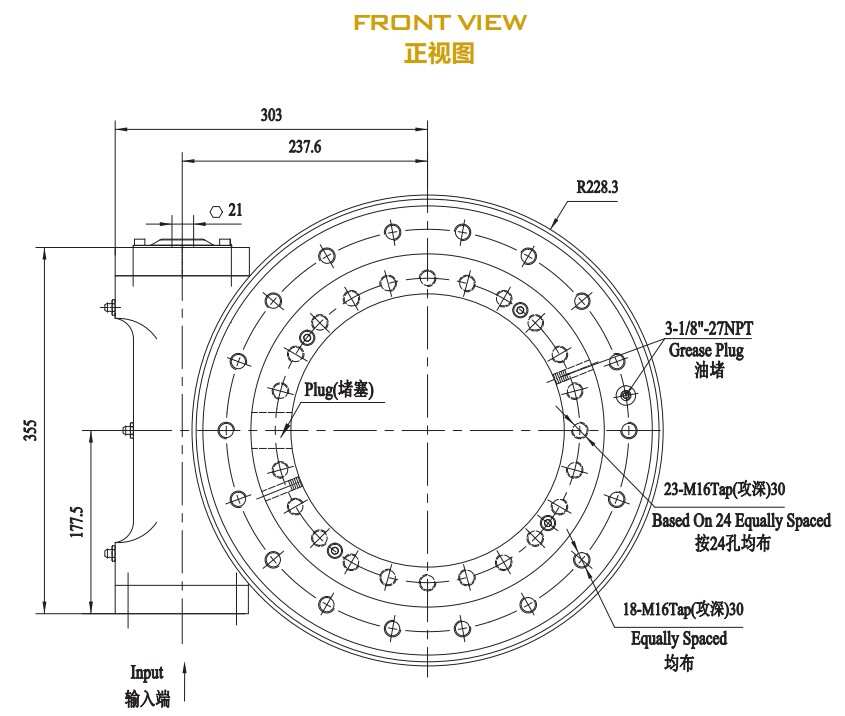

Front View

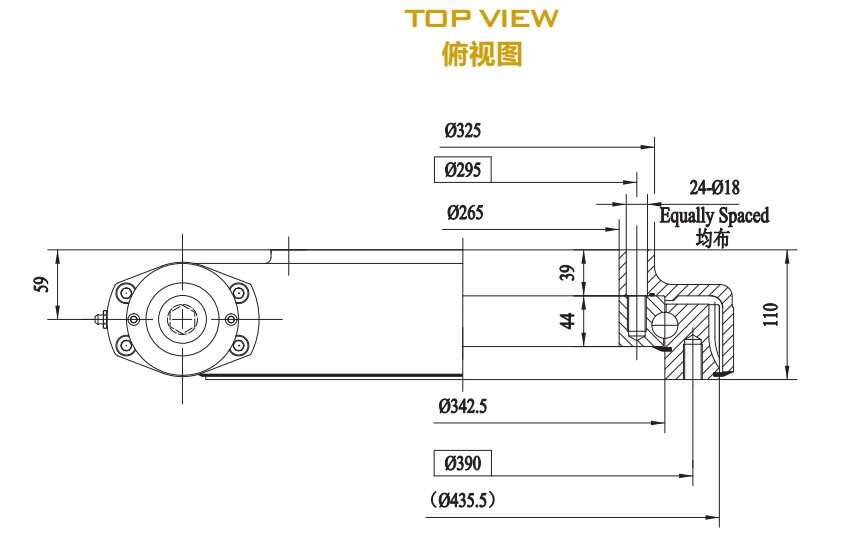

Top View
Note: customized design can be carried out according to customer requirements
