Three chucks can be reversed for cutting, and are applied to a variety of clamping and cutting modes can be used to achieve zero-tail cutting of tubes, improve tube utilization, and save costs.
Products

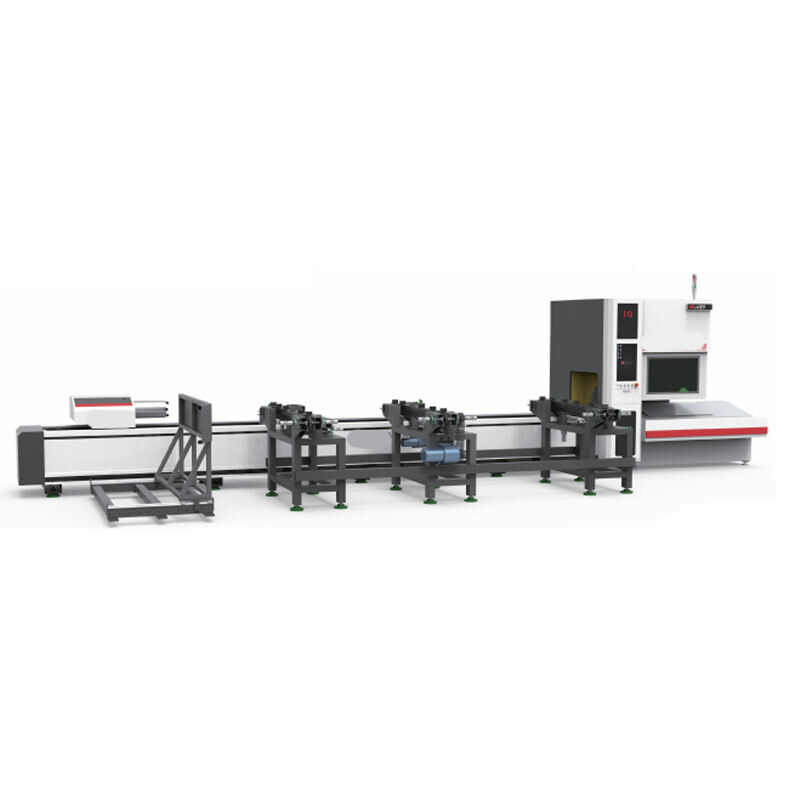

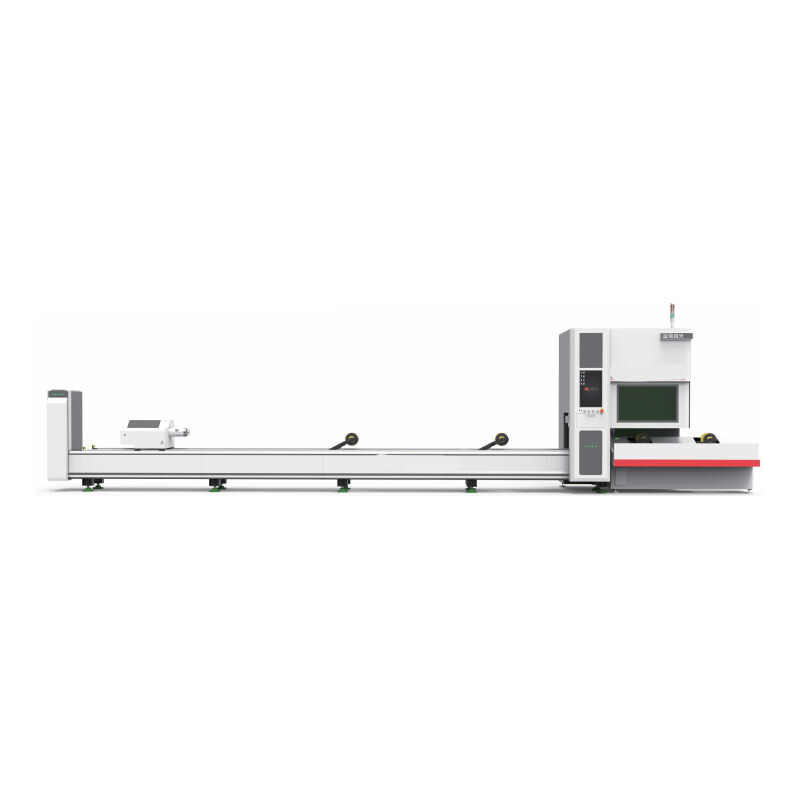

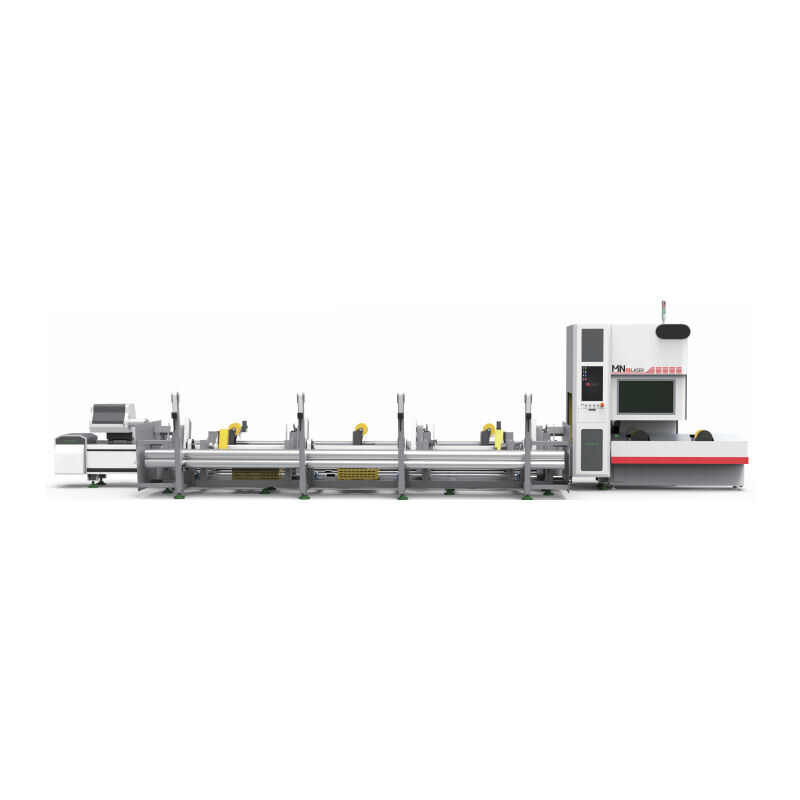

High Precision Pipe Cutting Machine Three-Chuck Square Tube Metal Laser Cutting Machines with Local Service
Discover the Raydafon High Precision Pipe Cutting Machine, a state-of-the-art three-chuck square tube metal laser cutting machine designed for unparalleled accuracy and efficiency in metal fabrication. Whether you're in the automotive, aerospace, or construction industry, this machine is engineered to meet your high-demand cutting needs with precision and ease. Its advanced laser technology ensures clean, precise cuts every time, while the three-chuck system provides superior stability and handling for square tubes and pipes.
What sets the Raydafon machine apart is its commitment to innovation and user experience. With local service support, you're never left waiting for assistance, ensuring your operations run smoothly without unnecessary downtime. The intuitive design and user-friendly interface make it accessible for both seasoned professionals and newcomers to metal fabrication.
Imagine the time and material savings, the flawless finishes on every project, and the pride in delivering top-quality work. The Raydafon High Precision Pipe Cutting Machine doesn't just meet expectations; it exceeds them, offering a competitive edge in a crowded market. Its unique combination of precision, reliability, and local service makes it the smart choice for businesses looking to elevate their metal fabrication capabilities.
Choose Raydafon for a machine that combines cutting-edge technology with practical, user-centered design. It's more than just a tool; it's your partner in achieving excellence in metal fabrication.
Round tube diameter range 15-350mm(change according to the size of the chuck), can support multiple tube type cutting, channel,angle, I-beam, etc.; can achieve ultra-long tube cutting, 12 meters loading 12 meters downfeed (expandable) standard semi-automatic loading, more efficient, convenient and stable
Optional 45° bevel, real 0 tailing and 100% material utilization
Fit for engineering machinery, bridge & tunnel, construction machinery, steelwork industry, etc.
Fit for engineering machinery, bridge & tunnel, construction machinery, steelwork industry, etc.
Product Name | Automatic Feeding Three Chuck Laser Pipe Cutting Machine |
Maximum Cut Pipe Length | Cutting Length From 7000 To 12000 mm |
Cut Pipe Diameter | 15~350mm (Circle Of Workpiece) |
Pipe Thickness | Depends On The Power |
Cutting Accuracy | ±0.1mm |
X, Y axis positioning accuracy | ±0.05/1000mm |
X, Y axis repeat positioning accuracy | ±0.03/1000mm |
Acceleration | 0.8G m/s² |
Maximum Operating Speed | 60 m/min |
Maximum Weight For Each Tube | 500Kg |
Chuck Rated Speed | 60rpm |
Mainframe Shape | About 22000×6000×2500mm |
Laser power | 8000W Or Customized As Required |

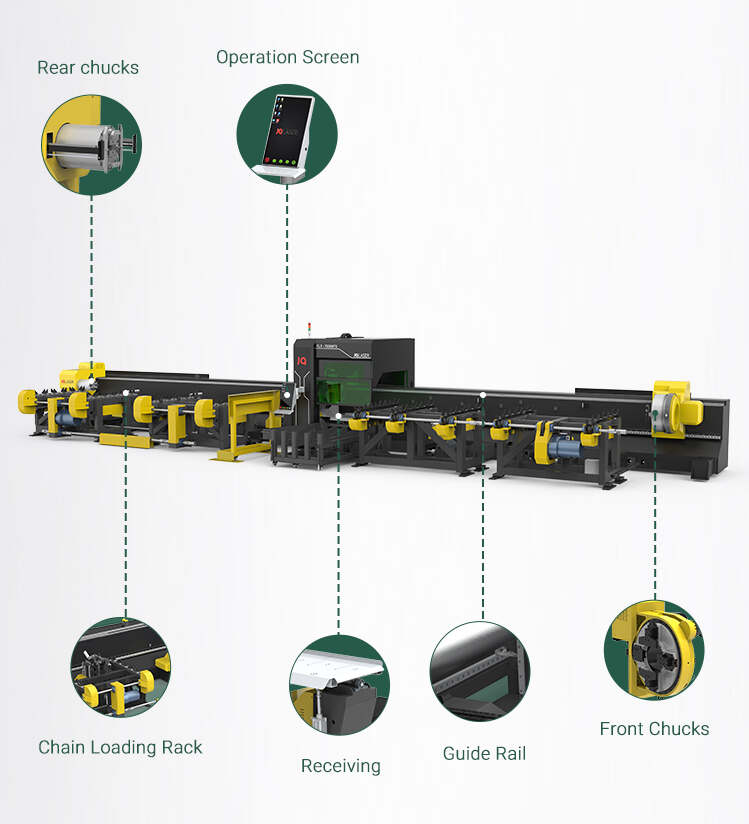

Three Chunks
Intelligent CNC Chuck
It can realize automatic centering and precise clamping of the pipe, and the front and rear middle card design ensures that the pipe is clamped without deformation.
Customizable Chain Type Loading And Unloading Device
The chain type loading and unloading device can realize the handlingand lifting of the upper material of the pipe as well as the receiving ofthe lower material side and the transportation of the finished parts
The Servo Follow-up Support System
Can realize the horizontal transportation of pipes, ensure the smooth operation of the equipment and ensure the processing accuracy.
Bus control system
The rich process database is easy to operate and powerful, and can be deeply developed for different customer needs.
Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
