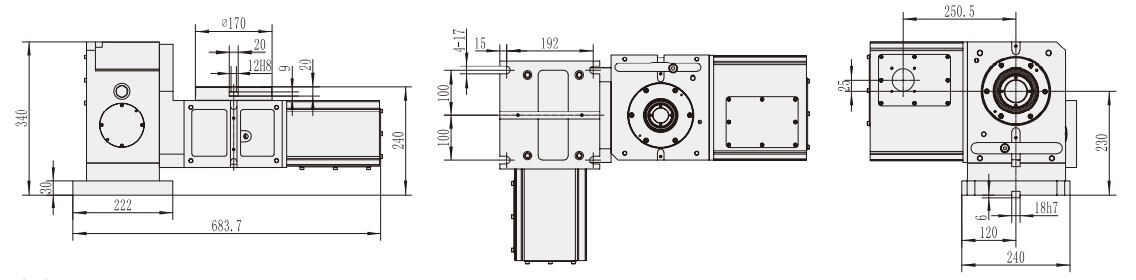

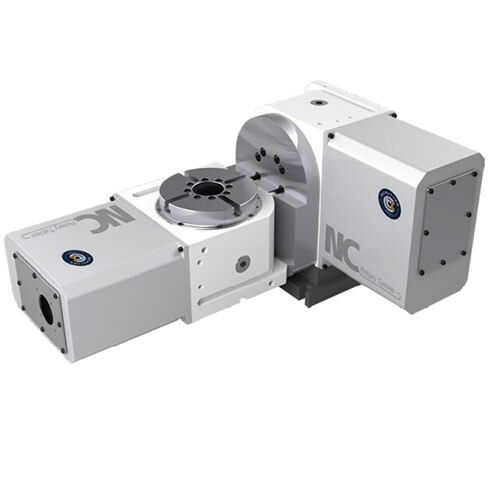

RT-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
The RT-170 Machine CNC Machining Center Parts CNC Turntable Rotary Table by Raydafon is a cutting-edge solution designed for precision and efficiency in CNC machinery operations. Crafted for professionals and hobbyists alike, this rotary table enhances the capabilities of your CNC machinery, allowing for intricate and precise machining tasks with ease. Its robust construction, made from high-grade materials, ensures durability and long-term performance under rigorous conditions. The RT-170 stands out with its advanced technology and user-friendly design, offering seamless integration with various CNC machines for versatile applications, from industrial manufacturing to custom projects. Whether you're a seasoned machinist or a passionate DIYer, the RT-170 empowers you to achieve flawless results, transforming your workflow and elevating your craftsmanship. Unlike ordinary rotary tables, the RT-170 boasts superior precision, reliability, and ease of use, making it a must-have for those who demand excellence in their CNC machining endeavors. Experience the difference with Raydafon’s RT-170 and unlock new possibilities in precision machining.
High precision, high performance, high efficiency
Five axis machining, modular design
Strong braking system
Product Model | RT-170 | Servo motor (optional) | Rotation axis β8iFANUC ;Tilt axis β8iFANUC |
Panel Size | 170mm | Reduction Ratio | Rotation axis1:60 ;Tilt axis1:72 |
Disk Aperture | 55mm | Maximum Rotation Speed Of Worktable | 55.5 r.p.m |
T-groove Of Disk Surface | 14H8mm | Minimum Setting Angle | 0.001°deg |
Tilt Angle | ±110°deg | Segmentation Accuracy | Rotation axis20″sec;Tilt axis15″sec |
Rotation Angle | 360°deg | Repeat Positioning Accuracy | Rotation axis4″sec;Tilt axis 4''sec |
0 ° Time Disk Height | 240mm | Locking torque of rotating shaft | Rotation axis310N.m;Tilt axis500N.m |
90° Time Center Height | 230mm | Brake Pressure | Rotation axis pressure5Kg/cm²;Tilt axis oil pressure10Kg/cm² |
Net Weight (about) | 160Kg | Allowable Cutting Force | Rotation axis18Kgf-m;Tilt axis 20Kgf-m |
Horizontal placement | 40KG | Ninety ° Time | 20 KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad.
Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
