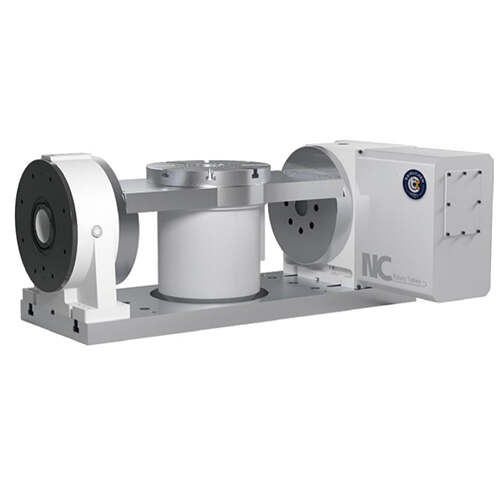

RTS-320 5 Axis Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
The RTS-320 5 Axis Machine CNC Machining Center Parts CNC Turntable Rotary Table by Raydafon is a high-precision, durable component designed to elevate the capabilities of your CNC machinery. Engineered for professionals and hobbyists alike, this rotary table is the perfect solution for those seeking to enhance their machining accuracy and efficiency. Its robust construction ensures longevity, while the 5-axis functionality allows for complex, multi-faceted machining tasks with unparalleled precision. Whether you're in the aerospace, automotive, or custom fabrication industry, the RTS-320 adapts seamlessly to your needs, offering a smooth, reliable performance that transforms your workflow. Experience the difference with Raydafon's commitment to quality and innovation, and take your projects to the next level with the RTS-320. It's not just a tool; it's the key to unlocking limitless creative possibilities in CNC machining.
High precision, high performance, high efficiency
Five axis machining, modular design
Optional fixture oil circuit, Optional hydraulic brake

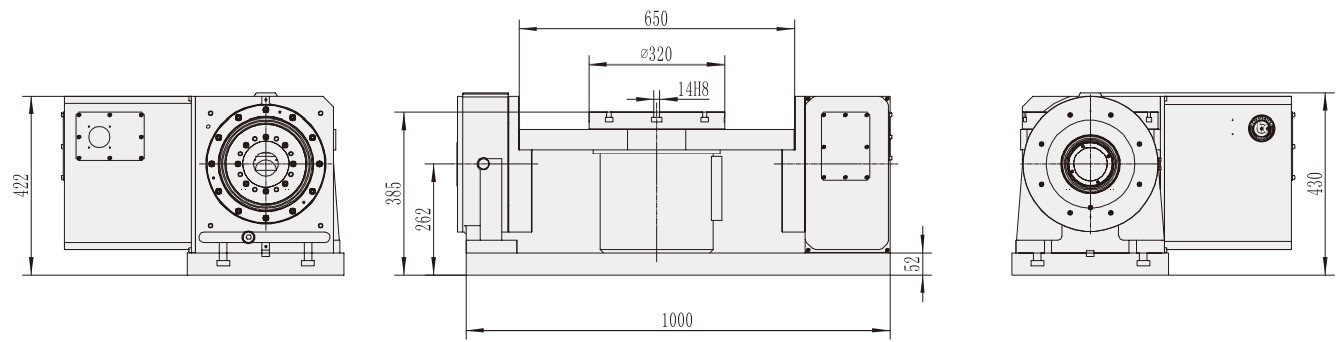

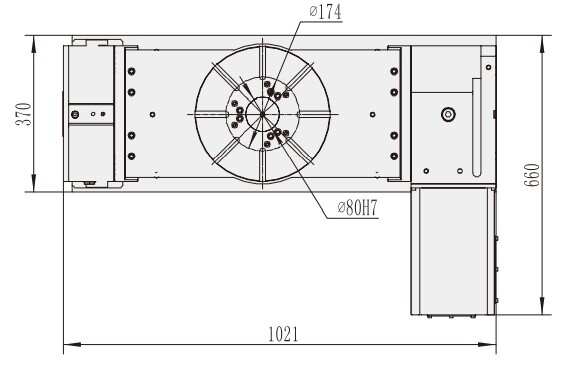

Product Model | RTS-320 | Servo motor (optional) | rotation axis β 8iFANUC;tilt axis β 22iFANUC |
Panel Size | 320mm | Reduction Ratio | rotation axis 1:121 ;tilt axis 1:120 |
Disk Aperture | 80mm | Maximum Rotation Speed Of Worktable | 33r.p.m |
T-groove Of Disk Surface | 12H8mm | Minimum Setting Angle | 0.001°deg |
Tilt Angle | ±120°deg | Segmentation Accuracy | rotation axis 20″sec;tilt axis 20″sec |
Rotation Angle | 360°deg | Repeat Positioning Accuracy | rotation axis 4″sec;tilt axis 4''sec |
0 ° Time Disk Height | 385mm | Locking torque of rotating shaft | rotation axis 1980N.m;tilt axis 1200N.m |
90° Time Center Height | 210mm | Brake Pressure | rotation axis air pressure Motor+Machinery;Tilt axis oil pressure 35Kg/cm² |
Net Weight (about) | 360Kg | Allowable Cutting Force | rotation axis 160Kgf-m;tilt axis 120Kgf-m |
Horizontal placement | 200KG | Ninety ° Time | 150KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability of Our company. Thecore parts used by the company are imported from abroad.
Ever Power has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.
Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive,energy, aerospaceand other fields.
Ever Power has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.
Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive,energy, aerospaceand other fields.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US. |
