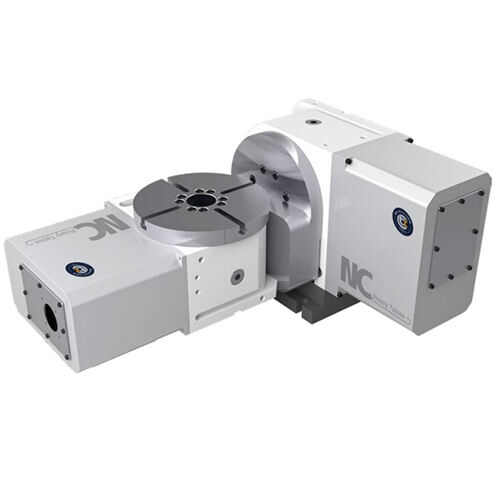

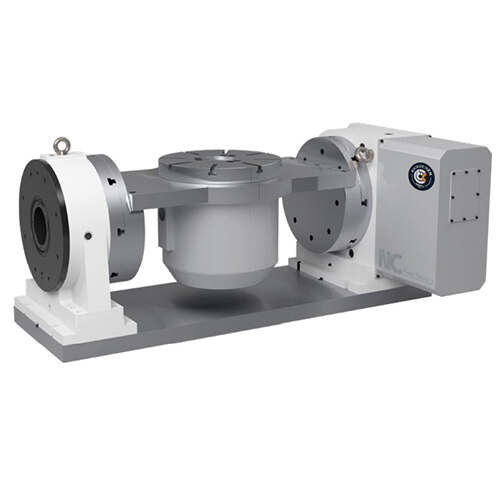

RTS-400 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
The RTS-400 Machine CNC Machining Center Parts CNC Turntable Rotary Table by Raydafon is a high-precision component designed to enhance the efficiency and versatility of CNC machinery. Ideal for professionals in the manufacturing and engineering sectors, this rotary table is engineered to provide seamless integration with CNC machining centers, enabling complex, multi-sided machining operations with unparalleled accuracy. Crafted from premium materials, the RTS-400 stands out for its robust construction, advanced technology, and user-friendly design, ensuring long-lasting durability and superior performance. Whether you're involved in aerospace, automotive, or any precision machining industry, this rotary table is your go-to solution for achieving intricate designs and high-quality finishes with ease. Its unique selling point lies in its exceptional precision and reliability, setting it apart from competitors. Experience the difference with Raydafon’s RTS-400, where innovation meets precision, transforming your machining projects into masterpieces of efficiency and excellence.
High precision, high performance, high efficiency
Five axis machining, modular design
Optional fixture oil circuit, Optional hydraulic brake

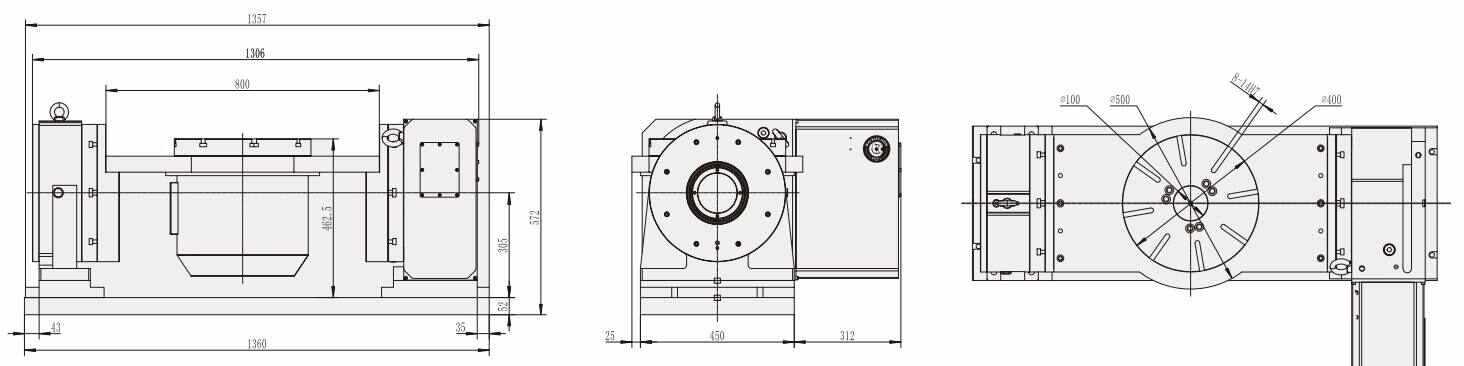

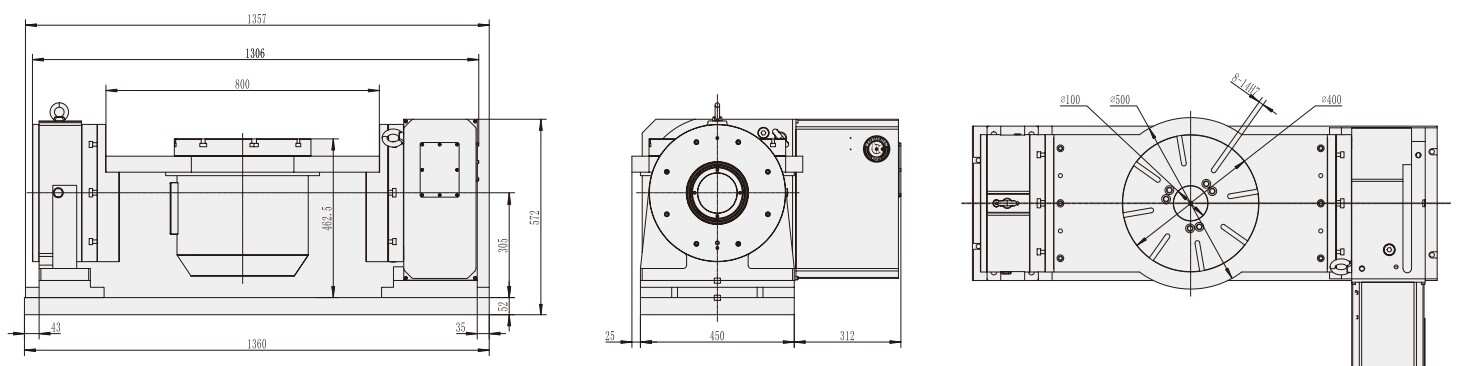

Product Model | RTS-400 | Servo motor (optional) | β 22iFANUC;β 22iFANUC |
Panel Size | 400mm | Reduction Ratio | 1:145 ;1:120 |
Disk Aperture | 50mm | Maximum Rotation Speed Of Worktable | 20 r.p.m |
T-groove Of Disk Surface | 12H8mm | Minimum Setting Angle | 0.001°deg |
Tilt Angle | ±120°deg | Segmentation Accuracy | 20″sec;20″sec |
Rotation Angle | 360°deg | Repeat Positioning Accuracy | 4″sec;4''sec |
0 ° Time Disk Height | 462.5mm | Locking torque of rotating shaft | 7840N.m;1800N.m |
90° Time Center Height | 305mm | Brake Pressure | +;35Kg/cm² |
Net Weight (about) | 650Kg | Allowable Cutting Force | 300Kgf-m;170Kgf-m |
Horizontal placement | 400KG | Ninety ° Time | 200KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad.
Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
