SCF Series Automatic Clutch Torque Limiter

The Raydafon SCF Series Automatic Clutch Torque Limiter is a cutting-edge solution designed to protect your machinery from overload damage with precision and reliability. Ideal for engineers and maintenance professionals, this torque limiter automatically disengages when torque exceeds a preset limit, ensuring your equipment operates within safe parameters. Crafted from high-quality materials, the SCF Series stands out for its durability, ease of adjustment, and maintenance-free operation. Whether in industrial manufacturing, packaging, or automation, it's the perfect safeguard against costly downtime and repairs. Experience peace of mind knowing your machinery is protected by Raydafon's innovative technology. Unlike conventional limiters, the SCF Series offers unparalleled accuracy and a compact design, making it a superior choice for demanding applications. Choose Raydafon for a seamless blend of performance, protection, and innovation.

Send Inquiry

Product Description

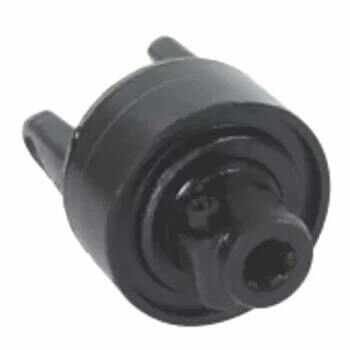

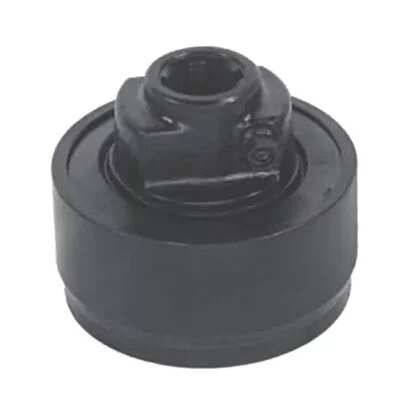

SCF Series Automatic Clutch Torque Limiter

This device interrupts the transmission of power when the torque exceeds the setting. To automatically re-engage the device, slow down or stop the PTO. This device is sealed, and no additional lubrication is required.
The Automatic Clutch torque limiter is a radial cam-type that operates in only one direction of rotation (a reversed version is also available), ensuring torque transfer to a calibrated value, preset by a set of springs. Upon intervention, the Automatic Clutch limiter disconnects power transmission, canceling the transmitted torque to less than the residual pulsating torsional torque necessary for continuous reset. Reset occurs automatically when the transmission speed is reduced to a minimum value sufficient for the purpose after the cause of the overflow has been eliminated. The calibration torque value is preset at the factory and can be changed by the user after replacing the spring assembly.
Overheating and vibrations during intervention are also reduced due to the minimization of residual moments. The compact design,low weight, use of plain bearings, and high-quality materials allow the device to be used even at speeds in excess of 1000 rpm.
Hardened, slotted profile to standard. Special designs are available upon request.
-Standard hardened, slotted profiles;
-Special designs are available upon request.

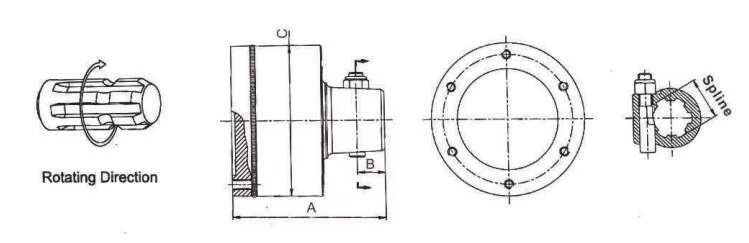

Series	Torque(Nm)	Spline	A(mm)	B(mm)	C(mm)
SCF151	1600	1 3/8" Z6	171	29	φ168
SCF151.D	2100	1 3/8" Z21
SCF151.C	2600	1 3/4" Z6
SCF151.E	2800	1 3/4" Z20
SCF176	3000	1 3/8" Z6	175	28	φ176
SCF176.D	3500	1 3/8" Z21
SCF176.C	4000	1 3/4" Z6
SCF176.E	4500	1 3/4" Z20

1. Outer housing + yoke
2. Bushing
3. Spring pack
4. Hub with taper pin and bushings
5. Bushing
6. Sealing ring
7. O-ring
8. Locking plate
9. Snap ring
10. Bushing(Qty=4)
11. Cam(Qty=4)
12. Taper pin(with nuts)

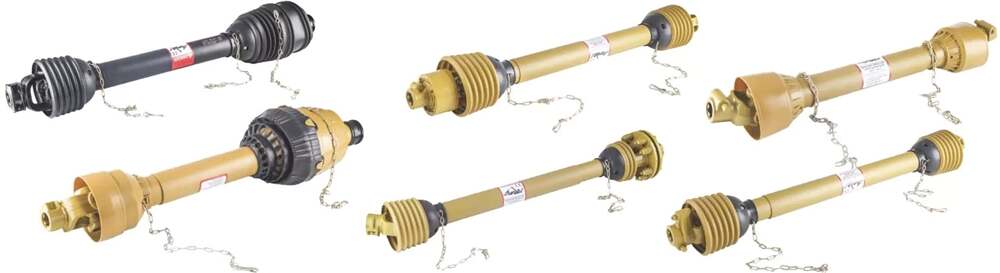

We also supply PTO Shaft & Agricultural gearboxes
