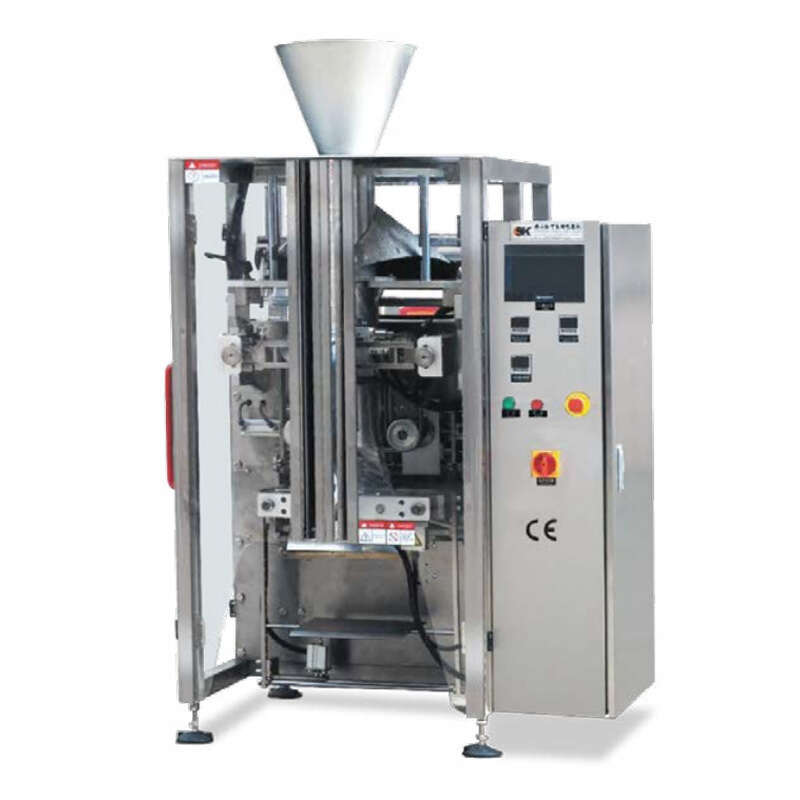

Semi-automatic Vertical Main Bagging Machine for Liquid Filling
  • Semi-automatic Vertical Main Bagging Machine for Liquid FillingSemi-automatic Vertical Main Bagging Machine for Liquid Filling
  • Semi-automatic Vertical Main Bagging Machine for Liquid FillingSemi-automatic Vertical Main Bagging Machine for Liquid Filling
  • Semi-automatic Vertical Main Bagging Machine for Liquid FillingSemi-automatic Vertical Main Bagging Machine for Liquid Filling

Semi-automatic Vertical Main Bagging Machine for Liquid Filling

Discover the Raydafon Semi-automatic Vertical Main Bagging Machine for Liquid Filling, a cutting-edge solution designed to streamline your liquid packaging process with unmatched efficiency and precision. Ideal for small to medium-sized businesses in the food, beverage, and pharmaceutical industries, this machine is a game-changer in packaging technology. Its semi-automatic operation ensures ease of use, while the vertical design maximizes space efficiency, making it perfect for facilities with limited space. Crafted from high-quality, durable materials, the Raydafon bagging machine is built to last, ensuring your investment is protected. Its advanced liquid filling technology guarantees accurate measurements every time, reducing waste and saving you money. The intuitive design minimizes the learning curve, allowing your team to get up to speed quickly without extensive training. What sets the Raydafon Semi-automatic Vertical Main Bagging Machine apart is its versatility. Capable of handling a wide range of liquid viscosities, it's the perfect all-in-one solution for businesses looking to expand their product line without investing in multiple machines. The satisfaction of seamless operation and the peace of mind that comes with reliable, consistent packaging are just a few of the benefits users rave about. Upgrade your packaging process today with Raydafon's innovative solution. Experience the difference in quality, efficiency, and performance that only a leader in packaging technology can provide. Say goodbye to manual filling inconsistencies and hello to a future of flawless, efficient packaging with Raydafon.
1.It adopts imported servo motor control and single/double pull film system to ensure smooth transmission of packaging film and smooth bag.
2.Imported cylinders ensure good bag sealing and clear sealing lines, prevent bag leakage and reduce scrap rate.
3.Adopt PLC control, imported drive, equipped with imported touch screen, man-machine interface, high degree of automation, simple operation procedure, high sensitivity of touch screen.
4.Multi-language operating system choices.
5.With an external film release mechanism, it is easier and faster to replace the packaging film.
Semi-automatic Vertical Main Bagging Machine for Liquid Filling
VERTICAL MAIN BAGGING MACHINE
--Combination scale
--Semi-automatic feeding conveyor
--Volumetric cup metering device
--Screw auger filler device
--Liquid filling metering device
Model
SK-L620
SK-L720
 Air consumption
0.65mpa,2.5m³/min
 Max. Film width
Max.620mm
Max.720mm
Bag length
100-400mm
100-500mm
Bag width
150-300mm
180-350mm
 Packing Film Roll Diameter
Max.360mm
Max.360mm
Packaging speed
5-55bags/min
5-55bags/min
Packing thickness
0.04-0.08mm
0.04-0.08mm
Power supply
220V,50Hz/60Hz,3kW
220V,50Hz/60Hz,3kW
Dimension
(L)1780*(W)1300*(H)1950mm
(L)1800*(W)1310*(H)2050mm
 Total weight of machine
700kg
750kg
Semi-automatic Vertical Main Bagging Machine for Liquid Filling
Semi-automatic Vertical Main Bagging Machine for Liquid Filling
Hangzhou Raydafon Packaging Machinery Co., Ltd. was established in 2008. The company focuses on fully automatic vertical packaging machinery and automated packaging lines, engaged in research and development, production, sales and after-sales service. The company has more than ten years of experience in the packaging industry, technological innovation, and talent advantages. With its pursuit of products, adherence to brand development strategy, and strict quality management, its products have obtained the European Community product safety CE certification. Professional team services, focusing on customer needs, have won the titles of "Best Service Provider" and "China Credit Enterprise Certification System Demonstration Unit" for many consecutive years. We have fully automatic vertical packaging machines, granule packaging machines, powder packaging machines, liquid packaging machines, and pillow packaging machines, which are widely used in food, chemicals, medicine, hardware, daily necessities, etc. to meet the needs of our customers. It has the advantages of stable performance, simple operation, easy to learn, easy to understand, and durability, etc., and has won the trust and praise of users. The company's products are sold all over the country and exported to South America, Europe, the Middle East, Southeast Asia and other countries.
