Simple Installation 200ml Wall-Mounted Condensate Pump Built-in Safety Switch PC-50A Electric Power 3 Inlets Option for Home Use

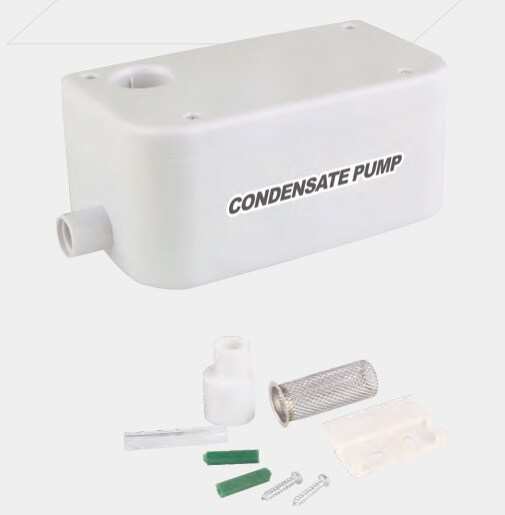

Discover the Raydafon Simple Installation 200ml Wall-Mounted Condensate Pump (PC-50A), your go-to solution for efficient condensation management in your home. Designed with both functionality and ease of use in mind, this compact yet powerful pump is perfect for keeping your living spaces dry and comfortable. Whether you're dealing with excess moisture from air conditioning, refrigeration, or any other source, the PC-50A is here to help. Its built-in safety switch ensures reliable operation, giving you peace of mind while protecting your home from potential water damage. With three inlets for versatile installation options and an electric power system for consistent performance, this condensate pump is a must-have for any homeowner looking to maintain a healthy, moisture-free environment. The sleek, wall-mounted design not only saves valuable floor space but also blends seamlessly into any decor. Choose the Raydafon PC-50A and experience the difference a high-quality condensate pump can make in your home. Say goodbye to dampness and hello to a cleaner, more comfortable living space with Raydafon.
Product description: Cooling capacity of the air-conditionerhe AC cooling capacity ( often represented in kwh aibe found in your AC specifications ) is needed to estimate theamount of condensate discharged per hour ( kwh cooling load will generate about 04-0 . 8L / h ) Air-conditioners with largercooling capacities tend to generate more condensate than regular ones
Compact Structure ,Easy Maintenance
Compact & discreet , 65mm height
3 inlets option ( top , side bottom )
Float-less structure , improve durability

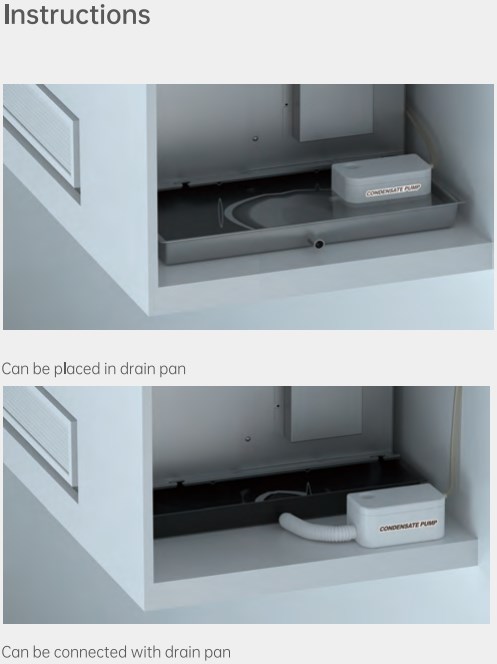

Can be located in drain pan
Built-in safety switch
Model | PC-50A |
Voltage | 100-230V~/50-60Hz |
Discharge head | Max.10m(33ft) |

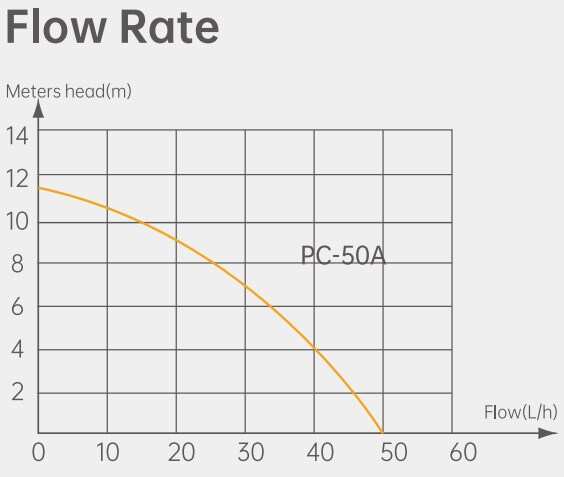

Flow rate | Max.5OL/h(13.2GPH) |
Tank capacity | 200ml |
Mini splits up to | 15kW(45,000btu/hr) |
Sound level at 1m | 25dB(A) |
Ambient temp | 0°℃~50℃ |
Power consumption | 3W |

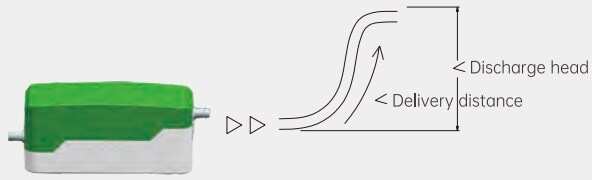

The discharge headSelect a pump with a maximum lift rating that is suitable for your appll / on o oigure out the lift requirement for the pump by identifying where the pump wilmounted and where the discharge point wibe . Condensate flow will decrease in accordance with the height it must travel until maximum , or "shut-off" lift is reached..
Climate
Along with cooling capacity , location and climate also play a big role in measuring the amount of condensate . The dischargequantity can differ significantly between dry and humid climates . For example , the quantity of condensate in humid climatescan double that of dry climates . Therefore , you need a higher performance pump for humid climatic conditions.Condensate Pump's Selection
Cooling capacity conversion
1btu / h = . 2931W , 1W = 3 . 412btu / h
1USRT = 3 . 517KW 1KW = 0 . 28434USRT
