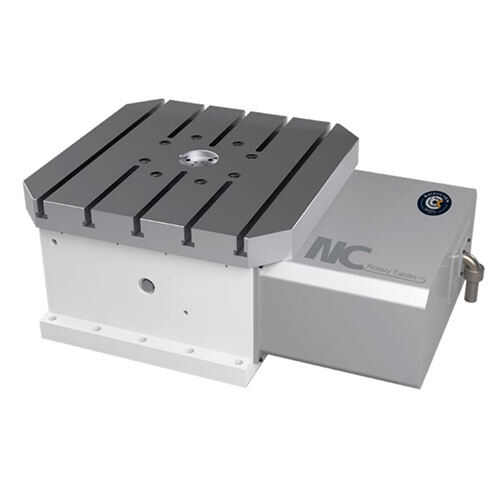

WT-H550 CNC Machining Center Parts CNC Turntable Rotary Table Horizontal Micro-positioning Table
The Raydafon WT-H550 CNC Machining Center Parts CNC Turntable Rotary Table Horizontal Micro-positioning Table is a precision engineering marvel designed to elevate your machining projects to the next level. Ideal for professionals in the manufacturing, automotive, aerospace, and tooling industries, this CNC turntable offers unparalleled accuracy and flexibility for complex machining tasks. Its core strengths lie in its robust construction, featuring high-quality materials that ensure durability and long-term performance, and its advanced micro-positioning technology that guarantees precision down to the minutest detail. Whether you're undertaking intricate milling, drilling, or cutting operations, the WT-H550 provides the stability and precision required for flawless execution. Users will appreciate the seamless integration with existing CNC machining centers, making it a versatile addition to any workshop. The emotional reward comes from the confidence in achieving perfect results every time, eliminating the frustration of inaccuracies. What sets the WT-H550 apart is its unique combination of horizontal micro-positioning capability and rotary functionality, offering a competitive edge in precision and versatility not found in standard models. Embrace the future of machining with Raydafon's WT-H550, where innovation meets precision.
Horizontal micro-positioning table
Suitable for horizontal processing machines, hydraulic lock
Heavy-duty cutting, simultaneous machining

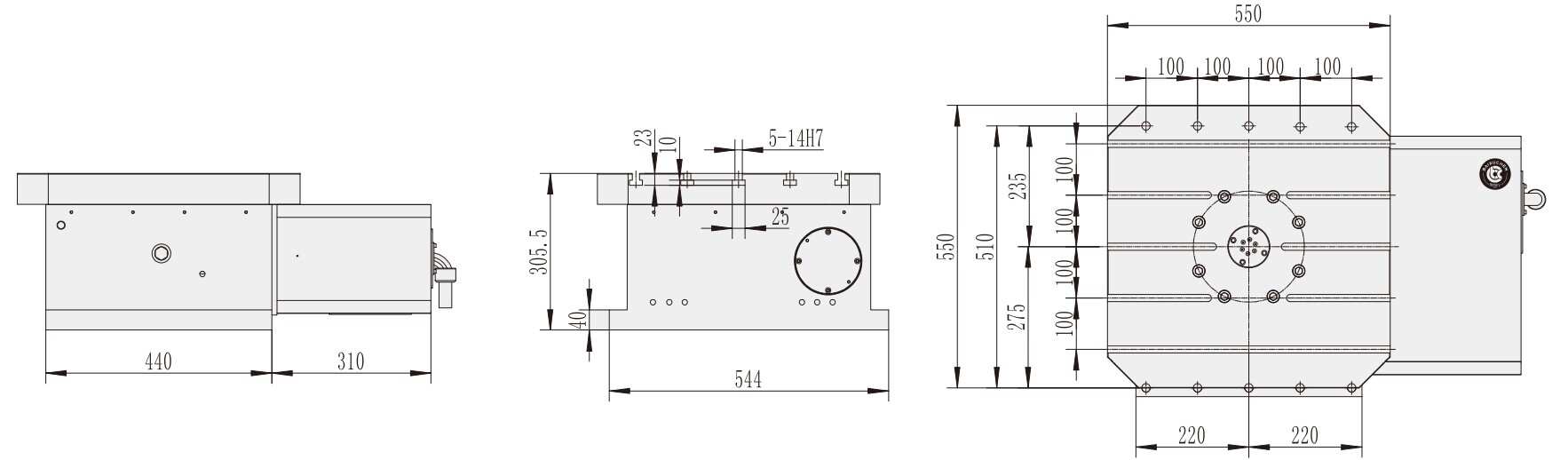

Product Model | WT-H550 | Servo motor | β22i HF-204 |
Panel Size | 550×550 | Total Reduction Ratio | 1:120 |
Disk Aperture | Φ80mm | Maximum Rotation Speed Of Worktable | 33.3 r.p.m |
Flat Overall Height | 290.5mm | Minimum Setting Angle | 0.001°deg |
Disk T-Slot | 12H8mm | Segmentation Accuracy | 20″sec |
Positioning Button | 14H7mm | Repeat Positioning Accuracy | 4''sec |
Center Height | 255mm | Locking Method | oil pressure 35Kg/cm² |
Net Weight (about) | 300Kg | Allowable Cutting Force | 200Kg.m |
Max.load Horizontal | 500KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad.
Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
