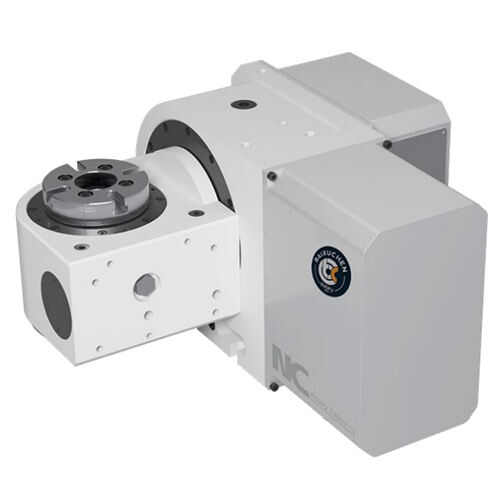

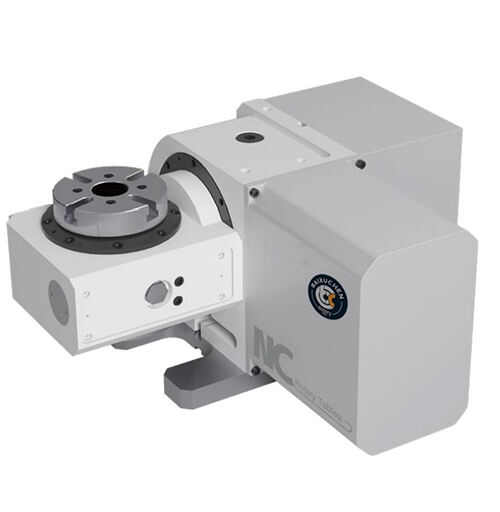

WT-RT170 Machine CNC Machining Center Parts CNC Turntable Rotary Table for CNC Machinery
The Raydafon WT-RT170 Machine CNC Machining Center Parts CNC Turntable Rotary Table is a high-precision component designed to enhance the efficiency and versatility of CNC machinery. Perfect for professionals in the manufacturing and machining industries, this rotary table allows for precise angular positioning, making it ideal for complex machining tasks that require high accuracy and repeatability. Crafted from premium materials, the WT-RT170 ensures durability and long-term performance, even in the most demanding environments. Its innovative design and advanced technology facilitate smooth operation, reducing setup time and increasing productivity. Whether you're working on aerospace components, automotive parts, or intricate custom projects, this CNC turntable is your go-to solution for achieving impeccable results. The Raydafon WT-RT170 stands out from the competition with its exceptional build quality, reliability, and ease of integration with existing CNC setups. Experience the difference with a tool that not only meets but exceeds expectations, transforming your machining process into a seamless and more efficient operation.
Five axis linkage machining
High segmentation accuracy, high performance and high efficiency
Strong braking system, Optional hydraulic brake

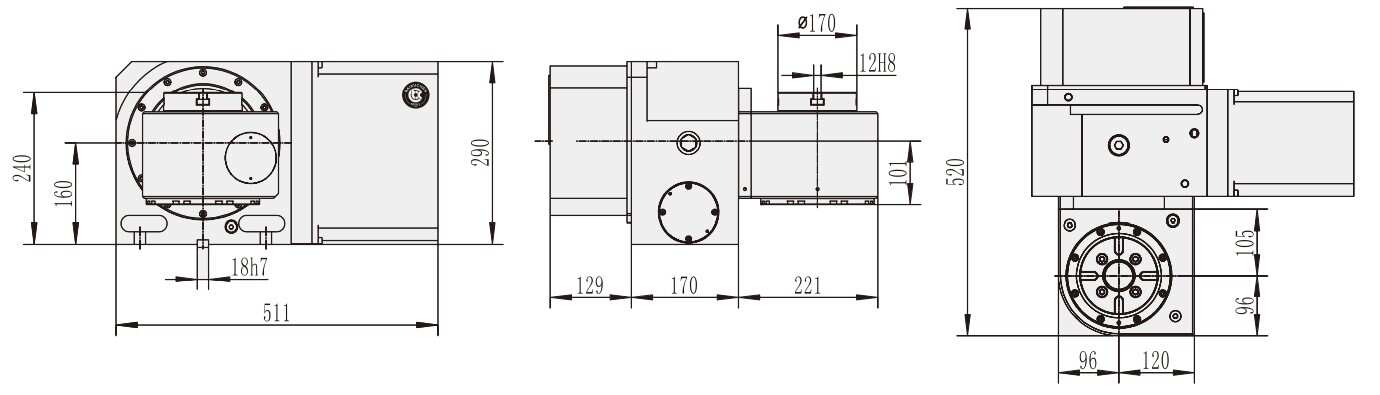

Product Model | WT-RT170 | Servo motor (optional) | Rotation axis β4i HF-54;Tilt axis β8i HF-104 |
Panel Size | Φ170mm | Reduction Ratio | Rotation axis 1:90 ;Tilt axis 1:120 |
Disk Aperture | Φ50mm | Maximum Rotation Speed Of Worktable | Rotation axis 55.5r.p.m;Tilt axis 33.3r.p.m |
Center Trough Hole | Φ45mm | Minimum Setting Angle | 0.001°deg |
Disk Height | 240mm | Segmentation Accuracy | Rotation axis 15″sec;Tilt axis 30″sec |
Disk T-Slot | 12H8mm | Repeat Positioning Accuracy | Rotation axis 4″sec;Tilt axis 4''sec |
Positioning Button | 18H7mm | Locking Method | Rotation axis pressure 5Kg/cm²;Tilt axis oil pressure 35Kg/cm² |
Tilt Axis Angle Range | -45 ~110° | Brake Torque | Rotation axis 31Kg/m ;Tilt axis 140Kg/m |
Net Weight (about) | 120Kg | Allowable Cutting Force | Rotation axis 18Kg.m;Tilt axis 55Kg.m |
Horizontal placement | 75KG | Placement | 40KG |
Our company intelligent Technology Co, Ltd. is an enterprise focusing on the R & D, production and sales ofCNC turntable. The company actively develops R & D innovation and production technology, fullycooperates with the rapidly changing needs of customers, and designs the CNC rotary table that meets theneeds of customers. which shows the R & D innovation and self-made ability ofOur company. Thecore parts used by the company are imported from abroad.
Bai Xuchen has always been adhering to the business philosophy of "honesty based, harmony based.technology-based, industry competitive'. lt has been marketing at home and abroad with the brand of EP. For many years, it has cooperated with domestic and foreign machine tool manufacturers todevelop four axis and five axis high-precision rotary table to meet different processing fields. With thesupport from all walks of life, we will continue to advance in R & D and service, and strive to become areliable professional service provider and leading brand in China's machine tool industry.Our company's main products are 4-axis 5-axis CNC turntable and horizontal 4-axis turntable for toomachine tools. At the same time, it provides users with solutions for CNC precision turntable or swingmechanism. The companv's products are widely used in various processing eouipment such as non-stan.dard automatic special machine, metal cutting machine, etc., in 3C, automotive, energy, , aerospaceand other fields.
