Y3120CNC11 5 Module CNC Gear Hobbing Machine with Integrated Chamfering Unit

The Y3120CNC11 5 Module CNC Gear Hobbing Machine with Integrated Chamfering Unit by Raydafon is a state-of-the-art solution designed for precision gear manufacturing. This machine stands out for its ability to perform both gear hobbing and chamfering in a single setup, significantly enhancing productivity and efficiency. Crafted with high-quality materials and incorporating the latest CNC technology, it ensures unparalleled accuracy and durability, making it an indispensable tool for professionals in the gear manufacturing industry. The Y3120CNC11 is perfect for businesses looking to streamline their production process while maintaining the highest standards of quality. Its user-friendly interface and robust design allow for seamless operation, reducing setup times and minimizing errors. Whether you're producing gears for automotive, aerospace, or industrial applications, this machine delivers consistent, high-quality results that meet the most demanding specifications. Experience the difference with Raydafon's Y3120CNC11 – where innovation meets precision, transforming the way gears are made.

Send Inquiry

Product Description

Products Description

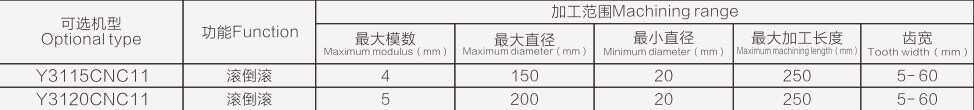

Y3120CNC11 Hobbing machine with integrated chamfering unit

The equipment is suitable for hobbing and chamferingmachining of middle and small modulus gears in theindustries of speed change gears for passenger carsengineer machinery.

To realize the process: rough rolling+edging squeezing and deburring+finish rolling, only one clamping of middle and small modulargear, the problems of flanging burr and bulge on the tooth surtace are completely solved, the machining accuracy of the gear issignificantly improved, and the reduction of tool life or machining accuracy caused by bur or bulge in the subsequent proces after heattreatment is avoided.

The edging squeezing station can adjust the edging squeezing and the height of deburring at willthe chamfering station can realize rapid product change, at the same time, to use the special designallows the optional turning deburring function.

The inner built-in truss mechanical arm has the advantages of fast running speed, accurate and reliable positioning, convenientadjustment and operation.lt adopts multi position cycle palletizing automatic bin, which can change product quickly, acjustconveniently the lifting height is up to 400mm. the one-time loading can meet the needs of long-time machining.

The whole machine uses fully enclosed stainless steel inner protection to meet the recuirement of dry cuting protection, the processingarea and non processing area are completely separated,the large angle inner protection enables the chip to be quickly discharged out ofthe machine.

Modular design is used for the machine, the functional components can be quickly combined according to the needs of customers, tomeet the personalized needs of customers.
