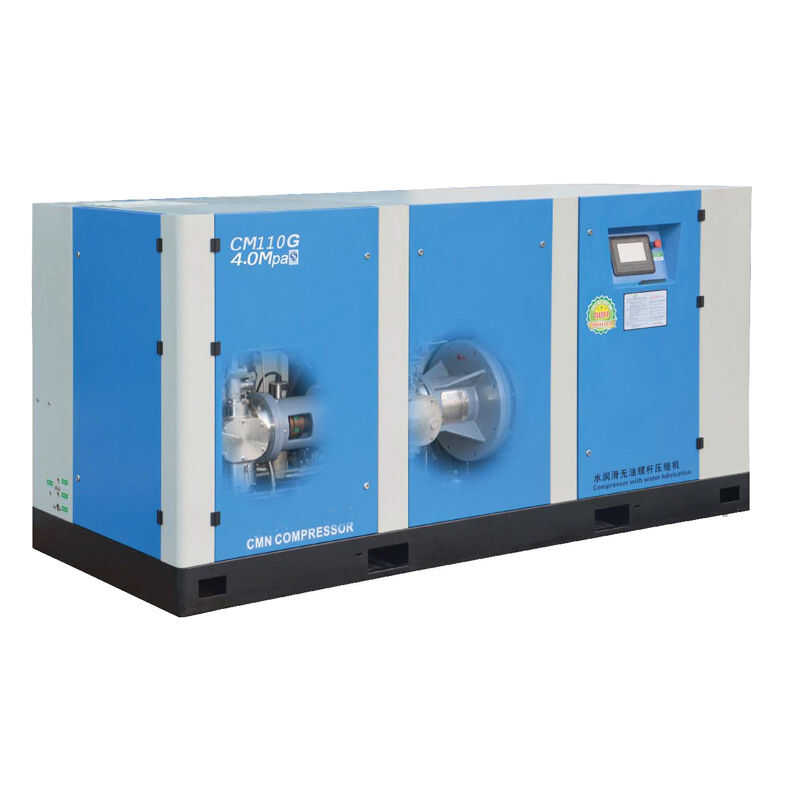

40bar 28m3/min High-pressure High-capacity 400HP Oil-free Screw Air Compressor for PET Bottle Blowing Similar to AF Compressor
The Raydafon 40bar 28m3/min High-pressure High-capacity 400HP Oil-free Screw Air Compressor is a powerhouse designed for demanding industrial applications, such as PET bottle blowing, where reliability and efficiency are non-negotiable. Crafted with precision, this air compressor stands out for its oil-free operation, ensuring a clean, contaminant-free air supply that is critical for the quality and safety of products in sensitive industries. With a robust 400HP engine, it delivers an impressive 28m3/min airflow at 40bar pressure, making it a match for high-capacity production lines. Its screw technology not only enhances performance but also guarantees energy efficiency and low maintenance, saving costs in the long run. Ideal for manufacturing plants, beverage production, and any setting where high-pressure, high-volume air is required, this compressor is engineered to meet the toughest challenges. Users will appreciate the seamless operation, reduced downtime, and the peace of mind that comes with investing in a durable, high-performance machine. Unlike conventional compressors, Raydafon's solution eliminates the risk of oil contamination, offers superior energy efficiency, and is built to last, setting a new standard in the industry. Choose the Raydafon oil-free screw air compressor for a blend of innovation, reliability, and unmatched performance.
for PET Bottle Blowing Industry, water and beverage, food and medical.
Not Piston, not Booster, but Screw type.
SINCE 1988
Series | Air Pressure | Air Capacity |
High Pressure Series | 13~40 bar | 4.5~20.0 m3/min |
Regular Series | 7~10 bar | 1.0~40.0 m3/min |
Low Pressure Series | 2~5 bar | 3.0~60.0 m3/min |
Two-stage Energy-saving Series | 8~10 bar | 20.0~60.0 m3/min |
Comparison Advantages
PET 30~40 BAR Screw type air compressor VS Piston type air compressor
Famous Patented Product: Single Screw air end( 30 years experience)
1) Balance Structure :
The star wheels on both sides, counteract the radial and axial force.
2) High Efficiency :
Every rotation of the screw results in 12 compression cycles with 35280 times of exhaling.
Fully use the channel space and achieve more volume compared with the same dimension air compressor.
3)No Vibration and Low noise:
The exhaling process is free from pulses, so a coin can stand still on a running machine.
4)Extended Maintenance Cycle:
Lifetime >50,000 hours due to its particular Balance Structure and less than 50℃ Operation Temperature.
The star wheels on both sides, counteract the radial and axial force.
2) High Efficiency :
Every rotation of the screw results in 12 compression cycles with 35280 times of exhaling.
Fully use the channel space and achieve more volume compared with the same dimension air compressor.
3)No Vibration and Low noise:
The exhaling process is free from pulses, so a coin can stand still on a running machine.
4)Extended Maintenance Cycle:
Lifetime >50,000 hours due to its particular Balance Structure and less than 50℃ Operation Temperature.
Product advantages
1) Food and Pharmaceutical Standard100% OIL-FREE(20 years experience)
- TUV Class 0 Oil-free Certificate
- Clean air: purified by water, without dust
2) At Least30% Energy-saving
- Single screw air compressor theoretically doesn't have any clearance volume
- The water used as a lubricating medium also seals gaps inside the compression chamber, and enables highly efficient operation at low speeds(about 3000r/min)
- Using water as a cooling method keep compressor Ideal isothermal compression
- Variable frequency inverter(Permanent magnetism variable frequency) 15 years experiences
- Two-stage compression medium pressure screw air compressor: domestic initiative patent product(application number: ZL 2016 20206277.4)
3) Environment protection :0 Emission
- No discharge of three wastes; Low vibration and less noise
4) Reliability :(50000 hours lifetime)
- Simple and balanced structure and the temperature of the unit is less than 50℃, so maintenance period > 50000 hours
- Lowest cost and maintenance (Only air filter and water filter < $500)
5) The Lowest noise in similar products(min: 57db)
- A superior dynamic balanced system can effectively control the vibration source
- The motor and screw are directly connected without any rotation gear to cause gear noise
- Sound-absorbing materials are also used in the equipment shell to reduce noise
- TUV Class 0 Oil-free Certificate
- Clean air: purified by water, without dust
2) At Least30% Energy-saving
- Single screw air compressor theoretically doesn't have any clearance volume
- The water used as a lubricating medium also seals gaps inside the compression chamber, and enables highly efficient operation at low speeds(about 3000r/min)
- Using water as a cooling method keep compressor Ideal isothermal compression
- Variable frequency inverter(Permanent magnetism variable frequency) 15 years experiences
- Two-stage compression medium pressure screw air compressor: domestic initiative patent product(application number: ZL 2016 20206277.4)
3) Environment protection :0 Emission
- No discharge of three wastes; Low vibration and less noise
4) Reliability :(50000 hours lifetime)
- Simple and balanced structure and the temperature of the unit is less than 50℃, so maintenance period > 50000 hours
- Lowest cost and maintenance (Only air filter and water filter < $500)
5) The Lowest noise in similar products(min: 57db)
- A superior dynamic balanced system can effectively control the vibration source
- The motor and screw are directly connected without any rotation gear to cause gear noise
- Sound-absorbing materials are also used in the equipment shell to reduce noise
between oil-free air compressors of water lubricated Single screw air compressor and dry double screw air compressor
7~10 bar Series
2~5 bar Series
Two-stage Energy-saving Series
Diesel&Electric Portable Series
12~16 bar 4-in-1 Series
1 Phase Small Screw Series
16~40 bar Oil-free Screw Type
7~10 bar Oil-free Screw Type
2~5 bar Oil-free Screw Type
2-stage Oil-free Screw Type
8~12 bar Oil-free Scroll Type
8~12 bar Oil-free Scroll Air-end
View More
What we can supply:
* Oil-injected Screw Air Compressor (2~16 bar)

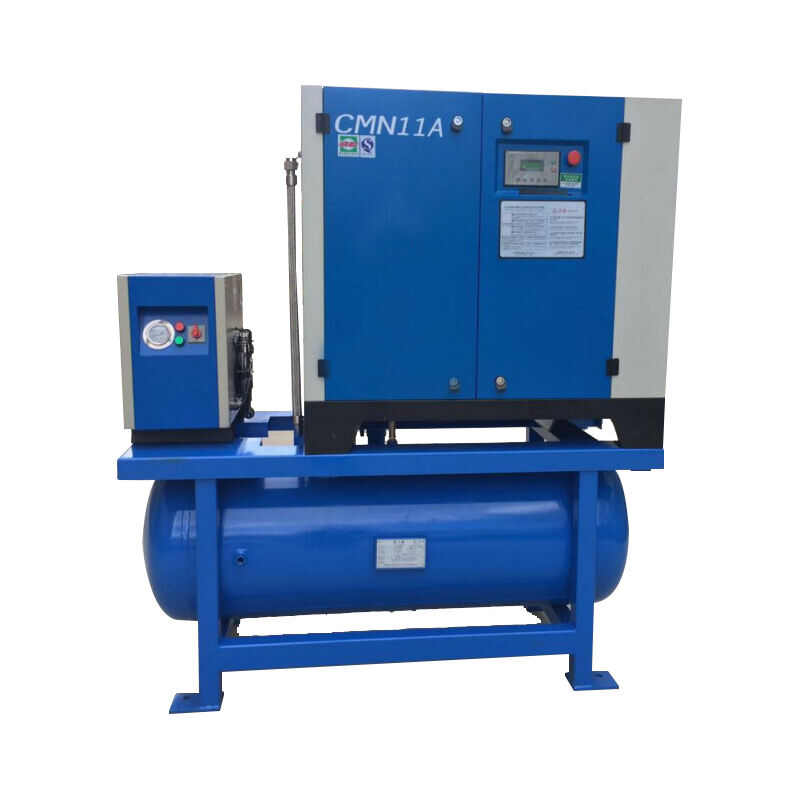

* All-in-one Screw Air Compressor with Tank, Dryer, and Filters (7~16 bar)
* Single-phase Small Screw Air Compressor for Home use (8~10 bar)
* Water-injected Oil-free Screw Air Compressor (2~40 bar)
* Oil-free Scroll Air Compressor (8~12 bar)
* Diesel&Electric Engine Portable Screw Air Compressor (8~30 bar)
* Air Dryer, Air tank, Filters, and other Spare parts
* All-in-one Screw Air Compressor with Tank, Dryer, and Filters (7~16 bar)
* Single-phase Small Screw Air Compressor for Home use (8~10 bar)
* Water-injected Oil-free Screw Air Compressor (2~40 bar)
* Oil-free Scroll Air Compressor (8~12 bar)
* Diesel&Electric Engine Portable Screw Air Compressor (8~30 bar)
* Air Dryer, Air tank, Filters, and other Spare parts
