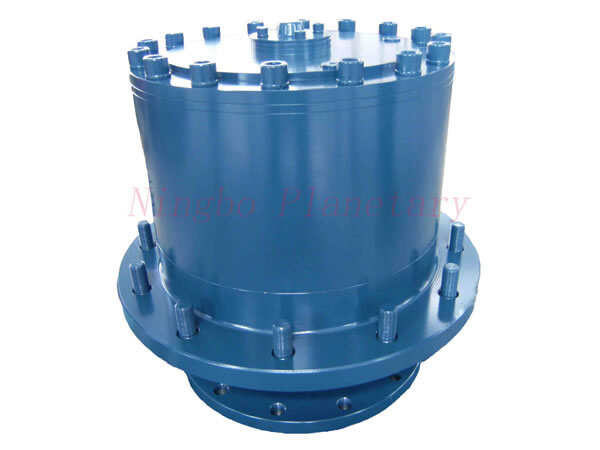

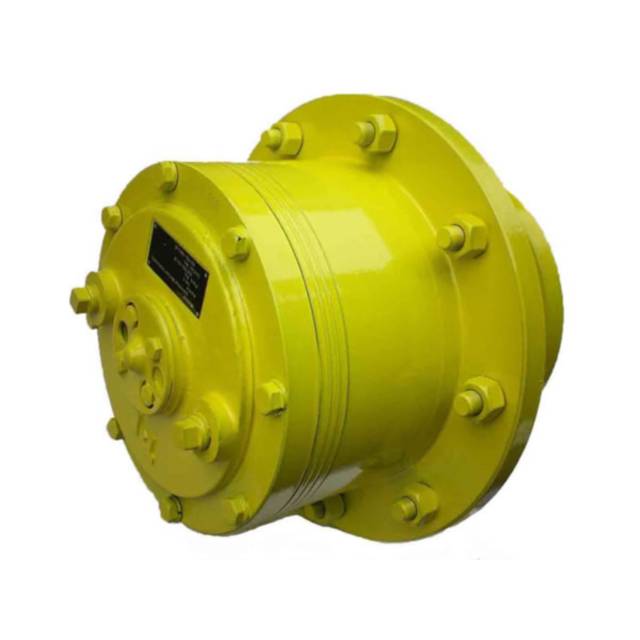

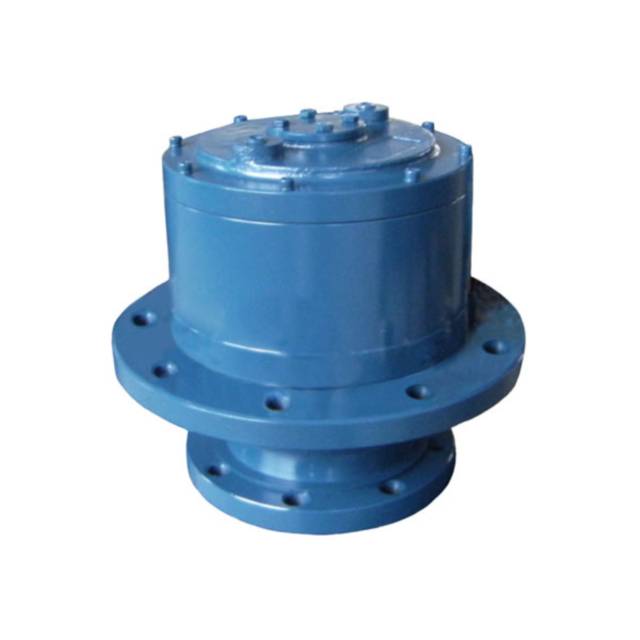

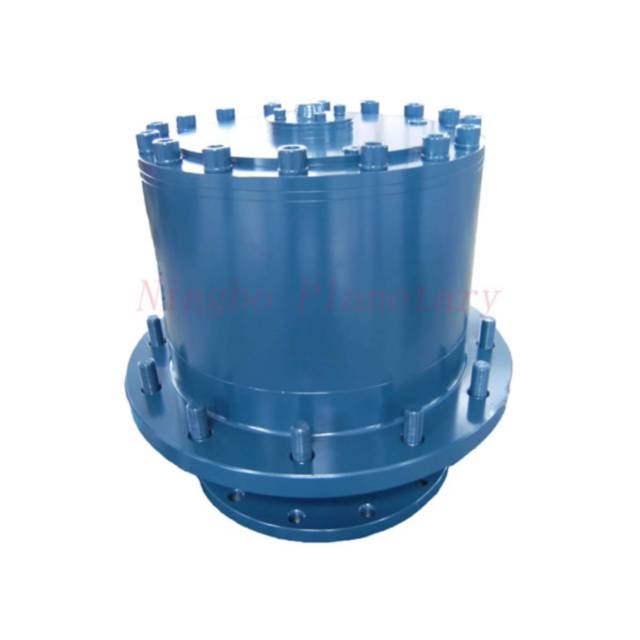

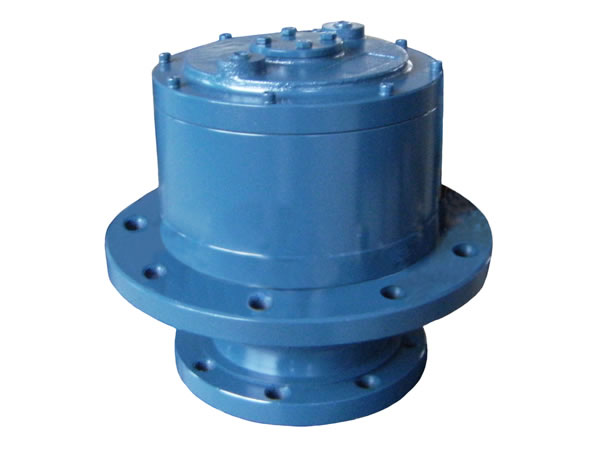

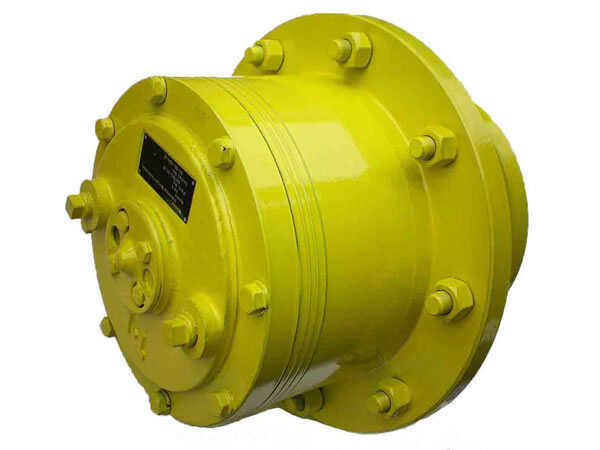

600L Series Wheel Drive Planetary Speed Reducer Gearbox Bonfiglioli Replacement Product
The Raydafon 600L Series Wheel Drive Planetary Speed Reducer Gearbox is the ultimate Bonfiglioli replacement product designed for those who demand excellence in performance and durability. This high-precision gearbox is engineered to deliver superior torque and efficiency, making it an ideal choice for heavy-duty applications in industries such as construction, mining, and agriculture. Crafted with premium materials and advanced technology, the 600L Series ensures a long service life and minimal maintenance, providing a reliable solution for your most demanding tasks. Whether you're looking to upgrade your machinery or need a dependable replacement, the Raydafon 600L Series stands out with its robust design, exceptional load capacity, and seamless integration with existing systems. Experience the difference with a gearbox that not only meets but exceeds expectations, offering a perfect blend of power, precision, and performance. Choose Raydafon for a solution that brings efficiency to your operations and peace of mind to your team.
Superior Performance
The NBPG NB600L Serieswheel drive planetary gearbox is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The NB600L planetary gear reducer for wheeled vehicle has the capacity to drive whatever the type of machine with up to 2.5m of tire diameter and 50 tons each wheel. Thanks to the wide ratio range, there is a solution for any type of transmission and application. The manual declutch system can disengage the gearhead from the motor for emergency towing.
Key Features
1. Output torque range: 1000-60000 N.m
2. Gear ratios: i=5.3-142
3. Support: thegearbox has rotating housing flanges to fit wheel
4. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors or others
5. Hydraulic motor options: pressure relief valve, overcenter valve
6. Bearing: robust bearing system absorbing the forces exerted by the ring gear
7. Brake: hydraulically released parking brake
8. Others: NB600L Series wheel drives with manual disconnect application
9. Large radial and axial load capacity due to the use of strong tapered roller bearings.
10. Reliable oil seal protection, designed according to our field experience.
11. Universal and SAE input direct mounting flanges
12. The units are designed for their direct mounting into the wheel rims.
13. Technical data and installation dimension of NB600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably.
The NBPG NB600L Serieswheel drive planetary gearbox is designed for self-propelled vehicles with hydraulic or electric motors. Available in a wide range of ratios, the gearbox allows the power system to operate at optimum efficiency. The NB600L planetary gear reducer for wheeled vehicle has the capacity to drive whatever the type of machine with up to 2.5m of tire diameter and 50 tons each wheel. Thanks to the wide ratio range, there is a solution for any type of transmission and application. The manual declutch system can disengage the gearhead from the motor for emergency towing.
Key Features
1. Output torque range: 1000-60000 N.m
2. Gear ratios: i=5.3-142
3. Support: thegearbox has rotating housing flanges to fit wheel
4. Applicable motors: axial piston hydraulic motors, hydraulic orbit motors or others
5. Hydraulic motor options: pressure relief valve, overcenter valve
6. Bearing: robust bearing system absorbing the forces exerted by the ring gear
7. Brake: hydraulically released parking brake
8. Others: NB600L Series wheel drives with manual disconnect application
9. Large radial and axial load capacity due to the use of strong tapered roller bearings.
10. Reliable oil seal protection, designed according to our field experience.
11. Universal and SAE input direct mounting flanges
12. The units are designed for their direct mounting into the wheel rims.
13. Technical data and installation dimension of NB600L Series gearbox are same as those of Rexroth GFT…W Series and Bonfiglioli 600 Series, so these three can be used interchangeably.
Track drives type | Max torque N.m | Range of ratio(i) | Max input speed(rpm) | Braking torque(N.m) |
EP601L1A | 1750 | 5.77 | 1000 | 450-600 |
EP603L2A | 4000 | 19-23-32-40 | 3000 | 210 |
EP603L2B | 4000 | 19-23-32-40 | 210 | |
EP602L2 | 5000 | 12.4-25.8 | - | |
EP605L2 | 7000 | 22-27-30-42-53 | 220-310 | |
EP606L2, L3 | 12000 | 30-35-43-68-79 | 300-800 | |
EP607L2, L3 | 17000 | 33-75-108 | 300-600 | |
EP609L2, L3 | 23000 | 33-142 | 300-800 | |
EP610L2, L3 | 30000 | 20-111 | 300-800 | |
EP611L2, L3 | 36000 | 41-47 | 300-800 | |
EP613L3 | 45000 | 108 | 300-800 | |
EP615L3 | 60000 | 108 | 300-1000 |
The installation dimensions of planetary gearbox, wheel drive gearbox, winch drive gearbox and track drive gearbox produced by us are exactly the same as those of trasmital Bonfiglioli, and the performance parameters are very close to those of trasmital Bonfiglioli, which can be used instead of trasmital Bonfiglioli's products.
bonfiglioli model | 601R | 603W | 605W | 606W | 609W | 611W | 613W, 615W |
our model | EP601R | EP603W | EP605W | EP606W | EP609W | EP611W | EP613W, EP615W |
Click here for more model types!
Construction
(dryers, crushing machines, mixing mills, cranes, mobile scaffolds)
Material handling
(gantry cranes, mobile dock cranes, movable stocks, bridge cranes)
Waste and sewage treatment
(rotating lters, thickeners, clariers, Warm hoists, agitators)
Mine and quarry machines
(drilling and excavation, machine, selectors, classifiers, conveyors, crushing machines)
Wind energy
(pitch drives, yaw drives)
Substructures
(movable roofs, movable gantries, piling)
Steel processing machines
(conveyors, extruders, cutting machines, roll benders, rolling mills)
Food industry
(mixing machines, mixers, conveyors, fruit extractor machines)
Raydafon GROUP is a Symbol of quality craftsmanship in China . Founded in 1988, specialize in the manufacturing of slewing drives , wheel drivck drives winch drives of gearboxes are used in a variety of applications including construction machine petroleum , coal , geological exploration , shipping , metallurgy , solar power , wind power , agriculture , andprotection .After years of developmental success , our products are intemational recognized for their quality . We export gearboxes to many places in the world , including Southeast Asia , the Middle East Germany , USA Canada Spain Australia , Turkey , and India . We are a consistently growing enterprise that seeks to satisfy our customatter their location
