Agricultural Center Pivot System Worm Final Wheel Drive Irrigation Gearbox for Valley Pivots Replacement of UMC Zimmatic

Discover the Raydafon Agricultural Center Pivot System Worm Final Wheel Drive Irrigation Gearbox, the ultimate replacement solution for Valley Pivots, including UMC Zimmatic models. Engineered for durability and performance, this gearbox is designed to keep your irrigation systems running smoothly, ensuring your crops receive the water they need for optimal growth. Crafted with high-quality materials and advanced technology, the Raydafon gearbox stands out for its robustness, efficiency, and ease of installation. Whether you're a large-scale farmer or manage agricultural operations, this product is tailored for those who demand reliability and longevity in their irrigation equipment. Experience the peace of mind that comes with a gearbox that reduces downtime and maintenance costs, allowing you to focus on what really matters – your crops. What sets the Raydafon gearbox apart is its precision engineering and compatibility with leading pivot systems, making it a smart, cost-effective choice for modern farming. Upgrade your irrigation system with Raydafon and witness the difference in performance and reliability.

Send Inquiry

Product Description

Universal special gearbox for sprinkler irrigation, including UMC type and DURST type, the installation dimensions are exactly the same, so you can replace it without any worries! • Watson sprinkler irrigation special gearbox can help your sprinkler irrigation system work better, longer and more efficiently, saving you time and cost. • From factory to farmland, from pre-factory testing to post-installation debugging, our products can always meet your unique needs! We are always there when you need us!

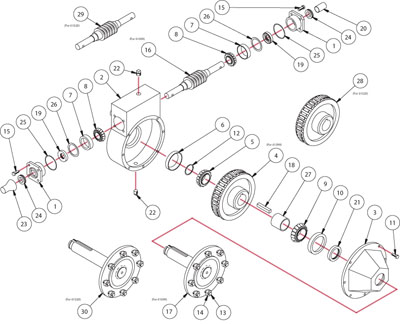

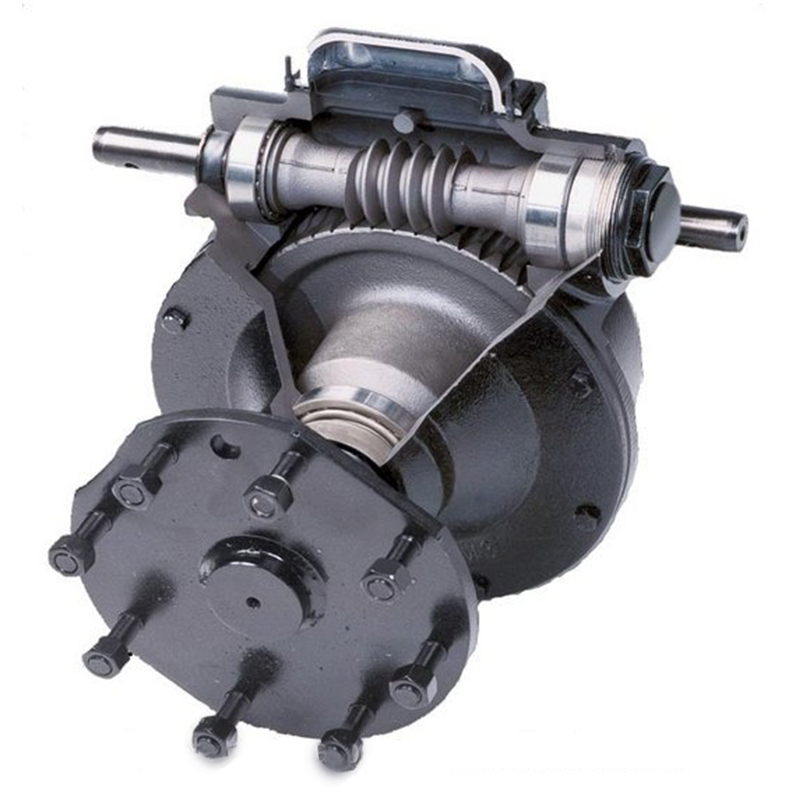

Housing: Load distribution is more even when designed under high stress Worm: High-strength, high-toughness iron, and the combination of steel and cast iron gears can greatly extend the wear life Turbine: High-strength cast iron gears can provide high load capacity and longest service life in industry Input and output bearings: Adopt American T-iken technical indicators to ensure industrial service life Tooth profile -14.5° pressure angle has a long service life and good reliability in harsh environments 50:1 transmission ratio: Concave gear design makes oil lubrication more effective Gear neck and keyway: Strengthen the load in key areas Extended output shaft: Provides additional clearance between the edge of the gearbox to reduce mud accumulation, which can reduce oil seal damage and extend the life of the gearbox High-viscosity gearbox oil: 85w-140 long-term wear gear oil under extreme load conditions

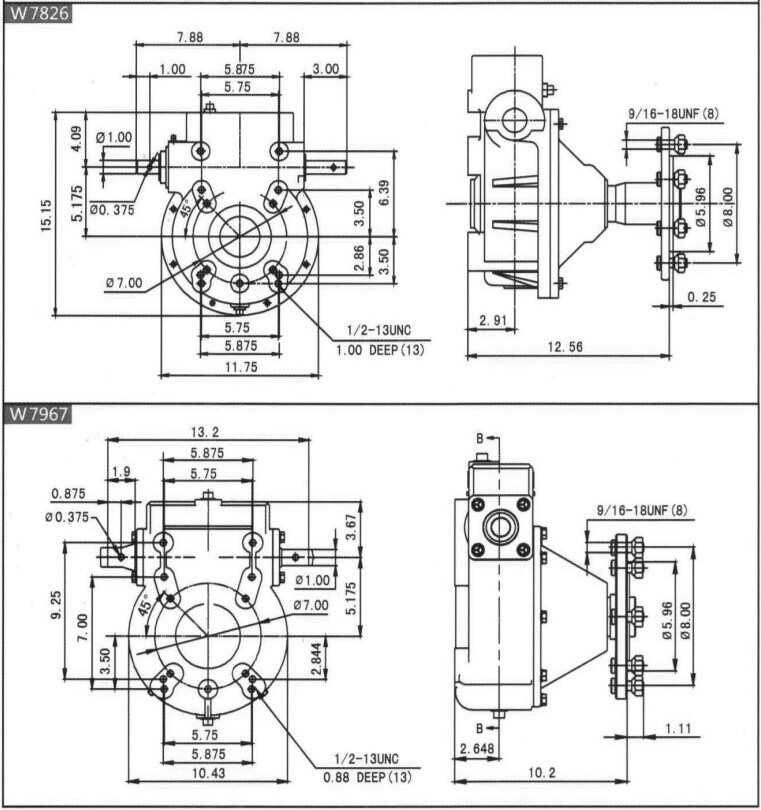

Model	Speed Ratio	Output Shaft Diameter	Weight (KG)	Torque
W7824	50:1	2.25"	50	7909Nm
W7786	52:1	2.25"	53	7909Nm
W7967	50:1	2.25"	55	7909Nm
W7826	52:1	2.25"	60	7909Nm
W740U	50:1	2.25"	51	7909Nm
W740UV	52:1	2.25"	54	7909Nm

Agricultural Gearboxes

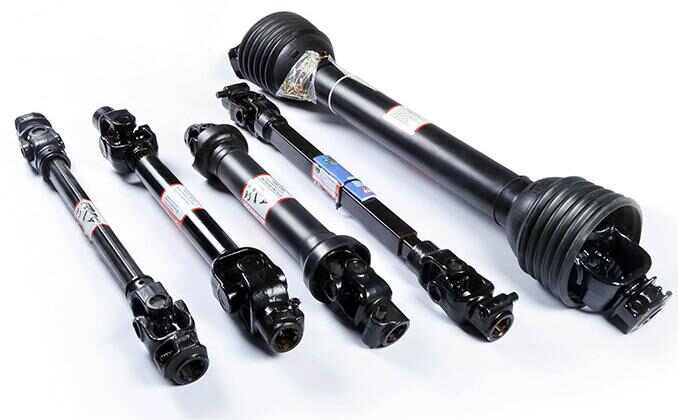

PTO shafts
