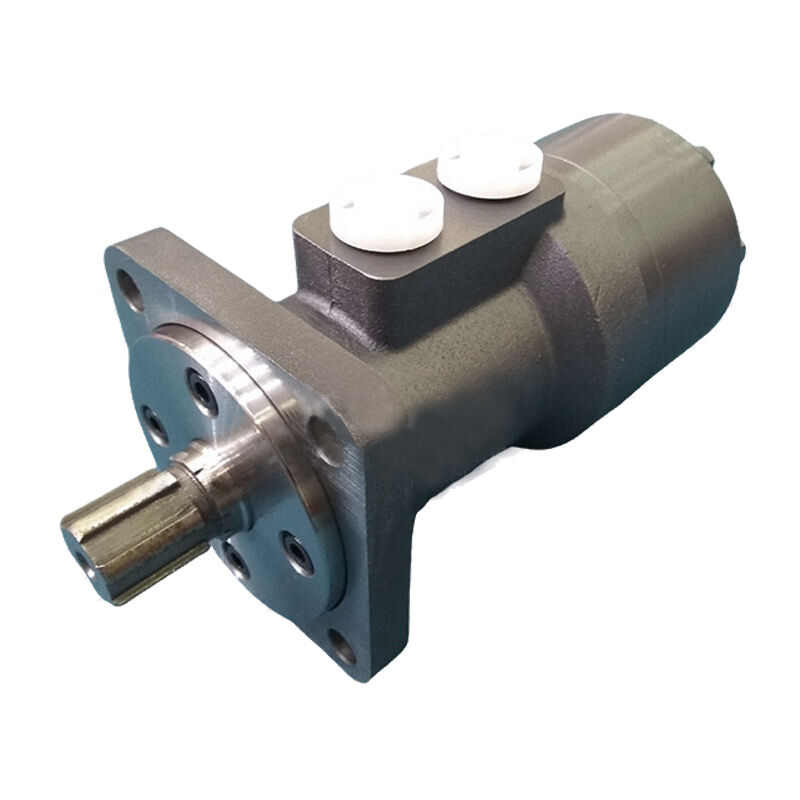

BM4 Series Orbital Hydraulic Motor

The BM4 Series Orbital Hydraulic Motor by Raydafon is a powerhouse of efficiency and reliability, designed to meet the demanding needs of industrial and mobile hydraulic applications. This high-performance motor stands out for its exceptional durability, precision engineering, and seamless integration into a wide range of machinery. Whether it's for agriculture, construction, or material handling, the BM4 Series ensures smooth operation under the most challenging conditions. What sets the BM4 Series apart is its innovative orbital design, which maximizes torque output while minimizing energy consumption. Crafted from premium materials, it offers unmatched resistance to wear and tear, ensuring a longer lifespan and reduced maintenance costs. Its compact and lightweight design makes it an ideal choice for applications where space and weight are critical factors. For engineers and professionals seeking a hydraulic motor that combines performance with reliability, the BM4 Series is the perfect solution. It not only enhances the efficiency of your equipment but also delivers the peace of mind that comes with using a product built to last. Experience the difference with Raydafon's BM4 Series Orbital Hydraulic Motor – where cutting-edge technology meets practical application.

Send Inquiry

Product Description

BM4 series orbital hydraulic motor is a kind of hydraulic motor with radial bearing support shaft distribution, its
characteristics:
• The flow distribution mechanism is integrated with the shaft extension, the flow distribution precision is high, and the motor mechanical efficiency is high.
• The use of bearing support structure design, so that the motor has a greater radial load capacity.
• Pillar rotary stator sub-design, high mechanical efficiency, high efficiency and good retention.
• Reliable rotary shaft seal design, high back pressure bearing capacity, can be used in series and parallel.
• Advanced structure design, high power density.

Type			BM4 195	BM4 345	BM4 310	BM4 390	BM4 490	BM4 630
Actual displacement (cm³/rev.)			195.7	246.2	311.7	391.4	491	623.2
Maximum speed (Rpm)	Continuous	365	312	245	195	155	123
Maximum speed (Rpm)		Intermittent	445	400	315	250	200	158
Maximum torque (N.M)	Continuous	452	480	620	762	865	980
Maximum torque (N.M)		Intermittent	530	595	765	850	955	1130
Maximum output power (KW)	Continuous	16	15	15	13	12	11
Maximum output power (KW)		Intermittent	18.5	17	17	16	14	13
Maximum operating pressure difference (MPa)	Continuous	17.5	15	15	15	14	12.5
Maximum operating pressure difference (MPa)		Intermittent	20	18	18	17	15	14
Maximum flow (L/min)	Continuous	75	80	80	80	80	80
Maximum flow (L/min)		Intermittent	90	100	100	100	100	100

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms
