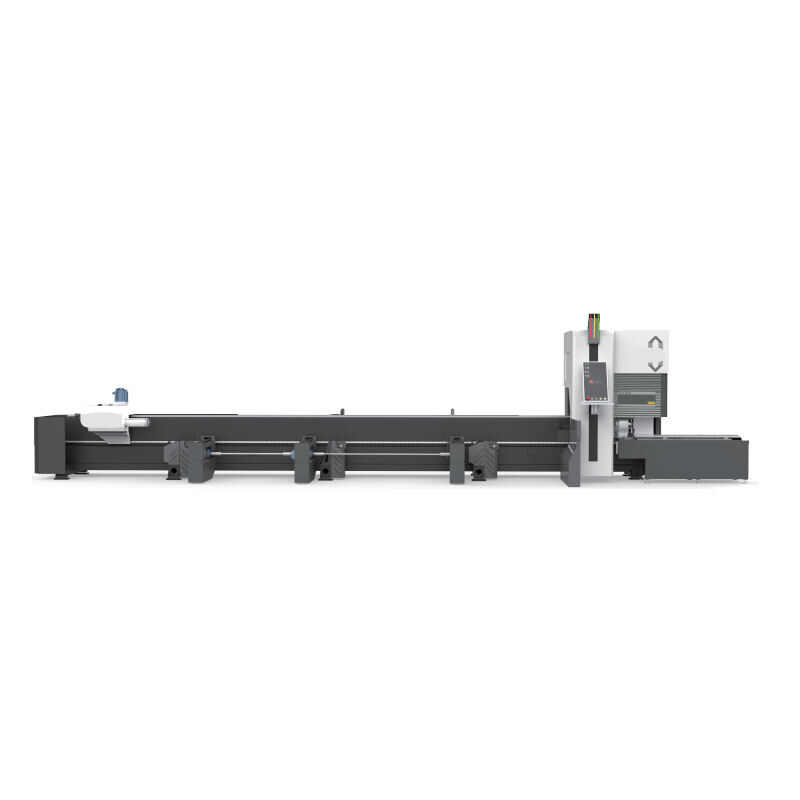

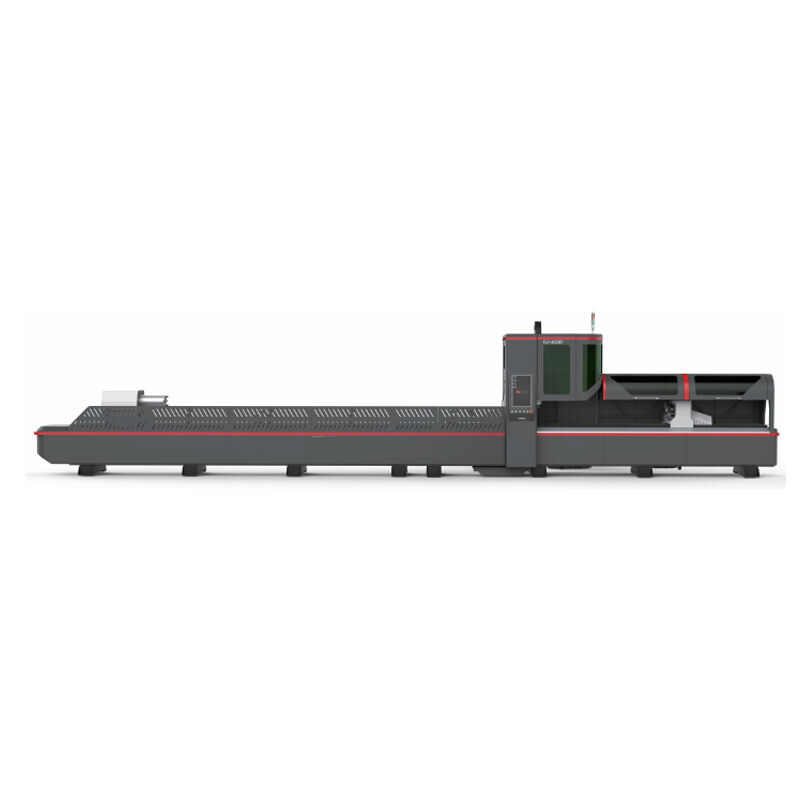

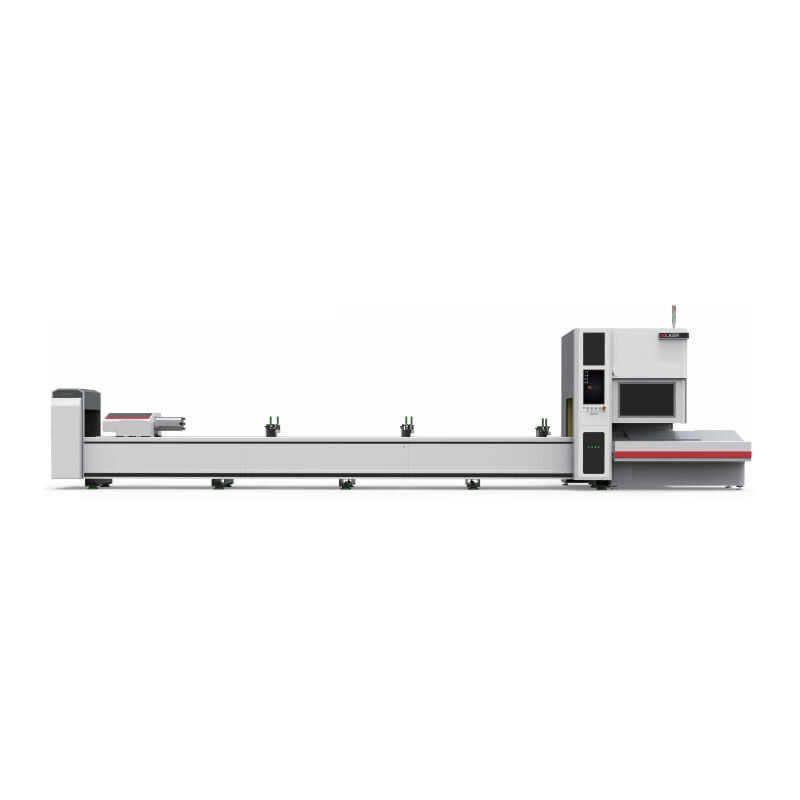

China Suppliers Automatic Stainless Steel Pipe Laser Cutting Machine 6000w Fiber Laser Cutting Machine for Metal Pipe Tube

Discover the Raydafon Automatic Stainless Steel Pipe Laser Cutting Machine, a 6000w Fiber Laser Cutting Machine designed for precision and efficiency in metal pipe and tube processing. This state-of-the-art machine is engineered to meet the demands of modern manufacturing, offering unparalleled cutting speed and accuracy. Its robust stainless steel construction ensures durability, while the advanced fiber laser technology guarantees clean, smooth cuts every time. Ideal for businesses in the automotive, aerospace, and construction industries, this machine simplifies complex cutting tasks, enhances productivity, and reduces material waste. With its user-friendly interface and low maintenance requirements, the Raydafon Laser Cutting Machine is a smart investment for any metalworking operation. Experience the difference with Raydafon, where innovation meets reliability. Choose Raydafon for a cutting-edge solution that propels your business forward.

Send Inquiry

Product Description

Advantage:
* Three chucks mutual shift for fine cutting. * Servo follow-up receving device. * The universal loading device.
* Side extraction and sinking combined three-dimensional extraction design, with stronger smoke extraction and slag extraction
ability;
* Universal modular design, which can be quickly upgraded according to different scenarios, different pipe diameters, and
different blanking lengths to maximize customer needs;

NO.	Item	Parameter	Unit
1	Maximum cut pipe length	0~6000 (more than 2.8m need to customize the front joint)	mm
2	Cut pipe diameter	15~350(external circle of workpiece	mm
3	Minimum tail material	≥0 (related to workpiece length and actual cutting)	mm
4	X, Y, Z axis positioning accuracy	±0.05/1000mm	mm
5	X, Y, Z axis repeat positioning accuracy	±0.03/1000mm	mm
6	Acceleration speed	1g	m/s²
7	Max. running speed	75	m/min
8	Maximum load weight	250	kg
9	Max. speed of chuck	120	rpm
10	Weight of loading machine	Approx. 6500	Kg
11	Main machine shape (length, width and height)	Approx. 12435×1940×2400	mm
12	Laser power	3000w/4000w/6000w	w
13	Control system	Pachu 5000A
15	Power supply requirements	380v/50Hz±10%

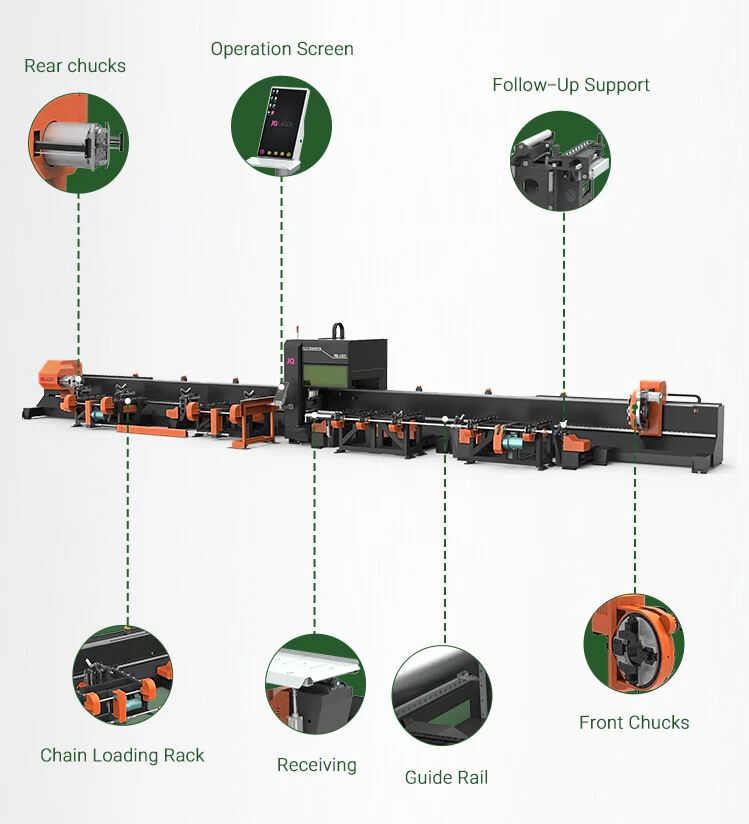

Fully Enclosed Pneumatic Chuck

----Effectively prevent cutting dust pollution

----Full stroke design, high alignment accuracy

----Gear transmission, good rigidity, high transmission precision

----The front chuck and the middle chuck are installed face to face to help achieve zero tailing

The four-jaw guide rail is driven by the guide rail mechanism, which makes the four-jaw straightness and stability higher, and truly achieves the effect of self-centering

Follow-on support device

It can reduce processing errors, ensure uniform force on the entire metal pipe, and improve cutting accuracy. Real-time feeding to prevent the reduction of cutting accuracy due to pipe distortion.

Fully Automatic Loading System

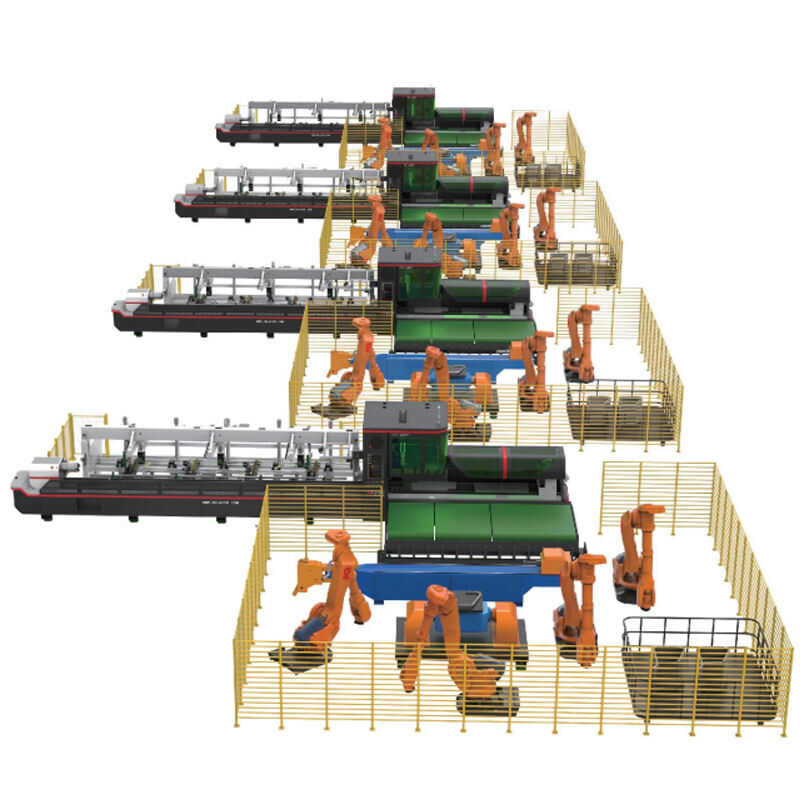

Equipped with a fully automatic loading system to reduce dependence on labor and reduce the labor intensity of operators.

Follow-Up Front Splice

The Servo follow-up front receiving device can automatically screen material, divide material, and automatically flip, with high mechanization performance

CHOOSE YOUR LASERTUBE

Make Your Choice

Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.

Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.

Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power. 1. What material you want to cut,stainless steel,carbon steel or other? 2. What thickness do you want to cut?

Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.

Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
