Three chucks can be reversed for cutting, and are applied to a variety of clamping and cutting modes can be used to achieve zero-tail cutting of tubes, improve tube utilization, and save costs.
Products

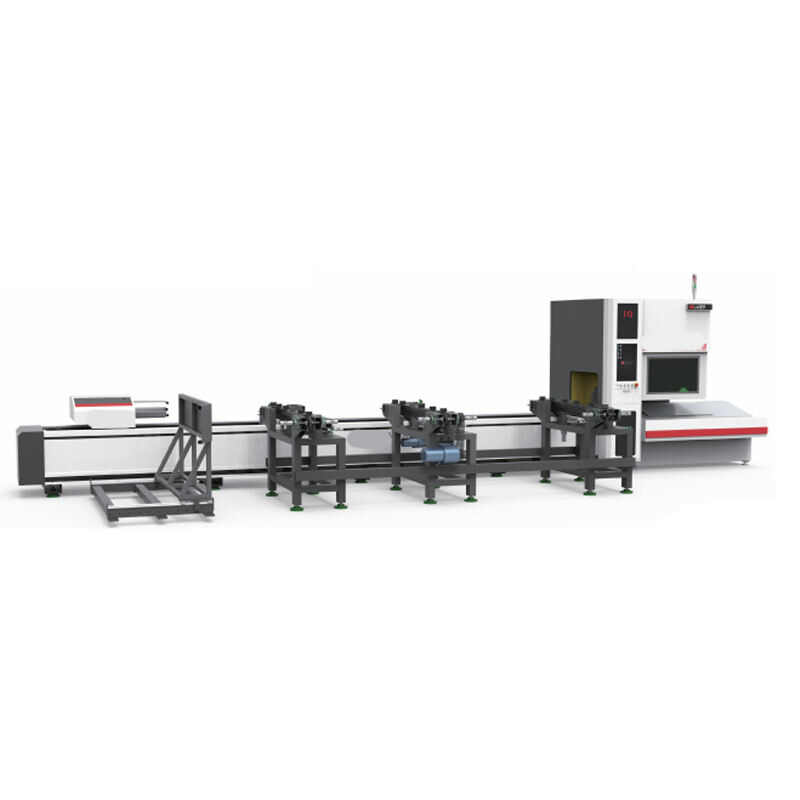

High Speed Three Chuck Pipe Cutting Machine 8kw 12kw 350mm Rectangle Alloy Steel Tube Pipe Laser Cutter Machine
The Raydafon High Speed Three Chuck Pipe Cutting Machine is a state-of-the-art solution designed for precision cutting of rectangle alloy steel tubes and pipes. With powerful options of 8kw and 12kw, this laser cutter machine stands out for its efficiency, durability, and ability to handle materials up to 350mm. Ideal for industrial manufacturers, metal fabricators, and construction professionals, this machine is engineered to meet the demanding needs of high-speed, high-precision cutting tasks. Its three-chuck design ensures stable and accurate cuts, significantly reducing material waste and improving productivity. The Raydafon machine not only enhances operational efficiency but also brings a sense of reliability and professionalism to your workshop. Compared to conventional cutting tools, its laser technology offers cleaner cuts, minimal heat distortion, and a smoother finish, setting a new standard in the metal cutting industry. Whether for large-scale industrial projects or intricate custom fabrications, the Raydafon High Speed Three Chuck Pipe Cutting Machine is your trusted partner for achieving flawless results every time.

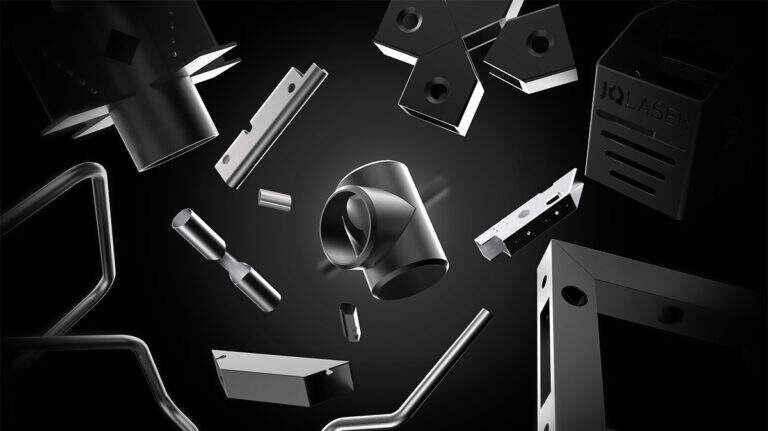

Round tube diameter range 15-350mm(change according to the size of the chuck), can support multiple tube type cutting, channel,angle, I-beam, etc.; can achieve ultra-long tube cutting, 12 meters loading 12 meters downfeed (expandable) standard semi-automatic loading, more efficient, convenient and stable
Product Name | Three Chuck Laser Pipe Cutting Machine |
Maximum Cut Pipe Length | Cutting Length From 7000 To 12000 mm |
Cut Pipe Diameter | 15~350mm (Circle Of Workpiece) |
Pipe Thickness | Depends On The Power |
Cutting Accuracy | ±0.1mm |
X, Y axis positioning accuracy | ±0.05/1000mm |
X, Y axis repeat positioning accuracy | ±0.03/1000mm |
Acceleration | 0.8G m/s² |
Maximum Operating Speed | 60 m/min |
Maximum Weight For Each Tube | 500Kg |
Chuck Rated Speed | 60rpm |
Mainframe Shape | About 22000×6000×2500mm |
Laser power | 8000W Or Customized As Required |

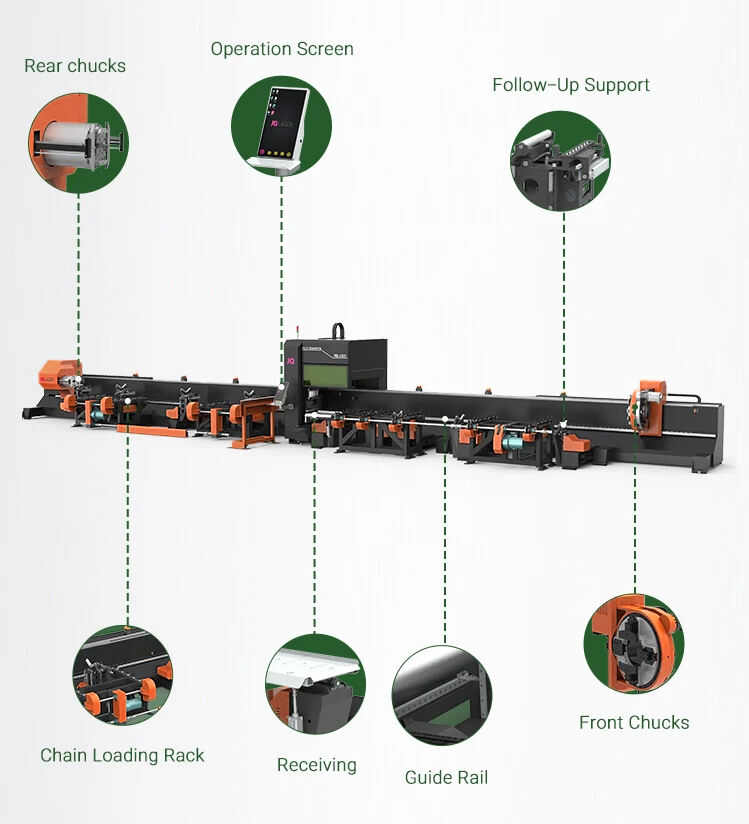

Three Chunks
Intelligent CNC Chuck
It can realize automatic centering and precise clamping of the pipe, and the front and rear middle card design ensures that the pipe is clamped without deformation.
Bus control system
The rich process database is easy to operate and powerful, and can be deeply developed for different customer needs.

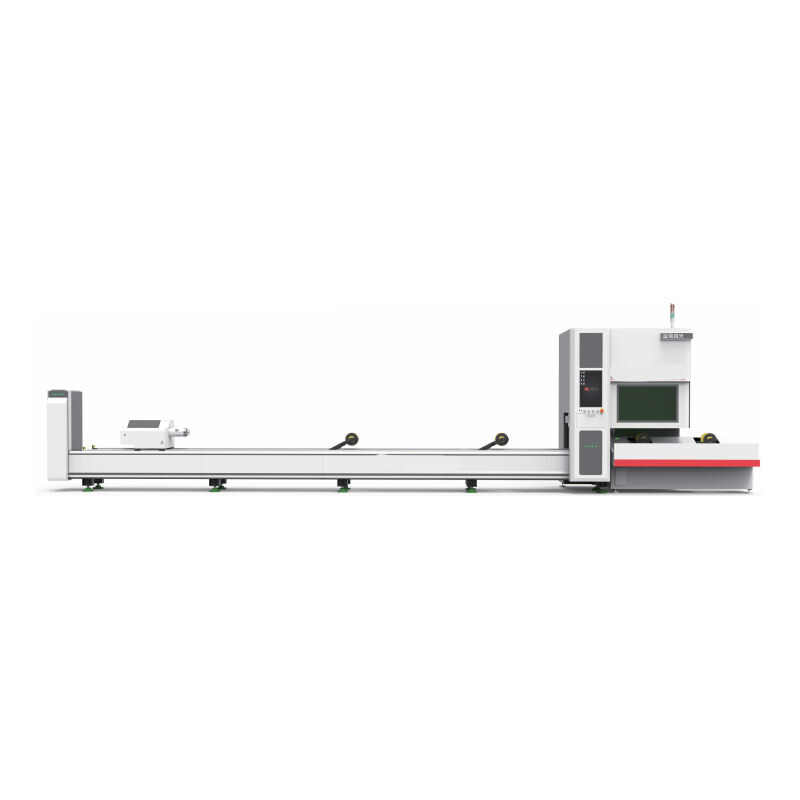

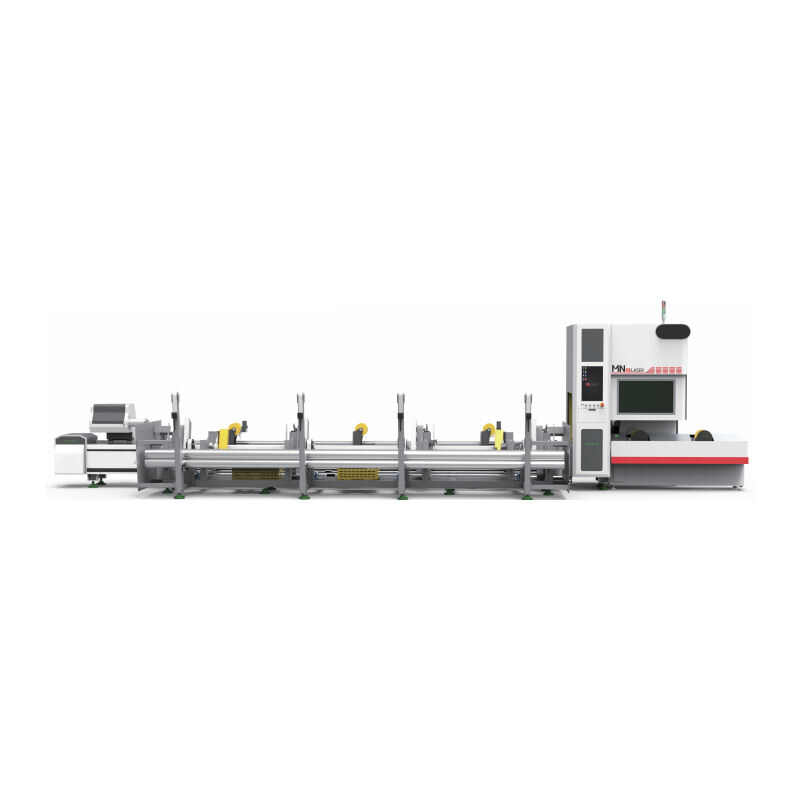

CHOOSE YOUR LASERTUBE
Make Your Choice
Lasertube systems are our 2D and 3D laser cutting systems for tubes, bars and profiles, from 15 mm to 350 mm in diameter and up to 12000 mm in length.
Q: Do you have CE document and other documents for customs clearance?A: Yes, we have CE, Provide you with a one-stop service.At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.
Q: Why the machine price not include fiber source?A:Different customers, different requirements, and many different laser power can be optional, that's why we list the price not include fiber source parts.
Q: If we are interested in your machine, how to choose proper power?A:Please tell us the following answer, our professional seller will recommend you proper power.
1. What material you want to cut,stainless steel,carbon steel or other?
2. What thickness do you want to cut?
Q:How can I do if the laser cutting machine goes wrong?A: If confronted with such problems, please contact us asap and do not try
fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Q: How about warranty?A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.
Q: Do you have after sales support?A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running
