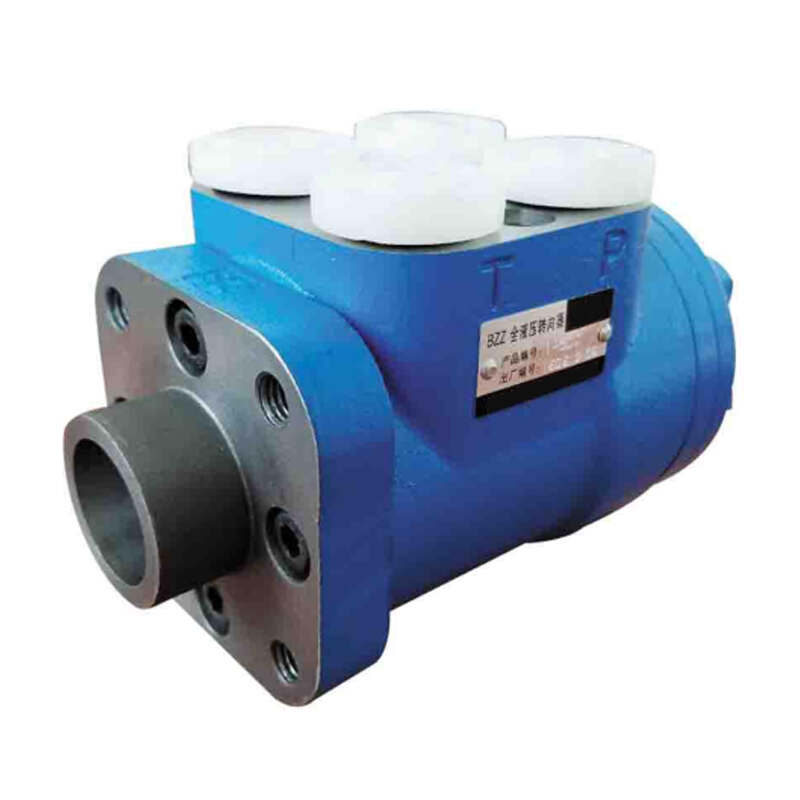

Mini Tractor S50 Series Hydraulic Steering Control Unit Small Displacement SCU for Hydraulic Valves

Discover the Raydafon Mini Tractor S50 Series Hydraulic Steering Control Unit (SCU), a compact powerhouse designed for precision and efficiency in managing hydraulic valves. Ideal for small tractors and agricultural machinery, this SCU ensures smooth, responsive steering control, enhancing your equipment's performance and your productivity in the field. Crafted with high-quality materials and advanced hydraulic technology, the S50 Series stands out for its durability, reliability, and ease of use. Whether you're a farmer looking to upgrade your machinery or a mechanic in search of top-notch components, this unit is tailored to meet your needs. Experience the difference with Raydafon – where innovation meets agriculture. Say goodbye to cumbersome steering and hello to effortless control, making every task simpler and more enjoyable. The S50 Series isn't just a product; it's your partner in achieving more with less effort. Choose Raydafon for a solution that combines cutting-edge technology with practical functionality, setting a new standard in hydraulic steering control.

Send Inquiry

Product Description

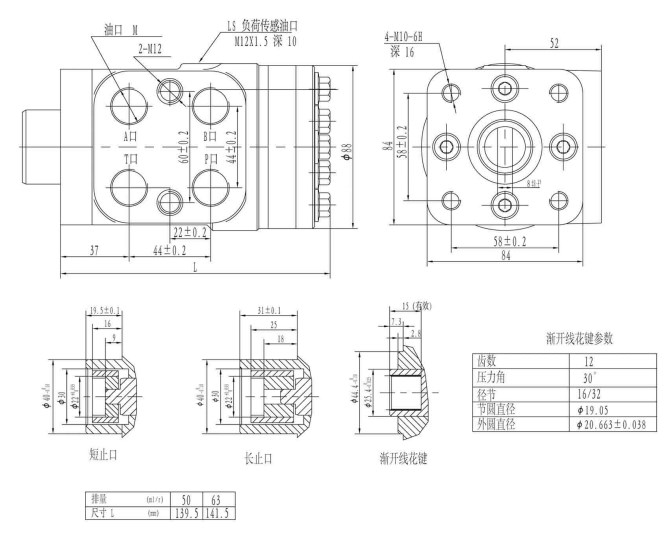

S50 Series Hydraulic Steering Control Unit

---Optimized control rotary valve design, superior performance
---Low hydraulic noise
---Casting inner channel design, small pressure loss
---Three basic types: open core, closed core and load sensing

Main performance parameters

Maximum inlet pressure………………16MPa
Maximum continuous back pressure………………2.1MPa
input torque………………………………2.8-4.0Nm
Ultra-low torque……………………………1.1 ~ 1.4Nm
Maximum system temperature………………93°C
Recommended Oil Cleanliness………ISO 18/13

Product Features					Displacement/No.
Type	Connection	Oil port	50	63
Open core No reaction	Short stop	4-M20X1.5 4-M10 2-M12	S50-1101	-1102
			Long stop		S50-1201	-1202
			Internal spline		S50-1301	-1302
Open core No reaction	Short stop	4-G1/2 4-M10 2-M12	S50-1111	-1112
			Long stop		S50-1211	-1212
			Internal spline		S50-1311	-1312
Closed core No reaction	Short stop	3/4-16UNF 'O'-ring 4-M10 2-M12	S50-3131	-3132
			Long stop		S50-3231	-3232
			Internal spline		S50-3331	-3332
Static signal load sensing	Short stop	4-M20X1.5&M12X1.5 4-M10 2-M12	S50-5101	-5102
			Long stop		S50-5201	-5202
			Internal spline		S50-5301	-5302
Dynamic signal load sensing	Short stop	4-G1/2&M12X1.5 4-M10 2-M12	S50-7111	-7112
			Long stop		S50-7211	-7212
			Internal spline		S50-7311	-7312

The various products produced by the company can be widely used in mining construction engineering machinery, lifting and transportation equipment, heavy metallurgical machinery, stone. Oil and coal mining machinery, ship deck machinery, machine tools, light industry, plastic machinery, geological drilling equipment, agricultural and forestry machinery, minerals Machinery, construction equipment and work platforms, lawn mowers, special vehicles, fishing winches, machine tools, carpentry and sawmills, rubber In the hydraulic transmission system of various machinery such as machinery. Especially suitable for injection molding machine screw drive, lifting winch, drum drive, Driving of various slewing mechanisms and driving of crawler and wheel traveling mechanisms

We are a company specializing in the production of BM series cycloidal hydraulic motors, BZZ fully hydraulic steering gears, FK combination valve blocks and other hydraulic components. Our products are widely used in engineering machinery, mining machinery, metallurgy machinery, petroleum machinery, agricultural machinery, injection molding machinery, Fishing machinery, engineering and other fields. Our company has multiple imported equipment and advanced production technology, dozens of high-quality engineering and technical personnel, and its own R&D team to ensure product quality with strong technical strength. We have a relatively complete product quality assurance system from employee recruitment, raw materials entering the factory, parts processing, assembly testing, to product delivery. The products are favored by domestic and foreign users for their high-end quality, affordable prices and thoughtful services. The company successfully passed the ISO9001:2008 quality management system certification in 2013.
