Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains for Form Fill and Vacuum Seal Wrapping Applications

Discover the unparalleled durability and precision of the Raydafon Standard Frame Clamp Type 10B1GC-B Stainless Steel Gripper Roller Chains, engineered for form fill and vacuum seal wrapping applications. Crafted from high-quality stainless steel, these gripper roller chains are designed to withstand the rigors of heavy-duty use, ensuring long-lasting performance in demanding industrial environments. Whether you're in the food packaging, pharmaceutical, or any industry requiring secure and efficient sealing, our chains provide the reliability you need to keep your operations running smoothly. The unique design of the 10B1GC-B model offers superior grip and stability, minimizing product slippage and maximizing efficiency. Unlike standard chains, our stainless steel construction resists corrosion and wear, making it a cost-effective solution over time. Ideal for manufacturers and packaging professionals seeking to enhance their production line's performance, this product is a testament to Raydafon's commitment to quality and innovation. Experience the difference with chains that not only meet but exceed expectations, delivering peace of mind through every seal and wrap. Choose Raydafon for a solution that combines strength, precision, and durability, setting a new standard in packaging excellence.

Send Inquiry

Product Description

08B	1	GC	A	SS
Chain Size	Strand	Gripper Chain	Type	Base Chain Material

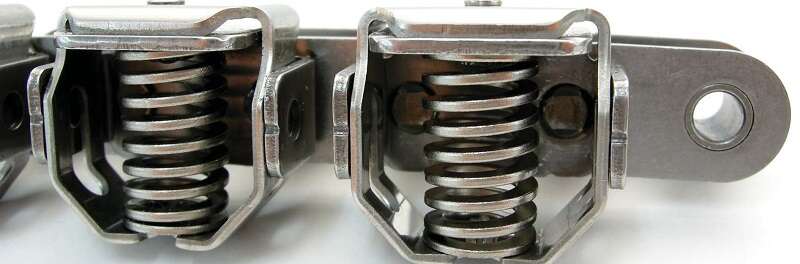

The Standard Frame Clamp (Type B)

allows for a combination of vertical movement and horizontal rotation to ensure easy film engagement and scrap release.

Code	DIN / ISO	Material					Pitch	Inside Width	Roller Dia.	Clamp Force	Tensile Strength
		Base Chain	Clamp	Spring	P mm	b1 Max mm	d1 Max mm	Q-C N	Q Min kN
10B1GC-B	10B-1	SS	SS	SS	15.875	9.65	10.16	70	18.5
10B1GC-B		10B-1	NP	SS	SS	15.875	9.65	10.16	70	22.4

With more than 20 years experience of stainless steel chains production, we are becoming one of the leading
manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain
models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and
overseas customers.

Gripper Chain Features

1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.

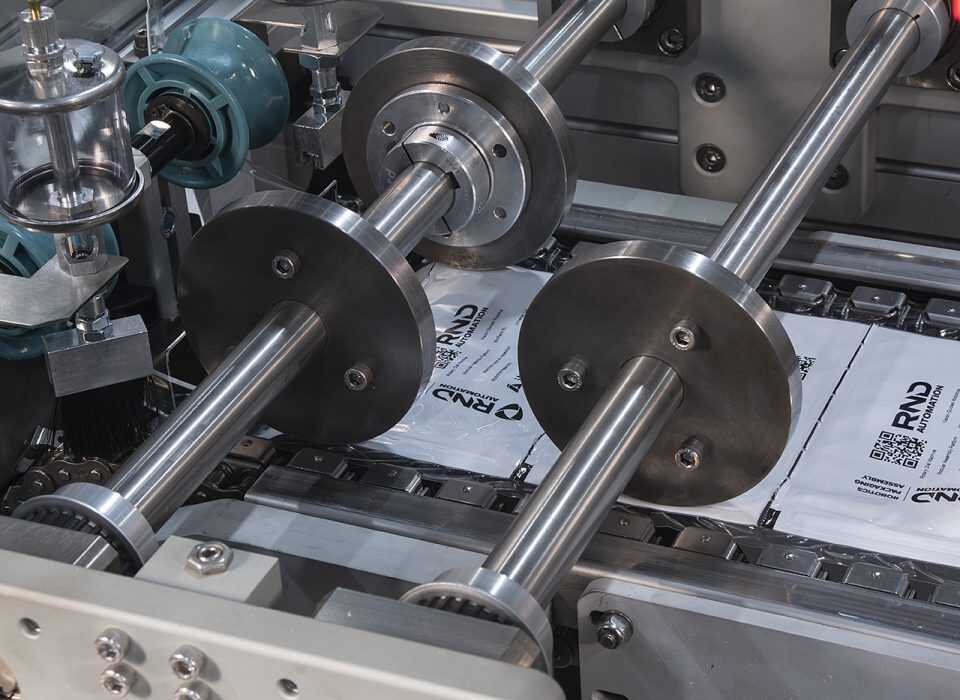

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications

--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.

^{For more types,Please click here!}

We provide chain matching sprockets with various specifications, which can be customized according to your drawings
