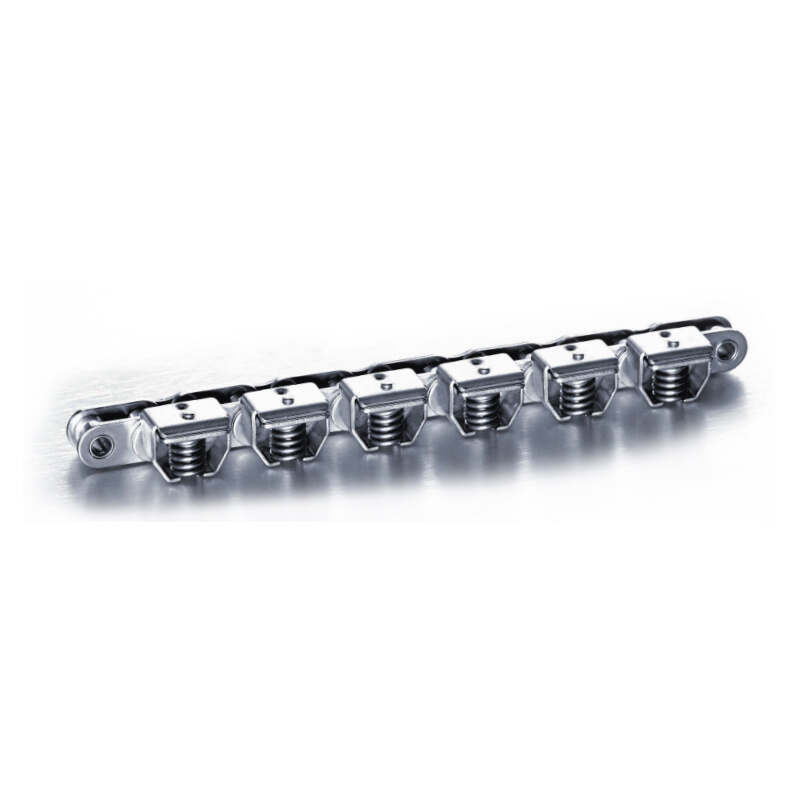

Teeth Frame Clamp 08B1GC-C Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
Discover the Raydafon Teeth Frame Clamp 08B1GC-C, a premium stainless steel gripper roller chain designed for form fill and vacuum seal wrapping applications. This high-quality component ensures seamless operation in packaging processes, offering durability and precision that stand the test of time. Crafted from high-grade stainless steel, the 08B1GC-C model boasts exceptional resistance to wear and corrosion, making it an ideal choice for demanding environments. Its innovative design guarantees a secure grip and smooth movement, enhancing the efficiency of your packaging line. Whether you're in the food, pharmaceutical, or any industry requiring reliable vacuum sealing, this gripper roller chain is engineered to meet your needs. Experience the difference with Raydafon's commitment to excellence. The Teeth Frame Clamp 08B1GC-C not only solves common packaging challenges but also elevates your production standards, ensuring consistent, high-quality results. Its unique combination of strength, reliability, and performance sets it apart from competitors, making it the go-to solution for professionals seeking to optimize their operations. Invest in the Raydafon Teeth Frame Clamp 08B1GC-C today and transform your packaging process into a model of efficiency and precision.
08B | 1 | GC | A | SS |
Chain Size | Strand | Gripper Chain | Type | Base Chain Material |

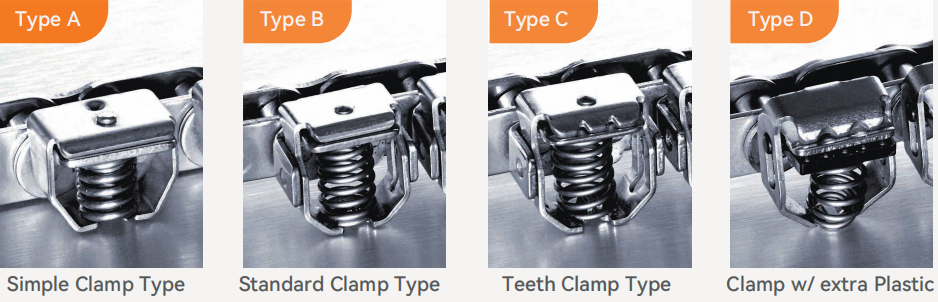

The Teeth Frame Clamp (Type C)
provide better clamping perfomance with thicker and stronger film.Code | DIN / ISO | Material | Pitch | Inside Width | Roller Dia. | Clamp Force | Tensile Strength | ||||
Base Chain | Clamp | Spring | P mm | b1 Max mm | d1 Max mm | Q-C N | Q Min kN | ||||
08B1GC-C | 08B-1 | SS | SS | SS | 12.700 | 7.75 | 8.51 | 50 | 15.0 | ||
08B-1 | NP | SS | SS | 12.700 | 7.75 | 8.51 | 50 | 18.0 | |||
08B2GC-C | 08B-2 | SS | SS | SS | 12.700 | 7.75 | 8.51 | 50 | 25.5 | ||
08B-2 | NP | SS | SS | 12.700 | 7.75 | 8.51 | 50 | 32.0 | |||
1081GC-C | 10B-1 | SS | SS | SS | 15.875 | 9.65 | 5.6 | 70 | 18.5 | ||
10B-1 | NP | SS | SS | 15.875 | 9.65 | 5.6 | 70 | 22.4 | |||
10B2GC-C | 10B-2 | SS | SS | SS | 15.875 | 9.65 | 5.6 | 70 | 35.6 | ||
10B-2 | NP | SS | SS | 15.875 | 9.65 | 5.6 | 70 | 44.5 | |||
With more than 20 years experience of stainless steel chains production, we are becoming one of the leading manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and overseas customers.
Gripper Chain Features
1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.

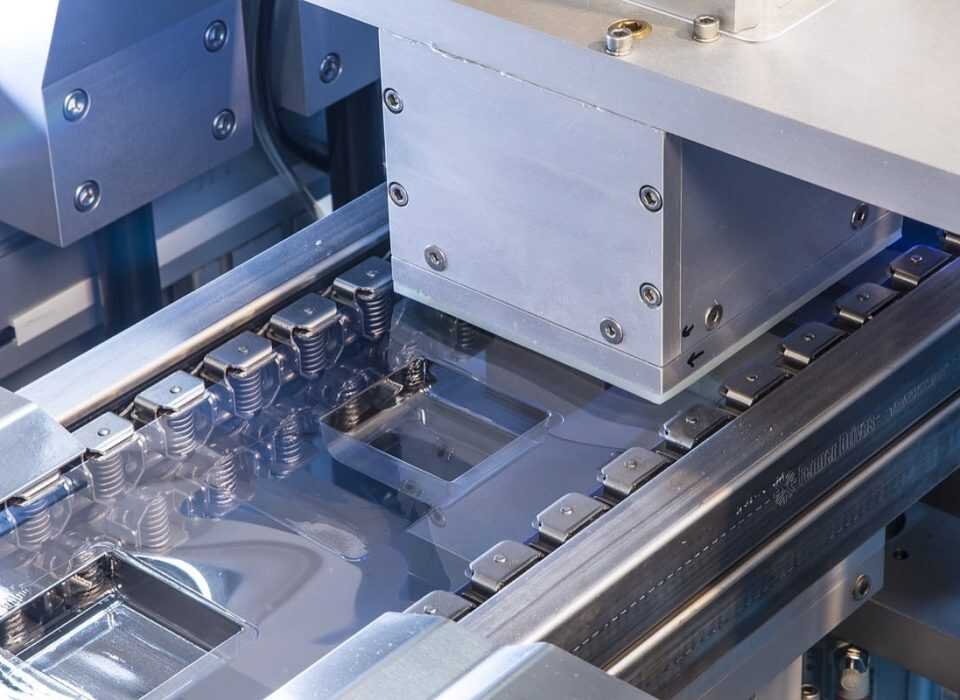

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications
--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
For more types,Please click here!
We provide chain matching sprockets with various specifications, which can be customized according to your drawings
