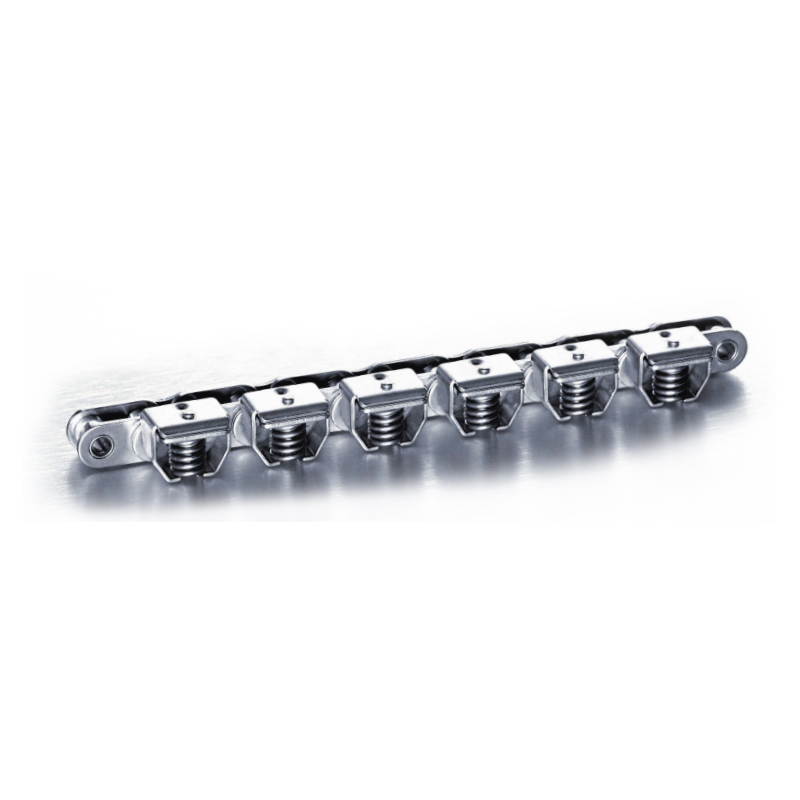

Teeth Frame Clamp 10B1GC-C Stainless Steel Gripper Roller Chain for Form Fill and Vacuum Seal Wrapping
Introducing the Raydafon Teeth Frame Clamp 10B1GC-C, a premium stainless steel gripper roller chain designed specifically for form fill and vacuum seal wrapping applications. Crafted with precision and durability in mind, this product stands out for its exceptional strength, resistance to wear, and ability to ensure a tight, secure seal every time. Ideal for professionals in the packaging industry, the Teeth Frame Clamp 10B1GC-C is your go-to solution for enhancing efficiency and reliability in your packaging process. Whether you're looking to upgrade your current setup or ensure the highest quality in your wrapping operations, this gripper roller chain is engineered to meet and exceed your expectations. Experience the difference with Raydafon - where innovation meets reliability. Say goodbye to loose seals and hello to perfection with every wrap. Perfect for businesses aiming for excellence in packaging, the Teeth Frame Clamp 10B1GC-C not only solves common sealing issues but also elevates your packaging to a whole new level of professionalism. Its unique stainless steel construction offers unmatched durability compared to standard models, making it a smart investment for those who value quality and efficiency. Choose Raydafon for a sealing solution that combines cutting-edge technology with practical design, and feel the pride of using a product that truly makes a difference.
08B | 1 | GC | A | SS |
Chain Size | Strand | Gripper Chain | Type | Base Chain Material |

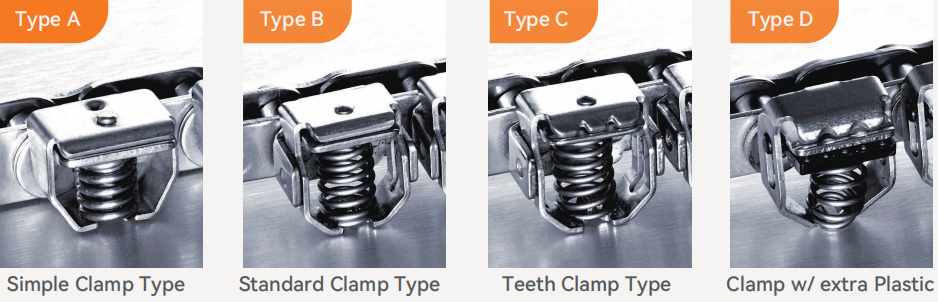

The Teeth Frame Clamp (Type C)
provide better clamping perfomance with thicker and stronger film.Code | DIN / ISO | Material | Pitch | Inside Width | Roller Dia. | Clamp Force | Tensile Strength | ||||
Base Chain | Clamp | Spring | P mm | b1 Max mm | d1 Max mm | Q-C N | Q Min kN | ||||
08B1GC-C | 08B-1 | SS | SS | SS | 12.700 | 7.75 | 8.51 | 50 | 15.0 | ||
08B-1 | NP | SS | SS | 12.700 | 7.75 | 8.51 | 50 | 18.0 | |||
08B2GC-C | 08B-2 | SS | SS | SS | 12.700 | 7.75 | 8.51 | 50 | 25.5 | ||
08B-2 | NP | SS | SS | 12.700 | 7.75 | 8.51 | 50 | 32.0 | |||
1081GC-C | 10B-1 | SS | SS | SS | 15.875 | 9.65 | 5.6 | 70 | 18.5 | ||
10B-1 | NP | SS | SS | 15.875 | 9.65 | 5.6 | 70 | 22.4 | |||
10B2GC-C | 10B-2 | SS | SS | SS | 15.875 | 9.65 | 5.6 | 70 | 35.6 | ||
10B-2 | NP | SS | SS | 15.875 | 9.65 | 5.6 | 70 | 44.5 | |||
With more than 20 years experience of stainless steel chains production, we are becoming one of the leading manufacturers in China. After continuous study and investment, we now have almost all popular Gripper Chain models. Those high-performanced chains are widely welcomed by both OEM and after-market, domestic and overseas customers.
Gripper Chain Features
1.Gripper Chains with Base Chains available both in Nickel Plated and Stainless Steel, for excellent corrosion
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.
resistance;
2.Stainless springs are made of Japan-imported material which ensure the clamping force always;
3.For stainless steel base chain, Pin & Bush are made of AISI 630HT which provides outstanding wear-resistance;
4.Supplied in Pre-streched and matched strands which guarantee trouble-free machine set-up;
5.Furthermore, Lube-free Nickel Plated chain version is also available upon request.

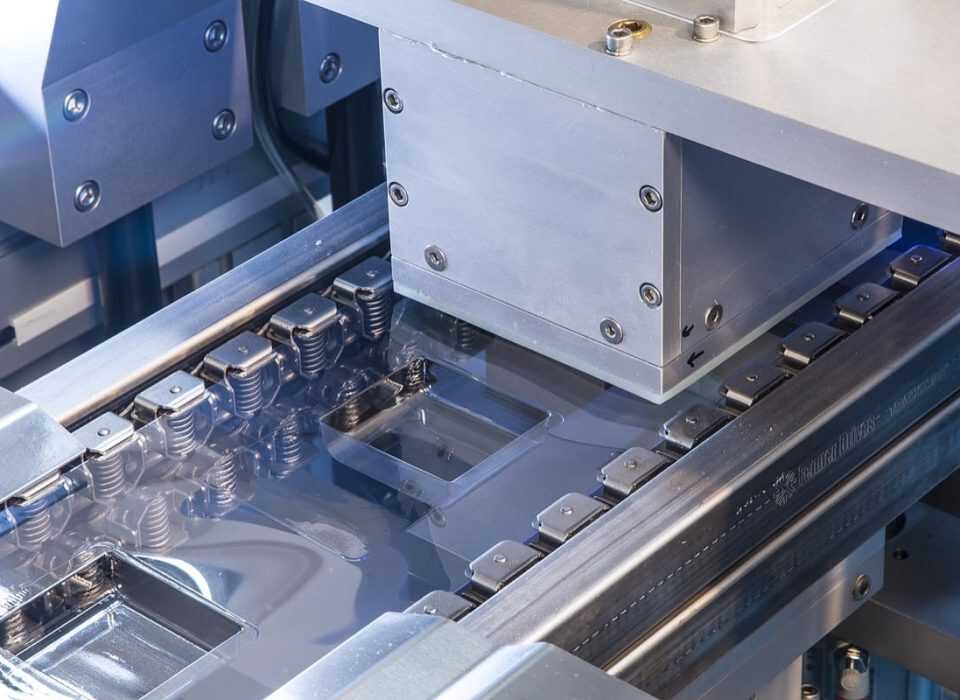

Gripper chains are widely used in various industries for Form, Fill and Vacuum Seal wrapping applications
--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
--Food Industry: Packaging for Ham, sausage, cheese, bread, fish etc.
--Electronics Industry: Packaging for wires etc.
--Medical Industry: Packaging for injection syringe, pharmaceutical etc.
For more types,Please click here!
We provide chain matching sprockets with various specifications, which can be customized according to your drawings
Hangzhou Raydafon focuses on the design and manufacturing of high-precision cold heading chain rollers, sleeves, and various types of chains. The enterprise has passed three major management system certifications: ISO9001-2015, ISO14001-2015, and ISO45001-2018. The company's leading products include: engineering chain, cement chain, sugar machine chain, palm oil chain, steel sales chain, garbage incinerator chain, stainless steel conveyor flat top chain, and various types of chain cold roller and sleeve accessories······
