S60 series hydraulic steering control unit is an integral hydraulic steering control unit with all combined valve functions, including inlet check valve, inlet safety valve, human steering check valve, buffer valve and oil supplement valve. Therefore, the structure is compact and the installation is convenient.
Products

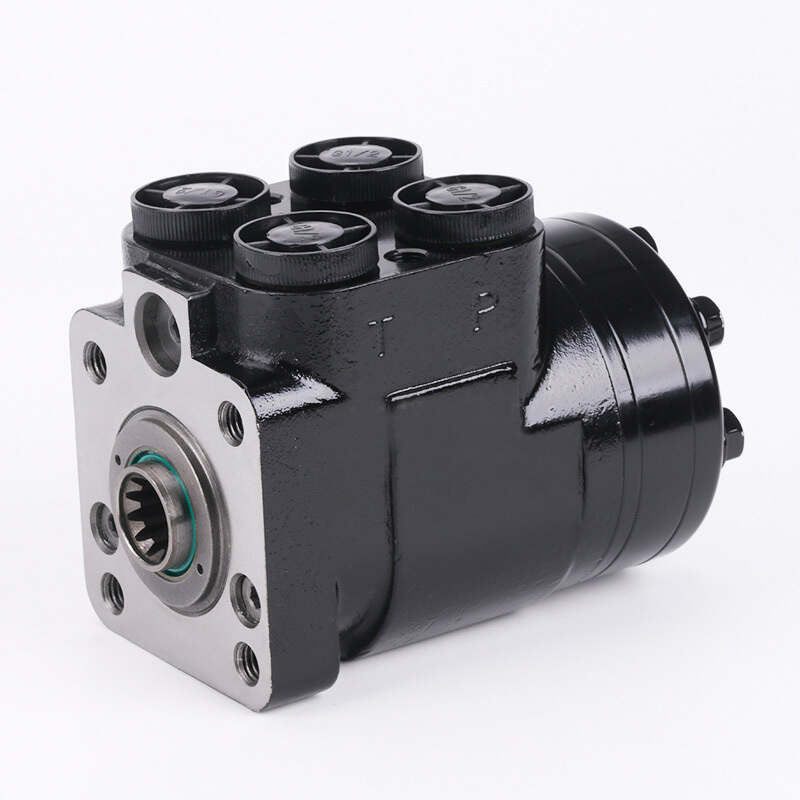

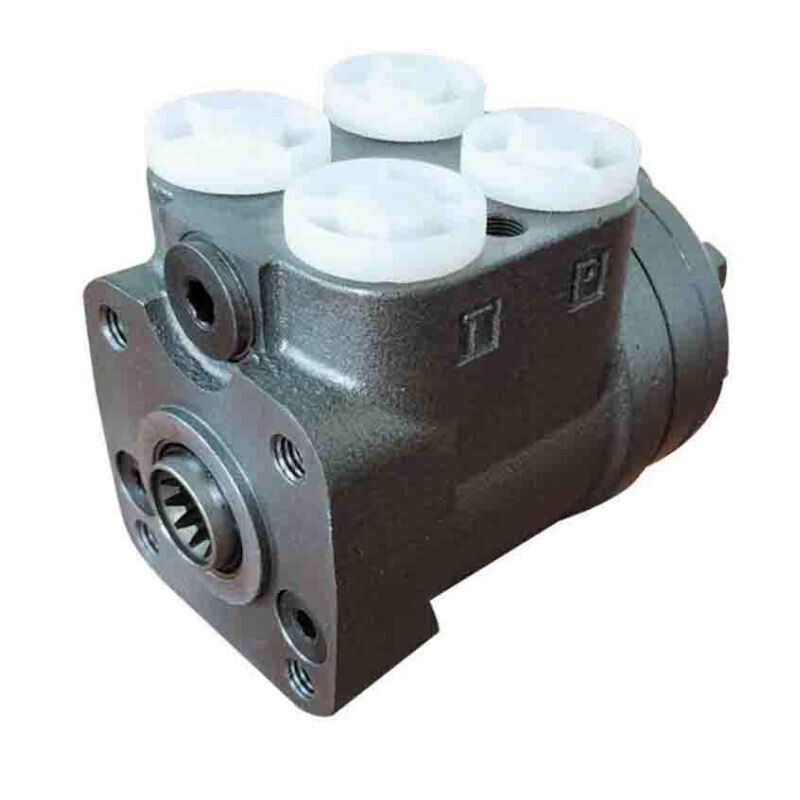

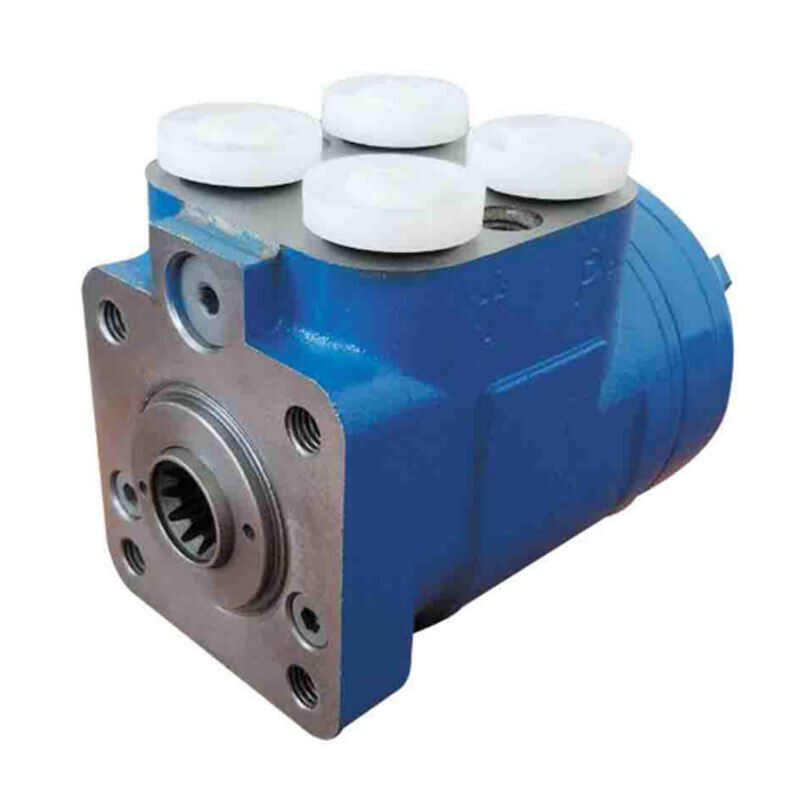

Integral S60 Series SCU Hydraulic Steering Control Unit
Discover the Raydafon Integral S60 Series SCU Hydraulic Steering Control Unit, a pinnacle of innovation designed to revolutionize your hydraulic steering systems. Engineered for precision, durability, and unparalleled performance, the Integral S60 Series SCU stands as a testament to Raydafon's commitment to excellence in hydraulic technology. Whether you're navigating the challenges of marine applications, agricultural machinery, or heavy-duty industrial equipment, this control unit ensures smooth, responsive, and reliable steering under the most demanding conditions.
At the heart of the Integral S60 Series SCU are its cutting-edge hydraulic technology and robust construction, offering users a seamless blend of efficiency and durability. Its advanced design minimizes energy loss while maximizing control, making it an ideal choice for professionals who demand the best in hydraulic steering solutions. The unit's compatibility with a wide range of systems and its easy installation process further underscore its versatility and user-friendly nature.
What sets the Integral S60 Series SCU apart is its unwavering reliability and the peace of mind it brings to operators. Say goodbye to cumbersome steering and hello to a smoother, more intuitive control experience. This isn't just a product; it's a solution that enhances operational efficiency, reduces downtime, and elevates the overall user experience.
Choose the Raydafon Integral S60 Series SCU Hydraulic Steering Control Unit for a steering solution that combines innovation, quality, and performance. Whether you're upgrading your current system or building a new one from scratch, this control unit is designed to meet and exceed your expectations. Join the ranks of satisfied professionals who trust Raydafon for their hydraulic steering needs.
S60 Series Hydraulic Steering Control Unit
• Combination valve design integrated into the hydraulic steering control unit, compact structure and easy installation.
• Low hydraulic noise
• Casting inner channel design, small pressure loss
• Selectable open core, closed core, load sensing circuit
• Displacement range: 50~500ml/r
• Low hydraulic noise
• Casting inner channel design, small pressure loss
• Selectable open core, closed core, load sensing circuit
• Displacement range: 50~500ml/r
Main performance parameters
Maximum inlet pressure……………17.5MPaMaximum continuous back pressure………………2.1MPa
Steering torque
Standard moment………………………1.8 ~ 3.0Nm
Low torque………………………………1.4 ~ 1.8Nm
Ultra-low torque……………………………1.1 ~ 1.4Nm
Maximum system temperature………………93°C
Recommended Oil Cleanliness………ISO 18/13

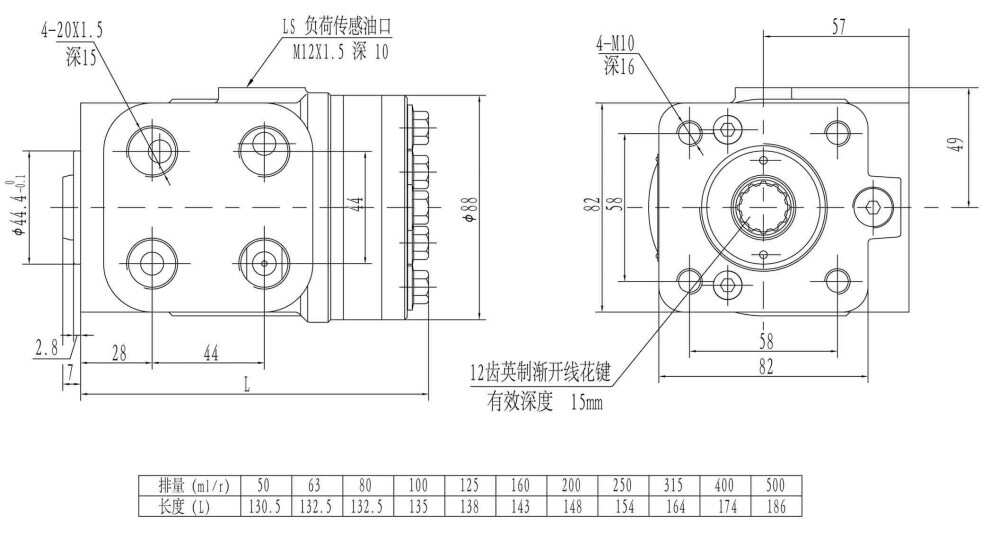

Oil ports and connecting threads | System type | Displacement/No. | ||||||||||||||
80 | 100 | 125 | 160 | 200 | 250 | 280 | 315 | |||||||||
4-M20X1.5 | No reaction when opening the core | S60-1301 | -1302 | -1303 | -1304 | -1305 | -1306 | -1300 | -1307 | |||||||
4-M10 | Closed core no response | S60-3301 | -3302 | -3303 | -3304 | -3305 | -3306 | -3300 | -3307 | |||||||
2-M12 | Static signal | S60-5301 | -5302 | -5303 | -5304 | -5305 | -5306 | -5300 | -5307 | |||||||
Ls:M12X1.5 | Load sensing | |||||||||||||||
Dynamic signal | S60-7301 | -7302 | -7303 | -7304 | -7305 | -7306 | -7300 | -7307 | ||||||||
Load sensing | ||||||||||||||||
4-G1/2 | No reaction when opening the core | S60-1311 | -1312 | -1313 | -1314 | -1315 | -1316 | -1310 | -1317 | |||||||
4-M10 | Closed core no response | S60-3311 | -3312 | -3313 | -3314 | -3315 | -3316 | -3310 | -3317 | |||||||
2-M12 | Static signal | S60-5311 | -5312 | -5313 | -5314 | -5315 | -5316 | -5310 | -5317 | |||||||
Ls:M12X1.5 | Load sensing | |||||||||||||||
Dynamic signal | S60-7311 | -7312 | -7313 | -7314 | -7315 | -7316 | -7310 | -7317 | ||||||||
Load sensing | ||||||||||||||||
4-M20X1.5 'O'-ring(Φ21.8) | No reaction when opening the core | S60-1321 | -1322 | -1323 | -1324 | -1325 | -1326 | -1320 | -1327 | |||||||
4-M10 | ||||||||||||||||
2-M12 | Closed core no response | S60-3321 | -3322 | -3323 | -3324 | -3325 | -3326 | -3320 | -3327 | |||||||
Ls: | Static signal | S60-5321 | -5322 | -5323 | -5324 | -5325 | -5326 | -5320 | -5327 | |||||||
M12X1.5 'O'-ring | Load sensing | |||||||||||||||
Dynamic signal | S60-7321 | -7322 | -7323 | -7324 | -7325 | -7326 | -7320 | -7327 | ||||||||
Load sensing | ||||||||||||||||
4-3/4-16 UNF 'O'-ring | No reaction when opening the core | S60-1331 | -1332 | -1333 | -1334 | -1335 | -1336 | -1330 | -1337 | |||||||
4-3/8-16UNC | ||||||||||||||||
2-3/8-24UNF | Closed core no response | S60-3331 | -3332 | -3333 | -3334 | -3335 | -3336 | -3330 | -3337 | |||||||
Ls: | Static signal | S60-5331 | -5332 | -5333 | -5334 | -5335 | -5336 | -5330 | -5337 | |||||||
7/16-20UNF'O'-ring | Load sensing | |||||||||||||||
Dynamic signal | S60-7331 | -7332 | -7333 | -7334 | -7335 | -7336 | -7330 | -7337 | ||||||||
Load sensing | ||||||||||||||||
4-G1/2 | No reaction when opening the core | S60-1411 | -1412 | -1413 | -1414 | -1415 | -1416 | -1410 | -1417 | |||||||
4-M10X1.5 | ||||||||||||||||
2-M10x1 | Closed core no response | S60-3411 | -3412 | -3413 | -3414 | -3415 | -3416 | -3410 | -3417 | |||||||
Ls: | Static signal | S60-5411 | -5412 | -5413 | -5414 | -5415 | -5416 | -5410 | -5417 | |||||||
M12X1.5 | Load sensing | |||||||||||||||
Dynamic signal | S60-7411 | -7412 | -7413 | -7414 | -7415 | -7416 | -7410 | -7417 | ||||||||
Load sensing | ||||||||||||||||
