Multifunctional Electric Lift Worm Gear Screw Jack for Lifting Tools

The Raydafon Multifunctional Electric Lift Worm Gear Screw Jack is a cutting-edge lifting tool designed for efficiency and durability. Perfect for professionals and DIY enthusiasts alike, this electric screw jack simplifies the lifting process with its robust worm gear mechanism, offering precise and stable lifting performance. Its multifunctional design makes it ideal for a variety of applications, from automotive repairs to construction projects, ensuring versatility across different work scenarios. Crafted with high-quality materials, the Raydafon Electric Lift boasts exceptional strength and longevity, standing out in the market for its reliability. The electric operation provides a user-friendly experience, eliminating the manual effort required by traditional jacks. This feature not only enhances safety but also significantly improves productivity, allowing users to complete tasks with ease and confidence. Whether you're a professional mechanic looking for a dependable tool or a hobbyist in need of a reliable lifting solution, the Raydafon Electric Lift is designed to meet your needs. Its compact and portable design ensures it can be easily transported and used in various settings, from garages to industrial sites. Experience the difference with the Raydafon Multifunctional Electric Lift Worm Gear Screw Jack. Its unique combination of power, precision, and portability addresses common lifting challenges, offering a solution that is not only effective but also transforms the way you work. Say goodbye to the limitations of conventional lifting tools and embrace the efficiency and convenience of Raydafon's innovative design.

Send Inquiry

Product Description

Worm Gear Screw Lift Jack System Swl Base Shoring Heavy Duty Landing Rod Trolley Hand Crank Geared Rack Screw Lift Jack

Function:

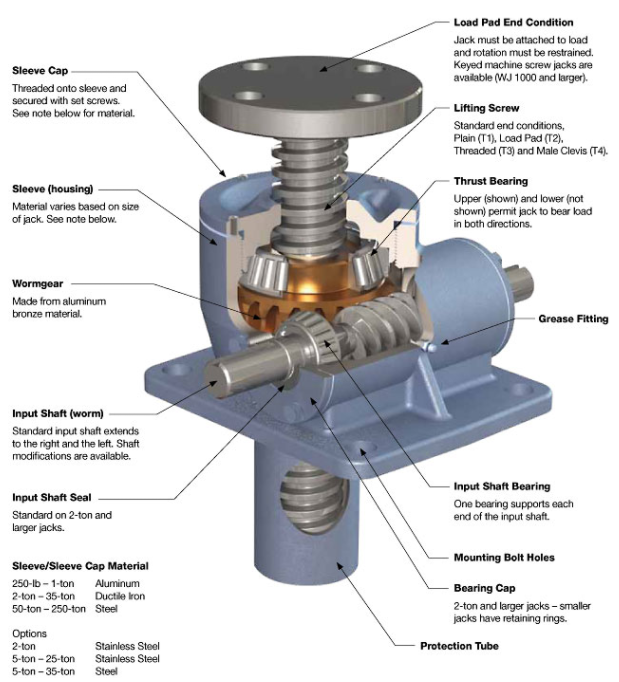

Screw jack/lift is a basis jack-up part, accomplanish the fuctions such as
lifting, drop, push and inverting through worm gear drives screw.
Advantages:
-Self-locking ability
-Can be driven directly by motor or other power or manual
-Can be customized according user's demand
-Compact configuration, small size, lightweight
-Convenient installation, flexible operation
-High reliability and stability
-Long service life
-More connection form etc.
Application Industry:
Screw jak is applied to all fields for lifting or pulling, such as
Aircraft maintenance platform, Solar plate, machinery, metallurgy,
water conservancy, medical treatment, chemical industry, culture and
hygienist etc.

Model				QJC-1.5B	QJC-3B	QJC-5B	QJC-10B	QJC-16B	QJC-20B
Rated capacity			t	1.5	3	5	10	16	20
Test load			kN	18.4	36.8	61.3	122.5	196	245
Lifting height			mm	350	350	300	300	300	400
Min.start jacking height	Over-bracket	mm	725	725	725	800	800	950
Min.start jacking height		Under-bracket	mm	70	75	75	85	95	110
Lifting height for the handle turn a ring			mm	15	8.5	4.3	5.0	3.5	2.5
The handle pull to lift full load			N	280	310	350	680	680	700
The number of operator			PCS	1	1	1	2	2	2
The handle turning radius R			mm	250	250	250	300	300	300
Dimensions mm			A	125	185	192	242	285	376
				B	293	304	330	485	492	505
				B1	193	204	232	254	282	295
				H	722	724	724	796	798	948
				h	68	72	74	82	93	108
				L	130	130	130	250	250	250
				W	130	130	150	150	160	200
				P	140	140	170	170	190	230
Net weight			kg	14.5	21	30	49	68	93

Raydafon GROUP SPECIALIST IN MAKING ALL KINDS OF MECHANICAL TRANSMISSION AND HYDRAULIC TRANSMISSION LIKE: PLANETARY GEARBOXES, WORM REDUCERS, IN-LINE HELICAL GEAR SPEED REDUCERS, ARALLEL SHAFT HELICAL GEAR REDUCERS, HELICAL BEVEL REDUCERS, HELICAL WORM GEAR REDUCERS, AGRICULTURAL GEARBOXES, TRACTOR GEARBOXES, AUTO GEARBOXES, PTO DRIVE SHAFTS, SPECIAL REDUCER & RELATED GEAR COMPONENTS AND OTHER RELATED PRODUCTS, SPROCKETS, HYDRAULIC SYSTEM, VACUUM PUMPS, FLUID COUPLING, GEAR RACKS, CHAINS, TIMING PULLEYS, UDL SPEED VARIATORS, V PULLEYS, HYDRAULIC CYLINDER, GEAR PUMPS, SCREW AIR COMPRESSORS, SHAFT COLLARS LOW BACKLASH WORM REDUCERS AND SO ON. FURTHERMORE, WE CAN PRODUCE CUSTOMIZED VARIATORS, GEARED MOTORS, ELECTRIC MOTORS AND OTHER HYDRAULIC PRODUCTS ACCORDING TO CUSTOMERS’ DRAWINGS.

Q: Are you trading company or manufacturer ? A: Our group consists in 3 factories and 2 abroad sales corporations. Q: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. Q: How long is your delivery time ? What is your terms of payment ? A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment. Q: What is the exact MOQ or price for your product ? A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation. If you have another question, please feel free to contact us.
