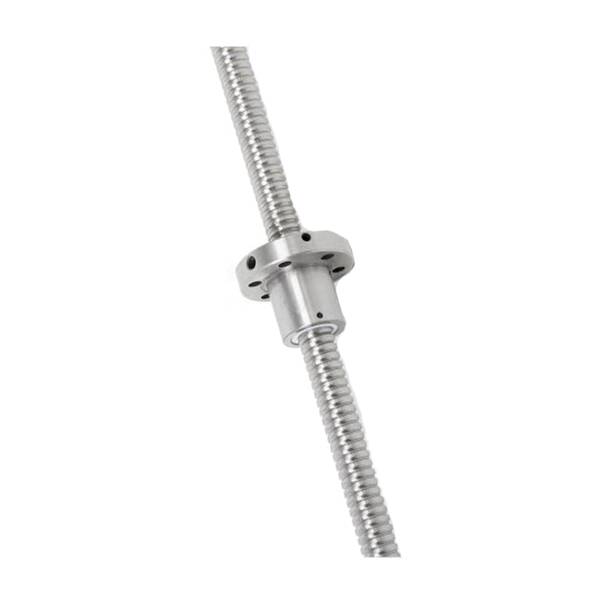

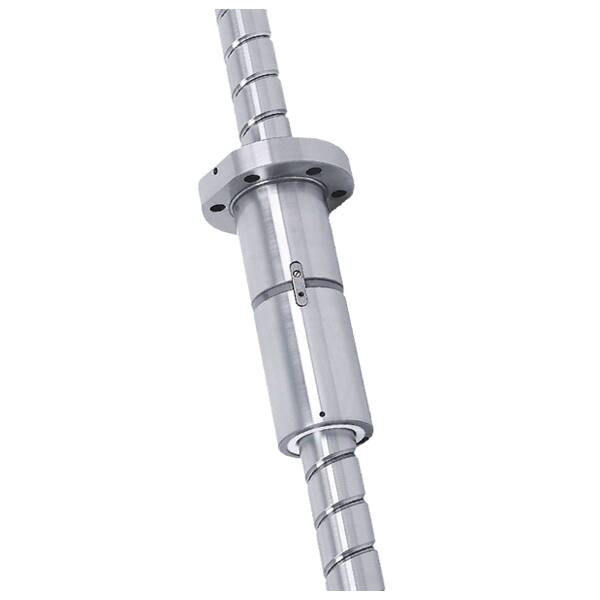

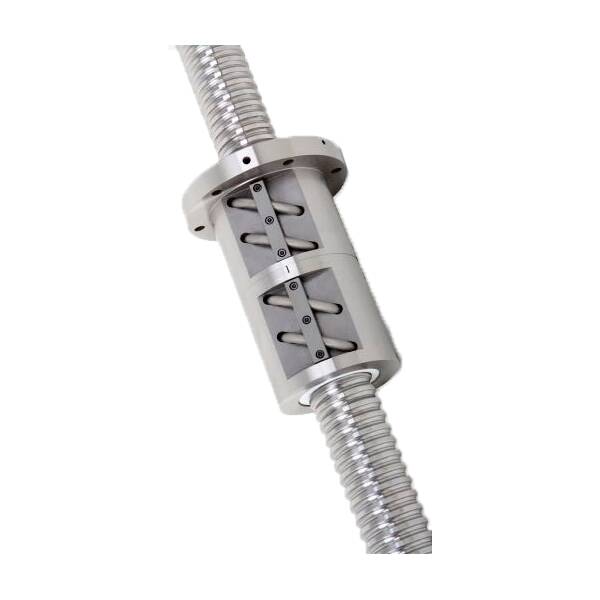

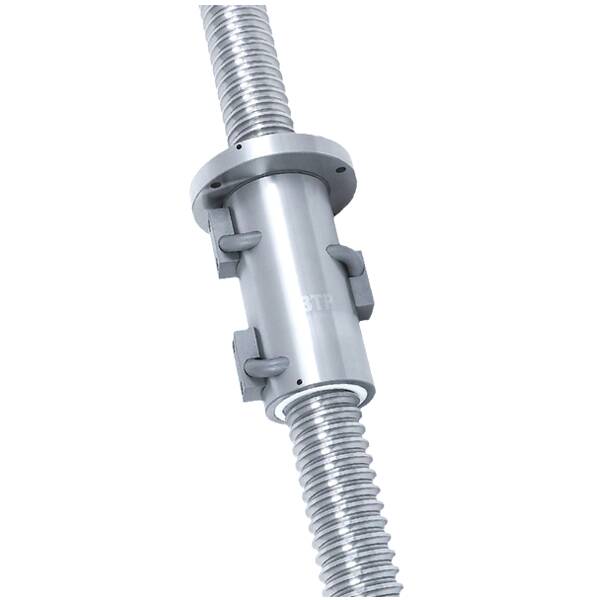

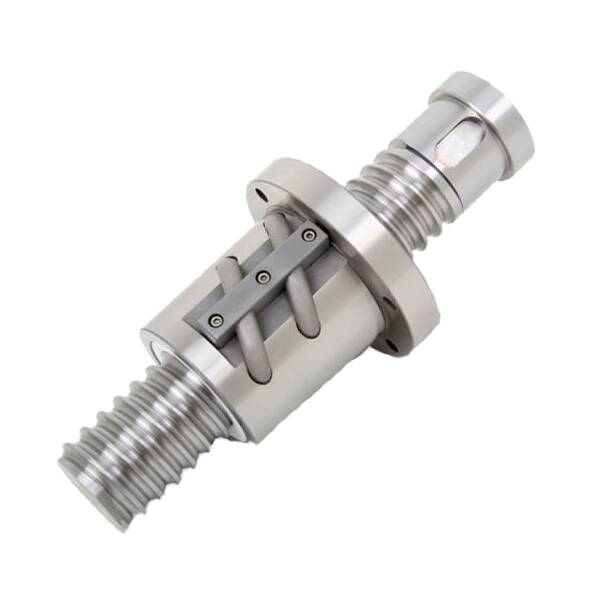

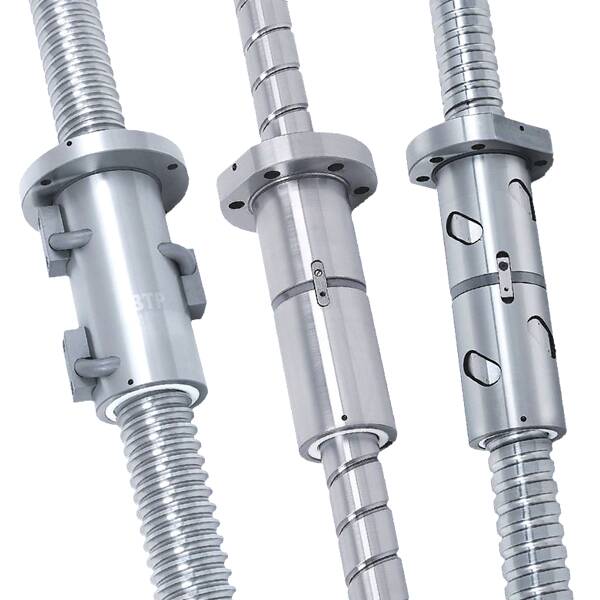

Promotional Various Durable Using Single or Double Nuts Z.ZD Rolled Series Ball Screw
Discover the precision and durability of Raydafon's Promotional Various Durable Using Single or Double Nuts Z.ZD Rolled Series Ball Screw, a game-changer in mechanical and industrial applications. Designed for engineers, manufacturers, and DIY enthusiasts, this ball screw stands out for its exceptional quality, high performance, and versatility. Whether it's for CNC machinery, automation equipment, or precision tools, our ball screw ensures smooth, accurate, and reliable operation. Made with premium materials and cutting-edge technology, it boasts a longer lifespan and superior resistance to wear and tear compared to ordinary screws. Its unique design allows for easy installation and maintenance, making it a cost-effective solution for your mechanical needs. With Raydafon's ball screw, experience the difference in performance and efficiency, and take your projects to the next level. Ideal for professionals seeking reliability and precision in their work, it's also a perfect gift for tech-savvy individuals who appreciate high-quality mechanical components. Choose Raydafon for a product that combines innovation, durability, and performance, setting a new standard in the ball screw market.
Product Name | Best quality ball screw |
Material | Bearing Steel |
Color | nickel white |
Standard | DIN GB ISO JIS BA ANSI |
Application | automatic machinery |
Grade | 4,5 or according to customers' requirements |
Thread | Milled Thread |
Warranty | 12 months |
Characteristics of ball screw pair
(1) high transmission efficiency
(2) high positioning accuracy
(3) transmission reversibility
(4) long service life
(5) good synchronization performance
(2) high positioning accuracy
(3) transmission reversibility
(4) long service life
(5) good synchronization performance
Ball screw pair is a mechanical component composed of screw, nut, ball and other components. Its function is to convert rotary motion into linear motion or linear motion into rotary motion. It is a further development of the traditional sliding screw. The profound significance of this development is the same as the changes brought by rolling bearings to sliding bearings. Because of its excellent friction characteristics, ball screw pairs are widely used in various industrial equipment, precision instruments and precision CNC machine tools.
Since our company developed the first set of ball screw pairs in China in 1964, the company has been leading and infiltrating the development of domestic ball screw pairs in the technical development of ball screw pairs, and has been in the leading position in the R & D and manufacturing of domestic ball screw pairs. In order to adapt to the development of CNC machine tools, the company has established the product development direction of "large-scale, heavy-duty, high-speed and high-precision". In the process of product research and development, a number of new products with independent intellectual property rights, such as dkfzd end block high-speed and high-precision ball screw pair and JF / jfzd matrix large heavy-duty ball screw, have been launched. More than 30 patents have been applied for and authorized. In terms of processing technology, the company took the lead in applying induction hardening technology to the heat treatment of ball screw pairs, greatly improving the production efficiency of ball screw pairs. In recent years, the company has successfully introduced the world-class leistritz high-speed hardware rotary milling machine and hardware material rotary milling technology, which has changed the traditional processing technology for decades, improved the production capacity and quality, and greatly shortened the product production cycle. By using pre batch sizing, the product supply cycle can be shortened to 15 days.
At present, the company can produce the smallest diameter Φ 6mm, lead 1mm; The maximum specification diameter is Φ 245mm; The length of single screw is 10m, and the maximum dynamic load rating is 125t. Suitable for ball screw pairs in various applications; Various ball screw pairs of 2m P1, 3M P2, 5m P3 and 10m P5 can be provided in batches. It is a professional manufacturer of ball screw pairs with the largest variety and the most complete specifications in China.
For more details, please click here to contact us! | ||||||||
Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.
Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.
If you have another question, please feel free to contact us.
FOR MORE DETAIL, PLEASE CONTACT US. |
Hot Tags: Z.ZD Rolled Ball Screw Supplier, Single Double Nuts Ball Screw Manufacturer, Durable Ball Screw Wholesale
