PTO SPEED REDUCER GEARBOX

Discover the Raydafon PTO Speed Reducer Gearbox, a powerhouse of efficiency and durability designed to transform your mechanical operations. This top-tier gearbox is engineered for those who demand reliability and precision in their machinery, whether it's for agricultural, industrial, or construction applications. With its robust construction and advanced technology, the PTO Speed Reducer Gearbox stands out as a vital component for enhancing performance and extending the lifespan of your equipment. Crafted from high-quality materials, the Raydafon gearbox boasts superior resistance to wear and tear, ensuring long-term reliability even under the most demanding conditions. Its innovative design allows for seamless integration with various types of machinery, providing a smooth and efficient power transmission that maximizes productivity. The gearbox's user-friendly interface ensures easy operation, making it accessible to both seasoned professionals and those new to mechanical operations. The Raydafon PTO Speed Reducer Gearbox is not just a tool; it's a solution to common mechanical challenges, offering peace of mind through its unmatched performance and durability. It solves the problem of inefficient power transmission and frequent maintenance, allowing users to focus on their work without unnecessary interruptions. What sets the Raydafon gearbox apart from the competition is its commitment to quality and innovation. Unlike standard gearboxes, it features a specialized cooling system that prevents overheating, a common issue in high-performance applications. This, combined with its precision engineering, makes it a standout choice for those who refuse to compromise on quality. Whether you're a professional in need of a reliable gearbox for heavy-duty tasks or a hobbyist looking to upgrade your equipment, the Raydafon PTO Speed Reducer Gearbox is your go-to solution. Experience the difference that superior design and engineering can make in your operations. Choose Raydafon for a gearbox that delivers performance, durability, and efficiency, all in one compact package.

Send Inquiry

Product Description

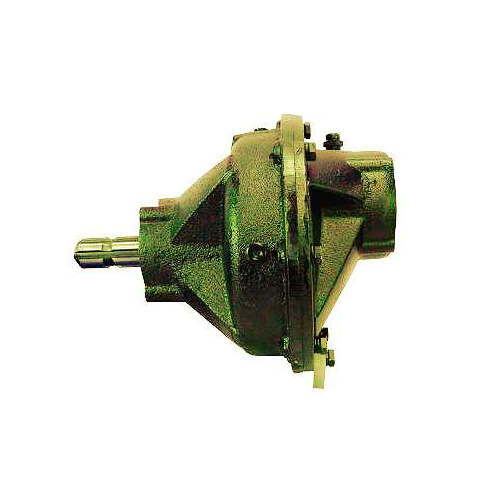

PTO SPEED REDUCER

The gearbox is a designed to alter the output speed of your tractors PTO shaft. Its versatile design allows the gearbox to be used as either an increasing ratio or decreasing ratio gearbox to suit your needs.

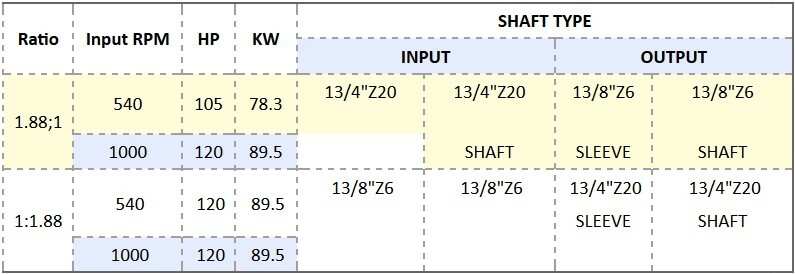

As a decreasing ratio gearbox it will reduce 1000 rpm PTO shaft speed to 540 rpm allowing the use of equipment designed to operate at 540 rpm.
As an increasing ratio gearbox it will increase 540 rpm PTO shaft speed to 1000 rpm.

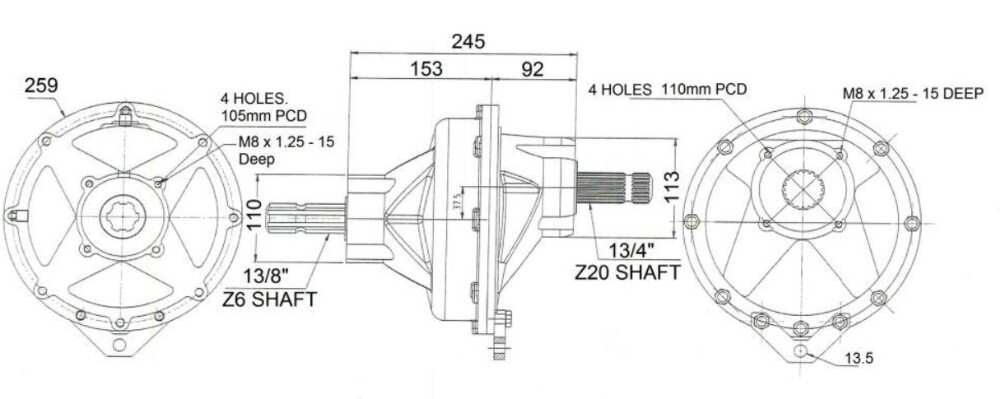

The gearbox is assembled with 2 x internal splined sleeves. One 13/8"Z6 the other 13/4"Z20. These splined sleeves allow for direct coupling to your tractors PTO shaft as the input. The gearbox is also supplied with 2 x separate shafts with matching splines. These are easily assembled to give you the required output shaft.
Notes:
- Although designed for attachment to a tractors PTO shaft this gearbox can be used in other applications on agricultural machinery.
- A lug is supplied fitted to the base of the gearbox housing. This must be securely attached to your tractor by way of a chain or mounting plate to ensure the gearbox does not rotate during operation.
- Gearboxes are shipped without oil. Please fill to the level plug with EP90 gear oil before use.
- This gearbox can be used on tractors with 13/8"Z21 (1000rpm) PTO shafts with the addition of our splined adaptor AL00296 (13/8"Z21 internal - 13/4"Z20 external)

Brand Name:

HZPT

Raydafon specialist in making all kinds of mechanical transmission and hydraulic transmission like: planetary gearboxes, worm reducers, in-line helical gear speed reducers, parallel shaft helical gear reducers, helical bevel reducers, helical worm gear reducers, agricultural gearboxes, tractor gearboxes, auto gearboxes, pto drive shafts, special reducer & related gear components and other related products, sprockets, hydraulic system, vaccum pumps, fluid coupling, gear racks, chains, timing pulleys, udl speed variators, v pulleys, hydraulic cylinder, gear pumps, screw air compressors, shaft collars low backlash worm reducers and so on. furthermore, we can produce customized variators, geared motors, electric motors and other hydraulic products according to customers' drawings.
The company provides a reliable gurantee for the product' s quality by advanced inspection and testing equipment. professional technical team, exquisite processing technology and strict control system.
In recent years, the company has been developing rapidly by its rich experience in production, adcanced managemant system, standardized management system, strong technical force. We always adhere the concept of survial by quality, and decelopment by innovation in science and technology.
Raydafon Group is willing to work with you hand in hand and create brilliance together!

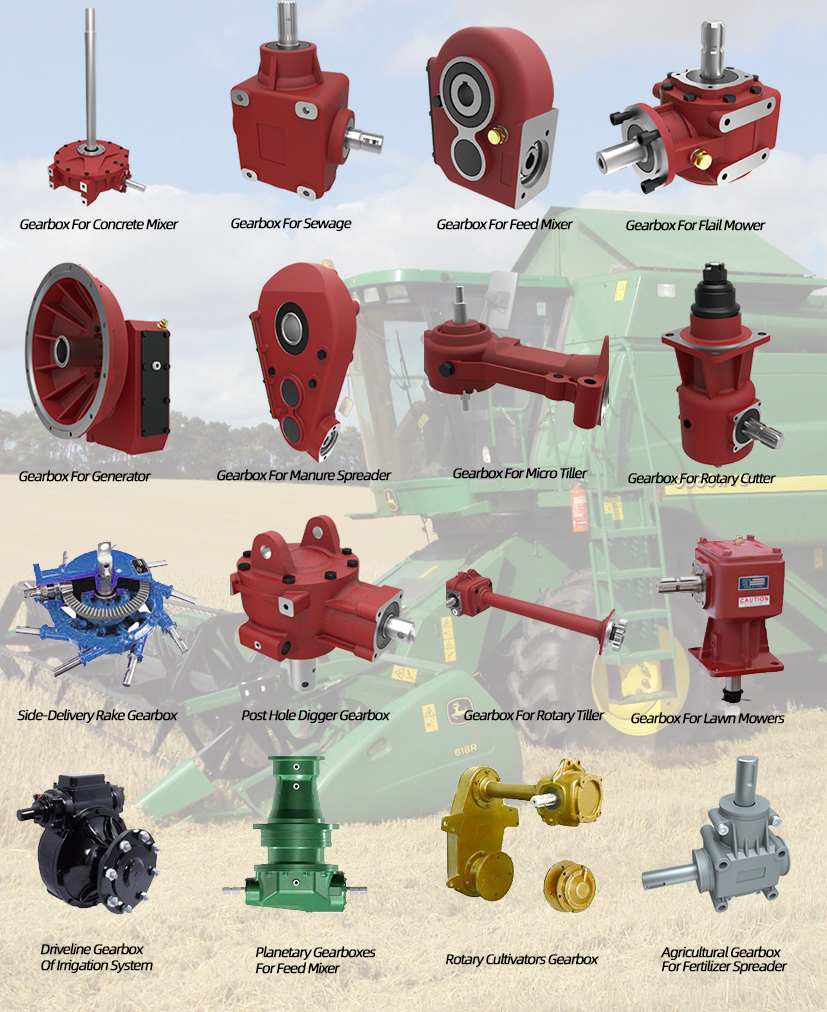

Gearbox For Rotary Tiller	Gearbox For Fertiliser Spreaders	Agricultural Gearbox For HAY TEDDER
Agricultural Gearbox For Rotary Cutter	Gearbox For Rotary Mowers	Agricultural Pto Gearboxes For Powered Generator
Post Hole Digger Gearbox	Gearbox For Self Loading Trailer	General Gearbox For Agricultural Machinery
Agricultural Gearbox For Manure Spreader	Gearboxes For Silo Distributors System	Driveline Motor Of Irrigation System
Agricultural Gearbox For Fertilizer Spreader	Hay Choppers Gearboxes	Driveline Gearbox Of Irrigation System
Agricultural Gearbox For Sprayers	Gearboxes For Balers	Center-Dive Gear Box Of Irrigation System
Agricultural Gearbox For Flail Mower	Gearboxes Multiplier For Hydraulic Pump System	Hydraulic PTO Drive Gearbox Speed Increaser
Agricultural Gearbox For Lawn Mowers	Planetary Gearbox For Hydraulic Drive Digger In Line	Side-Delivery Rake Gearbox
Agricultural Gearbox For Generator	Agricultural Gearbox For Harvest Fruits	Planetary Gearboxes For Feed Mixer
Agricultural Gearbox For Micro Tiller	Gearbox For Cattle Cleaning	PTO speed reducer
Agricultural Gearbox For Concrete Mixer	Gearbox For Digger Drive	Slasher gearboxes
Agricultural Gearbox For Feed Mixer	Gearbox For Dryer Drive System	Auger Gearboxes
Agitators For Sewage	Gearbox For Lagoon Pumps	Grain Harvester Reversing Gearbox
Salt Spreader Gearboxes	Bevel Gearbox For Biogas Energy Generator Plant	Oil-Pump-Gearbox
Gearbox reducer for Climate screens drive system	Gearbox For Circular Saw And Belt Saws	Potato Harvester Gearbox
Gearbox And Reducer For Crop Storage Drive Systems	Gearbox For Snow Tillers	Pesticide Sprayer Gearbox
Gearbox Reducer For Horticulture Drive Systems	Gearbox For Concrete Mixers	Chain Sprockets Gearbox
Drive Systems For Ventilation In Livestock Farming	Worm Gear Slewing Drive For Timber Grab	Agricultural Gearbox Grain Conveyor Gearbox
Electric Film Reeler Roll Up Units Winch For Poly Film Greenhouse Ventilation	Agriculture Gearbox For Rotary Harrows	Harvester Gearbox Reversing Bevel Gearbox
Rotary Harrows Gearbox	Agricultural Gearbox For Vineyard	Reversing Gearbox
Rotary Cultivators Gearbox	Agricultural Gearbox For Weed Mowers	Rotary Mower Gearboxes Size EP70
Gearbox For Trenchers	Agricultural Gearbox For Offset Mowers	Poultry and Pig Geared Motors For Feeding Systems
Interpump Gearbox For PTO Drive	Agricultural Gearbox For Flail Mowers	Salt Spreader Sprocket Chain Gearbox
Gearbox For Dusters

We also provide pto shafts.

Grinding Workshop

CNC Teeth Machine

CNC Lathe Workshop

Figuring Center

CNC Workshop

Heat Treatment Machine

3D Measurement Machinery

Gear Teeth Profile Test Machines

Heat Treatment Workshop

Tooth Profile Workshop

Material available

Low carbon steel, C45, 20CrMnTi, 42CrMo, 40Cr, stainless steel. Can be adapted regarding customer requirements.

Surface treatment

Blacking, galvanization, chroming, electrophoresis, color painting, ...

Heat treatment

High frequency quenching heat treatment, hardened teeth, carbonizing, nitride, ...

Q: Are you trading company or manufacturer ?
A: Our group consists in 3 factories and 2 abroad sales corporations.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: How long is your delivery time ? What is your terms of payment ?
A: Generally it is 40-45 days. The time may vary depending on the product and the level of customization. For standard products, the payment is: 30% T/T in advance ,balance before shippment.

Q: What is the exact MOQ or price for your product ?
A: As an OEM company, we can provide and adapt our products to a wide range of needs.Thus, MOQ and price may greatly vary with size, material and further specifications; For instance, costly products or standard products will usually have a lower MOQ. Please contact us with all relevant details to get the most accurate quotation.

If you have another question, please feel free to contact us.

Also I would like to take this opportunity to give a brief introduction of our Raydafon company:

Our company is a famous manufacturer of agriculture gearbox,worm reduce gearbox, PTO shafts, Sprockets ,rollar chains, bevel gear, pulleys and racks in china.

We have exported many products to our customers all over the world, we have long-time experience and strong technology support.

Some of our customer :
Italy: COMER,GB GEABOX ,SATI, CHIARAVALLI, AMA , Brevini
Germany: SILOKING ,GKN ,KTS
France: Itfran, Sedies
Brazil: AEMCO ,STU
USA: John Deere , BLOUNT, Weasler, Agco, Omni Gear, WOODS
Canada: JAY-LOR , CANIMEX ,RingBall
......

-Ø Our Company with over twelve year's history and 1000 workers and 20 sales.
-Ø With over 100 Million USD sales in 2017
-Ø With advance machinery equipments
-Ø With large work capacity and high quality control, ISO certified.
......
