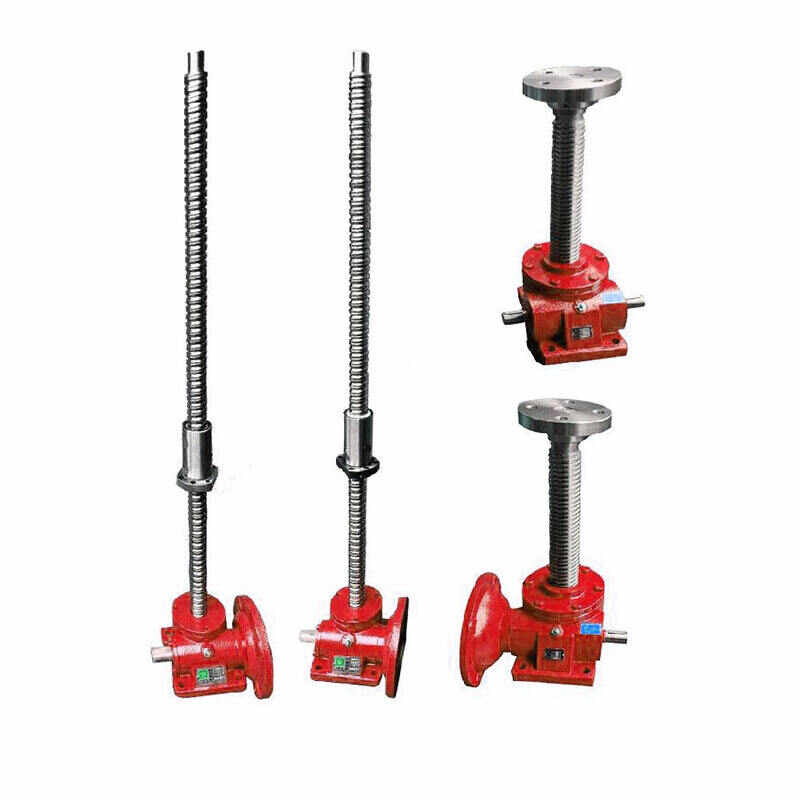

Swl Series Worm Screw Elevator Screw Jack
The Swl Series Worm Screw Elevator Screw Jack by Raydafon is a high-performance mechanical device designed to lift, lower, or position loads with precision and reliability. Ideal for industrial applications, construction sites, and even in the setup of stages and events, this screw jack is a testament to durability and efficiency. Crafted from high-quality materials, it boasts a robust design that ensures long-term service without compromising on performance. Its core advantages include exceptional load capacity, ease of installation, and minimal maintenance requirements, making it a cost-effective solution for heavy-duty lifting tasks. Whether you're an engineer, a construction professional, or a technician looking for a reliable tool to handle demanding tasks, the Swl Series is your go-to option. Experience the difference with Raydafon’s innovative design that focuses on user safety and operational excellence. Unlike conventional screw jacks, our product features a unique worm screw mechanism that provides smoother operation and greater precision. This not only solves the problem of unstable lifting but also enhances the overall user experience by ensuring safety and efficiency. Choose the Swl Series Worm Screw Elevator Screw Jack for a solution that combines strength, precision, and reliability, setting a new standard in the industry.
Electric or manual
Electric type
Manual type
Lead screw facing
The lead screw is below
The screw rod is above
Click here for more models | ||||||||
Product overview
1.Compact structure, small volume, light weight, no noise, safe and convenient, flexible to use2.High reliability, wide power source, multiple supporting functions and long service life3.It can be used alone or in combination. It can accurately control and adjust the lifting or pushing height according to certain procedures. It can be directly driven by motor or other power, or it can be manually operated.4.In order to improve the efficiency and bearing capacity of the screw hoist, special and advanced technology has been developed to improve the comprehensive performance of the hoist to meet the requirements of customers.5.It has many functions, such as lifting, lowering, pushing with the aid of auxiliary parts, overturning and various height position adjustment6.The lifting height can be customized according to the user's requirements for different structural types and assembly types.7.Large speed ratio has self-locking function, but when subjected to large vibration and impact load, the self-locking function may fail. At this time, please add a brake device or a brake motor to prevent objects from falling
Product formStructure typeAccording to the structural type, elevators are divided into:The screw moves axially and simultaneously;Type 2 - the screw rotates. The nut on the lead screw moves axially.Assembly formEach structural type of elevator can be divided into two assembly typesType A - the screw (or nut) moves upward;Type B - the screw (or nut) moves downward.Type of screw headThe part of type 1 structure is as follows:I (cylindrical type), II (flange type), III (threaded type) and IV (flat head type).There are two types of screw head: I (cylindrical type) and III (threaded type).
performance parameter Model range: swl1-swl100Transmission ratio: elevator is divided into two kinds of transmission ratio, namely ordinary (P) and slow (m)Lifting capacity: 1, 2.5, 5, 10, 15, 20, 25, 35, 50100 (* 10kN) 10 kindsEquipped power: 0.18kw-45kw
Packaging:
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )
Chain+Plastic Bag+ Carton+Wooden case( If you have other requirements, we can customized according to customer requirements packaging. )
Shipping :
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
1.Most of the standard ones are in stock which we can send in 3-10 days after inspection and package.
2. Customized products delivery time should be determined according to the number.
