T Series Process Shaft Disc Parts Horizontal CNC Machine for Automobiles Bearings Hydraulic Process Threads Arcs Cones

Discover the precision and efficiency of the Raydafon T Series Process Shaft Disc Parts Horizontal CNC Machine, a groundbreaking solution designed for the automotive industry's most demanding applications. Engineered to perfection, this CNC machine specializes in processing bearings, hydraulic components, threads, arcs, and cones with unparalleled accuracy and speed. Whether you're in the production of high-performance automobiles or precision engineering components, the Raydafon T Series is your go-to for reliability and excellence. The core advantages of the Raydafon T Series lie in its advanced technology, superior material quality, and innovative design. With state-of-the-art CNC capabilities, it delivers flawless results every time, enhancing productivity and reducing downtime. Its robust construction ensures durability, while the user-friendly interface makes operation seamless for professionals. This machine is ideal for manufacturing engineers, automotive parts producers, and industrial workshops looking to elevate their production quality. It's perfect for scenarios requiring high-precision machining, from prototype development to mass production. Choosing the Raydafon T Series means investing in a solution that not only meets but exceeds expectations. Experience the difference with faster production cycles, reduced waste, and superior part quality. It's not just a machine; it's a game-changer for your production line. What sets the Raydafon T Series apart is its ability to handle complex geometries with ease, thanks to its horizontal CNC design. This unique feature allows for more versatile machining options, setting a new standard in the industry. Combine this with Raydafon's commitment to innovation, and you have a product that stands out in a crowded market. Embrace the future of manufacturing with the Raydafon T Series Process Shaft Disc Parts Horizontal CNC Machine. Let's revolutionize your production process together.

Send Inquiry

Product Description

T series Horizontal CNC Machine

This series of machine tools can process shaft and disc parts, turning threads, arcs, cones, and the inner and outer surfaces of rotating bodies. It can efficiently, in large quantities, and with high precision process rotating body parts, especially suitable for industries such as automobiles, motors, bearings, and hydraulic systems.

High efficiency: Fast moving speed up to 30m/min High rigidity: ensures stability during re cutting High scalability: modular recombination unit

		T160P	T360P	T360	T360H	T360M	T360MS
Maximum cutting diameter	mm	230	360	360	360	360	360
Maximum cutting length	mm	300	300	500	500	500	500
Stroke X-axis	mm	400	400	200	200	200	200
Stroke Z-axis	mm	400	400	560	560	560	650
Spindle end type	-	A2-5	A2-6	A2-6	A2-8/A2-6	A2-8/A2-6	A2-8/A2-6
Spindle speed	r/min	4500	4500	4500	4500(A2-6) 4000(A2-8)	4500(A2-6) 4000(A2-8)	4500(A2-6) 4000(A2-8)
Main motor power	kw	5.5/7.5	11/15	11/15	11/15(A2-6) 15/18.5(A2-8)	11/15(A2-6) 15/18.5(A2-8)	11/15(A2-6) 15/18.5(A2-8)
Spindle torque	N.m	59	176	176	178(A2-6) 221(A2-8)	178(A2-6) 221(A2-8)	178(A2-6) 221(A2-8)
Knife holder	-	Knife arrangement	Knife arrangement	80 Center high hydraulic tool holder	100 Center high hydraulic tool holder	100 Center high hydraulic tool holder	100 Center high hydraulic tool holder
Fast movement speed XZ	m/min	30/30	30/30	30/30	30/30	30/30	30/30
Host size	mm	220020801960	220020801960	275017302100	275017302100	275017302100	275017302100

Workpiece Sample : Valve Guide

Workpiece Material : Copper

Linear Velocity : 30-1 20m / min

Feed Rate : 0 . 03-0 . 2mm / r

Machining Efficiency : 0 . 93min

Workpiece Sample: Clutch Hub

Workpiece Material: Cast Iron

Linear Velocity. 70-120m/min

Feed Rate: 0.1mm/r

Machining Efficiency. 2.38min

Workpiece Sample : Fiiter

Workpiece Materia : 45 Steel , Stainless Steel

Linear Velocity . 2-150 / min

Feed Rate : 0 . 05-2mm / r

Machining Efficiency:16 . 5min

Workpiece Sample : Hub / Axle

Workpiece Material : Steel

Linear Velocity : 60-180m / min

Feed Rate : 0 . 1-0 . 3mm /r

Machining Efficiency . 5 . 73min

CNC machines

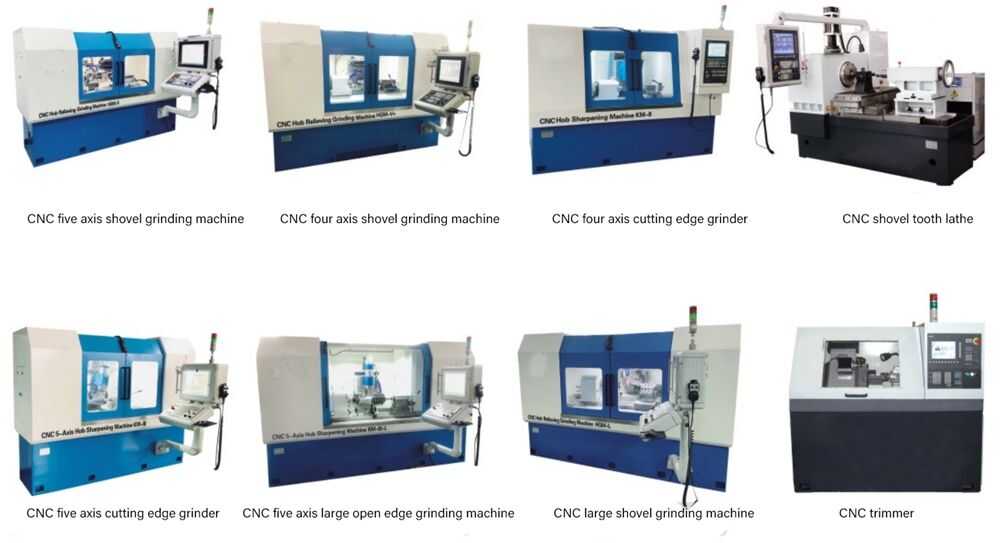

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

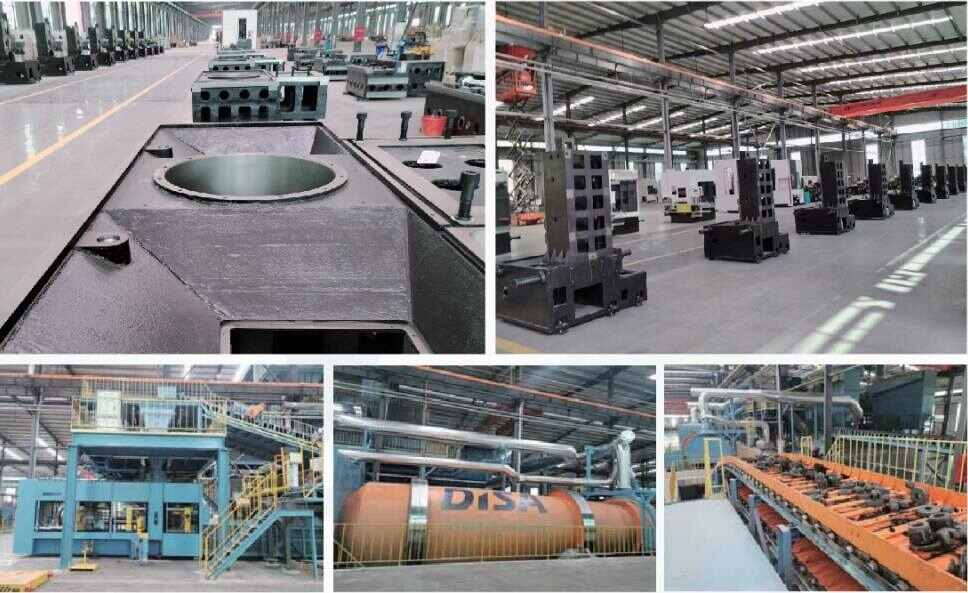

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
