T6 T6A 6 Axis CNC Machine Tool Grinder Lathe Machining Center

The Raydafon T6/T6A 6 Axis CNC Machine Tool Grinder Lathe Machining Center is a state-of-the-art solution designed for precision machining and grinding tasks. This versatile machine combines the functionality of a lathe and a grinder, making it an indispensable tool for professionals in the manufacturing industry. Its 6-axis capability allows for unparalleled precision and flexibility, enabling users to tackle complex projects with ease. Crafted from high-quality materials, the T6/T6A is built to last, ensuring durability and long-term performance. Whether you're a seasoned machinist or a small business owner looking to enhance your production capabilities, this machine is tailored to meet your needs. Experience the difference with the Raydafon T6/T6A – where innovation meets precision. Stand out from the competition with our unique 6-axis design, offering more versatility and efficiency than standard models. Transform your machining process and achieve flawless results every time.

Send Inquiry

Product Description

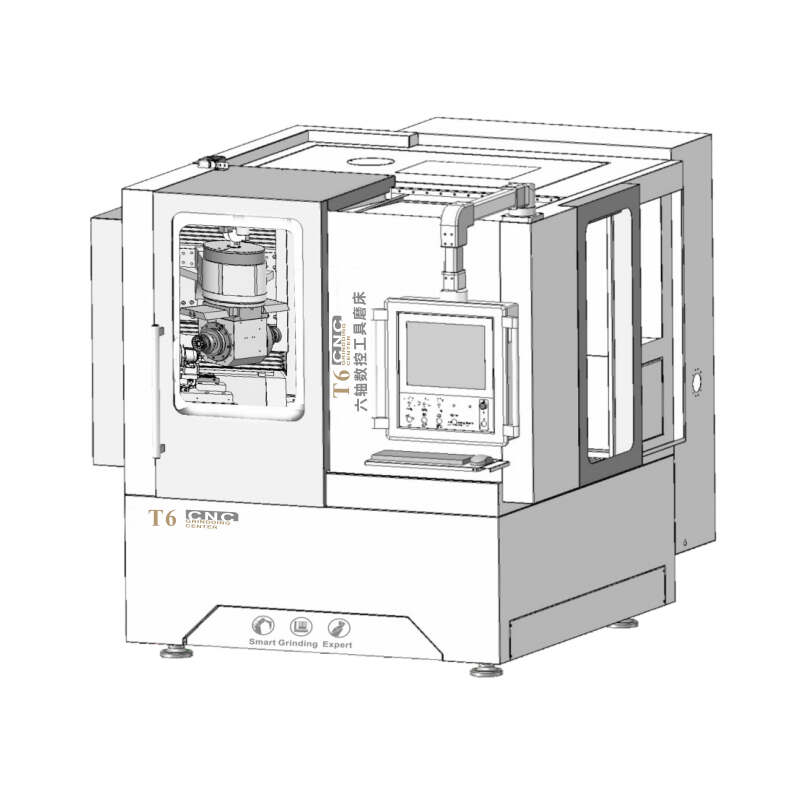

T6/T6A 6 Axis CNC Tool Grinder

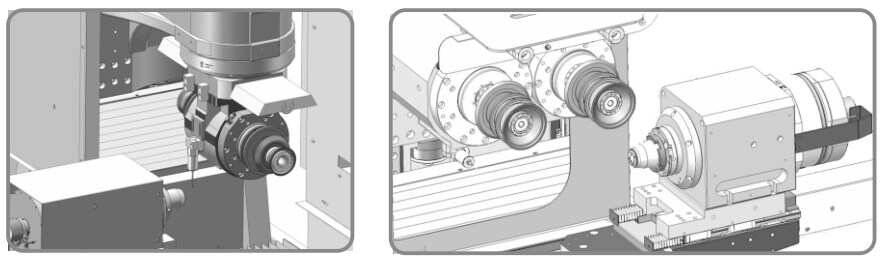

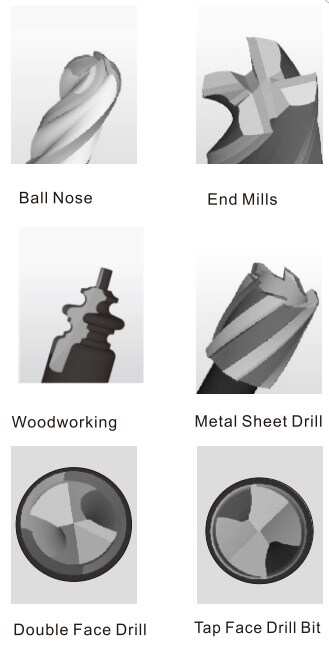

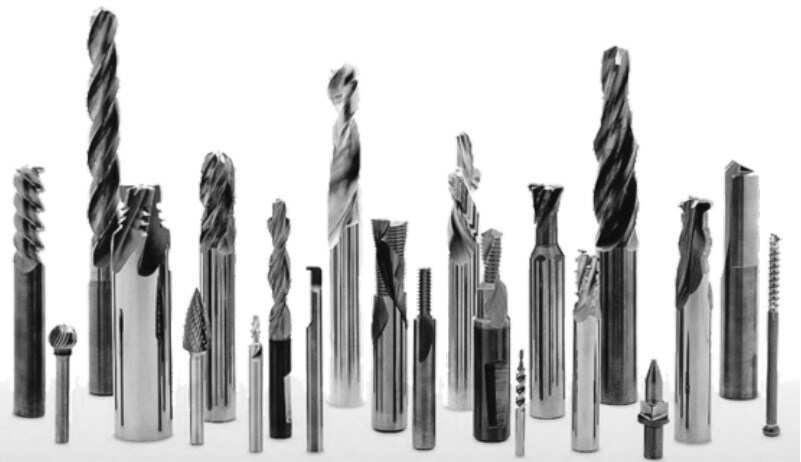

Equipped with direct drive spindle for double grinding wheel set, T6/T6A 5-axis CNC grinder is perfect forautomatically mass production of mills, drills, screw taps for aviation, automotive, molds, IT and medical industriesMain technical features

1.Direct drive/ Linear motor on workpiece swiveling axis(B), workpiece rotating axis(C)and x, Y, Z axis with HEIDEHAIN/FAGOR/RENISHAW magnet scale for higher machine accuracy.

2, Special following support devices are optional for longer drills grinding with high efficiency and high precision

3, Natural granite machine base provides excellent accuracy and temperature stability, which is a wise option forgh accuracy tool grinding

4, Automatic loading unloading system with anti-collision, maintenance free and fine adjustment function

5, Thanks to the innovative accurate press-blade system, precise grinding could be realized efficiently.

6, Workpiece axis(C axis)is equipped with pneumatic clamping and blowing device for fast change system Pressureelief window, automatic power air off, power failure automatic lock.

7, wide extension with BP/SYNTEC Provides a wide extension. Toolbox 3D grinding simulating software annnovative BP intelligent grinding software bring a smarter and easier operation experience

8, Smart tool managing system can realize automatic grinding, probing, laser engraving, etc.Real-time data collecting, remote diagnose, maintenance, supervising and management is possible

Double-end spindle wheel			Work piece grinding capacity
Elastic wheel flange link type	specified elastic flange	Work piece grinding capacity	0.8-16/25mm
Power	10/20/37kw	Grinding length	200mm
Max speed	10000rpm	Control resolution of linear axis	0.0001mm
Travel			Control resolution of rotating axis	0.0001
X aixs	440mm	Robot loading system
Y aixs	200mm	Work piece shank diameter	3-16/25mm
Z aixs	280mm	Max length of work piece	250mm
A aixs ( spindle rotation)	-15-185	X1 axis	400mm
B aixs( work piece swing axis)	-15-165	Y1 axis	350mm
C axis ( work piece rotating axis)	360	Z1 axis	90mm
Max speed of linear axis	10m/min	Connecting load
Work piece rotating axis ( C axis )			At 380V/50HZ	19/29/46kw
Max speed ( direct drive )	300rpm	Dimension
Standard taper hole type	BT50/W20/W25	Length*Width	2250*2450mm
Probing system	RENISHAW/MARPOSS	Height	2400mm
CNC system	BP/SYNTEC/FANUC/SIEMENS	Weight	4350kg

CNC machines

*CNC worm grinding machine *CNC forming gear grinding machine *CNC rolling cutter shovel grinding machine *CNC cutting edge grinder *CNC grinding wheel repair machine *CNC shovel tooth lathe *Fully CNC high-speed gear hobbing machine

Processing tools

*Measuring instruments *Production equipment *Gear hob *Insert gear hob *Gear hob *Worm gear hob *Involute spline hob *Triangular spline hob rectangular spline hob *Sprocket roller cutter *Circular arc gear hob *Synchronous belt roller cutter

Raydafon is a leading manufacturer and industrial service provider of CNC machine tools and intelligent equipment in the industry. It was established through strategic cooperation between Sichuan De'en Precision Technology Co., Ltd. and Jiangsu Youzhixiang Intelligent Manufacturing Co., Ltd. It has established two CNC machine tool production bases in Jiashan, Zhejiang and Pingshan, Yibin, Sichuan, with complete casting production lines, intelligent machine tool assembly lines, and intelligent testing equipment, Equipped with a professional R&D, manufacturing, and sales team, aiming to provide high-quality CNC machine tools and intelligent equipment solutions for the industry.

Relying on strong research and manufacturing capabilities in CNC machine tools, Raydafon not only provides customers with high-quality machine tool equipment, but also integrates and optimizes the industrial chain, providing customers with shared machine tools, intelligent tool cabinets, automation integration solutions, tool health monitoring systems, and other full industry chain equipment and life cycle industrial services. It empowers enterprises in all aspects and achieves industry-leading enterprises with high-quality products and professional services.

Raydafon is committed to providing customers with flexible equipment procurement models such as shared machine tools, machine tool leasing, sales, and rental purchase while connecting the casting, main components, and whole machine assembly industry chain.

1.Thousand machine tools, available for rent in stock 2.Ultra low rent, rent as needed 3.Take action lightly and reduce risks 4.Small investment, large returns 5.Worry free service, lifetime warranty 6.Renting instead of purchasing, flexible model

Raydafon has industry-leading casting production lines such as DISA vertical and horizontal lines, resin sand large, medium and small lines, lost foam production lines, and continuous casting production lines. It can achieve an annual production capacity of 300000 tons of castings and has a complete manufacturing system from casting and forging sheet metal, mechanical processing, heat treatment, packaging and final assembly to warehousing and distribution.

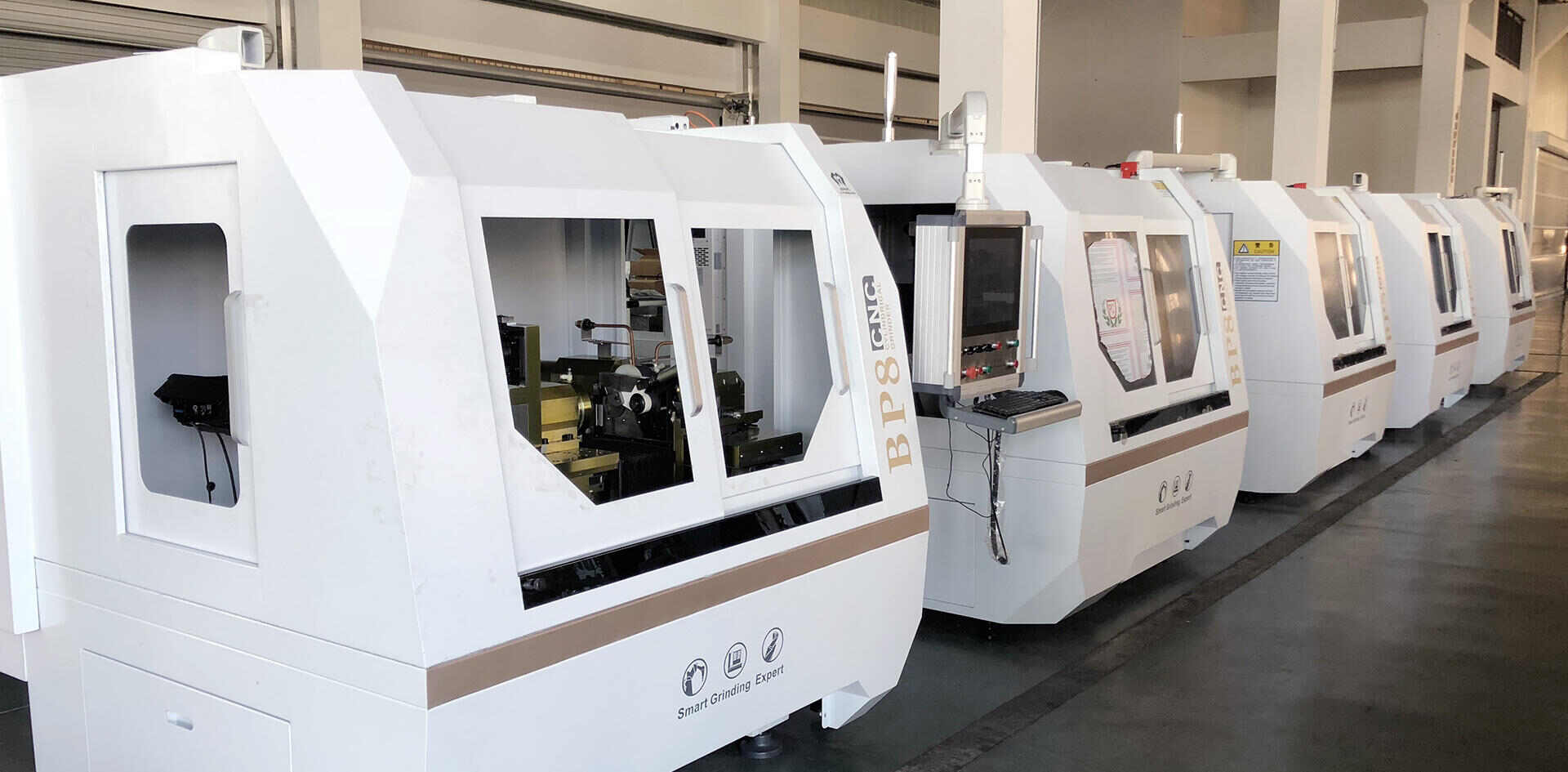

We have advanced lathe flow assembly lines, standard vertical assembly lines, and assembly lines for medium and large equipment. They are also equipped with constant temperature inspection rooms such as coordinate inspection and precision inspection, as well as high-end inspection equipment such as Zeiss high-performance coordinate measuring machines, Will profilometers, and Renishao laser interferometers, providing the industry with high-quality CNC machine tools and automation integration solutions.
